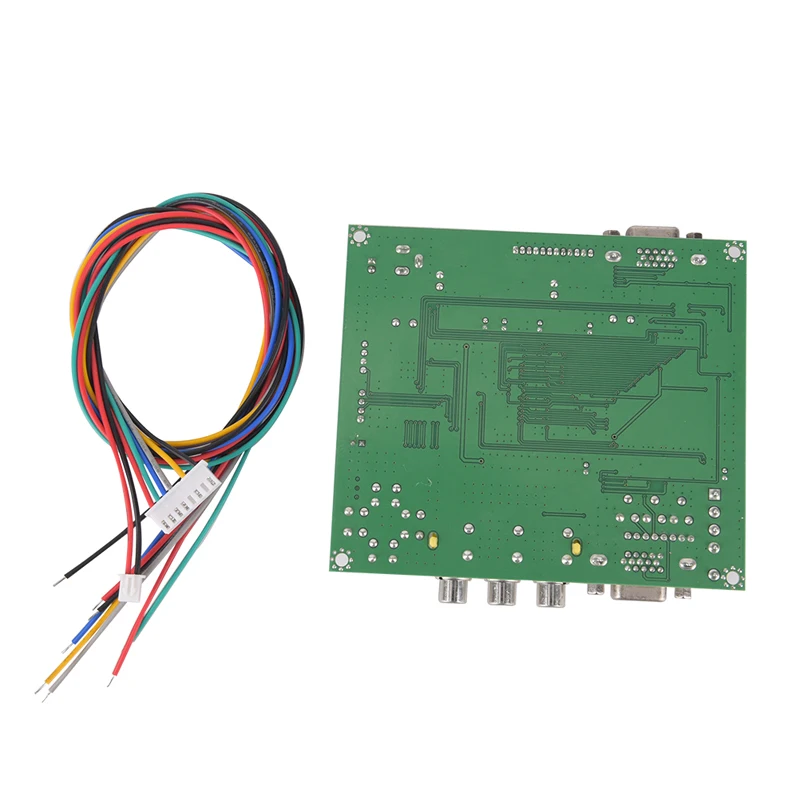

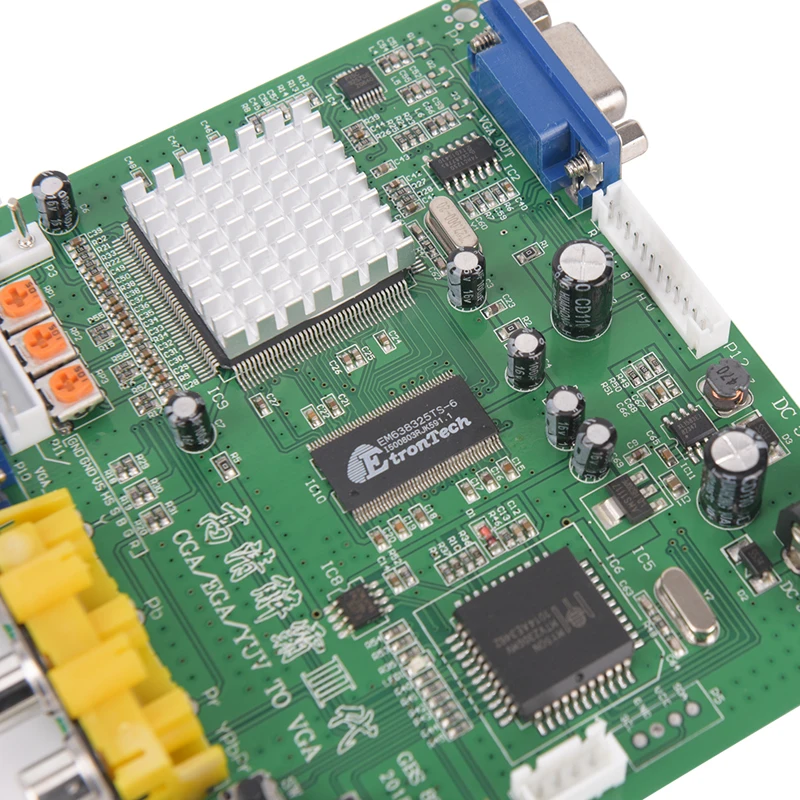

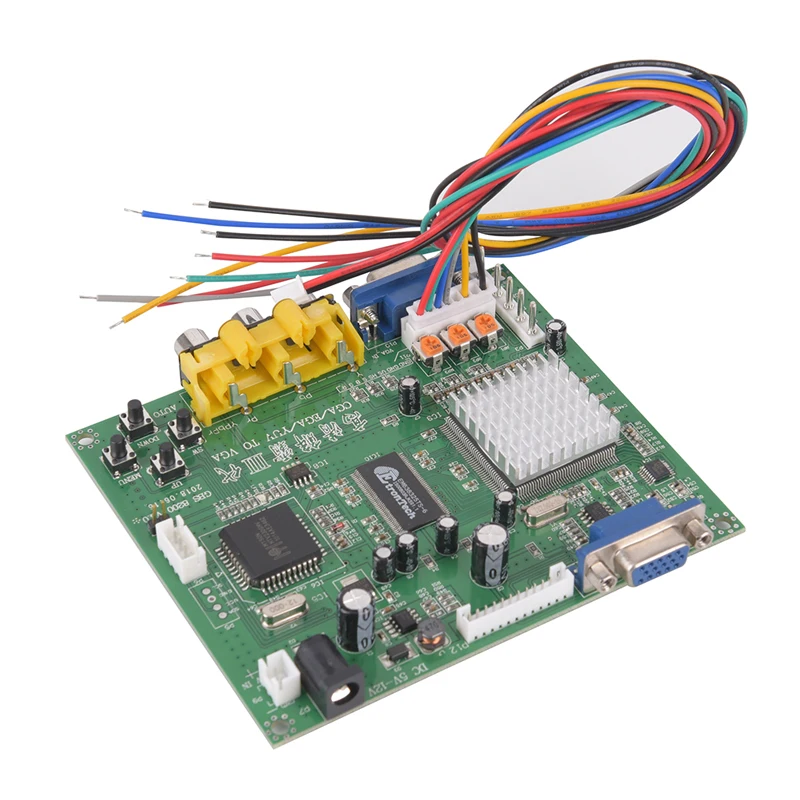

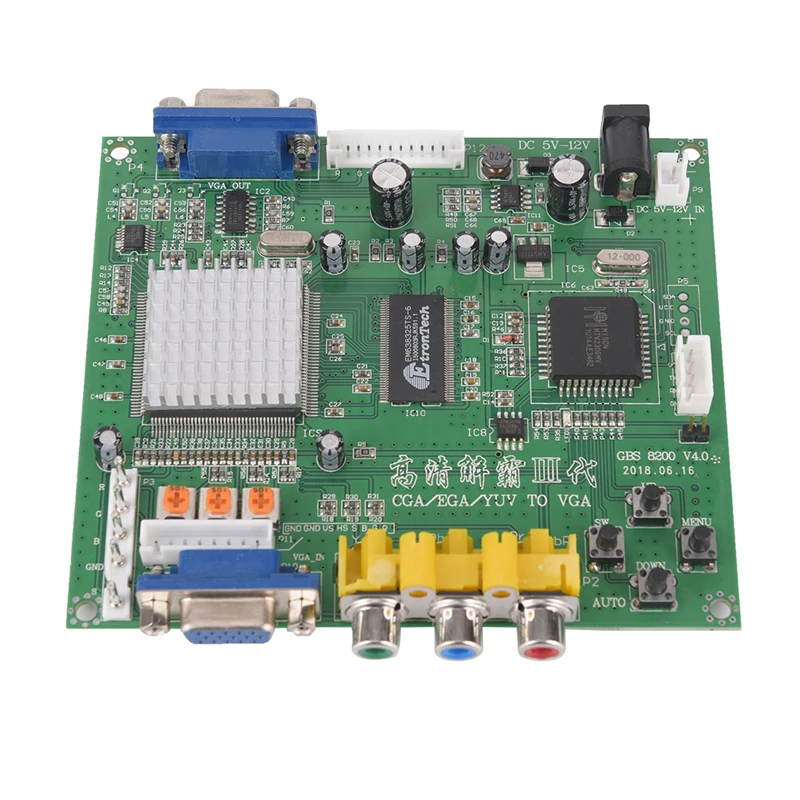

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br/><p><span style="font-size:16px;font-family:Verdana">Features: </span></p><br/><p><span style="font-size:16px;font-family:Verdana">Latest &amp; official GBS8200 HD-Converter Board. </span></p><p><span style="font-size:16px;font-family:Verdana">Supports CGA/EGA/VGA/YUV Component Signal Input </span></p><p><span style="font-size:16px;font-family:Verdana">Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768) </span></p><p><span style="font-size:16px;font-family:Verdana">CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz) </span></p><p><span style="font-size:16px;font-family:Verdana">YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p) </span></p><p><span style="font-size:16px;font-family:Verdana">On Screen Display (English and Chinese) </span></p><p><span style="font-size:16px;font-family:Verdana">Supports image position control &amp; image zoom control </span></p><p><span style="font-size:16px;font-family:Verdana">True digital 24-bit A/D converter for true 16.7-million color conversion. </span></p><p><span style="font-size:16px;font-family:Verdana">Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc) </span></p><br/><p><span style="font-size:16px;font-family:Verdana">Specifications: </span></p><br/><p><span style="font-size:16px;font-family:Verdana">Input Power: 5VDC +/- 0.5v (2A) </span></p><p><span style="font-size:16px;font-family:Verdana">Input signal: </span></p><p><span style="font-size:16px;font-family:Verdana">CGA/EGA </span></p><p><span style="font-size:16px;font-family:Verdana">14.5kHz - 16.5kHz </span></p><p><span style="font-size:16px;font-family:Verdana">23.5kHz - 25.5kHz </span></p><p><span style="font-size:16px;font-family:Verdana">30.5kHz - 32.5kHz </span></p><p><span style="font-size:16px;font-family:Verdana">RGBHV: 30.5kHz - 32.5kHz </span></p><p><span style="font-size:16px;font-family:Verdana">VGA: 30.5kHz - 32.5kHz </span></p><p><span style="font-size:16px;font-family:Verdana">Ypbpr: 480p,576p,720p,1080p </span></p><p><span style="font-size:16px;font-family:Verdana">Ycbcr: 480i,576i,720i,1080i </span></p><p><span style="font-size:16px;font-family:Verdana">Output signal: VGA:640*480,800*600,1024*768,1360*768 </span></p><p><span style="font-size:16px;font-family:Verdana">User controls: </span></p><p><span style="font-size:16px;font-family:Verdana">Input Switch, Image Zoom, Image Position, </span></p><p><span style="font-size:16px;font-family:Verdana">Output Resolution ,RGB gain adjust. </span></p><br/><p><span style="font-size:16px;font-family:Verdana">¡°MENU¡± open OSD menu, and enter. </span></p><p><span style="font-size:16px;font-family:Verdana">¡°UP¡± up and increase. </span></p><p><span style="font-size:16px;font-family:Verdana">¡°DOWN/AUTO¡± down and reduce. </span></p><p><span style="font-size:16px;font-family:Verdana">Press this key: auto scan CGA/EGA signal </span></p><p><span style="font-size:16px;font-family:Verdana">Press this key over 5 second and release: reset system </span></p><p><span style="font-size:16px;font-family:Verdana">(this operation is invalid when you open OSD menu) </span></p><p><span style="font-size:16px;font-family:Verdana">¡°SW¡± switch input signal Ypbpr/RGBS/RGBHV. </span></p><p><span style="font-size:16px;font-family:Verdana">(this operation is invalid when you open OSD menu) </span></p><p><span style="font-size:16px;font-family:Verdana">¡°Clamp sp¡± &amp; ¡°Clamp¡± please don¡¯t adjust this button, except the monitor has black item or picture discoloration. </span></p><p><span style="font-size:16px;font-family:Verdana">For more functions control, please look at OSD to operate. </span></p><p><span style="font-size:16px;font-family:Verdana">No signal on you monitor </span></p><p><span style="font-size:16px;font-family:Verdana">Please check the input and output cables, make sure all cables are connected. And make sure power is on. </span></p><p><span style="font-size:16px;font-family:Verdana">The monitor says ¡°No signal¡± </span></p><p><span style="font-size:16px;font-family:Verdana">Please press ¡°SW¡± to switch input signal. </span></p><p><span style="font-size:16px;font-family:Verdana">Input not supports </span></p><p><span style="font-size:16px;font-family:Verdana">When your monitor displays ¡°input not supports¡±, maybe you need change to low resolution. </span></p><p><span style="font-size:16px;font-family:Verdana">Please press ¡°DOWN/AUTO¡± over 5 second and release. Reset resolution to 800*600. </span></p><p><span style="font-size:16px;font-family:Verdana">Image not full on you screen </span></p><p><span style="font-size:16px;font-family:Verdana">Please enter menu to adjust image position and zoom. </span></p><p><span style="font-size:16px;font-family:Verdana">Image shake or freeze </span></p><p><span style="font-size:16px;font-family:Verdana">Please press ¡°DOWN/AUTO¡±, system will auto scan input signal and restore image. </span></p><p><span style="font-size:16px;font-family:Verdana">Have black item on screen, or all screen too black, or picture discoloration </span></p><p><span style="font-size:16px;font-family:Verdana">Please adjust ¡°Clamp sp¡± and ¡°Clamp st¡±, please keep ¡°Clamp st¡± less than ¡°Clamp sp¡±. </span></p><p><span style="font-size:16px;font-family:Verdana">We suggest ¡°Clamp st¡± SET ¡°03¡± , ¡°Clamp sp¡± SET ¡°04¡±. </span></p><p><span style="font-size:16px;font-family:Verdana">Image color not right </span></p><p><span style="font-size:16px;font-family:Verdana">Please adjust RGB VR. </span></p><p><span style="font-size:16px;font-family:Verdana">Color:Green </span></p><p><span style="font-size:16px;font-family:Verdana">Size:117*100*20 mm </span></p><p><span style="font-size:16px;font-family:Verdana">Cable length: 50cm </span></p><br/><p><span style="font-size:16px;font-family:Verdana">Package included: </span></p><br/><p><span style="font-size:16px;font-family:Verdana">1pc x Converter board GBS8200 </span></p><p><span style="font-size:16px;font-family:Verdana">1pc x 2P power supply wire </span></p><p><span style="font-size:16px;font-family:Verdana">1pc x 8P signal wire </span></p><br/><br/></div></div><div class="detailmodule_image"></div><br/>
