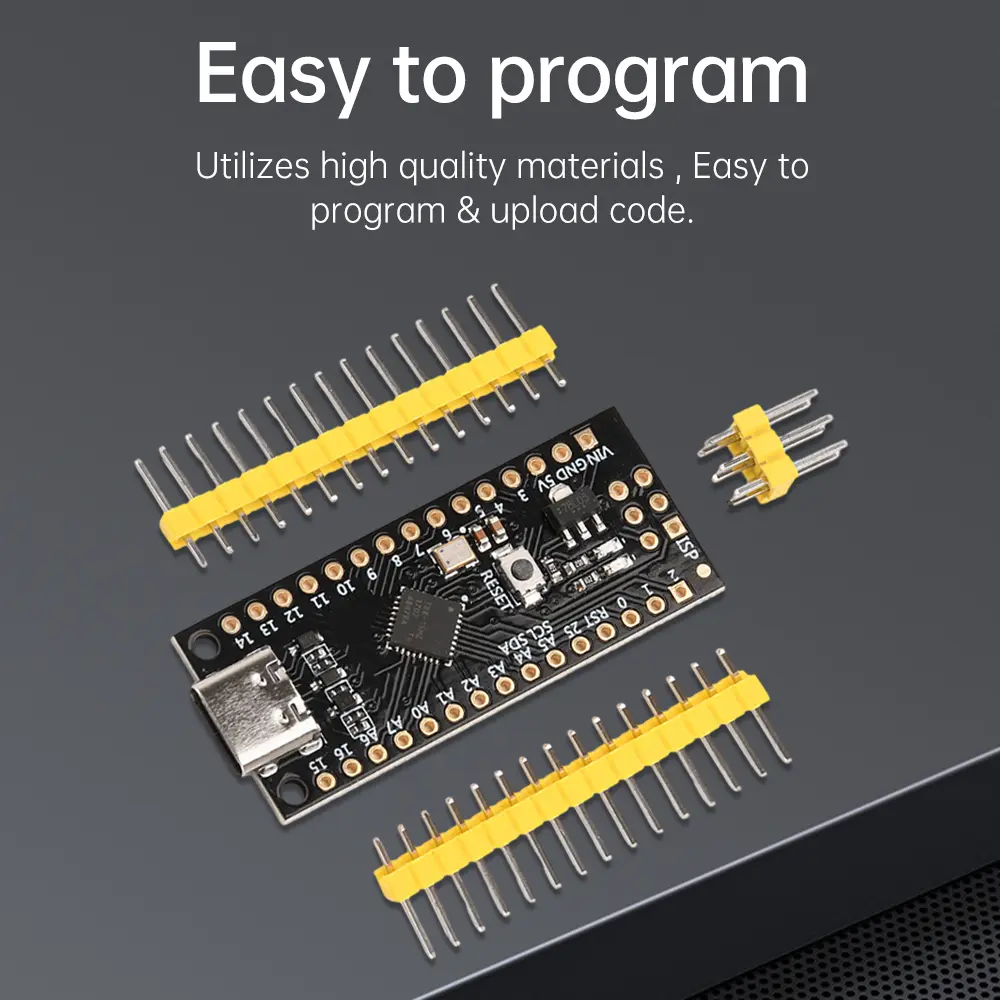

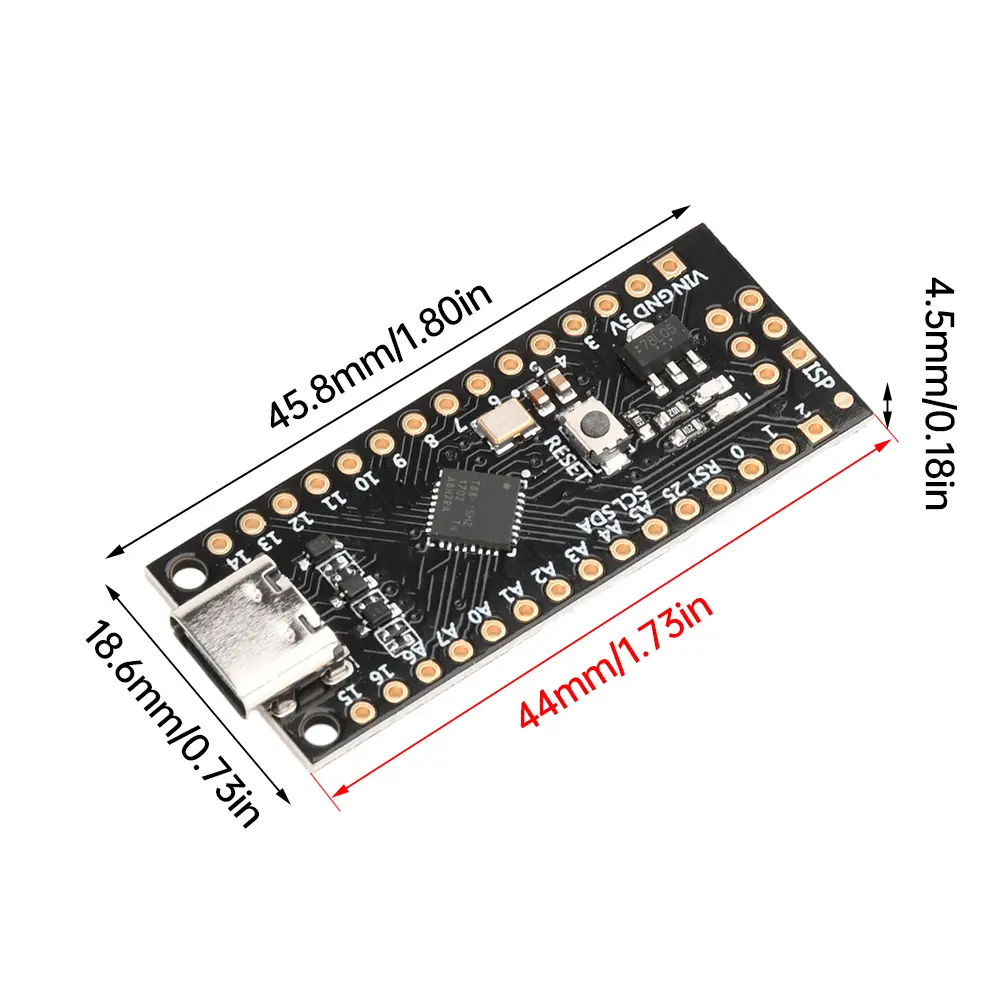

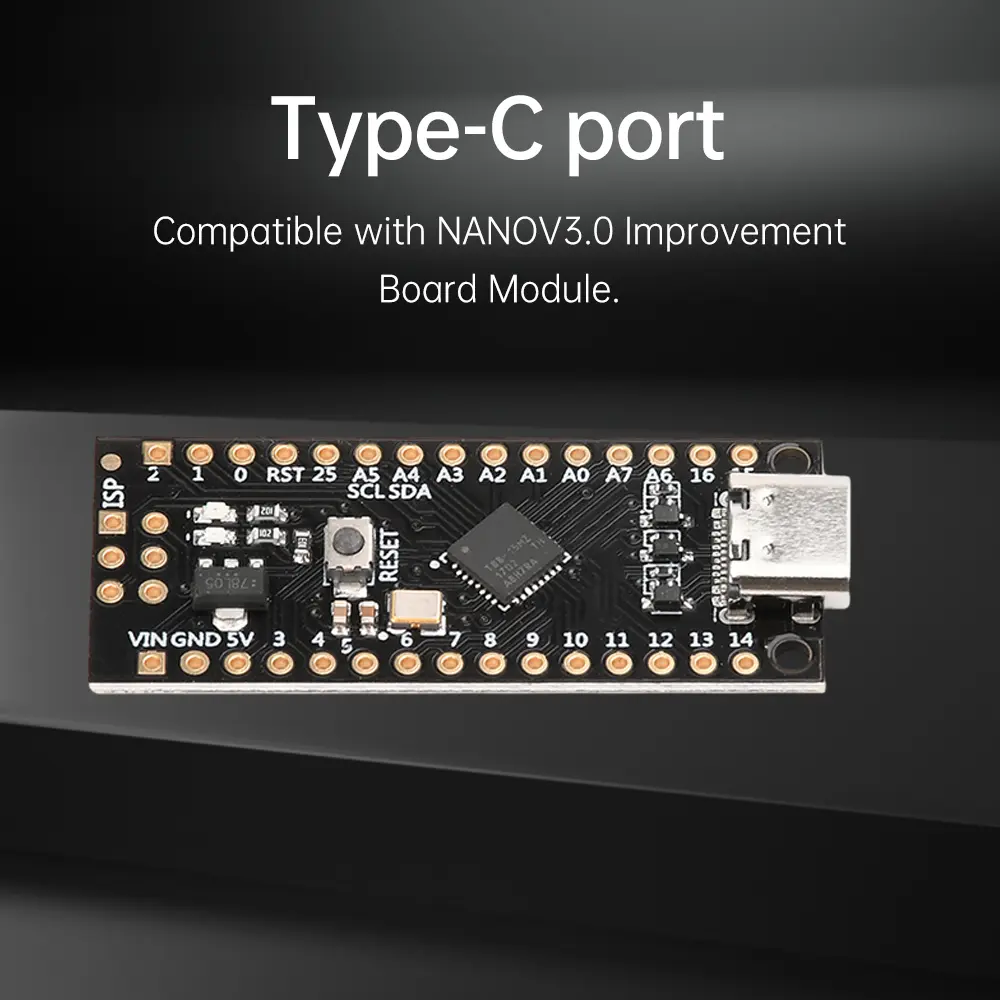

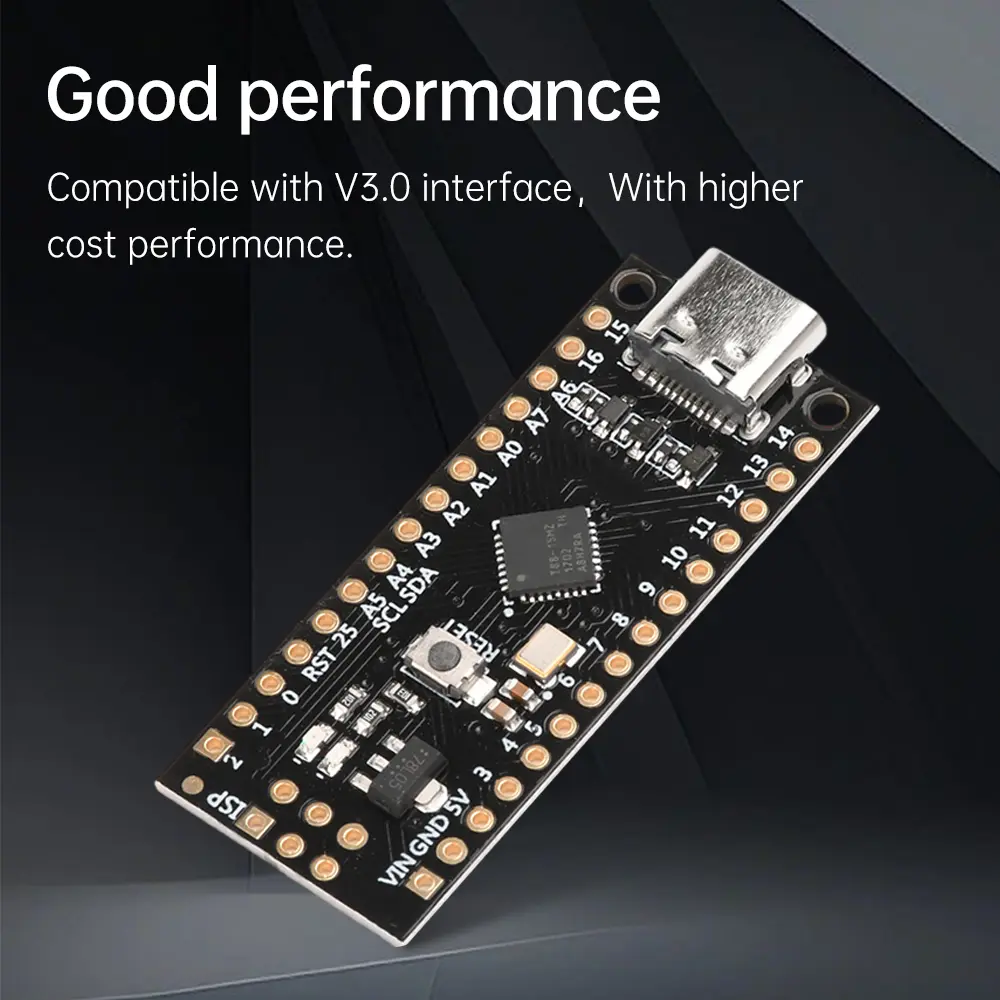

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Using high-quality materials, the quality is guaranteed<br/>2. Good performance<br/>3. The appearance of the product is exquisite<br/>4. It is a development board that can quickly get started with electronic products DIY, and can be a good substitute for other development boards that are too bulky and complicated to assemble.<br/>5. Adopt Micro USB /TYPE-C interface, compatible with NANOV3.0 improved board module</p><p>Product parameters:<br/>Support IDE 1.0+ (OSX/Win/Linux)<br/>Powered by USB or external power supply 5v or 7-24v (12v or lower recommended, automatic selection)<br/>Onboard 500ma 5V regulator<br/>Built-in USB<br/>26 I/O pins (2 for USB only if your program is actively communicating over USB, otherwise all 26 are available even after you program over USB)<br/>8k flash (about 6k after bootloader)<br/>On-board I2C and SPI interfaces<br/>With 26 PWM pins (software PWM, hardware PWM only two (D9, D10)<br/>with 8 ADC pins<br/>Power LED and Test/Status LED</p><p>Overview:<br/>The ATTINY88 (16.0Mhz) microcontroller development board is similar to the Arduino series development board, but it is more cost-effective, smaller in size and more powerful. Because it can use the familiar IDE, ATTINY88 is a DIY electronic product that can be used quickly. Development board, can well replace other development boards that are too bulky and complicated to assemble<br/>Except for the pin headers included in the ATTINY88 that need to be soldered by the user, other components have been fully assembled, and the soldering is also convenient and simple.</p><p>Shipping list:<br/>Module X1<br/>Pin header X3<br/><br/></p></div></div><p><br/></p>
