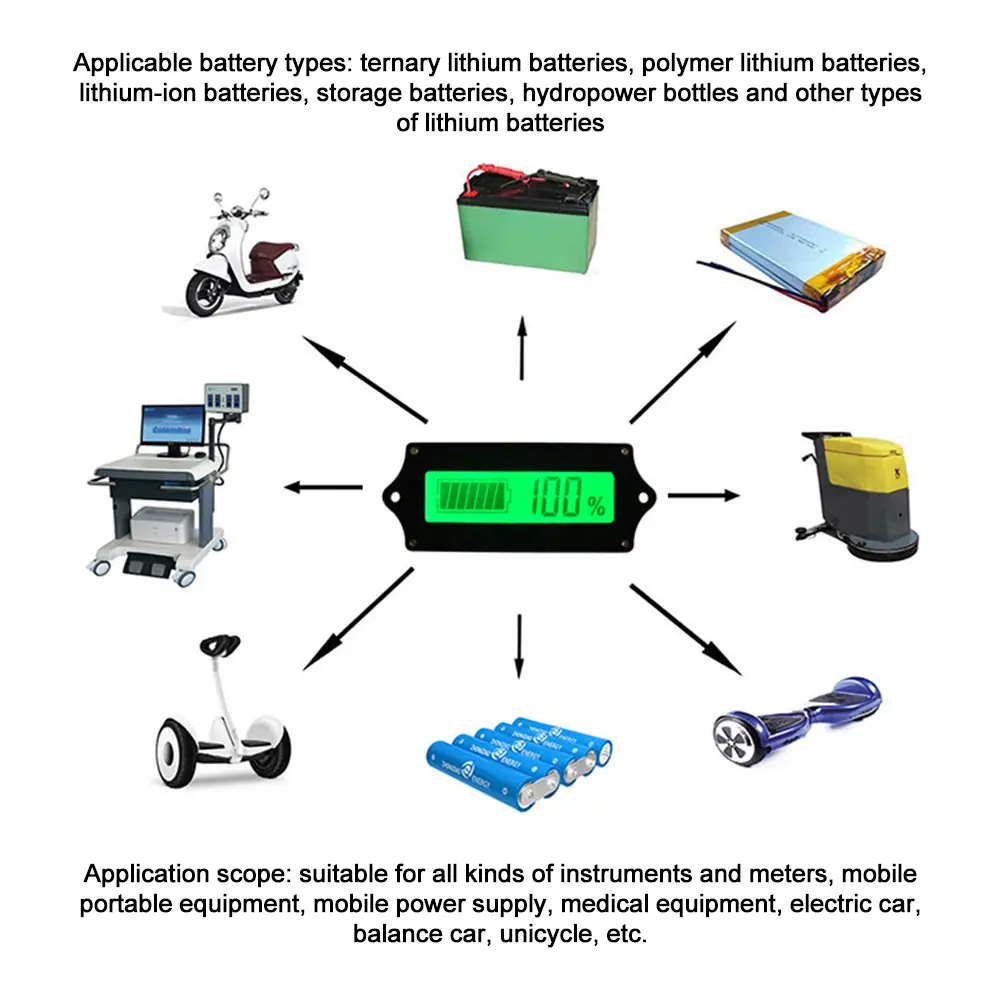

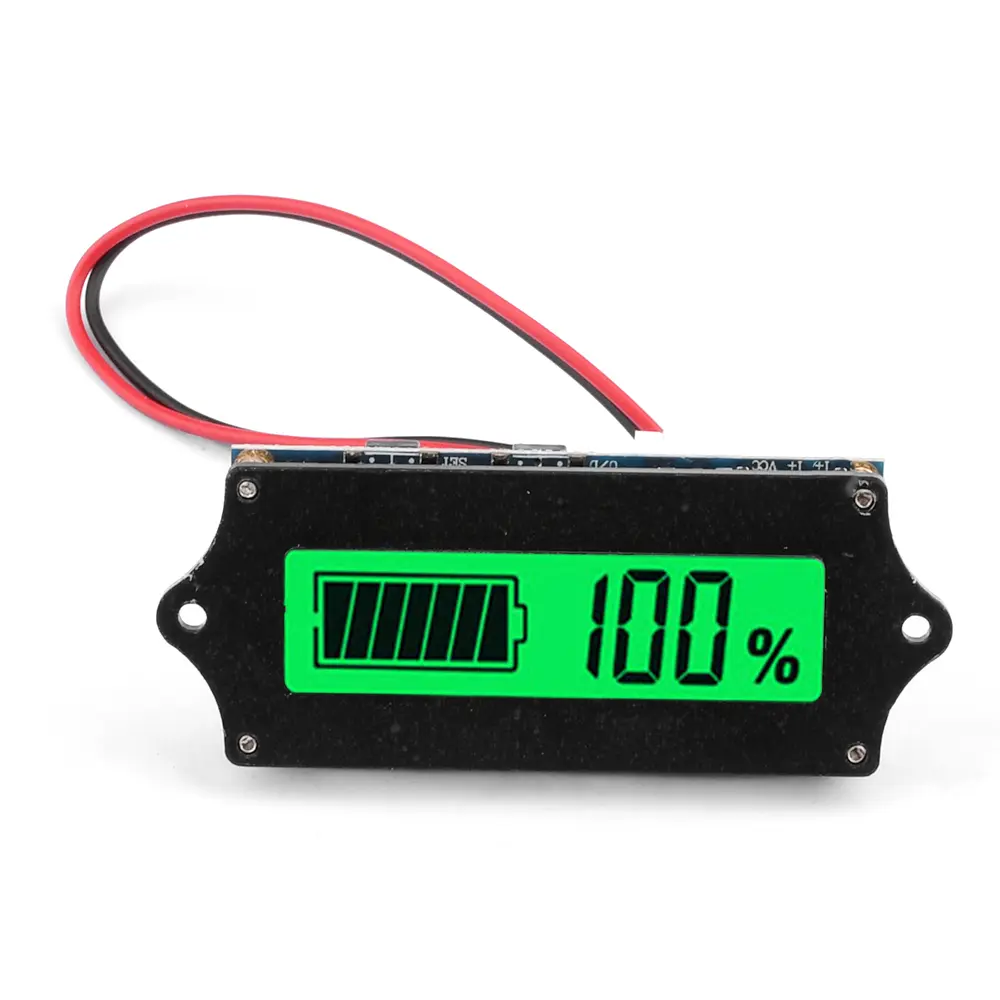

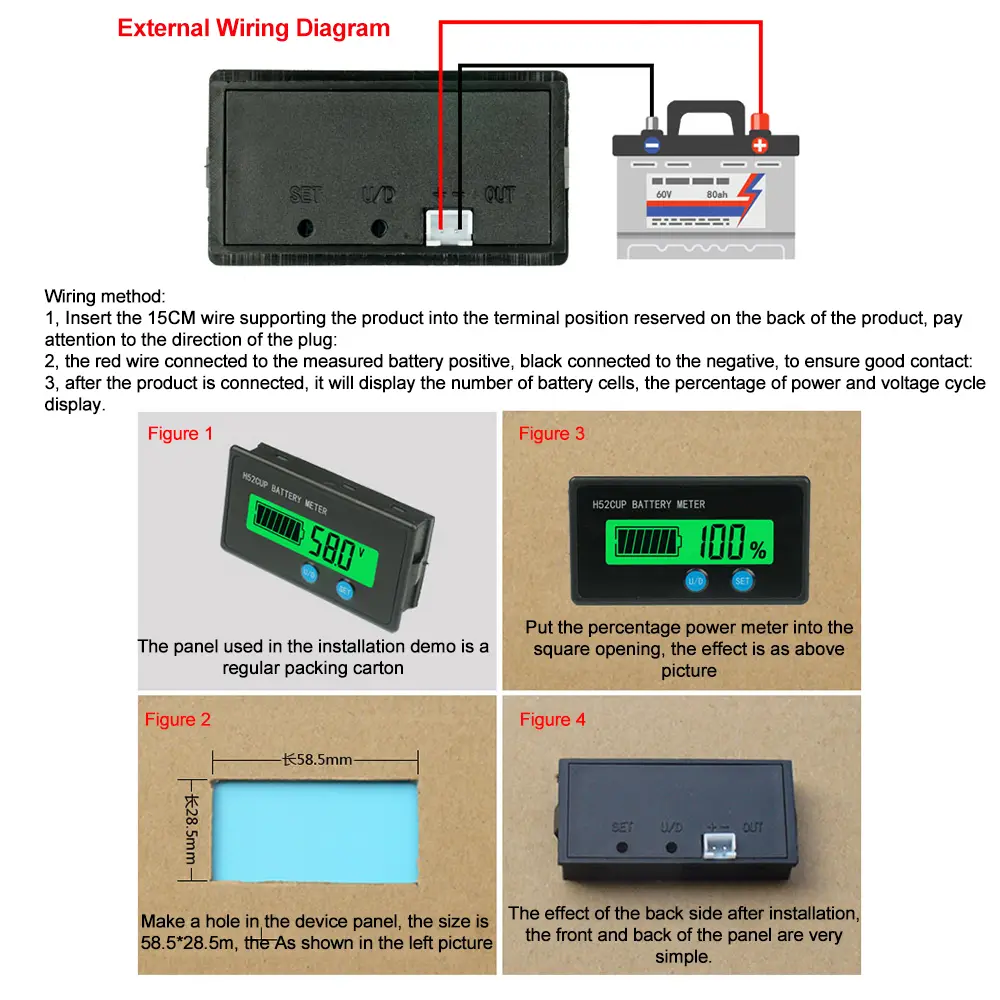

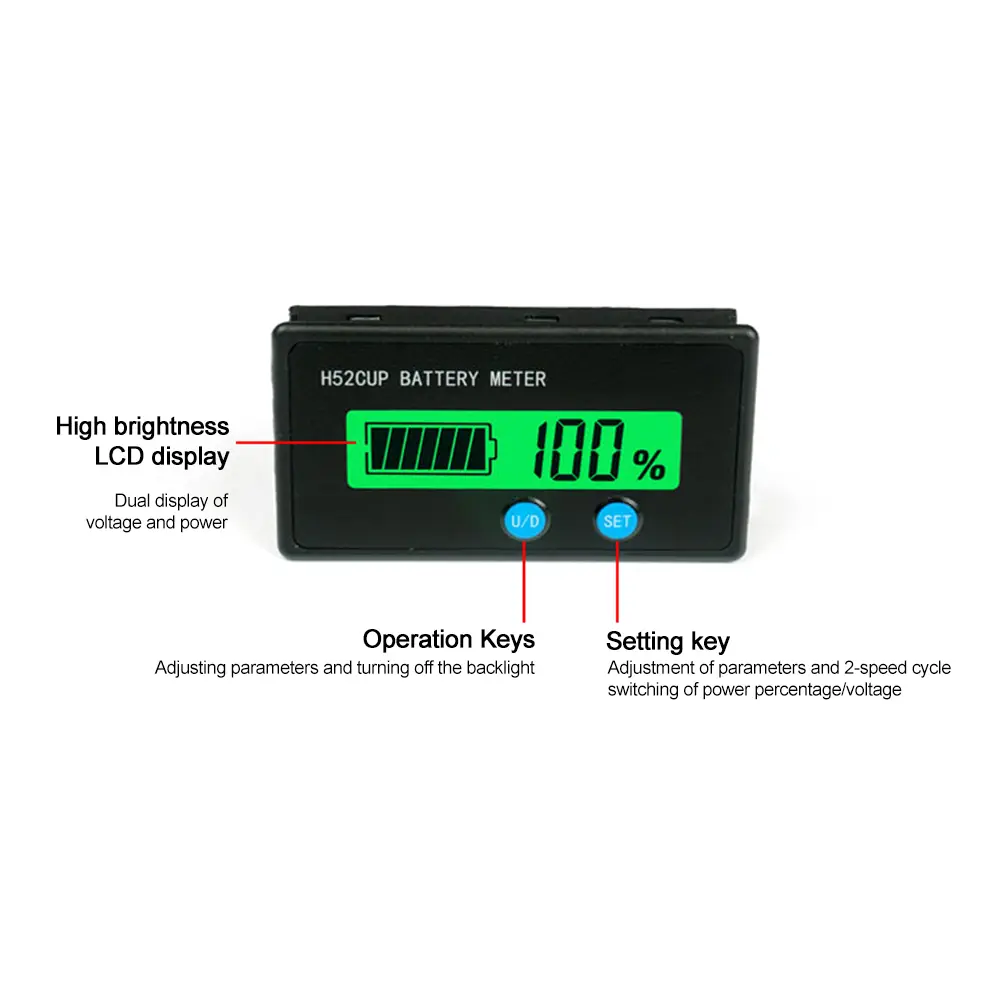

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004112422" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:28px">Features:</span></strong><br/>1. High brightness LCD display screen, dual display of voltage and battery level.<br/>2. The wiring is simple, only 2 wires need to be connected to use, and installation is convenient.<br/>3. Equipped with reverse connection protection, even if the wires are connected in reverse, they will not be damaged.<br/>4. The display is clear and can be read clearly whether used during the day or night.<br/>5. The backlight brightness can be adjusted in 5 levels and the energy-saving mode can be adjusted.<br/>6. It has a wide range of applications and is suitable for various types of batteries such as ternary lithium batteries, polymer lithium batteries, and batteries.</div><div><br/></div><p><strong><span style="font-size:28px">Parameter:</span></strong><br/>Acid battery: 12V 24V 36V 48V 60V 72V (adjustable)<br/>Lithium battery: 3S 7S 10S 13S 17S 20S (adjustable)<br/>Measurement range: DC 9~90V (wide range)<br/>Minimum resolution: 0.1V<br/>Working current:&lt;5mA (including backlight)<br/>Refresh rate: ≥ 500mS/time<br/>Display method: LCD liquid crystal display screen<br/>Working temperature: -10~+65 ℃<br/>Working humidity: 10~80% (without condensation)<br/>Working pressure: 80-106kPa<br/>Sunshine exposure: no direct exposure<br/>(without shell) Boundary dimension: 64 * 25 * 18mm<br/>(without casing) Hole size: 58 * 25mm<br/>(with shell) Boundary dimension: 61.5 * 33.5 * 15.3mm<br/>(with shell) Hole size: 58.5 * 28.5mm<br/>Lead length: 15cm</p><p><strong><span style="font-size:28px">Wiring method:</span></strong><br/>1. Insert the 15CM wire that comes with the product into the reserved terminal position on the back of the product, paying attention to the direction of the plug.<br/>2. The red wire is connected to the positive electrode of the measured battery, and the black wire is connected to the negative electrode to ensure good contact.<br/>3. After being connected, the product will display the number of battery cells, percentage power, and voltage cycle.</p><p><strong><span style="font-size:28px">Package include:</span></strong><br/>Package A:Battery indicator * 1+Wiring * 1+Screw * 2<br/>Package B:Battery indicator * 1+Wiring * 1<br/></p></div></div><p><br/></p>
