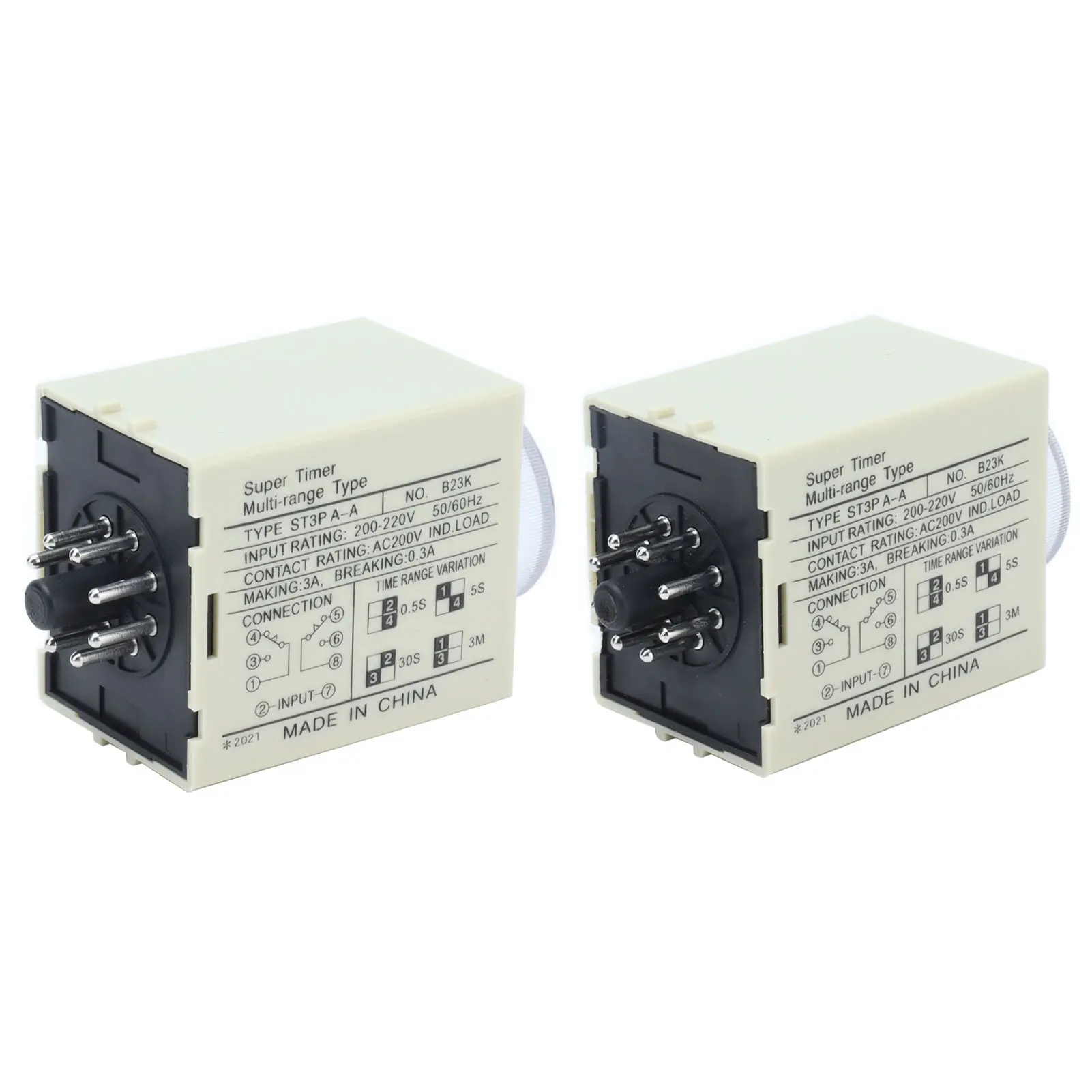

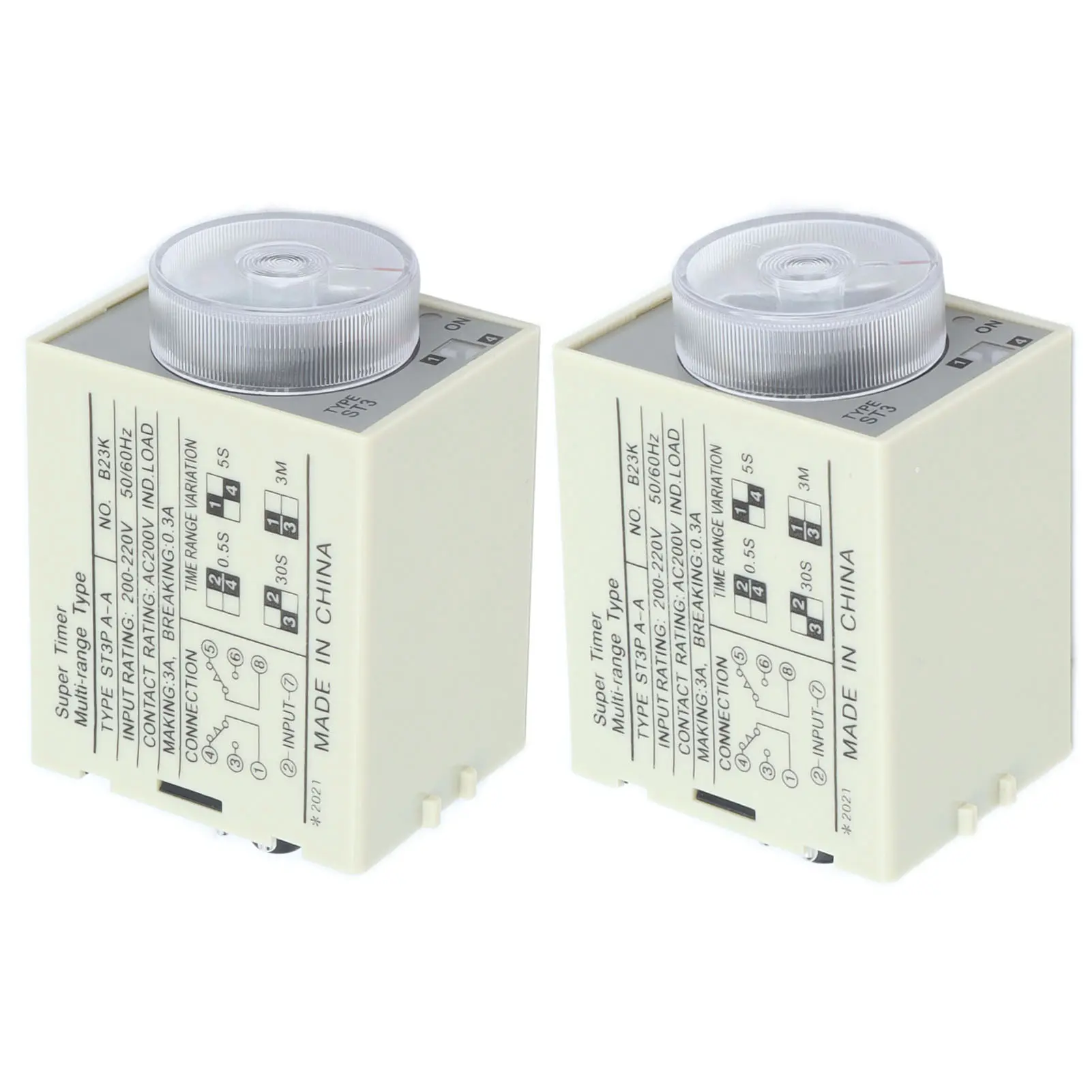

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>BERM Time Relay Adjustable Power On Timer Delay Accessory Replacement Part ST3PAA</b><br/></p><div style="font:Arial;font-size:16px;"><p><b>Specification:</b></p>Item Type: Time Relay<br/>Product Model: ST3PA-A<br/>Delay Range: 0.5S/5S/30S/3Minutes<br/>Contact Voltage: 200-220V 50/60Hz. <br/>Contact Form: Two open and two closed. <br/>Number of Contacts: 2 groups of power on delay. <br/>Contact Load: Medium Power<br/>Contact Capacity: AC200V 3A<br/>Working Mode: Power On Delay<br/>Protection Features: Closed<br/>Mechanical Life: More than 10 million mechanical times. <br/>Withstand Voltage: AC1.5KV<br/>Ambient Temperature: -5℃~+40℃<br/>Altitude: Approx. Code: 2/4 Time Range: 0.05S-0.5S<br/>Code: 1 /4 Time Range: 0.5S-5S<br/>Code: 2/3 Time Range: 5S-30S<br/>Code: 1/3 Time Range: 30S-3Minutes<br/>Reset Time: 0.5 second. <br/><p><br/></p><p><b>How to Use:</b></p><div>The Relay Enclosure Includes A Wiring Diagram:<br/></div><div>2‑7 access to power, 8‑6 contact normally open, 8‑5 contact normally closed, 1‑3 contact normally open, 1‑4 contact normally closed. </div><p><br/></p><p><b>Package List:</b></p>1 x Time Relay</div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
