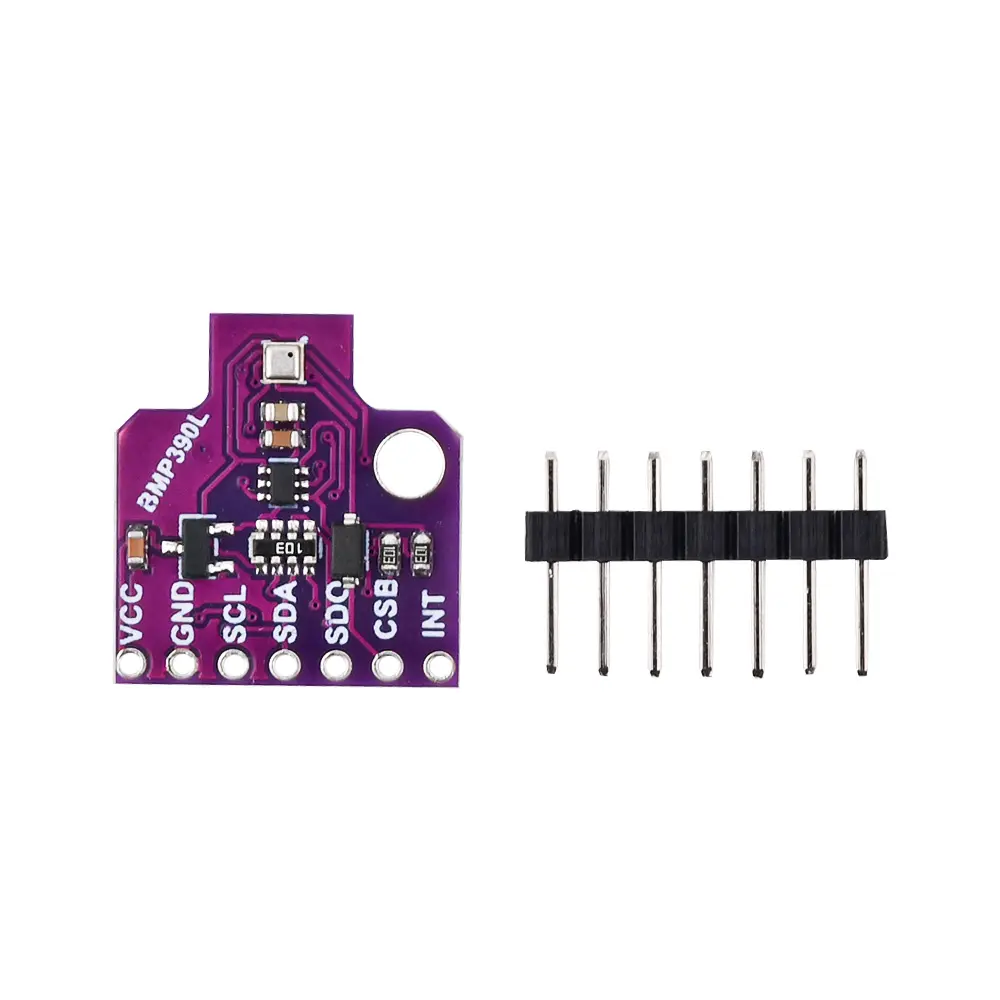

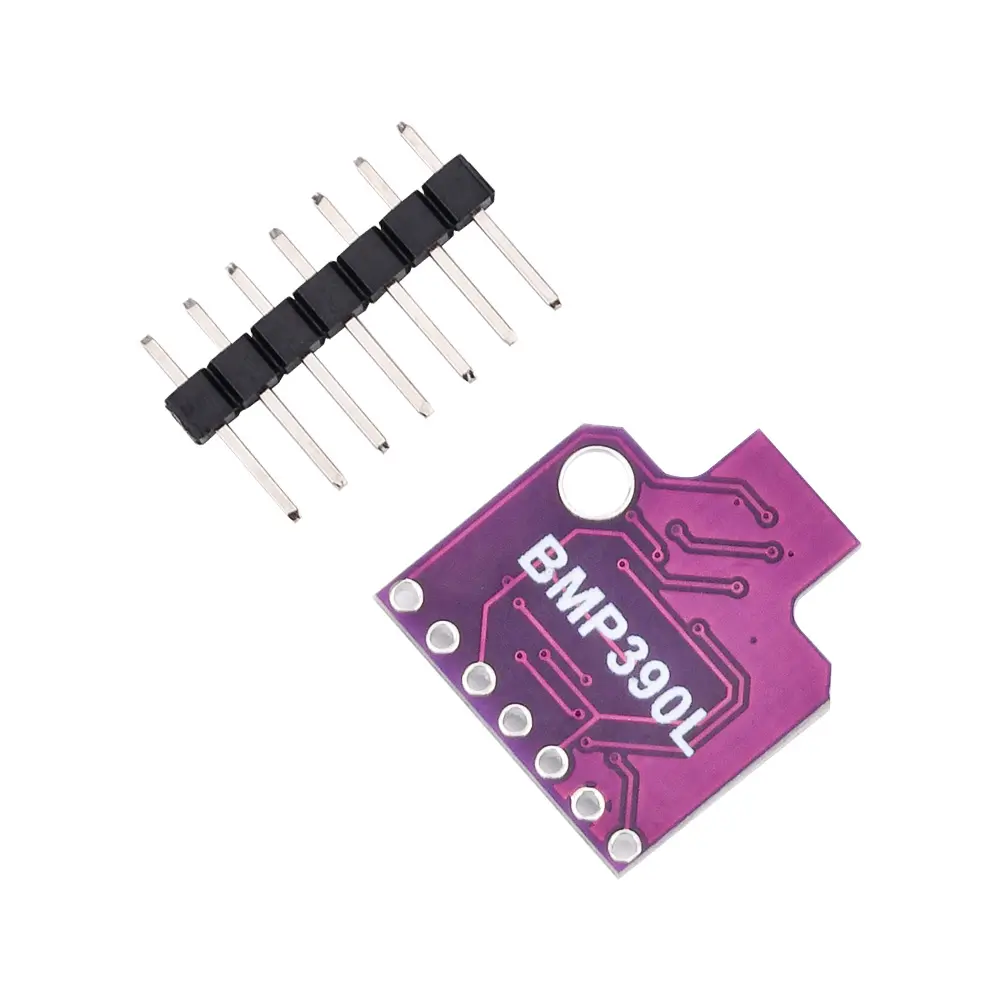

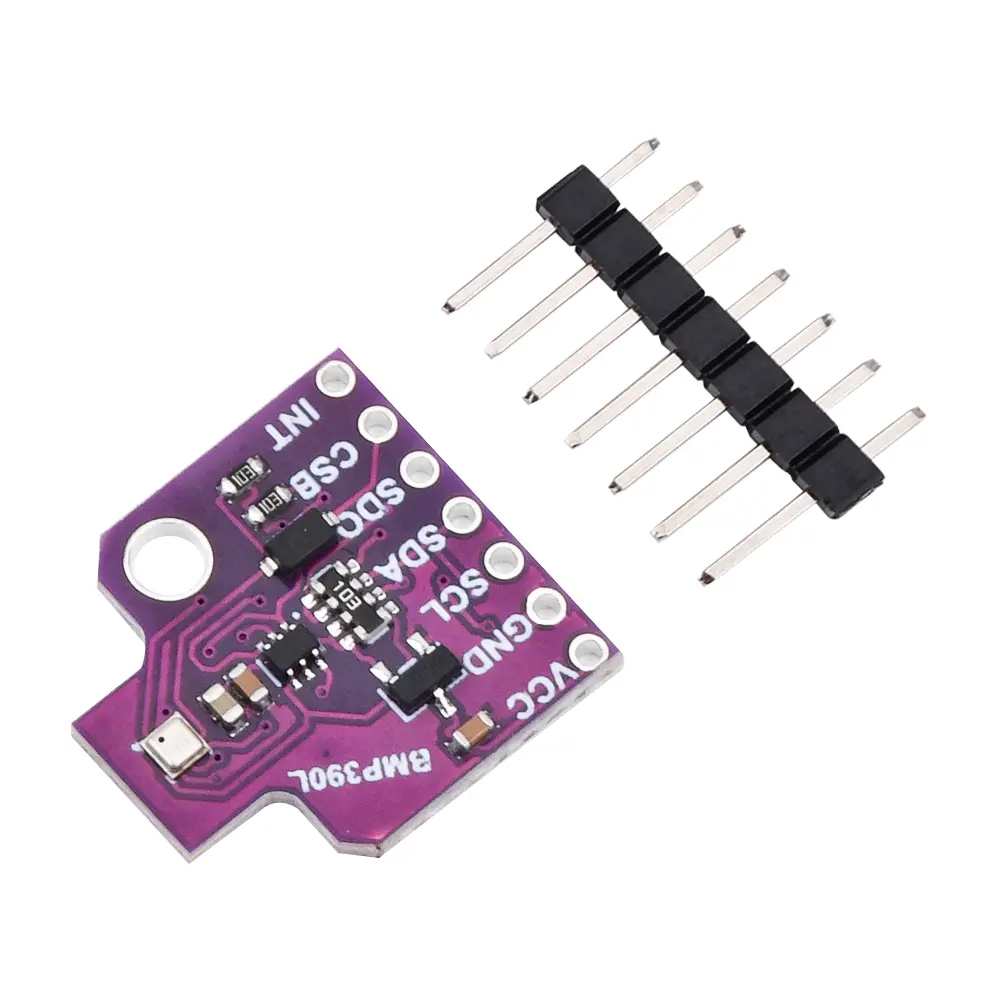

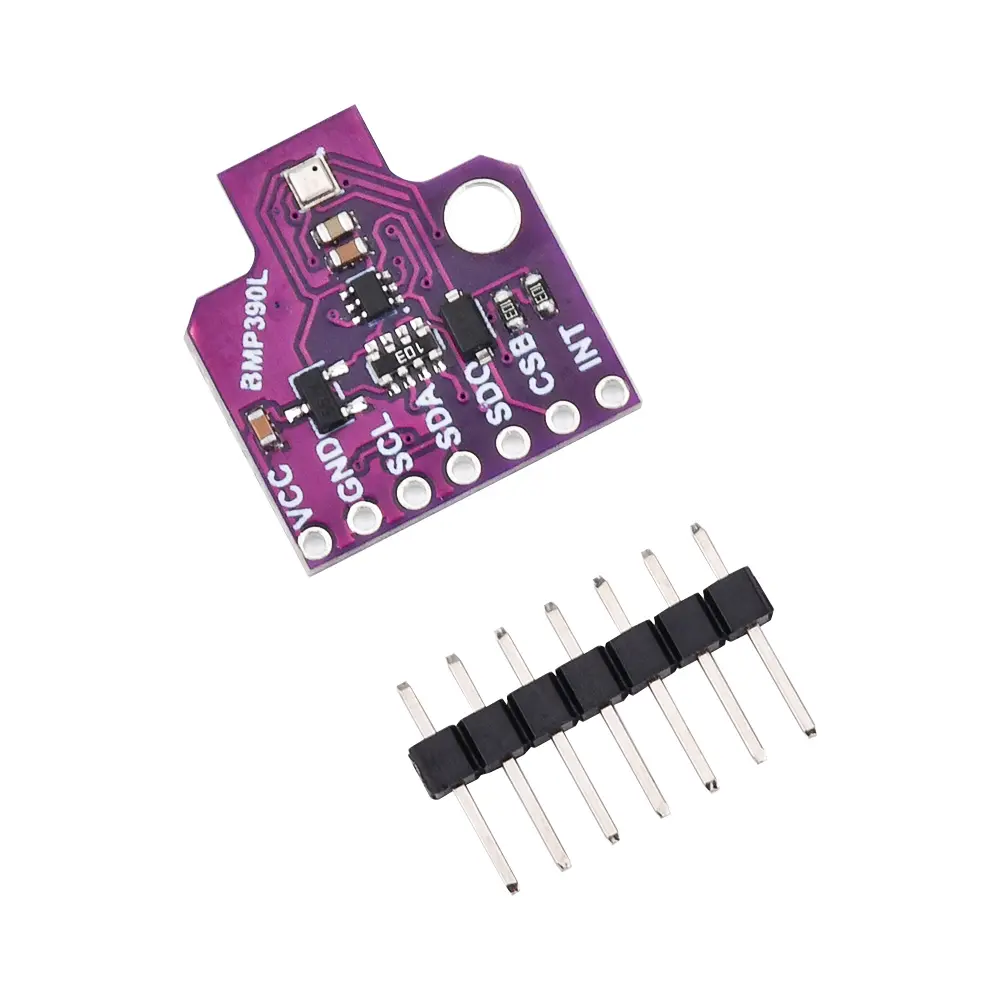

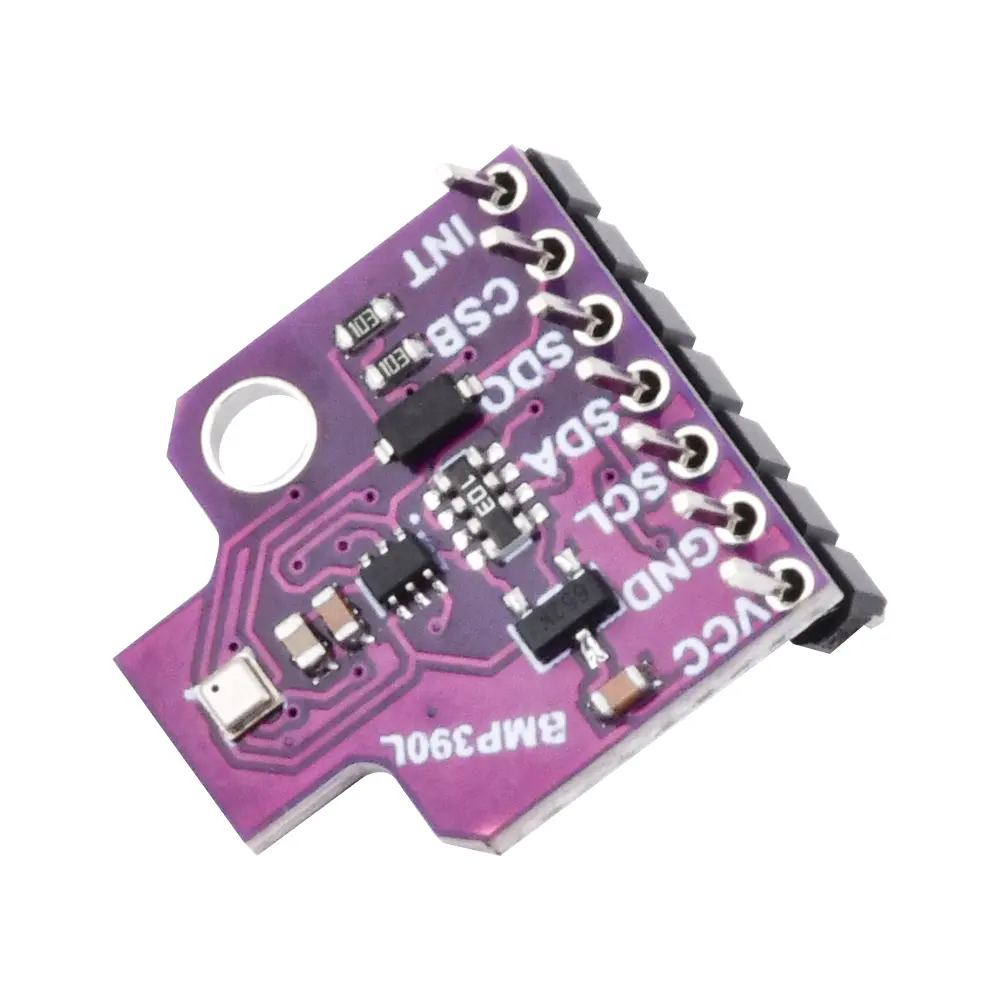

BMP390 BMP390L Precision Barometric Pressure and Altimeter Sensor Temp Pressure Module For Arduino

BMP390 BMP390L Precision Barometric Pressure and Altimeter Sensor Temp Pressure Module For Arduino

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"></div></div> <div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000000650092" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"> Features: 1.High precision (absolute error<50Pa, relative precision<3Pa) 2.High long-term stability (± 16Pa/year) 3.Extremely high temperature stability and low drift characteristics 4.Low power consumption (sleep current: 54uA, working current<650uA) 5.Easy to operate and use Product Introduction: The BMP390L is an industrial grade dedicated digital pressure sensor with extremely high temperature stability, low drift, low power consumption (sleep current only 54uA, maximum power consumption measurement mode 650uA), and low noise impact (below 0.02Pa). The maximum absolute accuracy error of this product is less than 50Pa, and the relative accuracy can reach ± 3Pa (equivalent to 25cm), which is 166.7% higher than the previous generation, ensuring measurement accuracy. In addition, the new model is far ahead of the previous generation in terms of long-term stability performance, with a 12 month long-term stability error of only 16Pa. The precise, stable, and low-power high detection makes this product very suitable for indoor positioning applications that cannot be covered by GPS signals. Moreover, the product has a supply period of up to ten years, so it can be safely integrated into your device. Application scenario: Vertical speed indication (such as rising/sinking speed) GPS navigation enhancement (such as improving initial positioning time, dead reckoning, slope detection) Indoor navigation and positioning (indoor detection, elevator detection) Outdoor navigation, leisure and sports applications weather forecast Health care applications (such as vital capacity measurement) Fitness applications (such as enhanced calorie detection) Augmented reality and virtual reality applications Situational awareness Industrial internet of things equipment Parameters: Working voltage: 3.3-5V Working current: Sleep mode (54uA)/Normal mode (357-650uA) Interface method: I2C/SPI I2C address: 0x77 (default address)/0x76 (optional: SDO pin connected to GND) Pressure sensing range: 300~1250 hPa Relative accuracy: ± 0.03hPa (equivalent to 25cm) (@ 700-1100hPa, 25-40 ° C) Absolute accuracy: ± 0.50hPa Temperature deviation coefficient: ± 0.6Pa/K (@ 900hPa, 25-40 ° C) Long term stability: ± 0.16hPa/year ODR accuracy: ± 2~± 12% Start time: 2ms Working temperature range: -40 ℃~+85 ℃ (full precision measurement can be used at 0 ℃~+65 ℃) Module size: 19 * 19 (mm) Package include: 1XBMP390L Digital Atmospheric Pressure Sensor 1X2.54-7P black single row pin </div></div>
