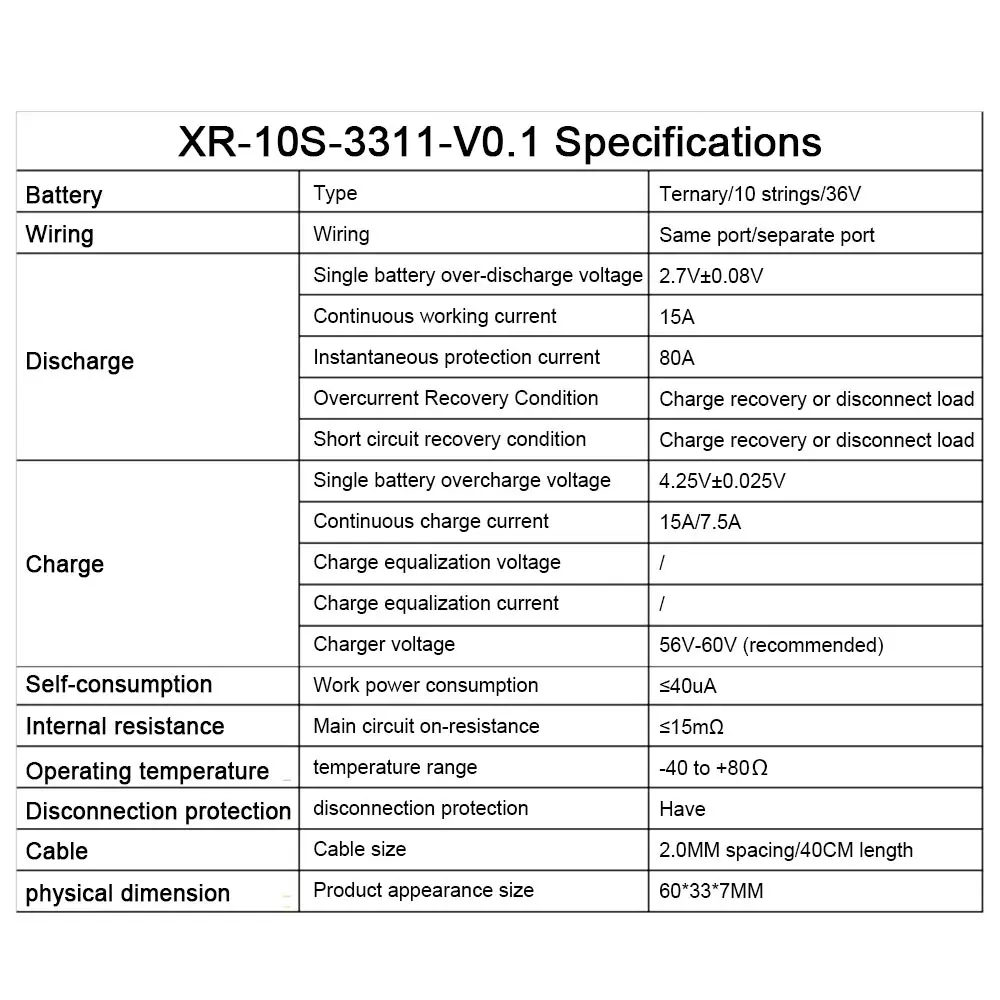

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br/></div></div><div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><strong><br/>Features:</strong></div><div><br/></div><p>Exquisite craftsmanship</p><p>Stable heat dissipation</p><p>Overvoltage protection</p><p>Over discharge protection</p><p>charging protection</p><p>Short circuit protection</p><p>Overcurrent Protection</p><p><span style="font-size:18px"><strong>Specification:</strong></span></p><p>Type: 10S 36V 15A</p><p>Wiring method: same port/split port optional</p><p>Working power consumption: ≤40uA</p><p>Main circuit on-resistance: ≤15mΩ</p><p>Temperature range: -40 to +80°C</p><p>Disconnection protection: yes</p><p>Cable size: 2.0MM spacing / 40CM length</p><p><strong><span style="font-size:18px">Discharge:</span></strong></p><p>Single-cell battery over-discharge voltage: 2.7V±0.08V</p><p>Continuous working current: 15A on the same port and 7.5A Slipt port</p><p>Instantaneous protection current: 80A</p><p>Overcurrent Recovery Condition: Charge Recovery/Disconnect Load</p><p>Short circuit recovery conditions: charge recovery/disconnect load</p><p><span style="font-size:18px"><strong>Charge:</strong></span></p><p>Single-cell battery overcharge voltage: 4.25V±0.025V</p><p>Continuous charging current: 15A</p><p>Charger voltage: 56V-60V (recommended)</p><p><span style="font-size:18px"><strong>Package:</strong></span></p><p>10S 36V 15A 18650 Lithium battery charging protection board X1</p><p></p></div></div><p><br/></p>
