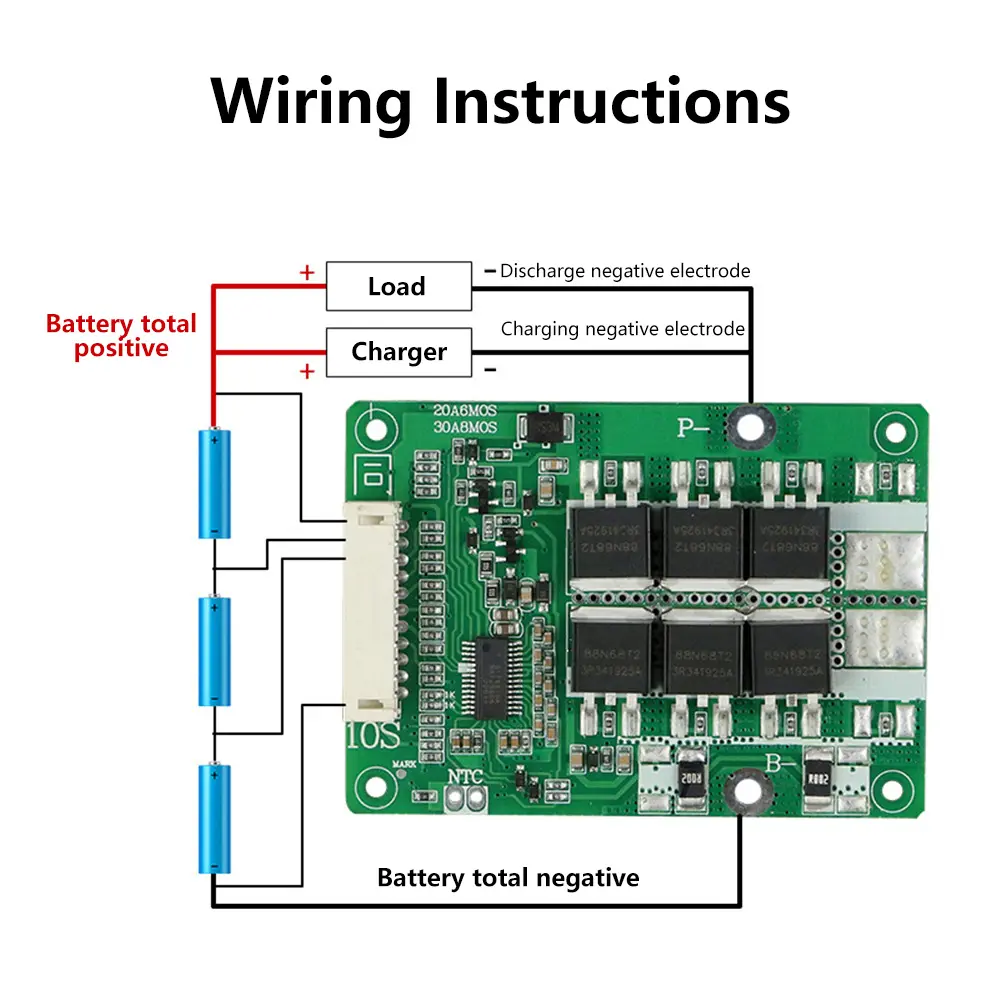

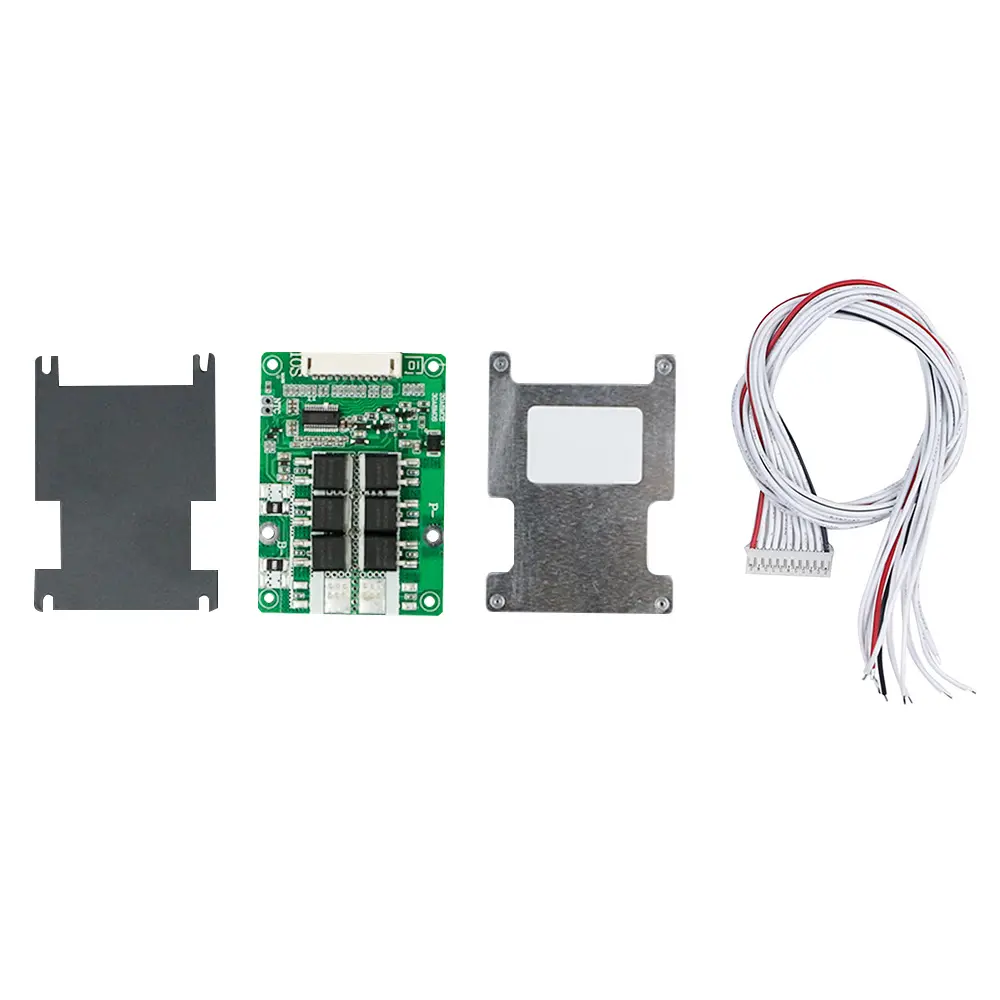

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><span style="font-size:20px"><strong>Features:</strong></span><br/>1.2 specifications available for selection, with or without balanced options available according to demand;<br/>2.Exquisite craftsmanship, paired with heat dissipation fins, ensures stable heat dissipation;<br/>3.Equipped with flat cables, easy to operate wiring;<br/>4.Integrated solution with overvoltage protection, overvoltage protection, charging protection, short circuit protection, and overcurrent protection;<br/>5.Adopting integrated circuits for more stable performance, with wire breakage protection and temperature protection function.</div><div><br/></div><p><span style="font-size:20px"><strong>Parameters:</strong></span><br/>Style 1: Without balanced style<br/>Name: 10S 36V 20A Same Port/Split Port Lithium Battery Protection Board<br/>Wiring method: same port, separate port<br/>Overdischarge protection voltage: 2.7V ± 0.05V<br/>Overdischarge recovery voltage: 3.0V ± 0.05V<br/>Continuous working current: 4MOS=15A, 6MOS=20A<br/>Instantaneous protection current: 4MOS=65A, 6MOS=80A<br/>Overcurrent recovery condition: charging recovery or load disconnection<br/>Short circuit recovery condition: charging recovery or load disconnection<br/>Overcharge protection voltage: 4.25V ± 0.015V<br/>Overcharge recovery voltage: 4.15V ± 0.015V<br/>Continuous charging current: 4MOS=15A, 6MOS=20A<br/>Charging equalization voltage: None<br/>Charging equalization current: None<br/>Charger voltage: 60V (recommended)</p><p><span style="font-size:20px"><strong>Simultaneous activation: Two activation methods for the first PACK</strong></span><br/>（1） Short circuit of B - and C-wires - times is sufficient<br/>（2） Or charge to activate<br/>Split activation: Two activation methods for the first PACK<br/>（1） Short circuit of B - and P-wires once is sufficient<br/>（2） Or charge to activate<br/>Charging over temperature: -5 ° C to 50C (default shipment without temperature control)<br/>Discharge over temperature: -30 ° C to 70 ° C (default shipment without temperature control)<br/>Self consumption: Working power consumption ≤ 40uA<br/>Main circuit conduction internal resistance: ≤ 15m2<br/>Working temperature: Temperature range -40 to+80 ° C<br/>Wire breakage protection: with wire breakage protection<br/>Same port wiring: B - connected to the negative electrode of the battery, C - connected to the charging and discharging negative electrode, P - not connected<br/>Split connection: Split connection, B - connected to the negative electrode of the battery, C - connected to the charging negative electrode, P - connected to the discharge negative electrode<br/>Cable size: 2. OMM spacing/11 wires/40CM length<br/>Product appearance size: 63 * 34 * 7MM<br/>Style 2: With balanced style<br/>Name: 10 Series 36V20A with Balanced Lithium Battery Protection Board<br/>Type: ternary/10 series/36V<br/>Wiring method: negative electrode in the same port<br/>Overdischarge protection voltage: 2.7V ± 0.03V<br/>Overdischarge recovery voltage: 3.0V ± 0.03V<br/>Overdischarge protection delay: 1000ms<br/>Continuous discharge current: 20A<br/>Overcurrent protection current: 80A ± 5A<br/>Overcurrent protection delay: 1000ms<br/>Short circuit protection delay: 300us<br/>Overcurrent and short circuit recovery conditions: charging recovery or load disconnection<br/>Overcharge protection voltage: 4.25V ± 0 015V<br/>Overcharge recovery voltage: 4.15V ± 0 015V<br/>Overcharge protection delay: 1000ms<br/>Continuous charging current: 20A<br/>Charging protection current: 40A ± 2.5A<br/>Charging balance voltage: 4.2V ± 0.025V<br/>Charging balance current: 43mA<br/>0V start charging: allowed (minimum support 1 2V)<br/>Charger voltage: 10 * 4.3V (recommended)<br/>Charging high temperature protection: 50 ℃ (optional, default shipment without temperature control)<br/>Low temperature protection for charging: -5C ℃ (optional, default shipment without temperature control)<br/>Discharge high temperature protection: 70C ℃ (optional, default shipment without temperature control)<br/>Low temperature protection for discharge: None<br/>Working power consumption: 40uA<br/>Main circuit conduction internal resistance:&lt;10m Ω<br/>Temperature range: -40 to+80 ℃<br/>Wire breakage protection: Yes<br/>Cable size: 2.0MM spacing/11 pieces/40CM length<br/>Product size: length * width * height 69 * 50 * 9.5MM</p><p><span style="font-size:20px"><strong>Package include:</strong></span><br/>1X module<br/>1X flat cable<br/><br/></p></div></div><p><br/></p>
