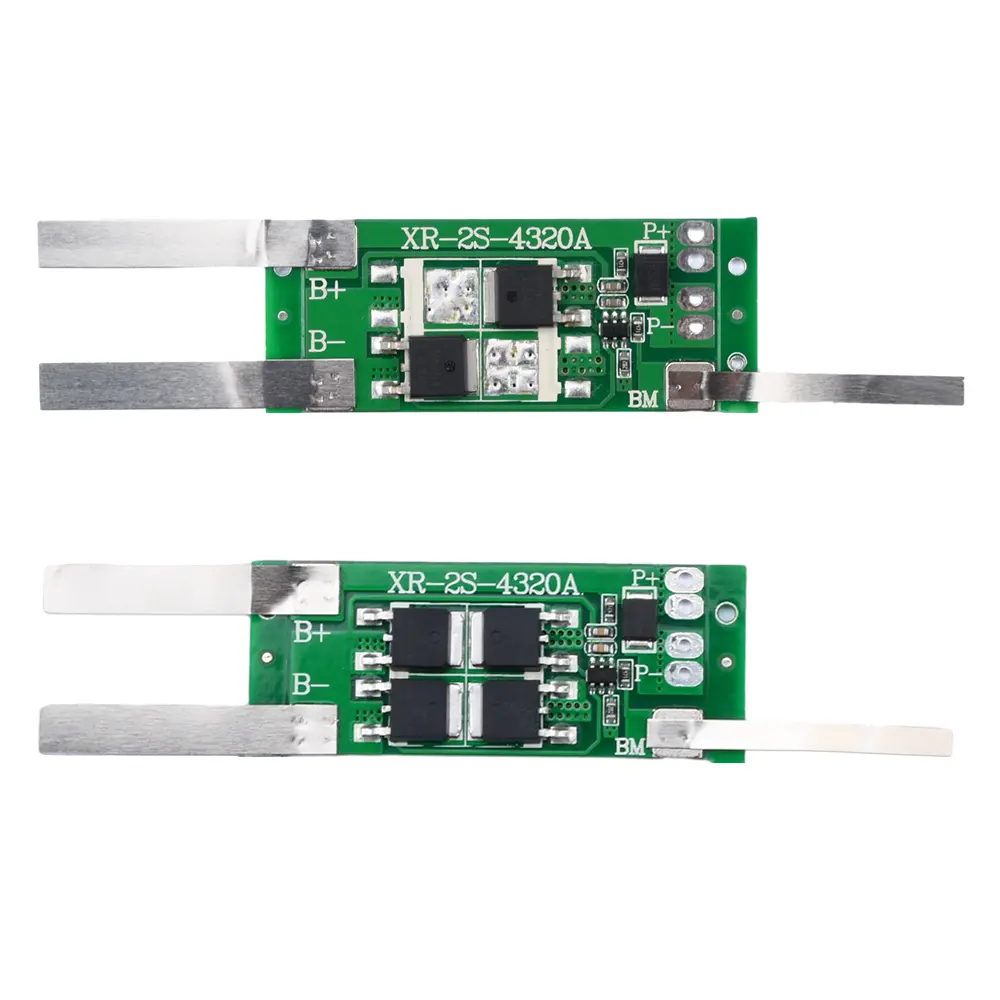

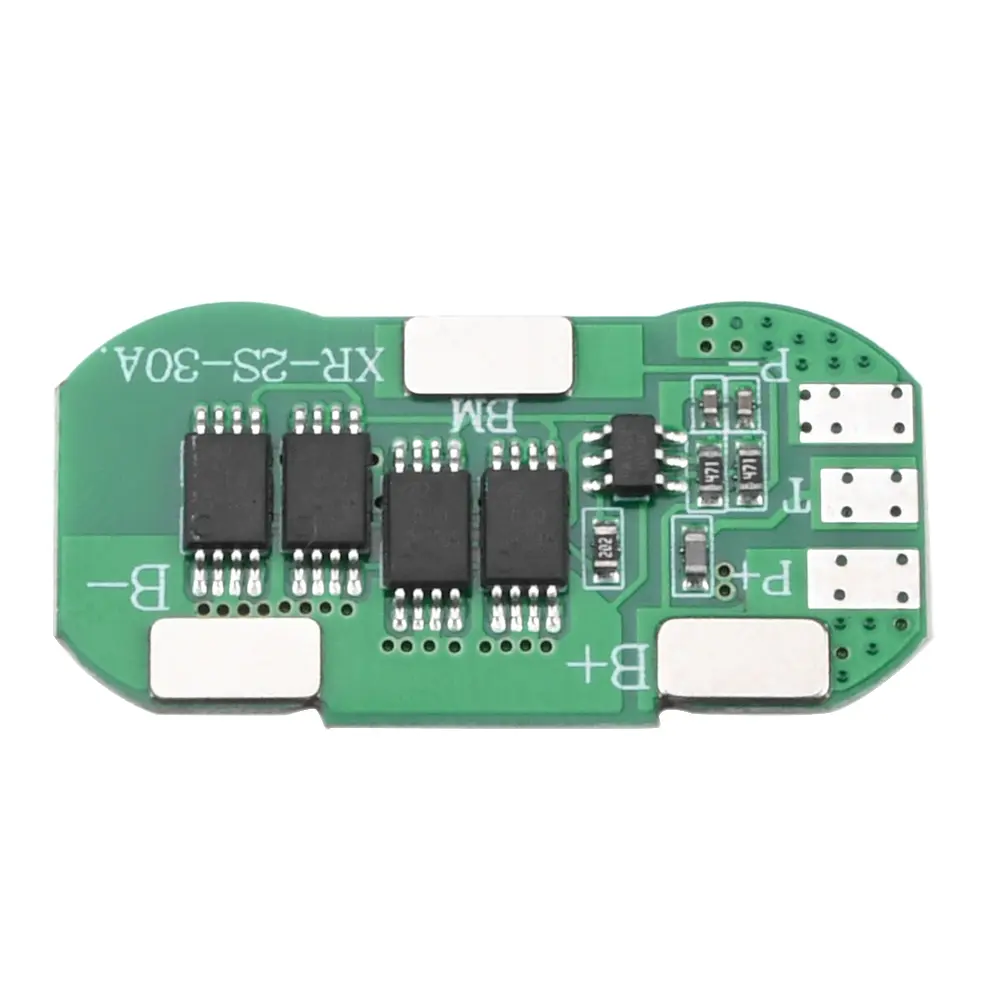

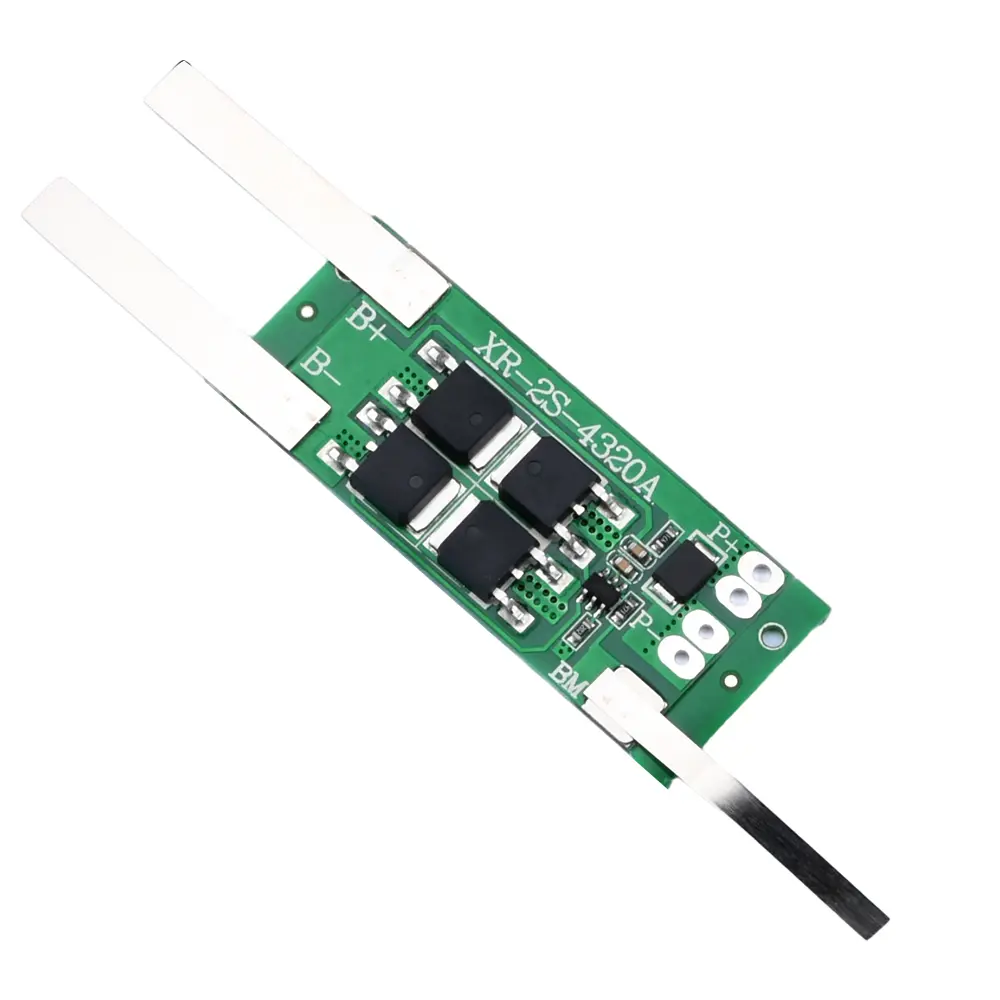

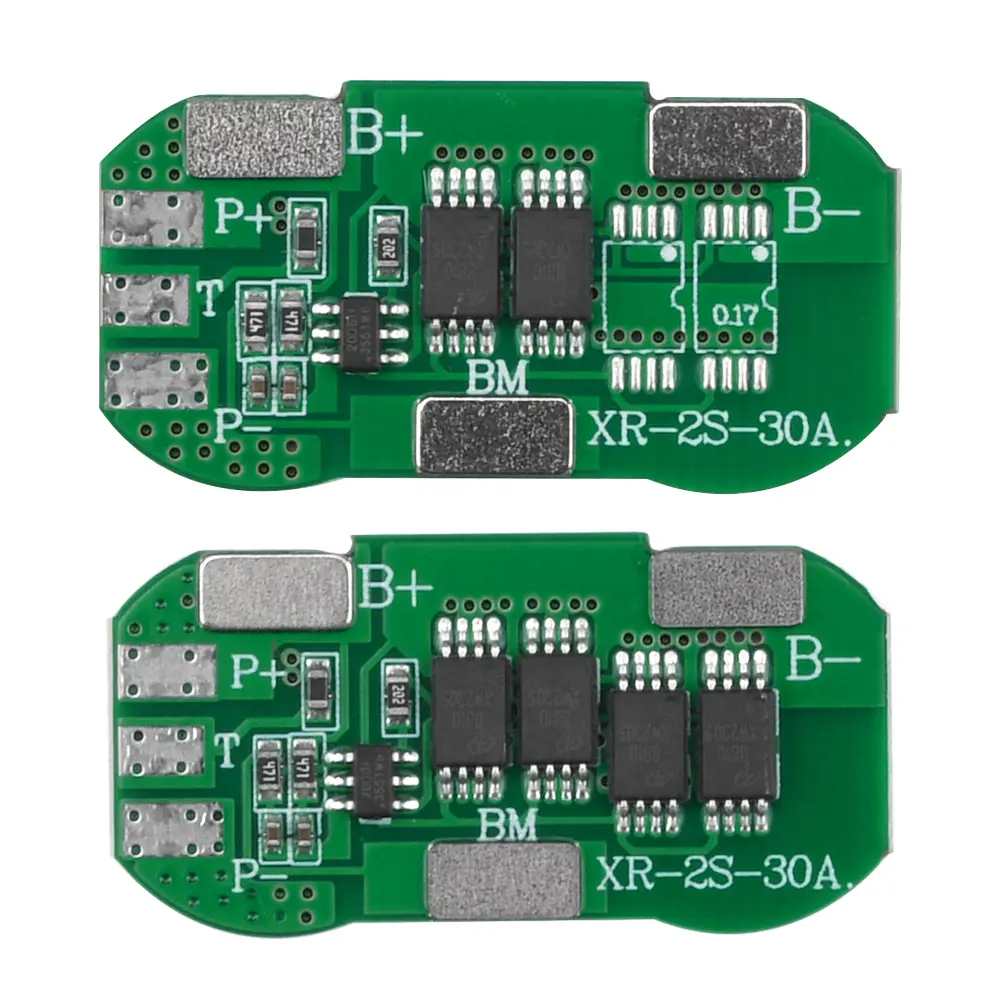

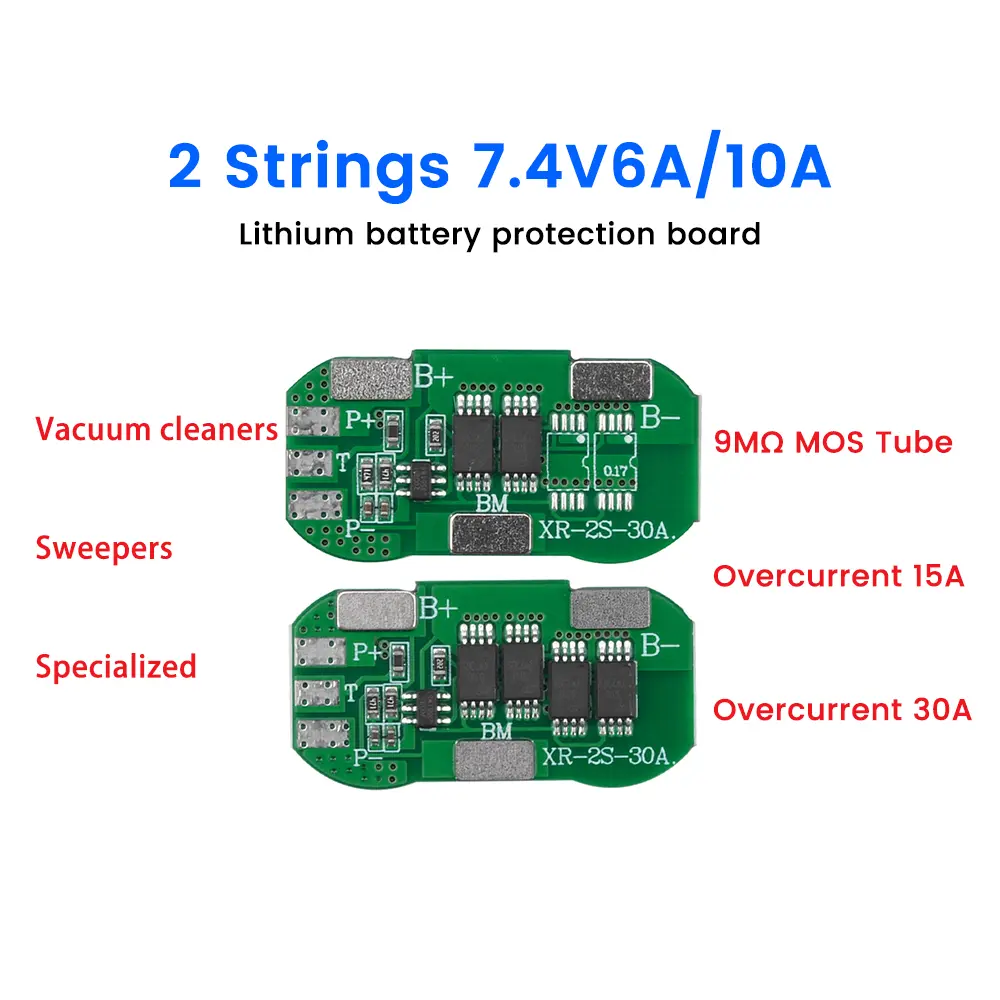

BMS 2S 7.4V 8.4V 18650 Lithium Battery Protection Board Li-ion Batteries Charge Discharge Protection Module Protect 2S 5A 6A 10A
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:20px">Features:</span></strong><br/>1. Using high quality materials, product quality is guaranteed<br/>2. Stable performance, easy to use<br/>3. Components are neatly arranged, more delicate and beautiful<br/>4. Products with overcharge, overcurrent, overdischarge, short-circuit protection, etc., more safe and reliable<br/>5. Wide range of applications, suitable for a variety of industrial DIY occasions</div><div><br/></div><p><strong><span style="font-size:20px">Parameter:</span></strong><br/><strong>2S 7.4V 6A/10A BMS:</strong><br/>Wiring mode: same port<br/>Single battery overdischarge voltage: 2.35V±0.025V<br/>Continuous operating current: 6A/10A<br/>Instantaneous protection current: 15A/30A<br/>Overcurrent recovery conditions: charging recovery or load disconnection<br/>Short-circuit recovery condition: charging recovery or disconnecting the load<br/>Single battery overcharge voltage: 4.28V±0.025V<br/>Continuous charging current: 6A/10A<br/>Charger voltage: 8.4V (recommended)<br/>Operating power consumption: ≤10uA<br/>Main circuit on-resistance: ≤15mΩ/≤10mΩ</p><p><strong>2S 7.4V 5A/10A BMS with nickel chip version:</strong><br/>Wiring mode: same port<br/>Single battery over-discharge voltage: 2.35V±0.025V<br/>Continuous operating current: 5A/10A<br/>Instantaneous protection current: 12A/36A<br/>Overcurrent recovery conditions: charging recovery or load disconnection<br/>Short-circuit recovery condition: charging recovery or disconnecting the load<br/>Single battery overcharge voltage: 4.28V±0.025V<br/>Continuous charging current: 6A/10A<br/>Charger voltage: 8.4V (recommended)<br/>Operating power consumption: ≤10uA<br/>Internal resistance of main circuit conduction: ≤15mΩ/≤10mΩ</p><p><strong><span style="font-size:20px">Frequently Asked Questions:</span></strong><br/>How much A protection board should I choose?<br/>A: How many A protection board depends on the motor power of your electric car or the controller current limit, such as 250W below 15A, 500W below 20A, 800W below 30A, the protection board current can not be less than the controller current limit.</p><p>My battery is 20AH, can I use this protection board?<br/>A: The size of your battery capacity and the size of the current with this board is not directly related to the size of the capacity is not a large battery, mainly to see the continuous current, that is to say, the larger your motor, you choose to protect the board continuous current to be larger, with your battery capacity is not directly related.</p><p><strong><span style="font-size:20px">Package include:</span></strong><br/>Lithium battery protection board * 1 (style optional)<br/></p></div></div><p><br/></p>
$4.1
$3.065
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
Colors
Sizes
-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:20px">Features:</span></strong><br/>1. Using high quality materials, product quality is guaranteed<br/>2. Stable performance, easy to use<br/>3. Components are neatly arranged, more delicate and beautiful<br/>4. Products with overcharge, overcurrent, overdischarge, short-circuit protection, etc., more safe and reliable<br/>5. Wide range of applications, suitable for a variety of industrial DIY occasions</div><div><br/></div><p><strong><span style="font-size:20px">Parameter:</span></strong><br/><strong>2S 7.4V 6A/10A BMS:</strong><br/>Wiring mode: same port<br/>Single battery overdischarge voltage: 2.35V±0.025V<br/>Continuous operating current: 6A/10A<br/>Instantaneous protection current: 15A/30A<br/>Overcurrent recovery conditions: charging recovery or load disconnection<br/>Short-circuit recovery condition: charging recovery or disconnecting the load<br/>Single battery overcharge voltage: 4.28V±0.025V<br/>Continuous charging current: 6A/10A<br/>Charger voltage: 8.4V (recommended)<br/>Operating power consumption: ≤10uA<br/>Main circuit on-resistance: ≤15mΩ/≤10mΩ</p><p><strong>2S 7.4V 5A/10A BMS with nickel chip version:</strong><br/>Wiring mode: same port<br/>Single battery over-discharge voltage: 2.35V±0.025V<br/>Continuous operating current: 5A/10A<br/>Instantaneous protection current: 12A/36A<br/>Overcurrent recovery conditions: charging recovery or load disconnection<br/>Short-circuit recovery condition: charging recovery or disconnecting the load<br/>Single battery overcharge voltage: 4.28V±0.025V<br/>Continuous charging current: 6A/10A<br/>Charger voltage: 8.4V (recommended)<br/>Operating power consumption: ≤10uA<br/>Internal resistance of main circuit conduction: ≤15mΩ/≤10mΩ</p><p><strong><span style="font-size:20px">Frequently Asked Questions:</span></strong><br/>How much A protection board should I choose?<br/>A: How many A protection board depends on the motor power of your electric car or the controller current limit, such as 250W below 15A, 500W below 20A, 800W below 30A, the protection board current can not be less than the controller current limit.</p><p>My battery is 20AH, can I use this protection board?<br/>A: The size of your battery capacity and the size of the current with this board is not directly related to the size of the capacity is not a large battery, mainly to see the continuous current, that is to say, the larger your motor, you choose to protect the board continuous current to be larger, with your battery capacity is not directly related.</p><p><strong><span style="font-size:20px">Package include:</span></strong><br/>Lithium battery protection board * 1 (style optional)<br/></p></div></div><p><br/></p>
