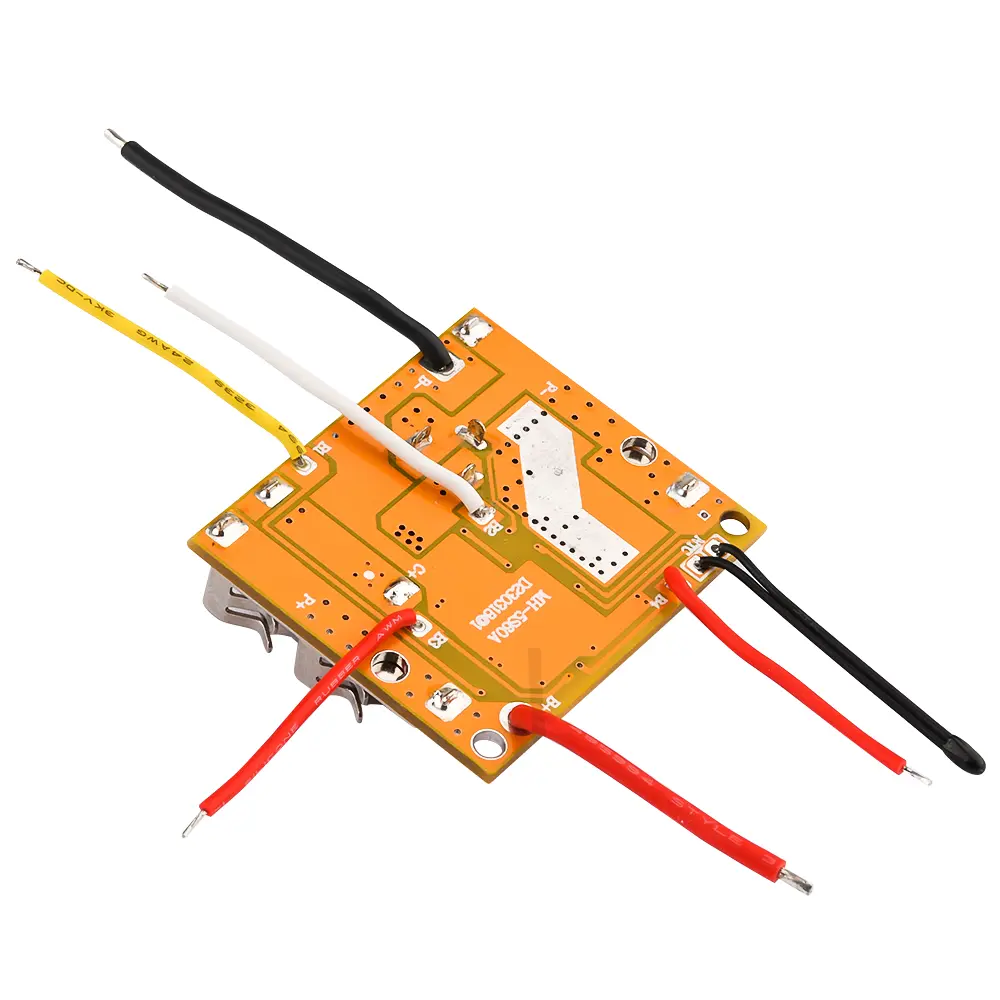

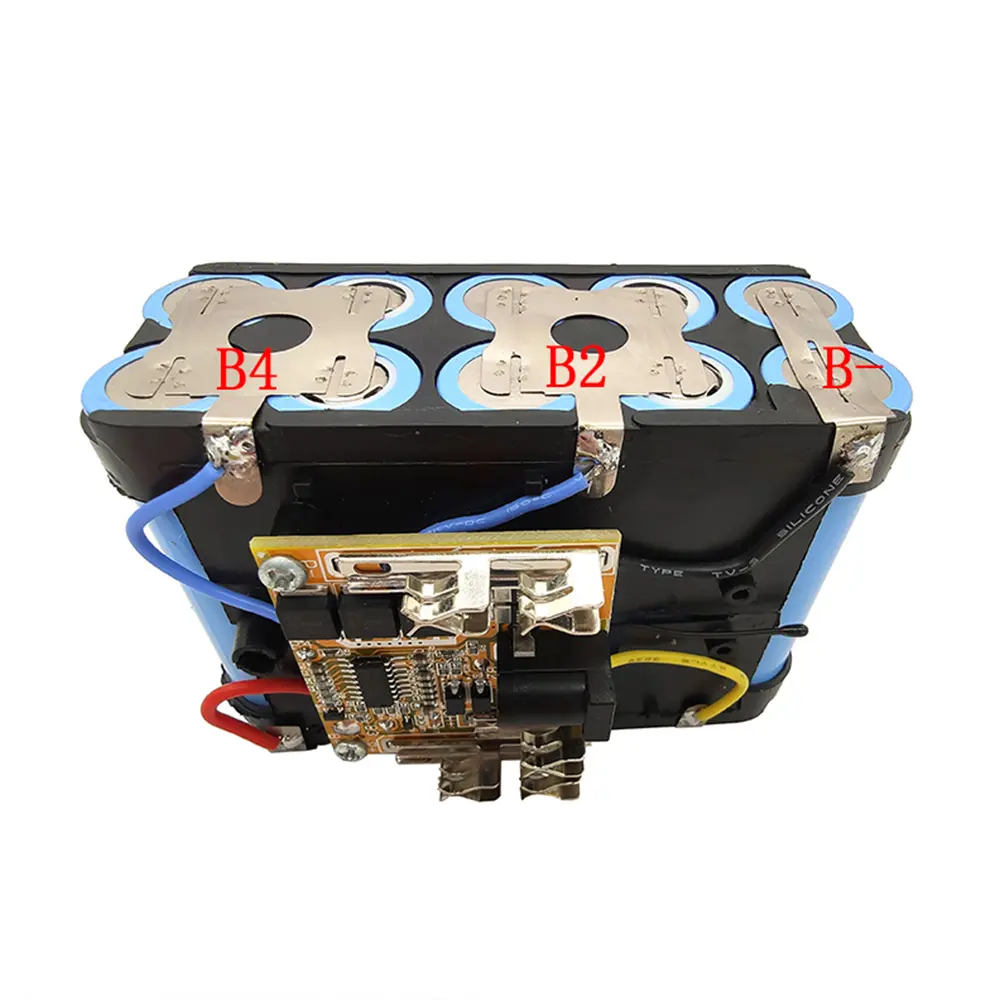

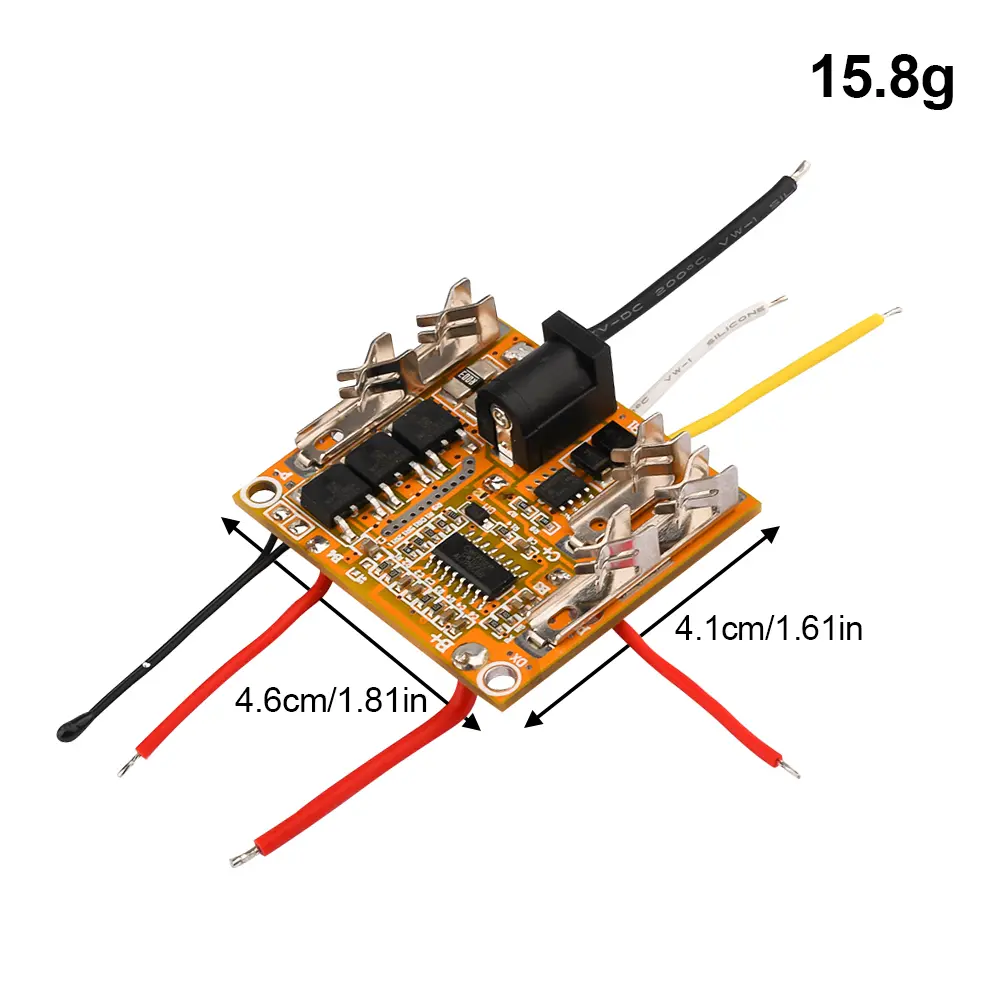

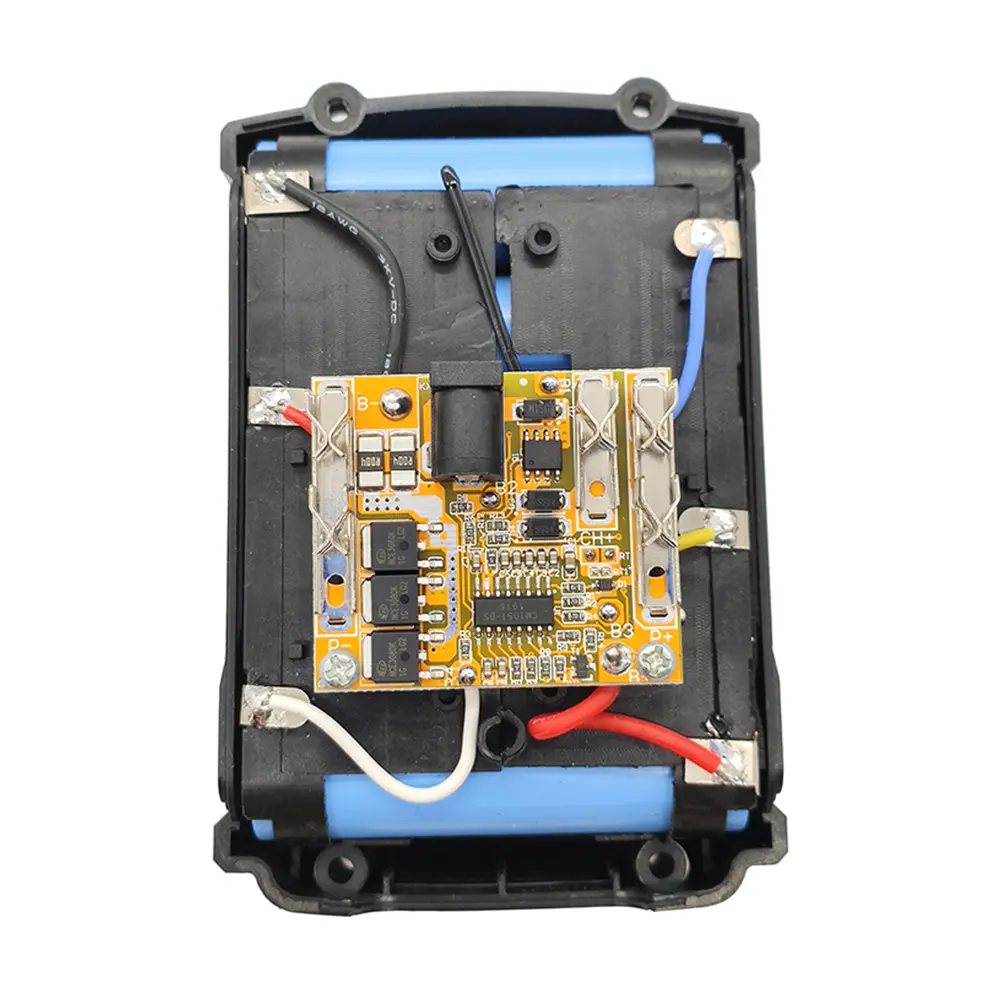

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><span style="font-size:20px"><strong>Features:</strong></span><br/>1.Made of high-quality materials with stable performance, this protective plate is suitable for 5S lithium-ion batteries and is mainly used for electric tools.<br/>2.This product uses 5 series of lithium battery management dedicated ICs as processors to detect real-time information such as voltage, charging and discharging current, and environmental temperature of each battery.<br/>3.Welding wires are convenient for connection, and selecting the correct protective plate is crucial for extending the battery life.<br/>4.Stable various charging and discharging protection functions, achieving protection functions for battery overcharging, discharging overcurrent, short circuit, charging overcurrent, temperature protection, etc<br/>5.The protection board has delayed self recovery, low power consumption, and can be used for the Makita battery pack. With thick copper hardware terminals, durable! Long term use does not generate heat.</div><div><br/></div><p><span style="font-size:20px"><strong>Parameters:</strong></span><br/>Charging voltage: 19/21V<br/>Single charging voltage: 3.8/4.25V<br/>Continuous discharge current: 8-20A<br/>Overcharge single section detection voltage: 3.85-4.25V<br/>Overcharge protection delay: 1s<br/>Overcharge single section recovery voltage: 3.75-4.13V<br/>Overcharge protection release delay: 1mS<br/>Overdischarge single section detection voltage: 2-2.8V<br/>Overdischarge protection delay: 1s<br/>Overdischarge single section recovery voltage: 2.5-3.0V<br/>Overdischarge protection release delay: 100 ± 20mS<br/>Overcurrent detection voltage: 0.1-0.4V<br/>Overcurrent detection current: 50 ± 5A<br/>Overcurrent detection delay: 1s<br/>Recovery status: automatic recovery<br/>With or without short-circuit protection: Yes<br/>Short circuit detection delay: 250uS<br/>Short circuit release delay: 1 second<br/>Short circuit detection voltage: 0.8V<br/>Recovery status: Automatically recover after disconnecting the load<br/>Over temperature protection temperature: 70 ± 5 ℃<br/>Overtemperature recovery temperature: 55 ± 5 ℃<br/>Power consumption working state: 25uA (25 ℃)<br/>Sleep state: 6uA (25 ℃)<br/>Internal resistance of the main discharge circuit: 30 ± 5m Ω<br/>Working temperature: -40 ℃ -85 ℃ Relative humidity ≤ 75%<br/>Storage temperature: -40 ℃ -125 ℃ Relative humidity ≤ 75%<br/>Size: length * width 46 * 40 (mm)<br/><span style="font-size:20px"><strong><br/>Product Description:</strong></span><br/>The lithium battery protection board is suitable for charging and discharging protection of lithium battery packs. When fully charged, it can ensure that the voltage difference between individual batteries is less than the set value (generally ± 20mv), achieving equal charging of each individual battery in the battery pack, effectively improving the charging effect under the series charging method. Simultaneously detect the overvoltage, undervoltage, overcurrent, short circuit, and over temperature status of each individual battery in the battery pack to protect and extend the battery&#x27;s service life. Undervoltage protection prevents damage to each single battery due to over discharge during use. The product can work stably and reliably for a long time in the ambient temperature range of -20 ℃ to+60 ℃.</p><p><span style="font-size:20px"><strong>Attention:</strong></span><br/>The lithium battery protection plate cannot be used for Lithium iron phosphate battery, hernia lamp, electric fish machine battery pack, electric bicycle battery pack, children&#x27;s car battery, motor or products with motor, 1W fish eye LED lamp, please pay attention to customers who buy the above combination!<br/>The described power range is applicable to the following products: massager battery pack, LED light backup power supply, 12V electronic products, solar street light battery pack, monitoring backup power supply, and other products.</p><p><span style="font-size:20px"><strong>Package include:</strong></span><br/>1 x Lithium Battery Protection Board<br/><br/></p></div></div><p><br/></p>
