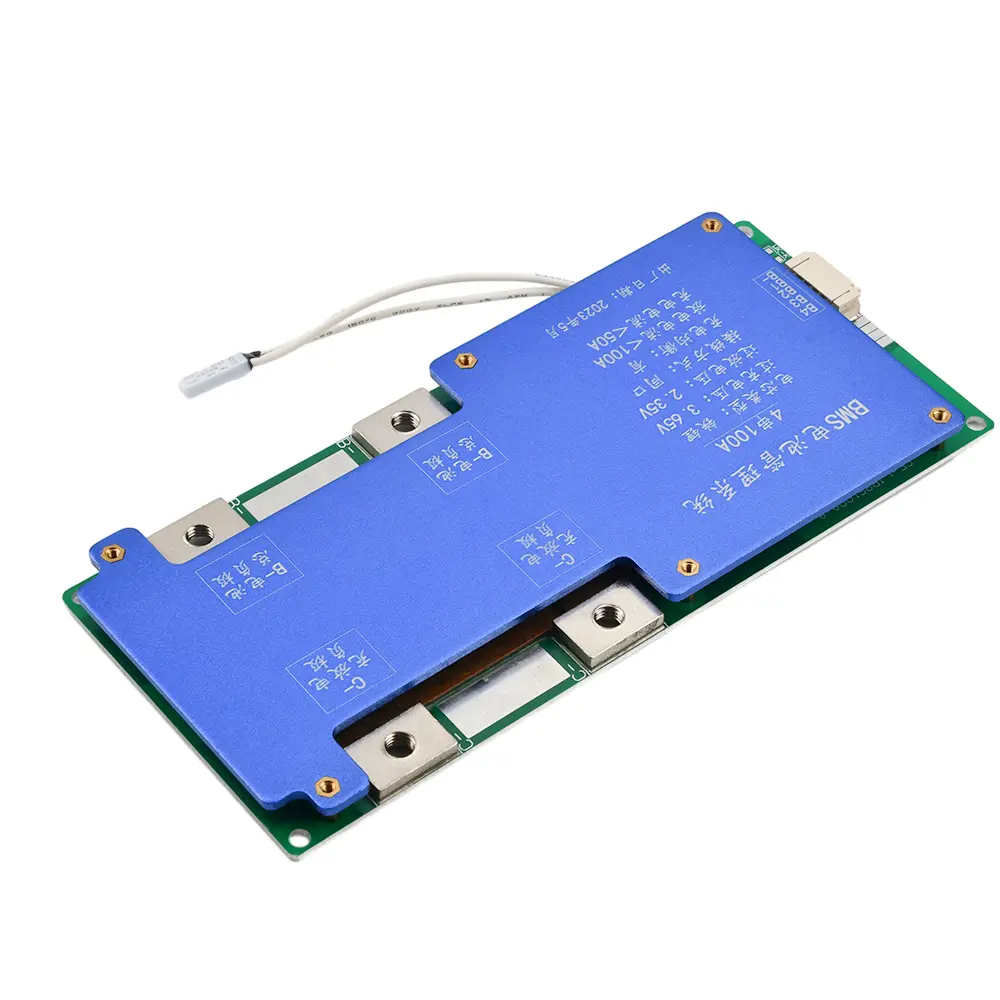

BMS 8S 100A 24V LiFePO4 Battery Protection Board BMS Iron Phosphate LFP Board Charging Controller with Balancing Function

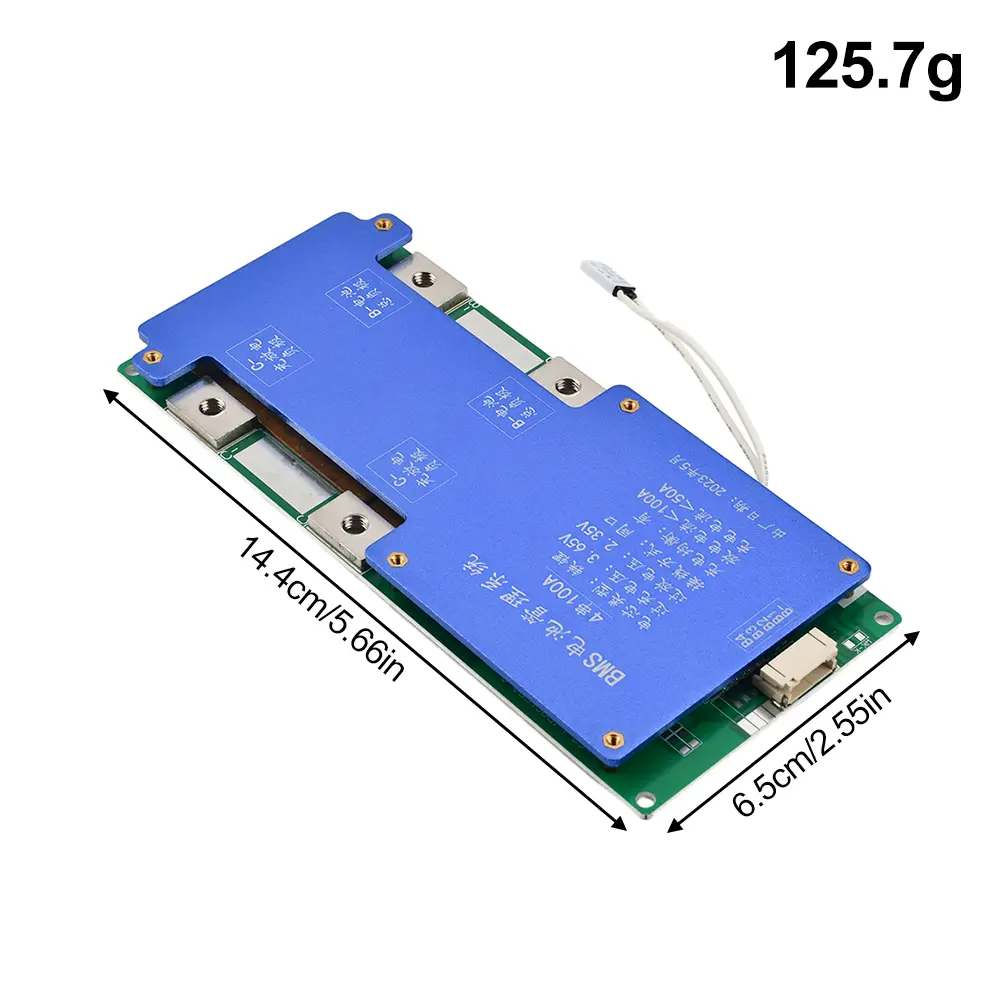

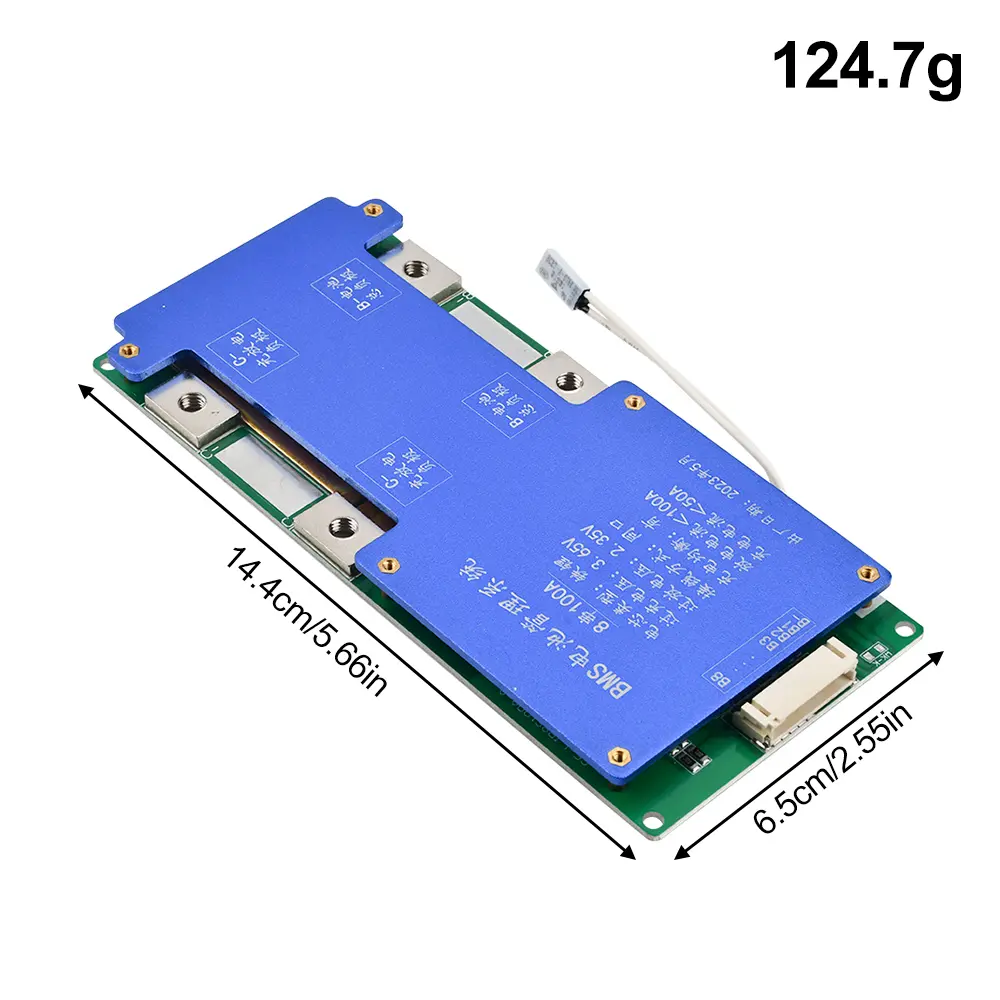

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget></div><div><strong>Features:</strong><br/><span style="color:rgb(244, 78, 59)">1.Overcharge protection<br/>2.Balanced protection<br/>3.Overdischarge protection<br/>4.Overcurrent protection<br/>5.Short circuit protection,Electrostatic protection<br/>6.Weak current switch</span></div><div><br/></div><p><strong>Parameters:</strong><br/><strong>Style 1</strong><br/>Voltage: DC14.6V<br/>Discharge current: 100A<br/>Charging current (same port): ≤ 50A<br/>Main circuit conduction internal resistance: ≤ 5MQ<br/>Discharge overcurrent protection: 600+10A<br/>Product size: 145 * 65 * 11+1MM<br/><strong><br/>Style 2</strong><br/>Voltage: DC24V<br/>Discharge current: 100A<br/>Charging current (same port): ≤ 50A<br/>Main circuit conduction internal resistance: ≤ 5MQ<br/>Discharge overcurrent protection: 600+10A<br/>Product size: 145 * 65 * 11+1MM<br/><br/><strong>Overcharge protection</strong><br/>Detection voltage: 3.65+0.025V<br/>Detection delay: 1000+500MS<br/>Release voltage: 3.5+0.05V<br/>Overdischarge protection<br/>Detection voltage: 2.35+0.1V<br/>Detection delay: 1000+500MS<br/>Release voltage: 2.7+0.1V<br/><br/><strong>Equilibrium parameters</strong><br/>Detection voltage: 3.5+0.025V<br/>Detection delay: 100+50MS<br/>Equalizing current: 70+5MA<br/><br/><strong>Overcurrent protection</strong><br/>Detection voltage: 50+15MV<br/>Detection delay: 1000+500MS<br/>Current protection: 600+100A<br/><br/><strong>Short circuit protection</strong><br/>Trigger condition: external short circuit<br/>Detection delay: ≤ 350US<br/>Release condition: disconnect the load<br/>Temperature control protection<br/>Charging high temperature protection detection temperature: 75 ° C<br/>Discharge high-temperature protection detection temperature: 75 ° C<br/>Release condition: 65 ° C<br/><br/><strong>Self consumption</strong><br/>Working power consumption: ≤ 40UA<br/>Sleep over discharge power consumption: ≤ 10UA<br/>Working temperature range: -20/+80C</p><p><strong>Package include:</strong><br/>Protection board * 1<br/><br/></p></div></div><p><br/></p>
$73.61
$41.39
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget></div><div><strong>Features:</strong><br/><span style="color:rgb(244, 78, 59)">1.Overcharge protection<br/>2.Balanced protection<br/>3.Overdischarge protection<br/>4.Overcurrent protection<br/>5.Short circuit protection,Electrostatic protection<br/>6.Weak current switch</span></div><div><br/></div><p><strong>Parameters:</strong><br/><strong>Style 1</strong><br/>Voltage: DC14.6V<br/>Discharge current: 100A<br/>Charging current (same port): ≤ 50A<br/>Main circuit conduction internal resistance: ≤ 5MQ<br/>Discharge overcurrent protection: 600+10A<br/>Product size: 145 * 65 * 11+1MM<br/><strong><br/>Style 2</strong><br/>Voltage: DC24V<br/>Discharge current: 100A<br/>Charging current (same port): ≤ 50A<br/>Main circuit conduction internal resistance: ≤ 5MQ<br/>Discharge overcurrent protection: 600+10A<br/>Product size: 145 * 65 * 11+1MM<br/><br/><strong>Overcharge protection</strong><br/>Detection voltage: 3.65+0.025V<br/>Detection delay: 1000+500MS<br/>Release voltage: 3.5+0.05V<br/>Overdischarge protection<br/>Detection voltage: 2.35+0.1V<br/>Detection delay: 1000+500MS<br/>Release voltage: 2.7+0.1V<br/><br/><strong>Equilibrium parameters</strong><br/>Detection voltage: 3.5+0.025V<br/>Detection delay: 100+50MS<br/>Equalizing current: 70+5MA<br/><br/><strong>Overcurrent protection</strong><br/>Detection voltage: 50+15MV<br/>Detection delay: 1000+500MS<br/>Current protection: 600+100A<br/><br/><strong>Short circuit protection</strong><br/>Trigger condition: external short circuit<br/>Detection delay: ≤ 350US<br/>Release condition: disconnect the load<br/>Temperature control protection<br/>Charging high temperature protection detection temperature: 75 ° C<br/>Discharge high-temperature protection detection temperature: 75 ° C<br/>Release condition: 65 ° C<br/><br/><strong>Self consumption</strong><br/>Working power consumption: ≤ 40UA<br/>Sleep over discharge power consumption: ≤ 10UA<br/>Working temperature range: -20/+80C</p><p><strong>Package include:</strong><br/>Protection board * 1<br/><br/></p></div></div><p><br/></p>
