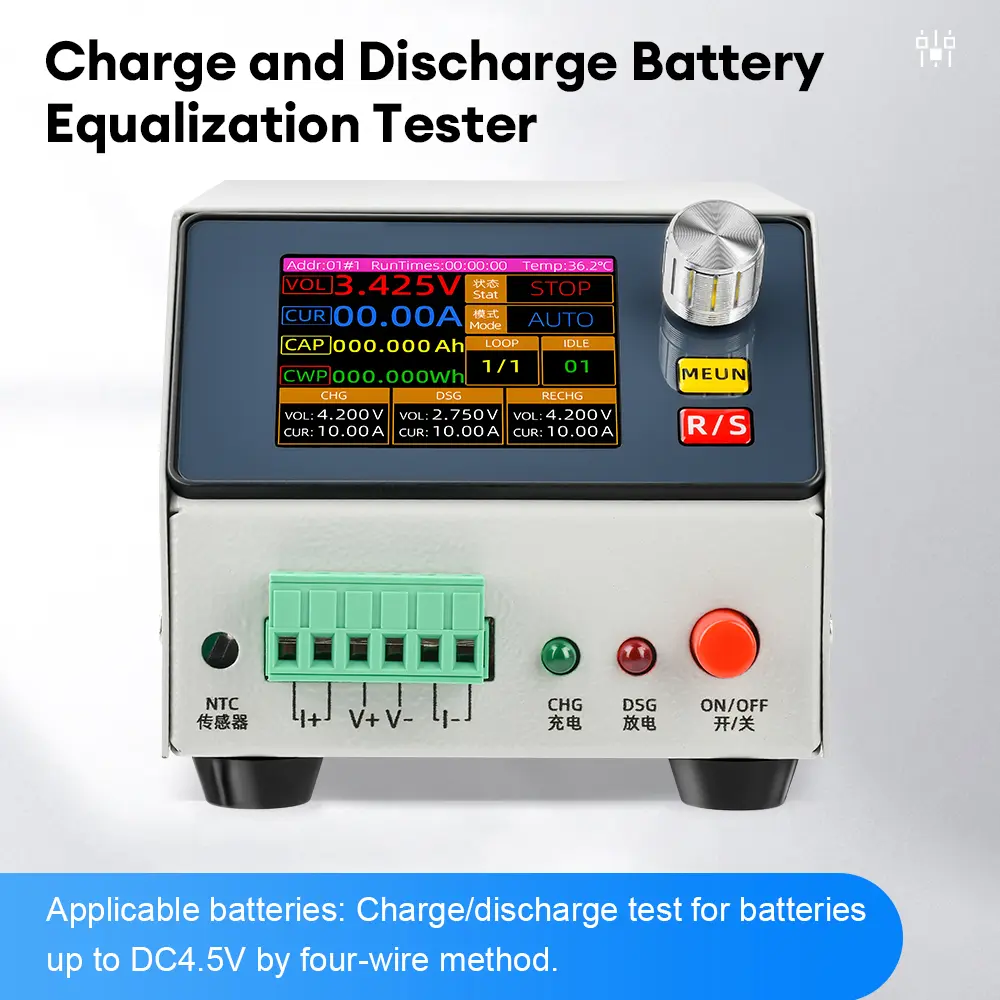

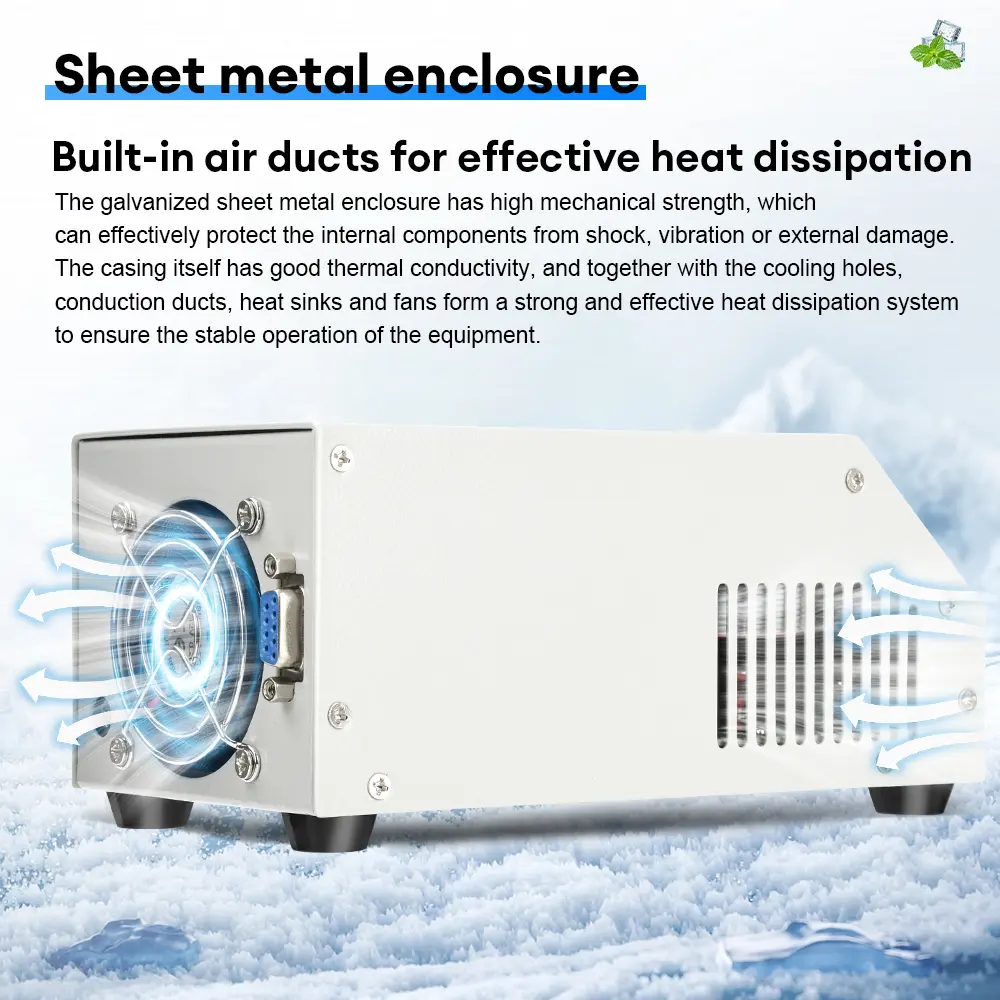

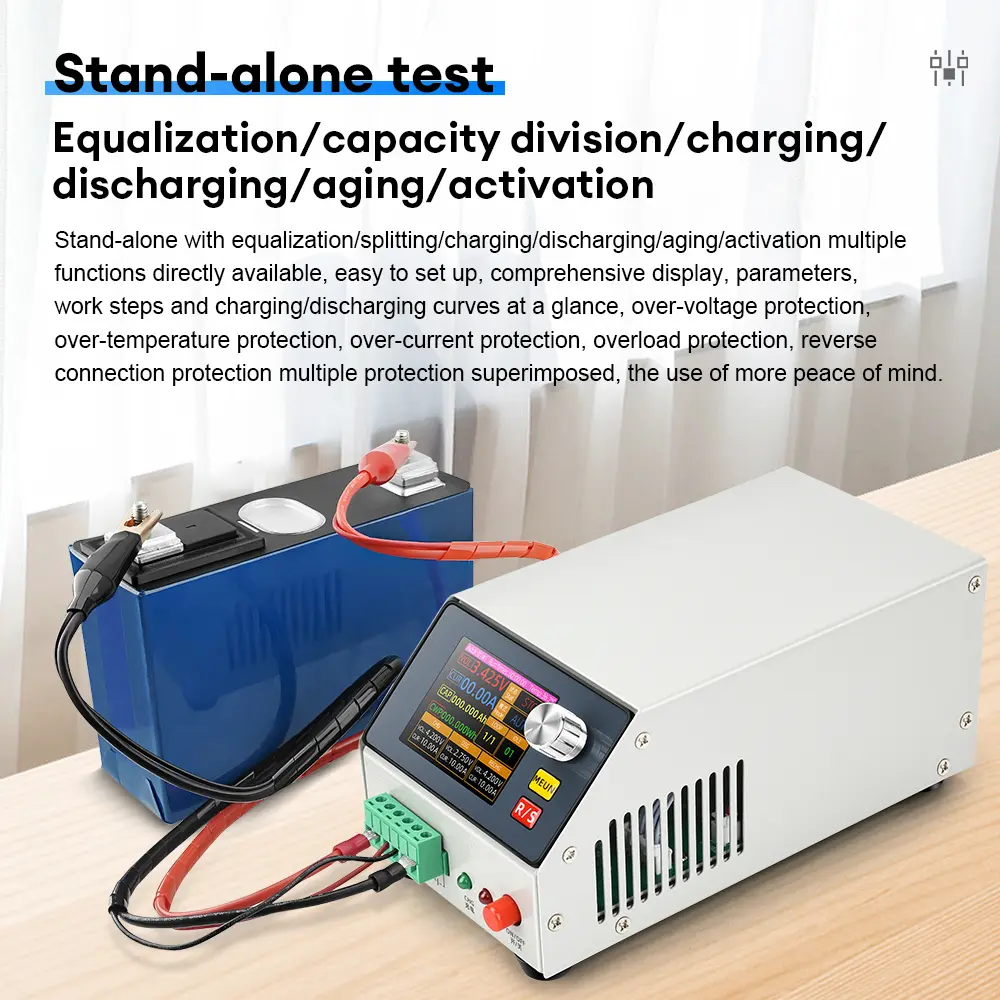

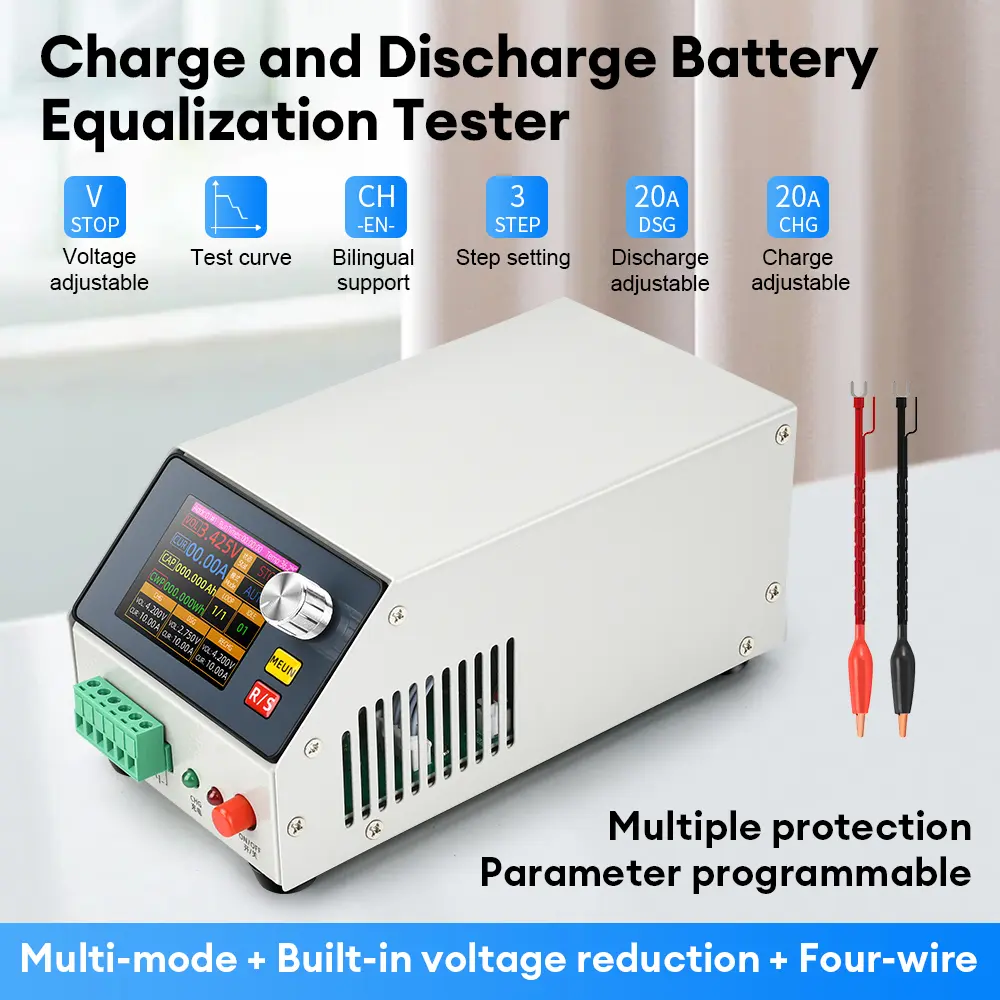

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004112422" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1. High-definition visualization: 2.4-inch color display, clearly display data, intuitive and easy to read<br/>2. Bilingual support: support for Chinese and English switching to meet the needs of different user languages<br/>3.Sheet metal shell, with high mechanical strength, effectively protect the internal components, embedded infusion air ducts, strong and effective heat dissipation, to ensure stable operation of the equipment.<br/>4. Charging and discharging integrated battery equalization tester: multi-mode testing, built-in voltage reduction module, programmable parameters, four-wire system, multiple protection<br/>5. Battery reverse protection, prohibit reverse battery: reverse protection, but reverse operation will still be bad, so prohibit reverse connection!</div><div><br/></div><p>Parameter:<br/>Load Power: Maximum Load Power V(Voltage) × I(Current ≤ 20A) <br/>Channel Type: Single Channel <br/>Operating Mode: <br/>①Automatic Mode: Charge-Discharge-Recharge-Complete <br/>②Charge Before Discharge: Charge-Discharge-Complete <br/>③Discharge Before Charge: Discharge-Charge-Complete <br/>④Charge Mode: Charge-Complete <br/>⑤Discharge Mode: Discharge-Complete <br/>⑥Activation Mode: <br/>For Professionals Only, During Use. The tester is not allowed to leave the field during use!<br/>Forced charging with charging stop voltage, <br/>will not stop automatically, need to end manually.<br/>(7) Equalization mode: according to the set equalization parameters, automatic charging and discharging, until the trigger current is reached.<br/>⑧ online: online computer program control operation mode<br/>Cycle times: <br/>Stand-alone: 1~9 times adjustable; <br/>Online: set freely by software <br/>Standing time: <br/>Stand-alone: 1~30 minutes adjustable.<br/>Online: set freely by software <br/>Parameter overview display: support <br/>Charging and discharging curve display: support <br/>Internal resistance detection: not support <br/>Heat dissipation: 60×60 fan active heat dissipation <br/>Overheating protection: support <br/>Reverse connection protection: with reverse connection protection, prohibit reverse connection of the battery.<br/>Product size: 198×96×86mm</p><p>Model No.: BT5V-2020A <br/>Power Adapter: AC100~240V to DC19V 4.74A 90W <br/>Charging Power: Maximum 70W, Current ≤20A <br/>Applicable Battery: Charge and Discharge test for batteries up to DC4.5V by four-wire method <br/>Charging (Stop) Voltage: <br/>Stand-alone: 1.25V~4.50V adjustable, 0.05V/stage <br/>Online: Free setup within 4.5V (by computer software) Recharge (Stop) Voltage: Stand-alone: 1.25V~4.50V adjustable, 0.5V/stage Charging (stop) voltage: Stand-alone: 1.25V~4.50V adjustable, 0.05V/speed <br/>On-line: within 4.5V free setting (through computer software) <br/>Charging current: charging voltage × charging current ≤ adapter power × 80% <br/>Stand-alone: 0.5A~20A adjustable, 0.5A/speed, <br/>On-line: within 20A free setting (through computer software) (through computer software)<br/>(Charging) end current: charging current reaches the end current to stop charging.<br/>Stand-alone: 50mA~2.0A adjustable,50mA/speed <br/>Online: can be set freely by online software <br/>Discharge current: Maximum discharge power 150W＞voltage×discharge current <br/>Stand-alone: 0.5A~20A adjustable,0.5A/speed <br/>Online: within 20A set freely (by computer software) <br/>(Discharge) stop voltage: <br/>Stand-alone: 1.0V~4.0V adjustable,0.05V/speed <br/>Online: free setting within 18V (via computer software)</p><p>Model No.: BT22V-1020A <br/>Power Adapter: AC100~240V to DC24V 5A 90W <br/>Charging Power: Maximum 70W, Current ≤10A, Charging Voltage×Charging Current ≤Adapter Power×80% <br/>Applicable Batteries: Charging and Discharging Tests for Batteries within DC1.25V~22V by four-wire method, Charging (Stop) Voltage: Standalone: 1.25V~22V adjustable, 0.05V/stage Online: Free setting within 22V (through computer software) Recharging (Stop) Test: Standalone: 1.25V~22V adjustable, 0.05V/stage Discharge test <br/>Charging (stop) voltage: <br/>Stand-alone: 1.25V~22V adjustable, 0.05V/speed <br/>On-line: free setting within 22V (through computer software) <br/>Re-charging (stop) voltage: <br/>Stand-alone: 1.25V~22V adjustable, 0.5V/speed <br/>On-line: free setting within 22V (through computer software) <br/>Charging current: charging voltage × charging current ≤ adapter power ×80% <br/>Stand-alone: 0.5A~10A adjustable, 0.5A/speed, <br/>Online: free setting within 20A (via computer software) <br/>(Charging) End Current: Charging current reaches the end current to stop charging.<br/>Stand-alone: 50mA~1.0A adjustable,50mA/file <br/>Online: can be set freely through online software <br/>Discharge current: voltage×discharge current＜150W <br/>Stand-alone: 0.5A~20A adjustable,0.5A/file <br/>Online: set freely within 20A (through computer software)<br/>(Discharge) stopping voltage: <br/>stand-alone: 1.0V~29.999V adjustable, 0.05V/step <br/>online: free setting within 30V (through computer software)</p><p>Package include:<br/>Main unit*1 <br/>Red and black alligator clip leads*2 <br/>Instruction manual*1<br/></p></div></div><p><br/></p>
