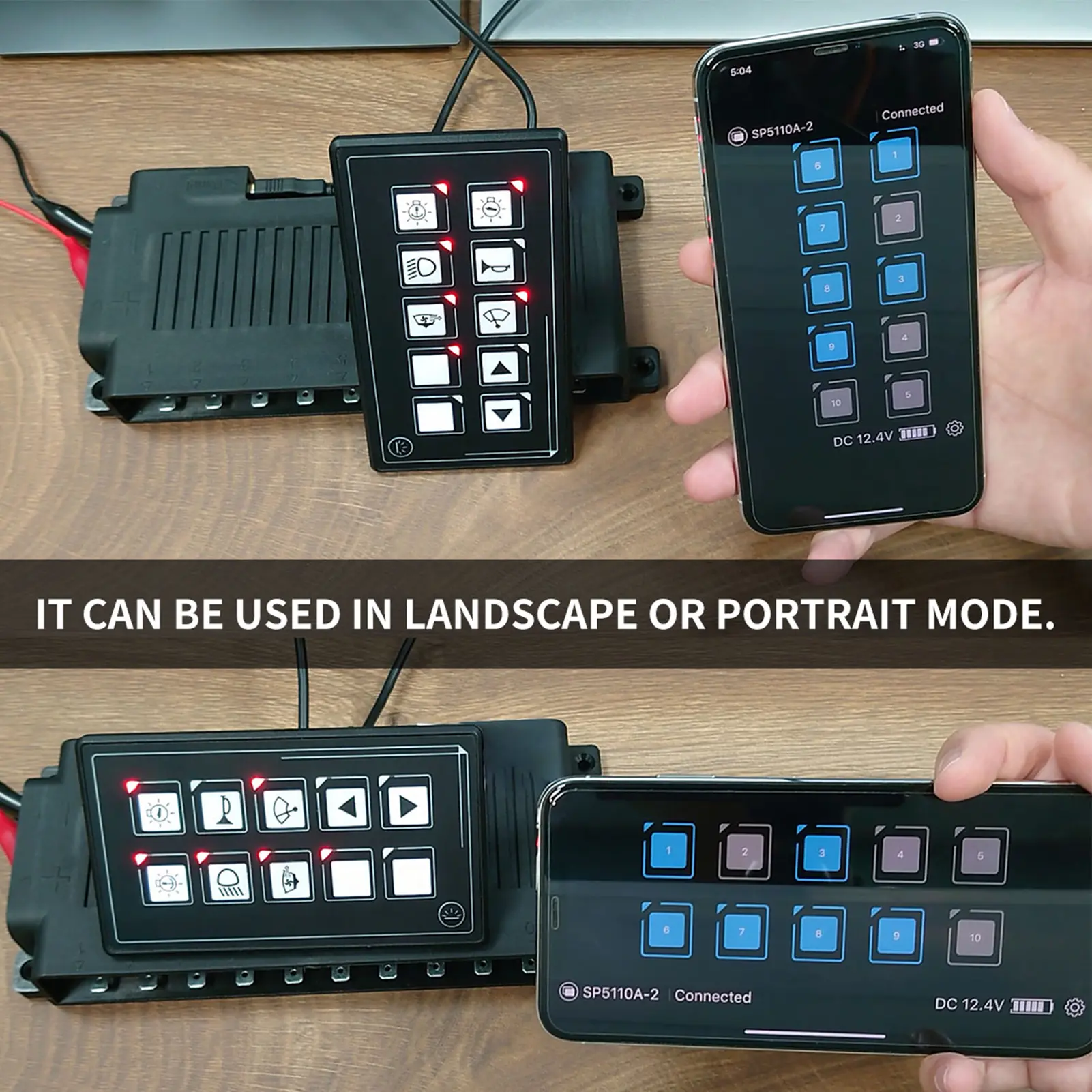

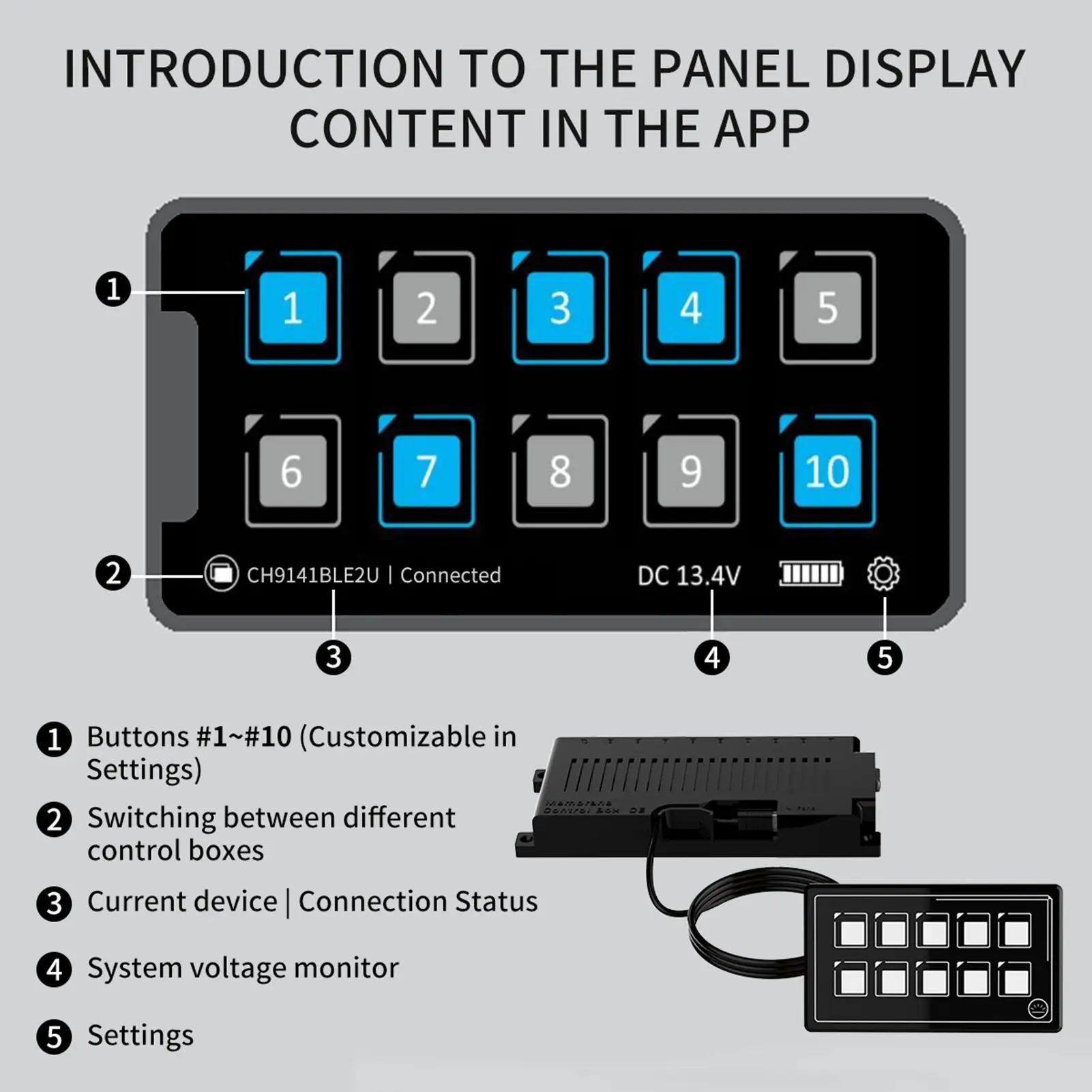

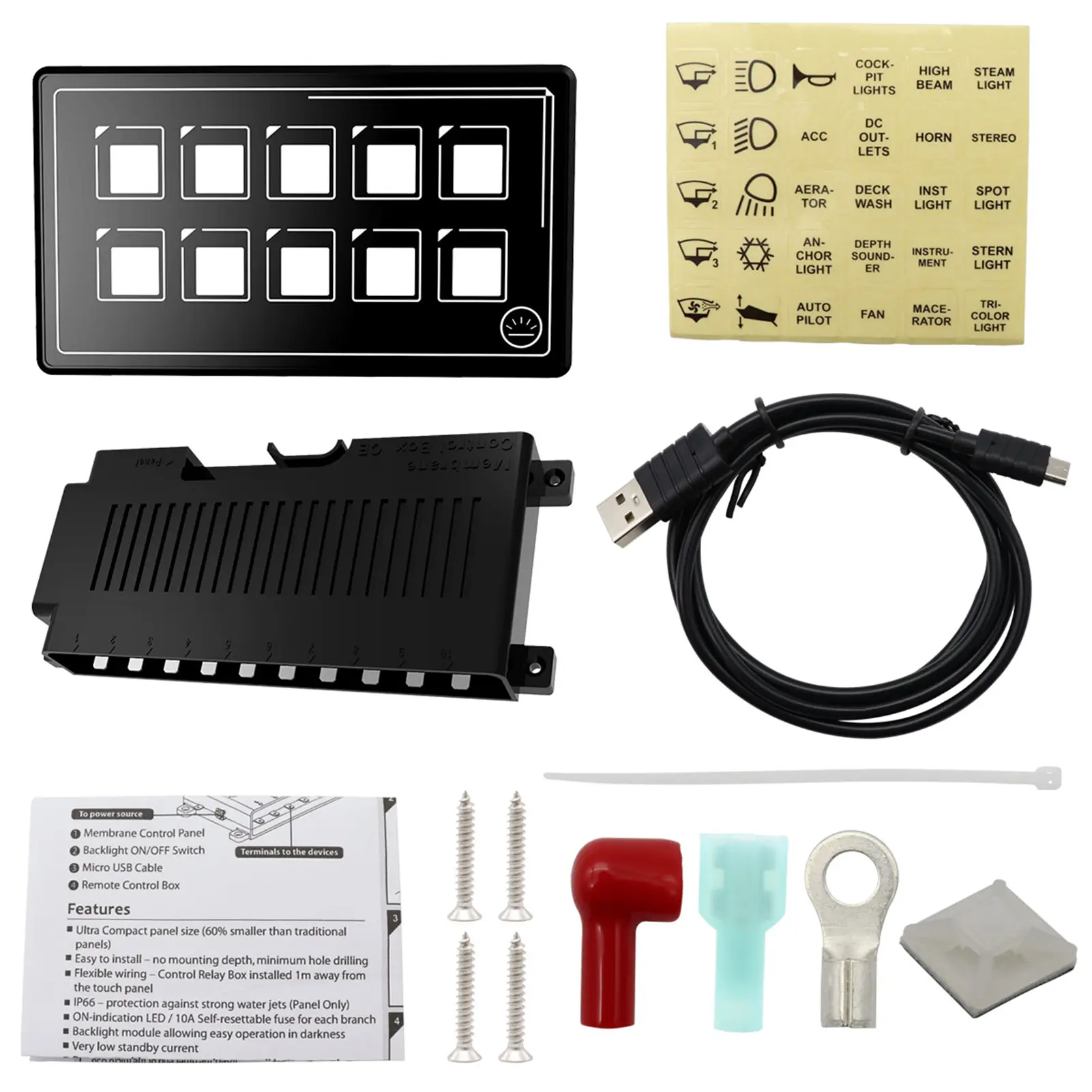

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div style="font-family:Arial, Helvetica, sans-serif;font-size:12px;line-height:150%"> <p style="margin-bottom:6px;margin-top:6px"></p> <p><strong>Features:</strong><br />Ultra-small panel size, small drilling, easy for installation, space-saving.<br />IP67 waterproof rate, can protect the panel in case of temporary water immersion.<br />Flexible wiring, you can install the relay box 1 meter away from the touch screen, safe to use.<br />With backlight module design, convenient for operation in the dark.<br />All buttons are programmable as reset buttons (reset function is usually applied to horn or wiper applications).<br />60 pieces of various graphic and text label sticker sets are included.<br />This panel can also be controlled remotely by mobile app(for Android/iOS systems).<br /><br /><strong>Specifications:</strong><br />Model: SP5110A<br />Circuit Protection: Built-in Resettable Fuse(PPTC)<br />Switch Ratings: 10A per branch circuit<br />Maximum Cumulative Current: 60A<br />Rated Voltage: DC 11-30V<br />Waterproof: IP67(Membrane Panel)<br />Power Terminals: M5 stud size ring terminals<br />Load Terminals: 250 quick terminals(male)<br />Material: PET<br />Color: Black<br />Item Weight: 469g/16.5oz<br />Package Weight: 526g/18.6oz<br />Package Size: 22.5*10*5cm/8.9*3.9*2in<br /><br /><strong>Package List:</strong><br />1*10P Membrane Control Switch Panel with Backlight Module</p> <p style="margin-bottom:6px;margin-top:6px"></p> <p><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /></p> <div style="margin-bottom:6px;margin-top:6px"> </div> <p style="margin-bottom:6px"></p> <p>Many Questions about Dropshipping Services Are As Follows:</p> <p>1.How many orders can you handle per day?<br />we are a large company in Shenzhen,China,with a large warehouse that can handle large orders everyday.We send out countless parcels everyday.We can guarantee the order you request.</p> <p>2.How fast can you process orders?<br />We will arrange shipment as soon as possible after you pay the order.Priority delivery for dropshipping order</p> <p>3.Could you ship order without any receipts,invoices and promotional offer inside the package?<br />Absolutely!No invoices,receipts,promotional offer if you leave notes on the order(if you want,we can provide.)</p> <p>4.If you need other products?<br />We can provide most products you need as much as possible1</p> <p>If you have any other questions,please feel free to contact us.<br />We are very grateful to cooperate with you.</p> <p>5.We can support CSV/Excel File Dropshipping.</p> <p>6.There is no limited stock to fulfill the orders on a daily basis</p> <p style="font-family:arial, helvetica;font-size:12px;text-align:left" align="left"><br /></p> <p style="margin-top:6px"></p> <p style="margin-top:6px"></p> <p style="margin-top:6px"></p> <p style="margin-top:6px"></p> <br /> </div><br /></div></div>
