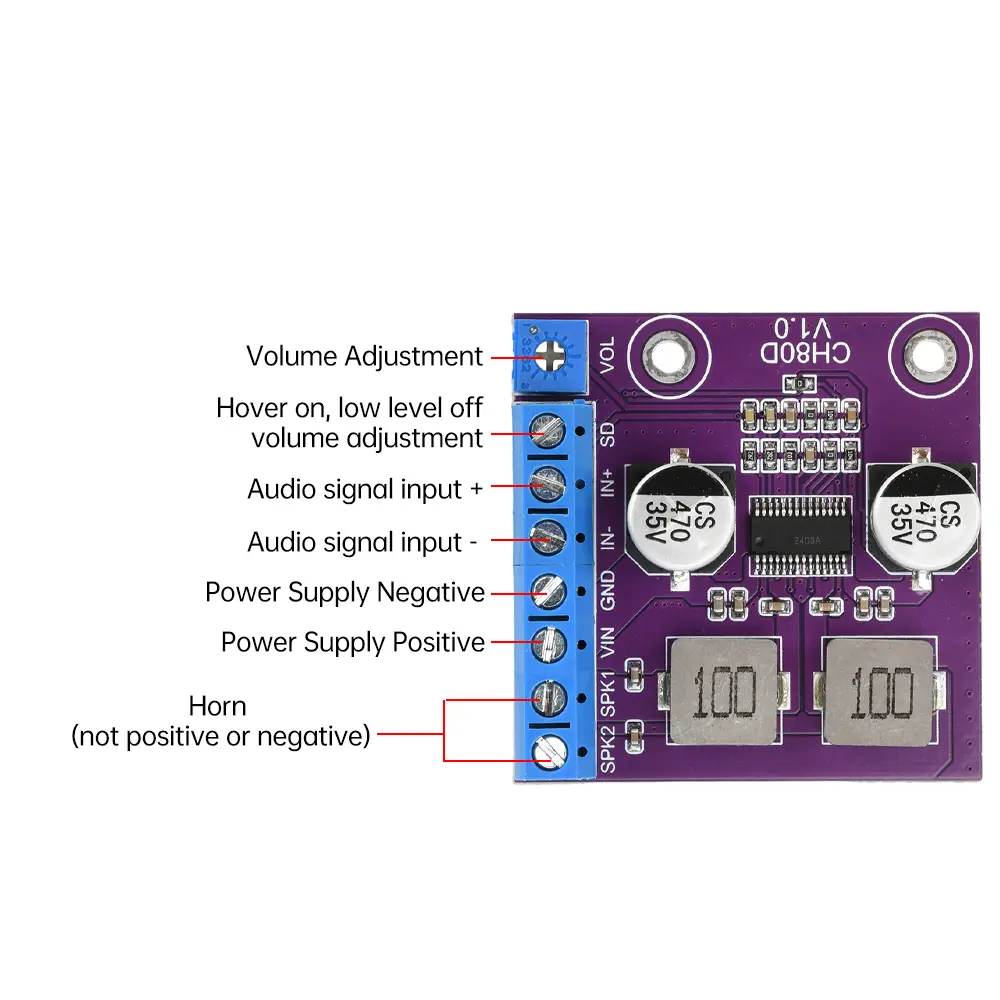

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1.80W stereo Class D audio amplifier, in the supply voltage of 25V, PBTL mode can output a maximum of 88W (42 load) of continuous power<br/>2. With advanced EMI suppression technology, it uses surface mount technology, only a small number of peripheral devices, the system has a high-quality audio output power<br/>3. Built-in over-current protection, short-circuit protection and overheating protection, effectively protecting the chip from damage under abnormal operating conditions.<br/>4. Maximum efficiency of more than 95%, 35V voltage design provides the chip with ultra-high reliability, which can effectively reduce the proportion of defects in the production process.<br/>5. Can be controlled to enter the shutdown mode, thereby reducing power consumption; stable operation, through the configuration of peripheral resistors can be adjusted to the amplifier&#x27;s voltage gain, easy to apply.</p><p>Parameter:<br/>Wide operating voltage range: DC 5-26V<br/>Quiescent current: 50mA@24V<br/>High reliability design: 35V voltage resistant design<br/>Efficiency: 95%@PVcc=20V, RL=4Ω, Po=40W<br/>VDD=24V, RL=4Ω, Po=80W, THD+N=10%<br/>VDD=25V, RL=4Ω, Po=88W, THD+N=10%<br/>Multi-switching frequency selectable: AM suppression function<br/>Product size: 45*45*12mm</p><p>Package include:<br/>Module*1<br/><br/></p></div></div><p><br/></p>
