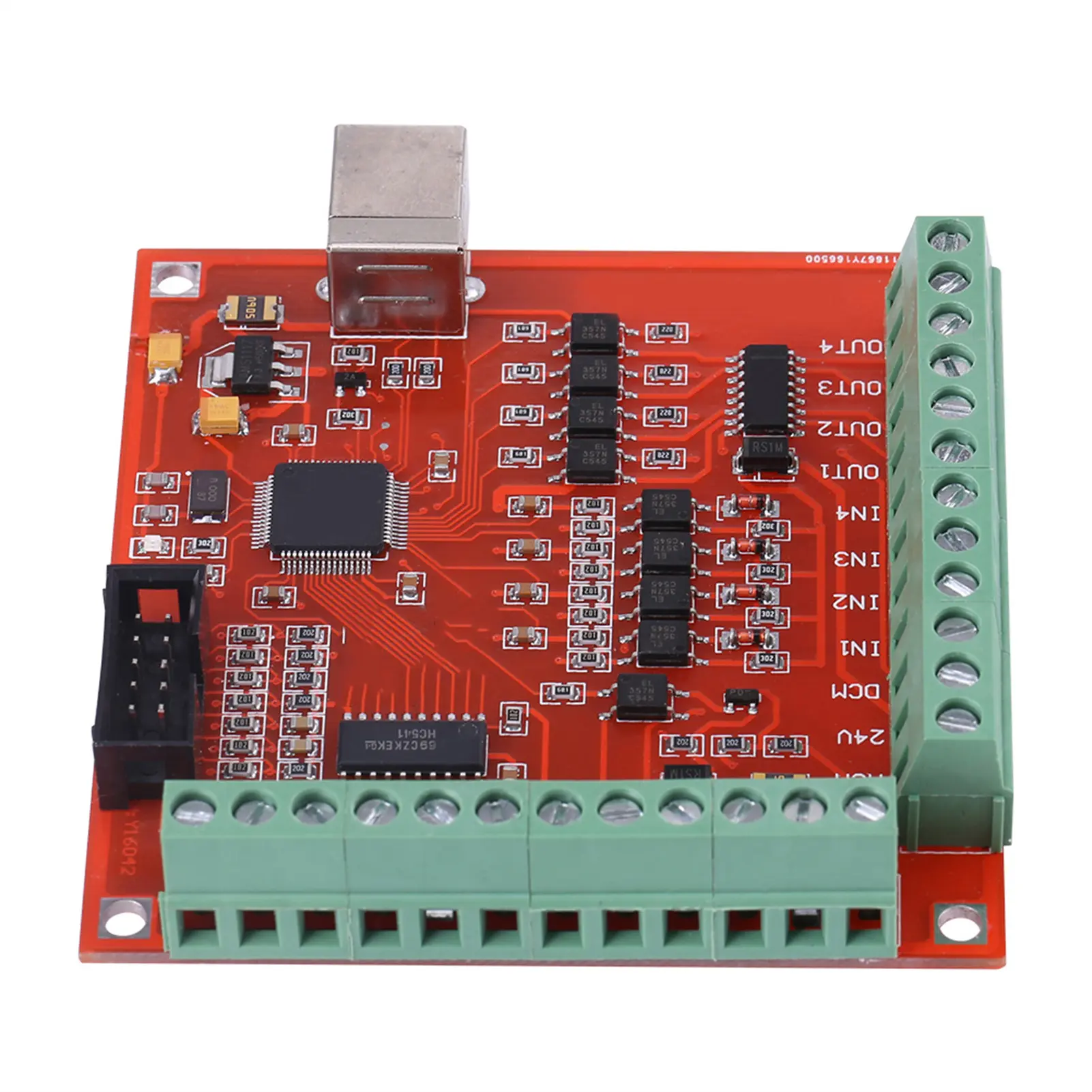

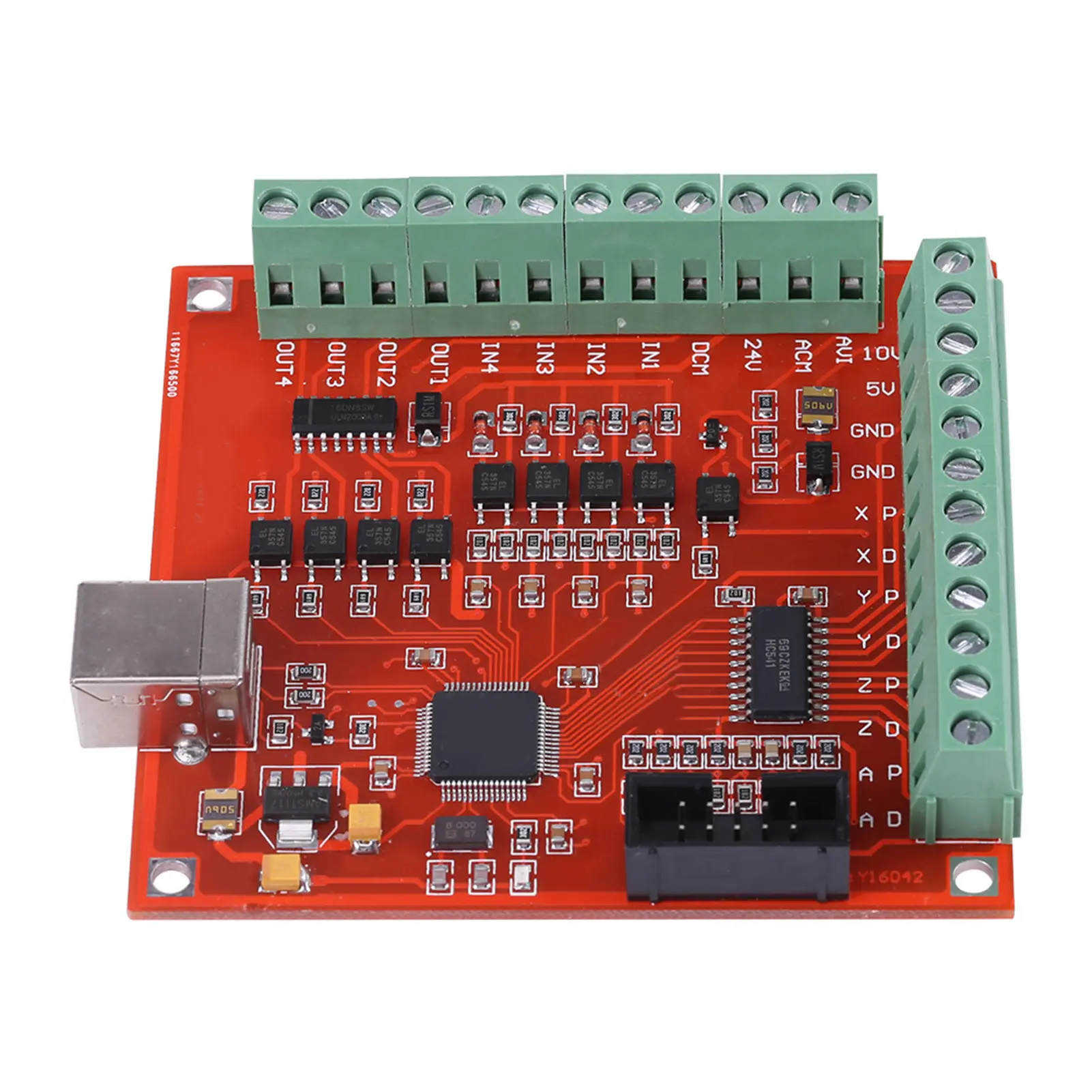

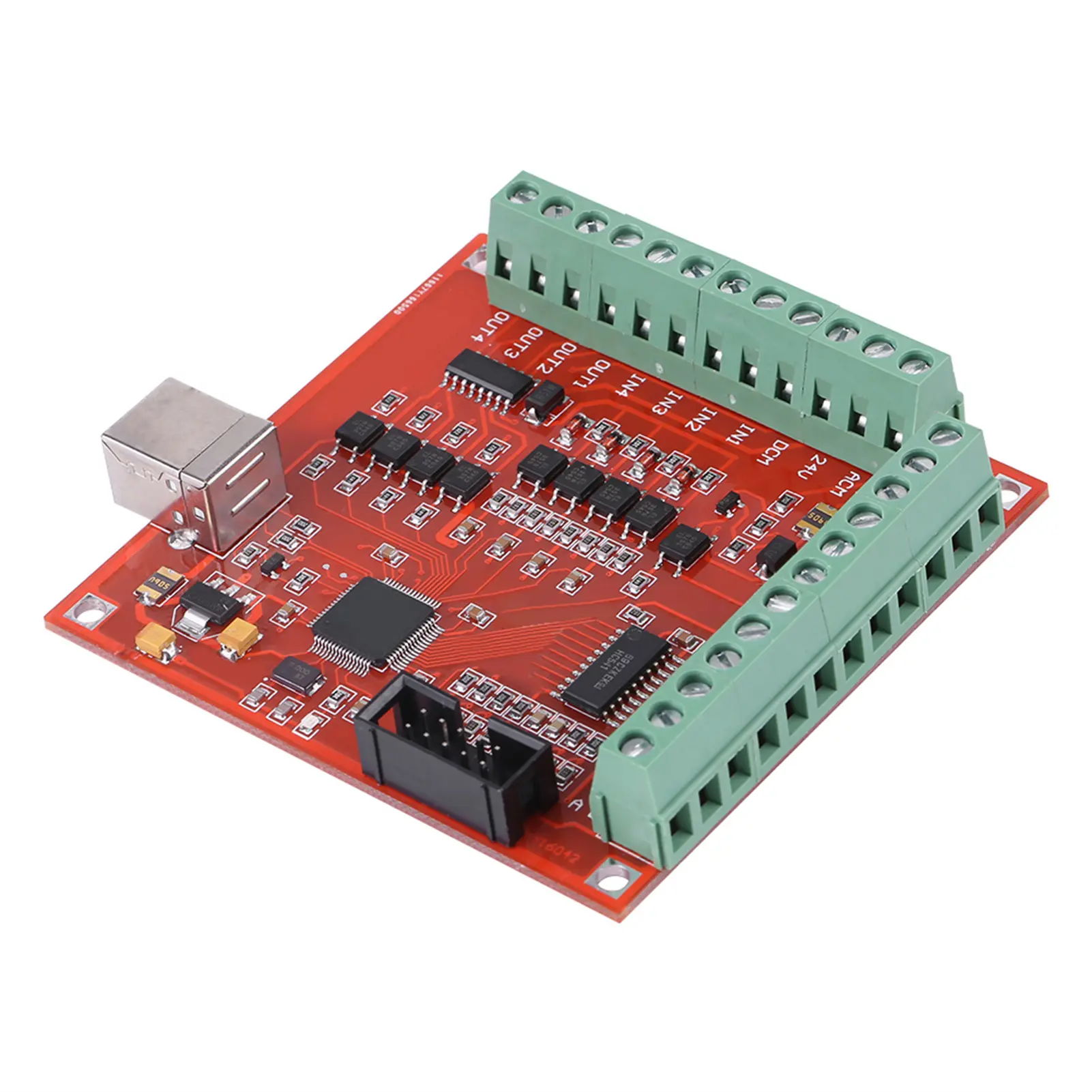

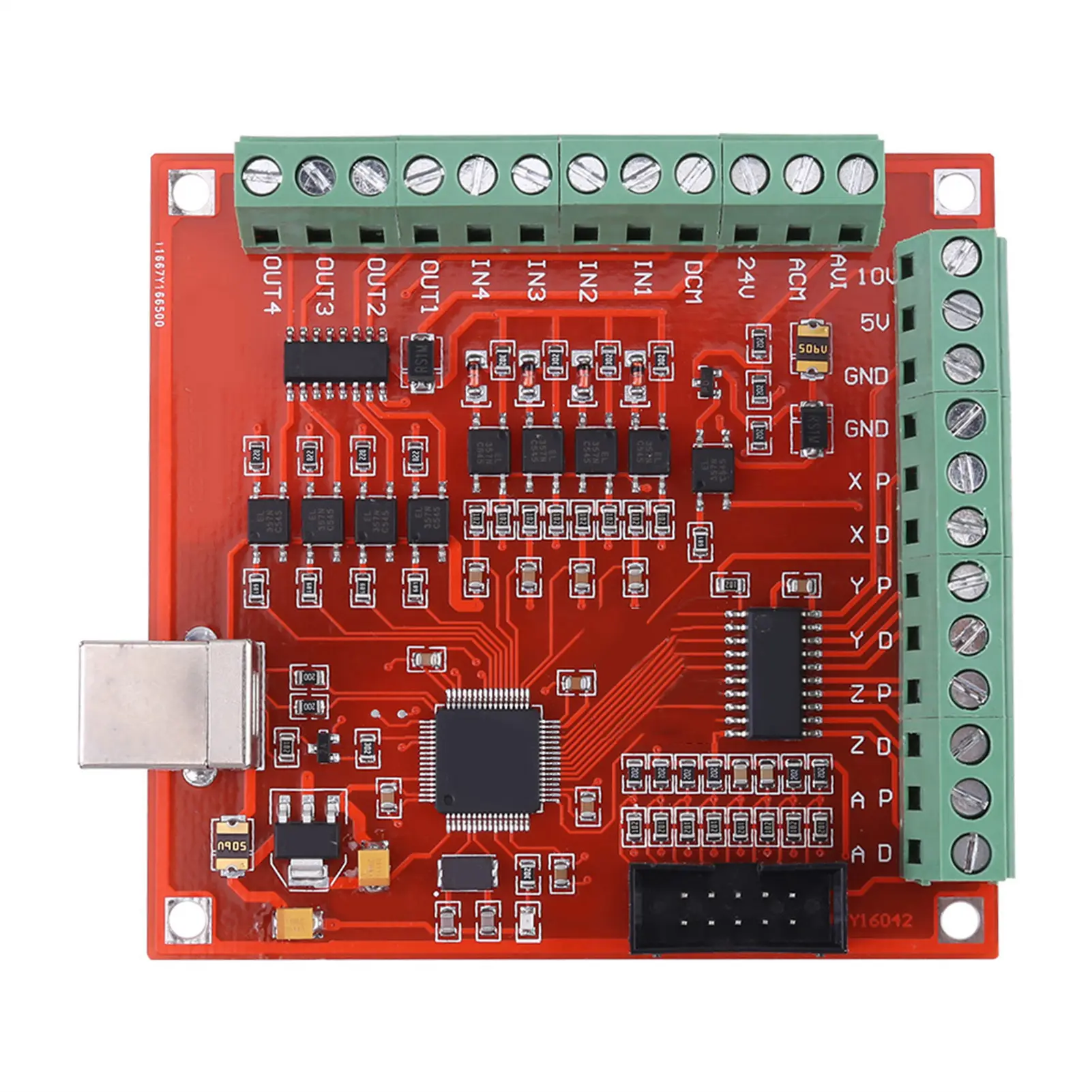

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>USB MACH3 100Khz Motion Controller Card Breakout Board for CNC Engraving</b><br/></p><div style="font:Arial;font-size:16px;"><p><br/></p>Features: <br/>Support for 4-axis linkage, you can connect four stepper motor drives or servo drives. <br/>Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor. <br/>Support automatic probe tool. <br/>Support emergency input. <br/>Support for limit switch. <br/>Support for connecting electronic hand wheel. <br/>Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable. <br/>Have 0-10V output port, you can use MACH3 software to control the spindle motor speed. <br/>4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device. <br/>4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device. <br/>Status LED, indicate connection status on the board.<br/><br/></div><div style="font:Arial;font-size:16px;">Specifications: <br/>Size: Approx. 8 x 7.7cm/3.15 x 3.03inch <br/>Weight: 160g<br/><br/></div><div style="font:Arial;font-size:16px;">Package Included: <br/>1 x USB CNC Controller Card<br/>1 x USB Cable<br/>1 x CD<br/><br/></div><div style="font:Arial;font-size:16px;">Note:<br/>Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.<br/><p><br/></p></div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
