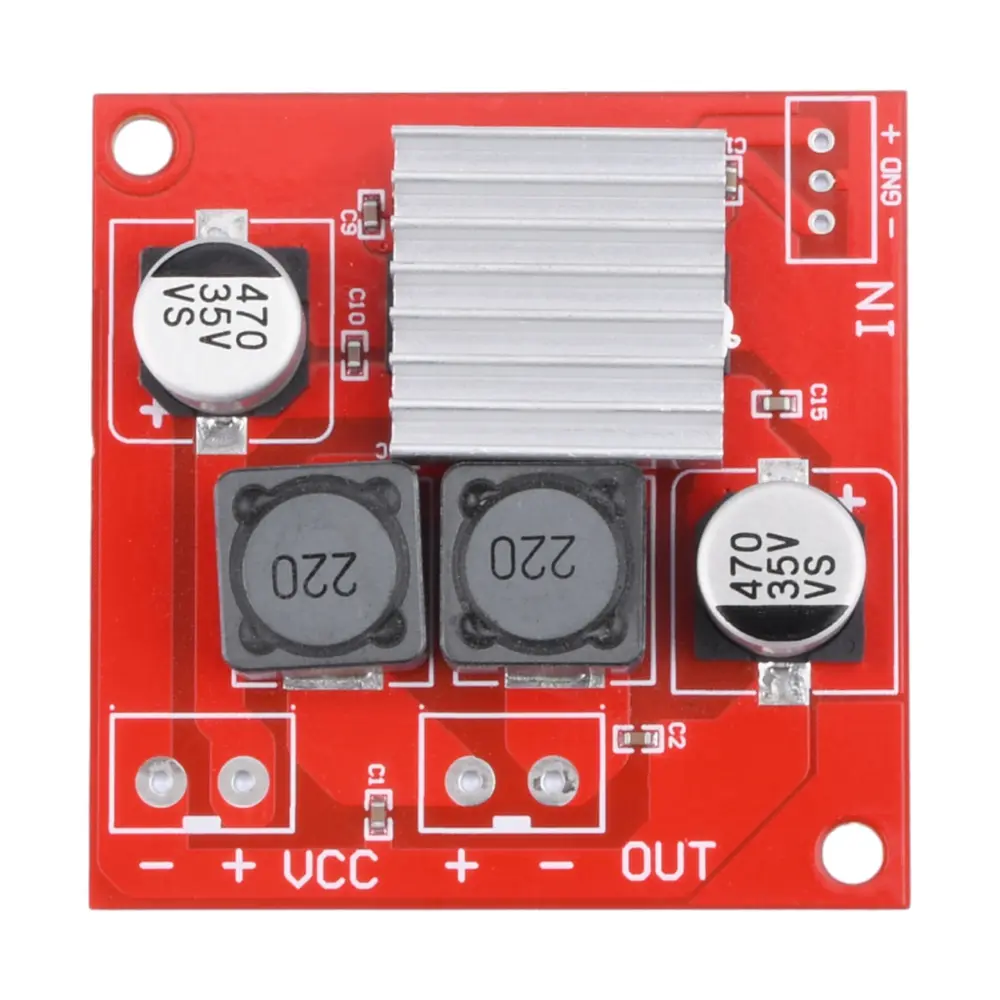

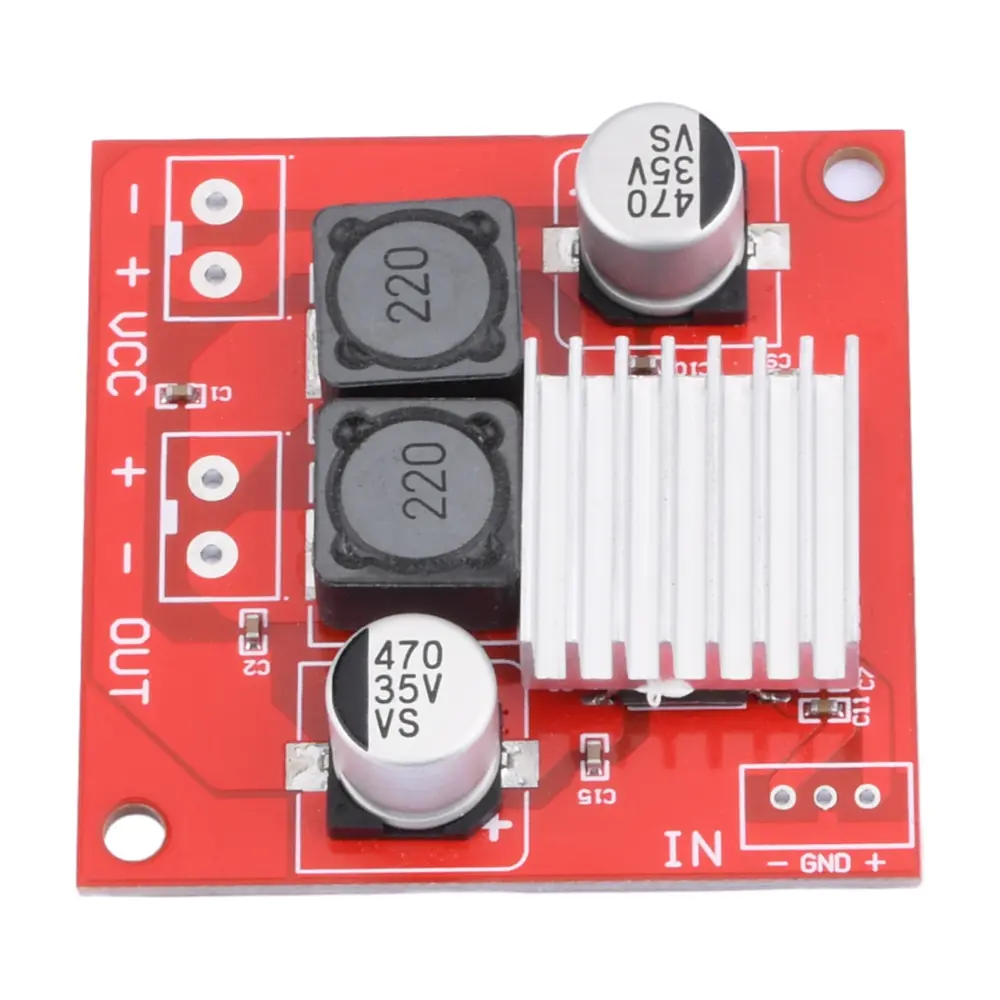

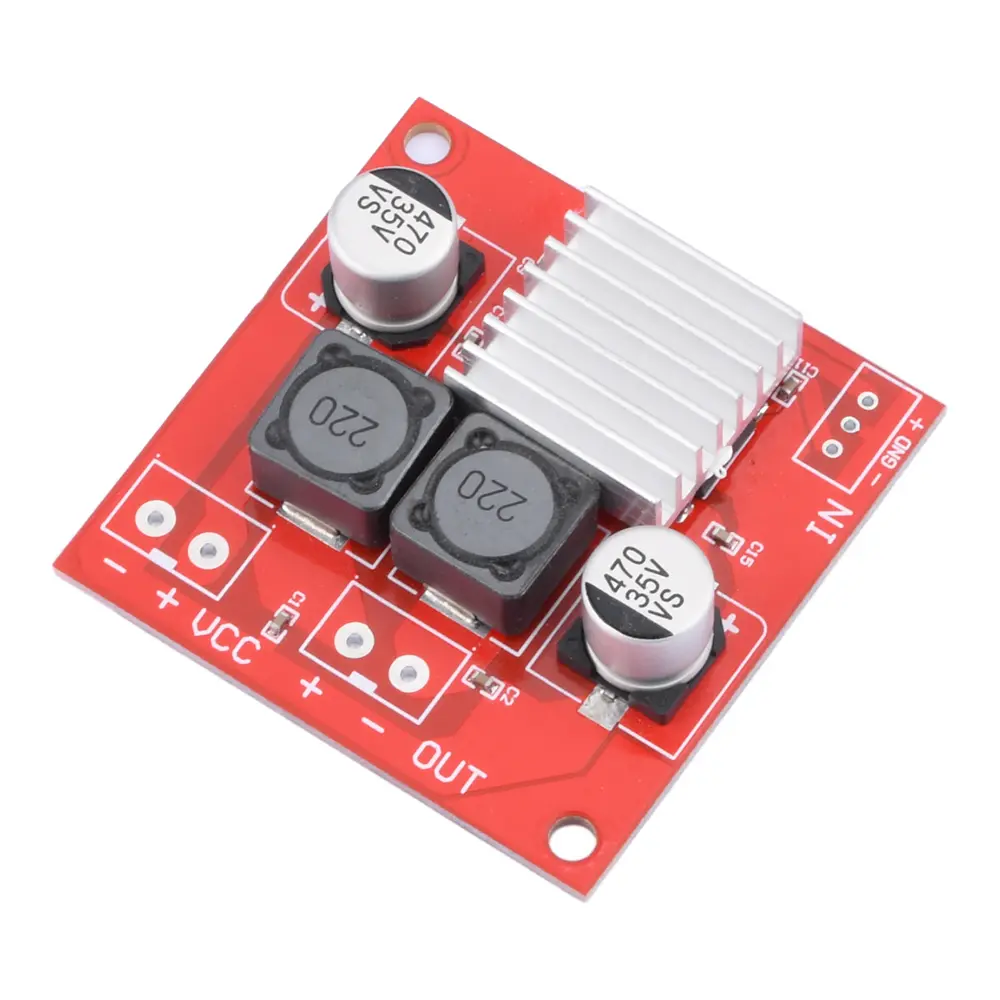

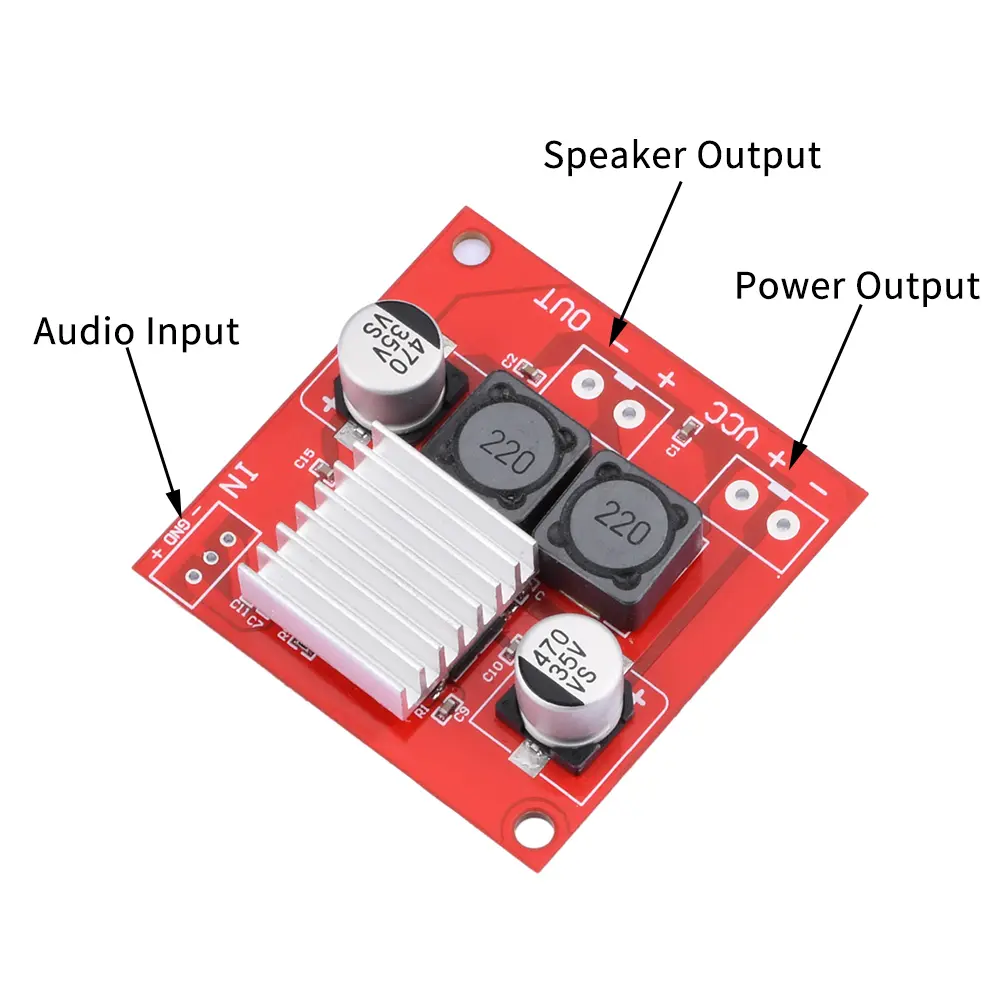

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004074434" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:22px">Features:</span></strong><br/>1. Using the new CS8683h high-power digital amplifier chip, quality is guaranteed!<br/>2. Compact and exquisite appearance, beautiful layout of components<br/>3.BTL output, high power 130W, single-ended input can also be balanced (differential) input<br/>4. Easy to use, the chip plus heat sink work more stable<br/>5. Wide range of applications, suitable for a variety of industrial DIY occasions</div><div><br/></div><p><strong><span style="font-size:22px">Parameter:</span></strong><br/>Operating voltage: DC5V-34V<br/>Maximum output power: 130W<br/>Signal input mode can be selected according to the needs of the following two:<br/>1: Signal balanced input (differential): signal +, signal -<br/>2: Unbalanced input (single-ended): - end and GND (ground) shorted, the signal from the + end of the input</p><p>Note: unbalanced input must be &quot;-&quot; and GND short-circuit connection, otherwise the sound is not normal, serious chip may be burned.</p><p><strong><span style="font-size:22px">Package include:</span></strong><br/>Amplifier module *1<br/></p></div></div><p><br/></p>
