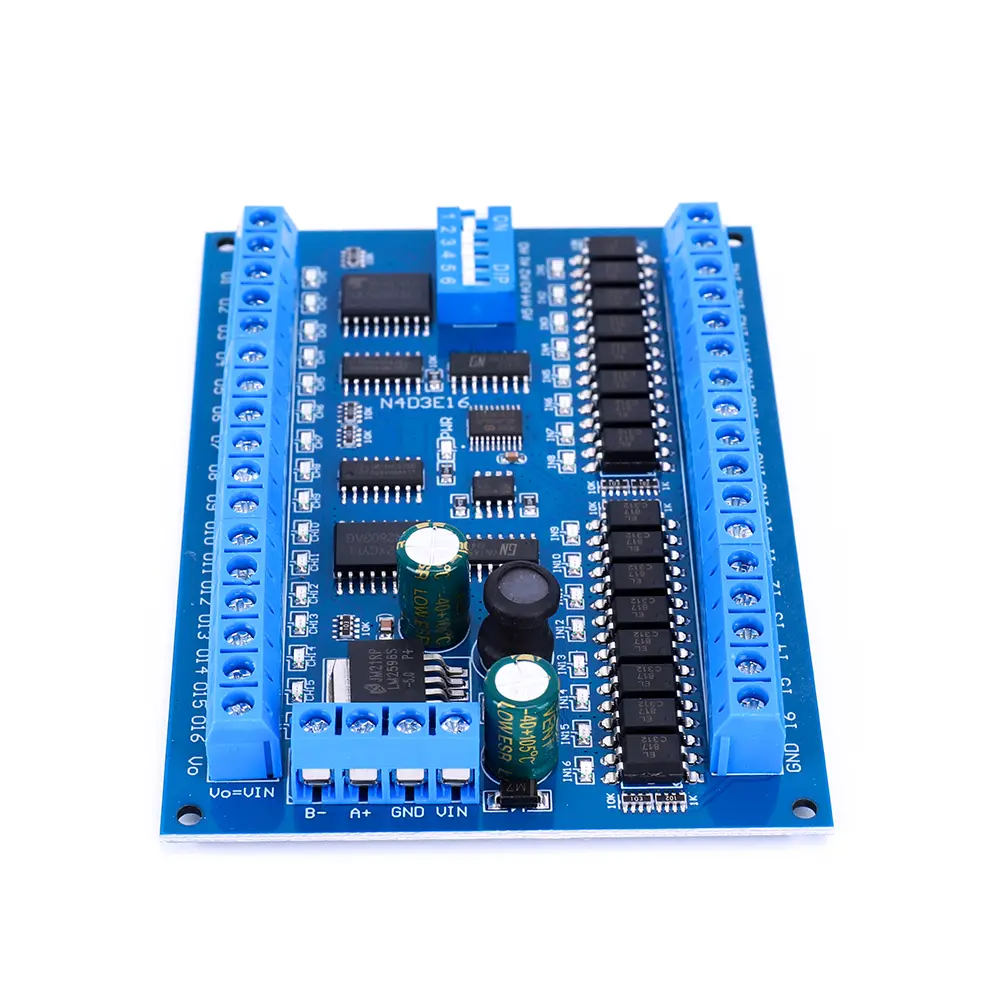

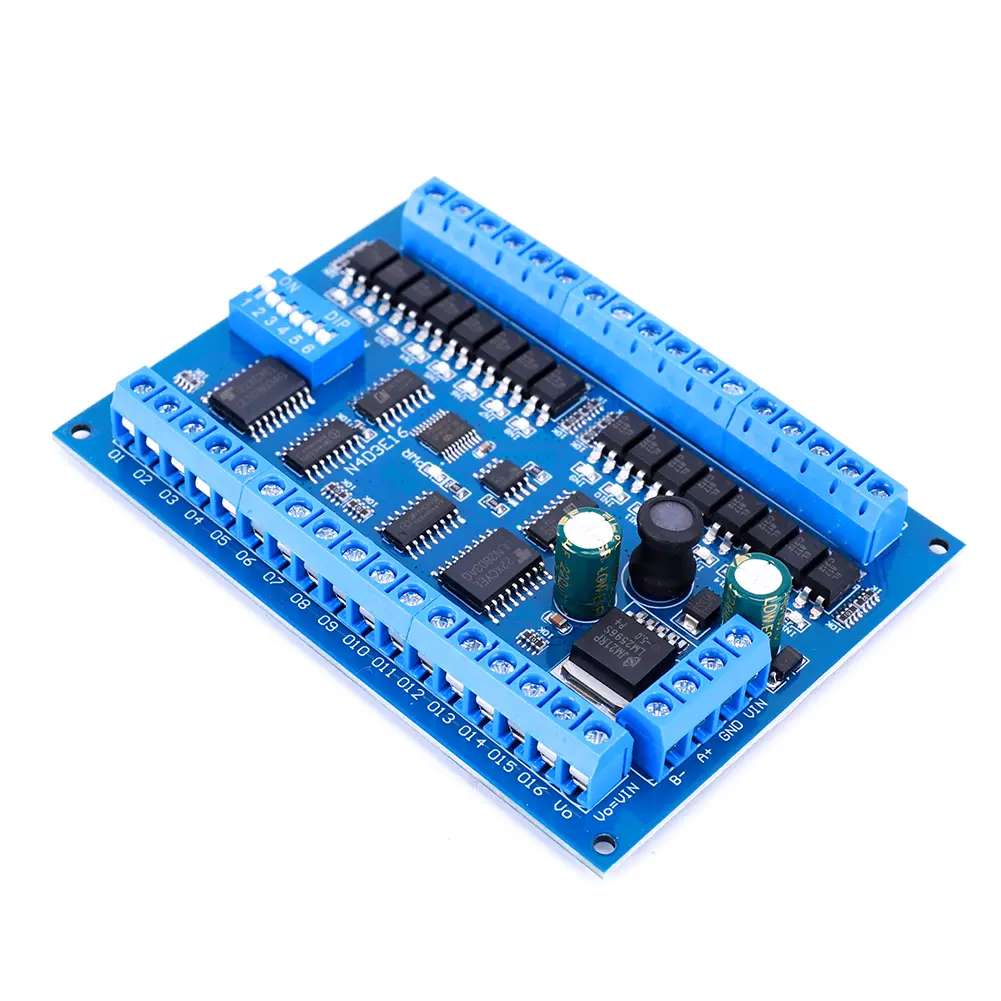

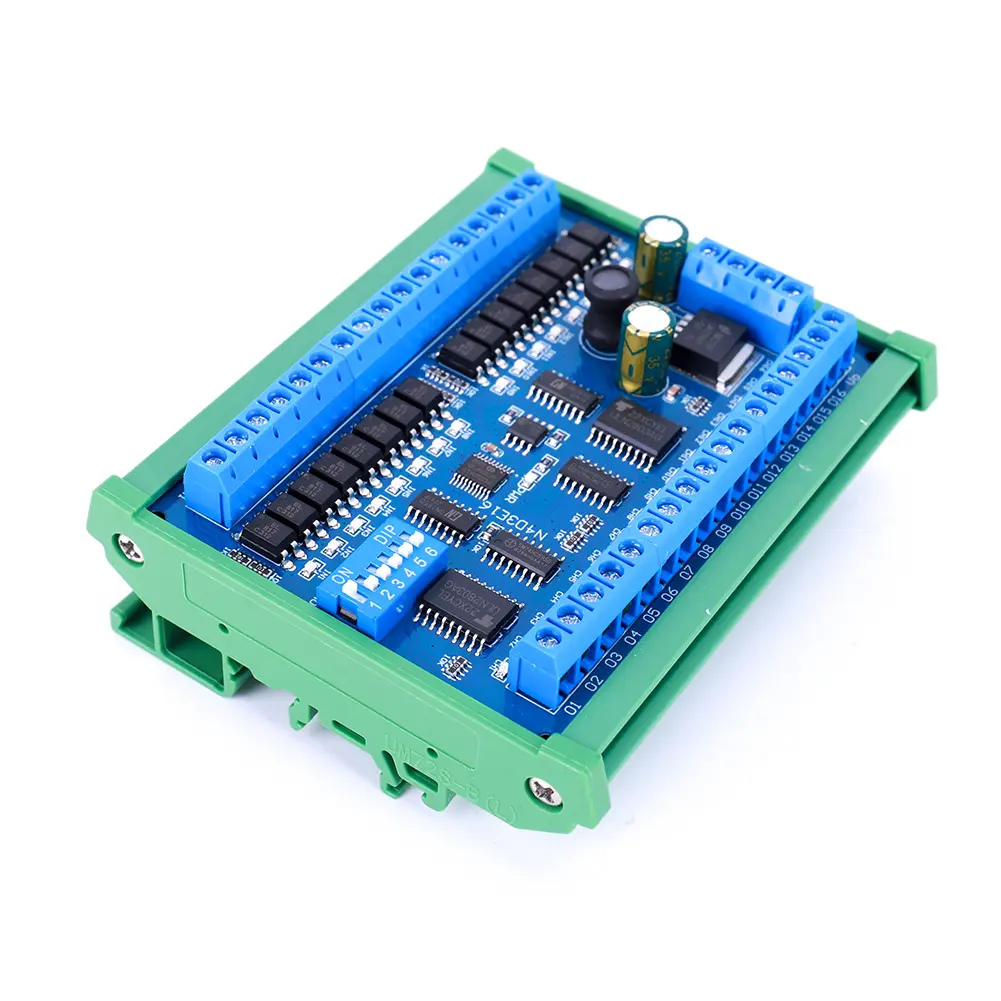

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <div> <div> <p> <br /> </p> <p> </p> <p> <br /> </p> <p> DC 12V 24V16 Input 16 Output RS485 Remote Control Switch PLC IO Expansion Board 03 06 16 Modbus RTU Module Remote Control Module<br /> <strong>Feature: </strong><br /> <p class="MsoNormal"> <strong>1. Wide Application:</strong> The remote control switch is designed for versatile use, compatible with a variety of devices and systems, making it an ideal choice for both home automation and industrial applications, ensuring broad compatibility and functionality. </p> <p class="MsoNormal"> <strong>2. High Load Capacity: </strong>Each channel of the PLC IO expansion board can handle a maximum load current of 300MA, allowing for the control of high-power devices with ease and reliability, making it suitable for demanding applications. </p> <p class="MsoNormal"> <strong>3. Flexible Mounting Options: </strong>Available in both rail-mounted and non-rail-mounted versions, the 03 06 16 modbus RTU module offers flexibility in installation, catering to different user preferences and requirements for a seamless setup process. </p> <p class="MsoNormal"> <strong>4. User-Friendly: </strong>The modbus RTU module board is designed with simplicity in mind, featuring an easy-to-understand interface that allows for quick setup and operation, making it accessible to both professionals and hobbyists alike. </p> <p class="MsoNormal"> <strong>5. High Safety Standards:</strong> With a flame-retardant VO-grade insulation, the remote control module ensures a high level of safety for its users, protecting against electrical hazards and increasing the device's longevity in various environmental conditions. </p> <br /><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> describe:<br /> 1: Working voltage: DC 6.5-30V (7.5V 9V 12V 15V 24V)<br /> 2: Working current: 8-50MA<br /> 3: 16 optically isolated input ports (NPN low level active)<br /> 4: 16 Darlington outputs (ULN2803 NPN output)<br /> 5: ''open''''close''''instantaneous''''self-locking''''interlocking''''delay'' 6 commands<br /> 6: 16 inputs can remotely control the 16 outputs of another board through the RS485 bus (relevant registers need to be set)<br /> 7: MODBUS RTU command, supports 03 06 function code (some registers support 16 function code)<br /> 8: Under the ''Delay'' command, the maximum delay is 255 seconds;<br /> 9: The MODBUS command can be executed in the serial port super terminal (serial port assistant) OR ''Modbus Poll'' and press Enter;<br /> 10: In MODBUS command mode, up to 64 devices can be supported in parallel.<br /> 11: The default baud rate is 9600BPS. Baud rate can be selected by jumper: 2400 4800 9600 19200BPS<br /> 12: Size: 100*72*20mm (PCB board only); 120*88*42mm (with DIN rail box)<br /> 13: Weight: 64g (PCB board only); 143g (with rail box)<br /> 14: Maximum load: The maximum load current of each channel is 300MA<br /> application:<br /> PLC IO expansion board<br /> Smart home, home automation, smart home;<br /> PTC camera<br /> Security Monitoring<br /> recognition system;<br /> Web camera<br /> LED light driver<br /> Automatic curtain control<br /> Product size: 100.00x72.00x12.00mm<br /> Product size: 3.94x2.83x0.47inch<br /> <br /> <p> <strong>Note:</strong><br /> Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!<br /> Please allow 1-2cm measuring deviation due to manual measurement. </p> <br /> <br /> </p> <p> </p> <p> 1 x&nbsp;PLC IO Expansion Board <br /> </p> <p> </p> <p> </p> <p> </p> <p> <span style="color:#171A1D;font-family:&quot;font-size:14px;font-style:normal;font-weight:400;background-color:#FFFFFF;"></span> </p> <p> </p> <p> </p> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> </table> </div> </div> </td> </tr> </tbody> </table></div></div>
