DC 24V 4-20mA to 4-20mA Signal Isolator Analog Signal Transmitter DC 24V Supply Signal Converter Barrier Distribution Module
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br />1. Four-side heat dissipation technology: large area heat dissipation holes are designed to ensure stable operation during intensive installation<br />2. Plug-in terminals: CE certification, fast wiring and maintenance, convenient operation<br />3. High precision performance: basic accuracy ≤ 0.1%, temperature drift as low as 0.005F.S./°C, more reliable data<br />4. Fast response time: response time ≤ 10ms, real-time signal transmission, efficient and stable<br />5. Strong anti-interference ability: in line with electromagnetic compatibility standards, suitable for complex industrial environments</p>

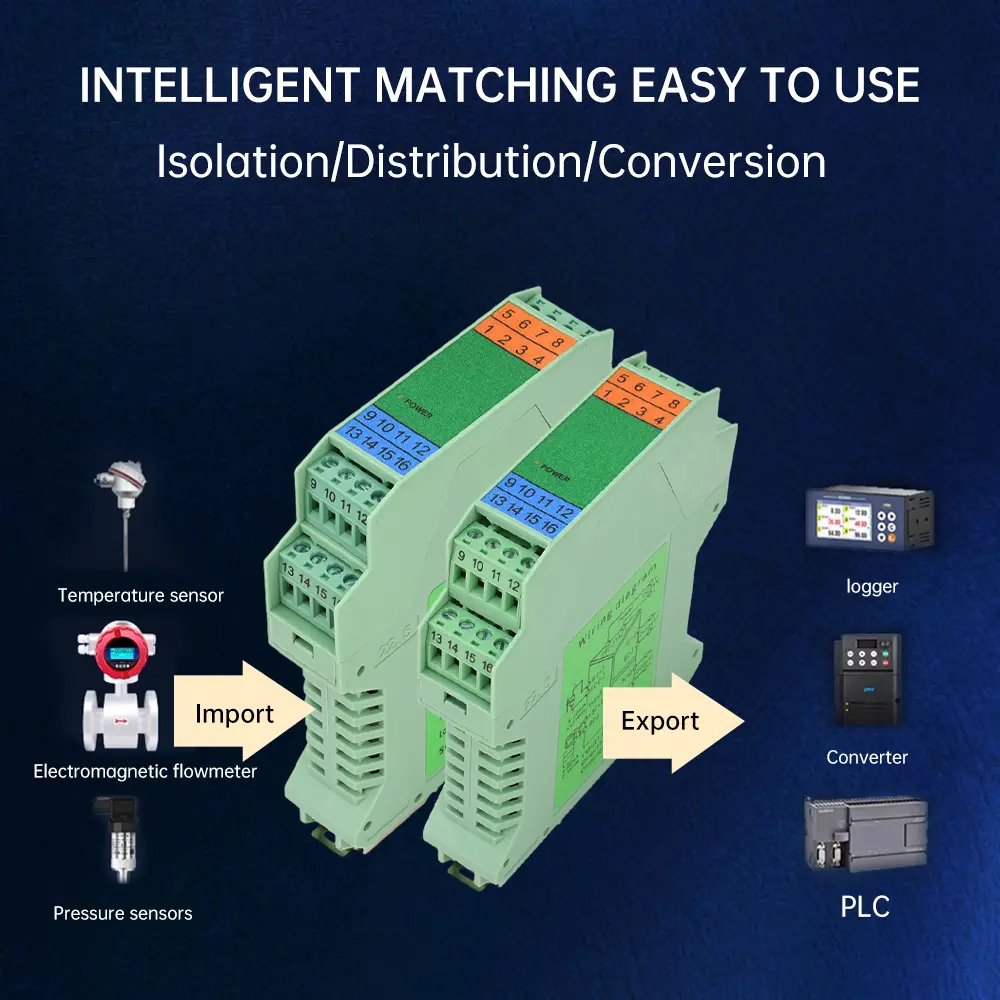

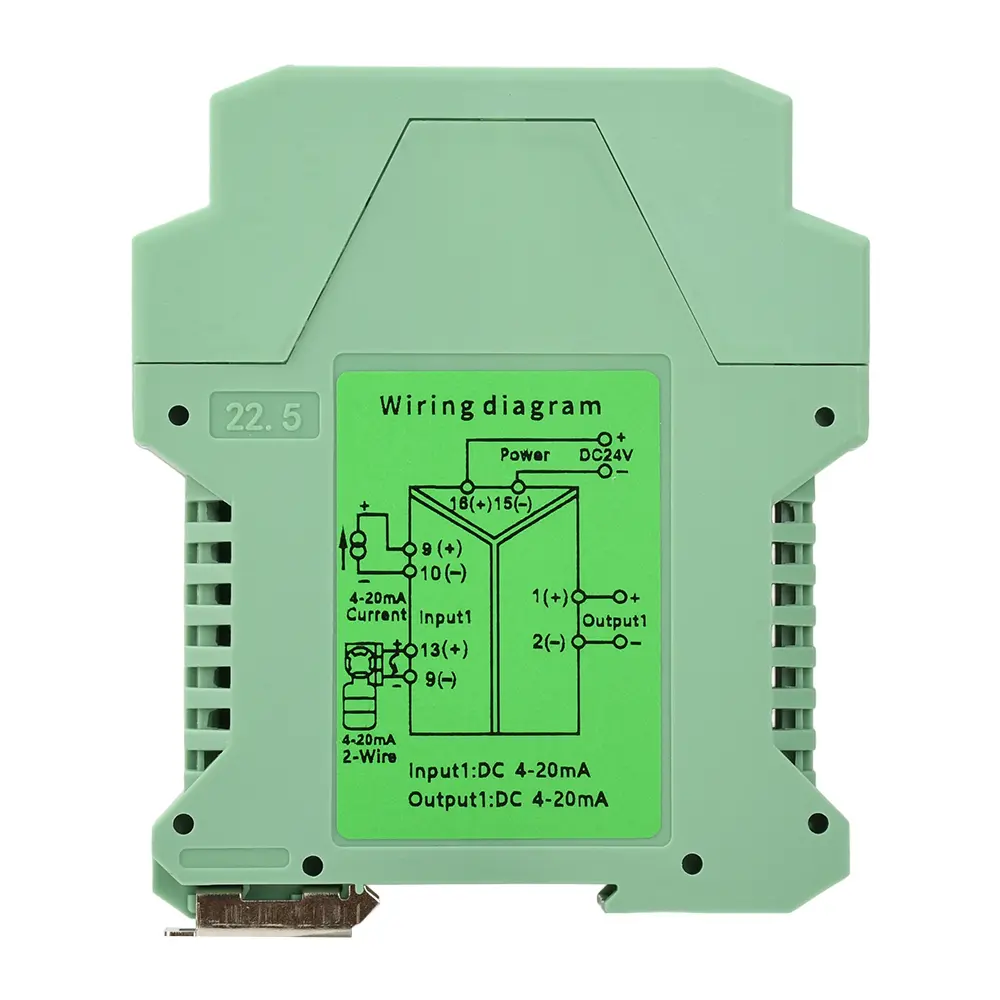

<p>Parameter:<br />Product name: signal isolator<br />Input signal: 4-20mA<br />Distribution voltage: 24V (upper limit drive current 30mA)<br />Input impedance: ≤50Ω<br />Output signal: 4-20mA<br />Output load resistance:<br />RL≤500Q (when output is current signal)<br />RL≥1KΩ (when output is voltage signal)<br />Power supply: DC 24V; ± 10%<br />Current consumption:<br />≤70mA (one in and one out, DC 24V power supply, 20mA output)<br />≤120mA (one in one out, DC 24V power supply, 20mA output)<br />≤140mA (two in and two out, DC 24V power supply, 20mA output)<br />Basic accuracy: ≤0.1% F.S.<br />Temperature drift: 0.005F.S./°C (-20°C~+55°C)<br />Response time: ≤10ms (0~90%)(TYP)<br />Dielectric strength: 1500V AC/1min (between input, output, power supply)<br />Operating temperature range: -20~+55°C<br />Electromagnetic compatibility: in accordance with GB/T 182683 (IEC61326-1)<br />Use of field devices: 2-wire, 3-wire transmitter, current source</p>
<p>Package include:<br />Isolator x1<br /><br /></p></div></div>
$31.25
$16.91
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br />1. Four-side heat dissipation technology: large area heat dissipation holes are designed to ensure stable operation during intensive installation<br />2. Plug-in terminals: CE certification, fast wiring and maintenance, convenient operation<br />3. High precision performance: basic accuracy ≤ 0.1%, temperature drift as low as 0.005F.S./°C, more reliable data<br />4. Fast response time: response time ≤ 10ms, real-time signal transmission, efficient and stable<br />5. Strong anti-interference ability: in line with electromagnetic compatibility standards, suitable for complex industrial environments</p>
<p>Parameter:<br />Product name: signal isolator<br />Input signal: 4-20mA<br />Distribution voltage: 24V (upper limit drive current 30mA)<br />Input impedance: ≤50Ω<br />Output signal: 4-20mA<br />Output load resistance:<br />RL≤500Q (when output is current signal)<br />RL≥1KΩ (when output is voltage signal)<br />Power supply: DC 24V; ± 10%<br />Current consumption:<br />≤70mA (one in and one out, DC 24V power supply, 20mA output)<br />≤120mA (one in one out, DC 24V power supply, 20mA output)<br />≤140mA (two in and two out, DC 24V power supply, 20mA output)<br />Basic accuracy: ≤0.1% F.S.<br />Temperature drift: 0.005F.S./°C (-20°C~+55°C)<br />Response time: ≤10ms (0~90%)(TYP)<br />Dielectric strength: 1500V AC/1min (between input, output, power supply)<br />Operating temperature range: -20~+55°C<br />Electromagnetic compatibility: in accordance with GB/T 182683 (IEC61326-1)<br />Use of field devices: 2-wire, 3-wire transmitter, current source</p>
<p>Package include:<br />Isolator x1<br /><br /></p></div></div>
