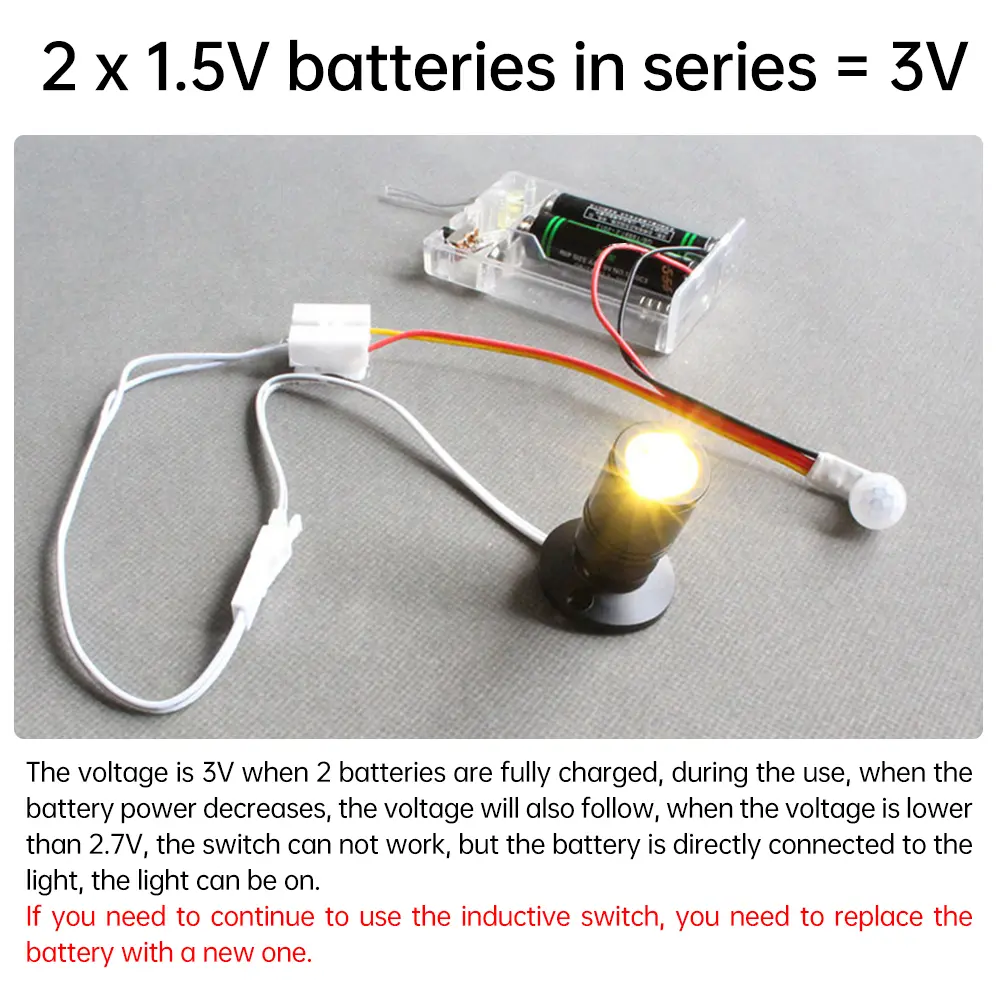

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004088425" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features:<br />1.Wide voltage input range: support DC 3-24V, applicable to a variety of power supply environment<br />2.High sensitivity probe: sensing distance 0-8 meters, angle up to 120 degrees, accurate capture of movement<br />3. Miniature design chip: the volume is only 20x2mm, suitable for installation in small space<br />4.Automatic delay shutdown: automatically shut down after 30 seconds of detection, energy saving and environmental protection, intelligent and convenient<br />5.Carrying power 3A: to ensure stable work, suitable for cabinets, closet lights and other scenes</p> <p>Parameter:<br />Product name: miniature human body sensor switch<br />Input voltage: DC 3-24V (3V 3.7V 5V 12V 24V general)<br />Load power: 3A<br />Sensing angle: 120 degrees<br />Sensing distance: 0-8m<br />Delay off: 30s</p> <p>Attention:<br />1. Apply 3-24V constant voltage power supply, prohibit the control of constant current lamps and lanterns <br />2.2 1.5V batteries in series = 3V. 2 batteries are fully charged when the voltage is 3V, in the process of using, when the battery charge decreases, the voltage will follow the decrease, the voltage is lower than 2.7V, the switch can not work, but the battery is directly connected to the lamp, the lamp can be bright, such as the need to continue to use the inductive switch, you need to replace the new battery.</p> <p>Package include:<br />Switch x1<br /></p></div></div>
