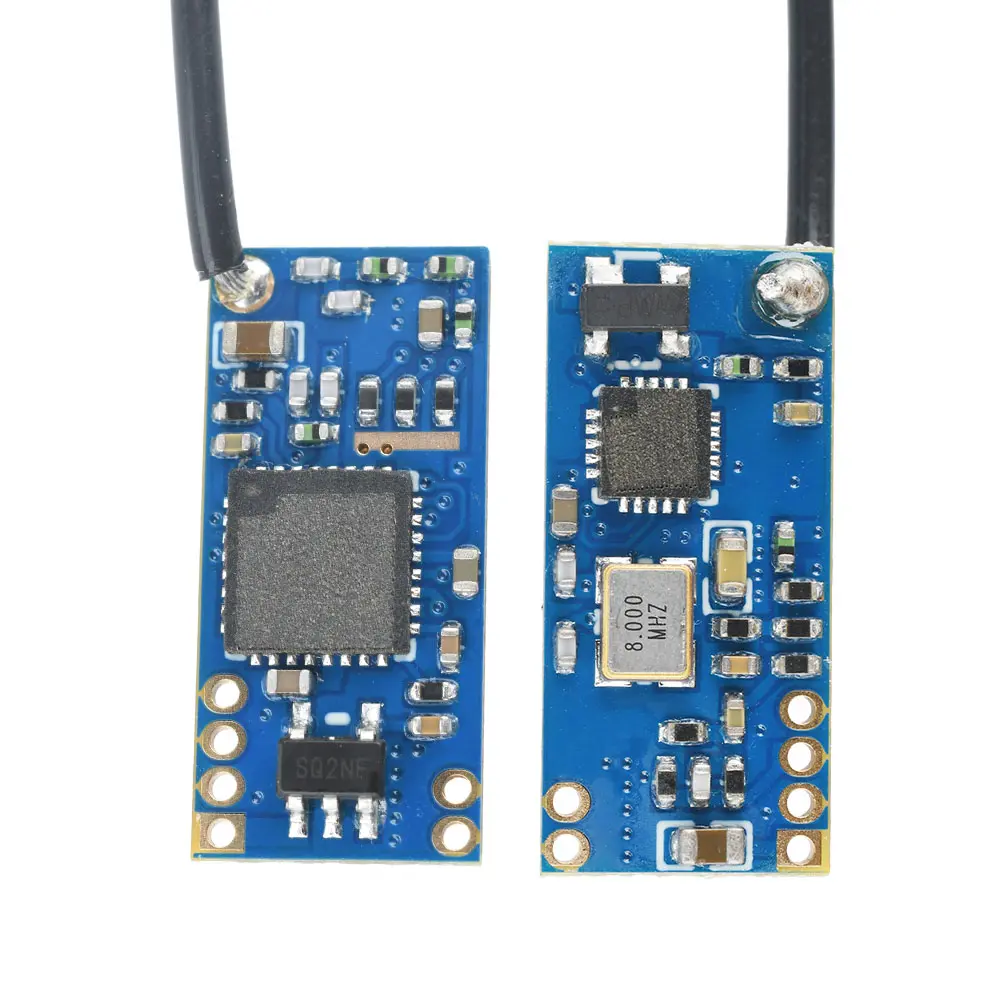

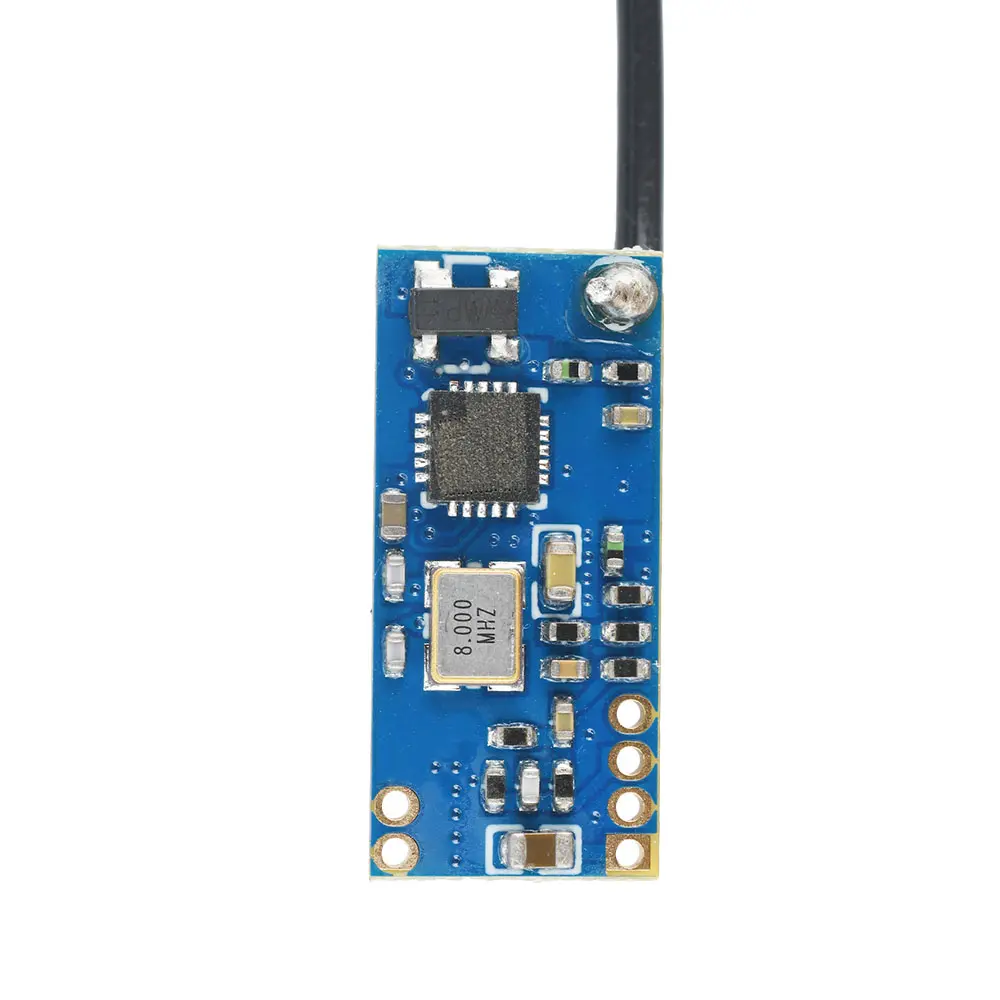

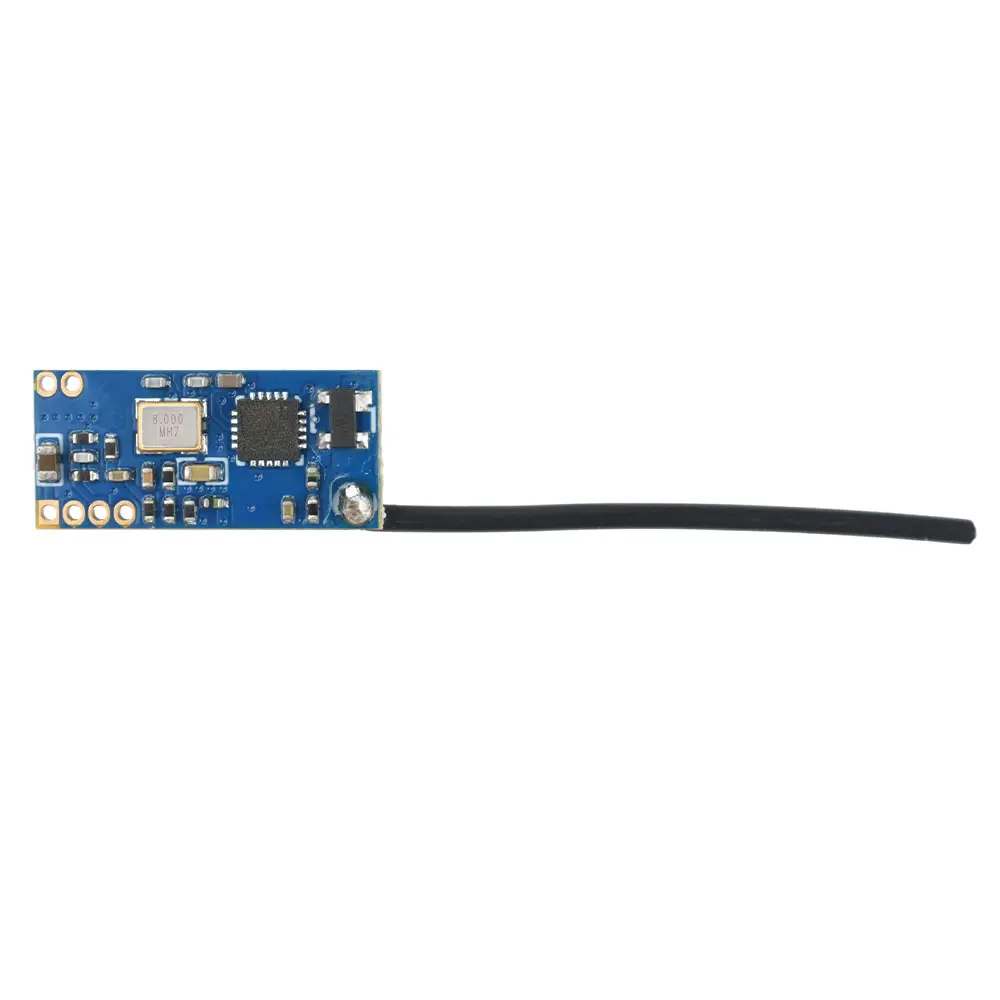

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br />1.2.4G broadband FM transmission: supports high quality audio transmission, wide coverage, stable and clear signal<br />2.High output power (17dBm): provides strong transmitting ability and ensures excellent long-distance communication effect.<br />3.Built-in frequency phase-locked loop: strong frequency stability, effectively reducing interference and guaranteeing the quality of signal transmission.<br />4. Video signal direct modulation: support video signal direct input and modulation, simplify the equipment connection steps<br />5. Support 8 frequency points (MHz): 2370, 2390, 2414, 2432, 2450, 2468, 2510, 2570</p> <p>Parameter:<br />DC Characteristics <br />Wide Voltage Operation: 3.3-5.5V <br />Low Power Consumption: 3.3V 85mA <br />Operating Environment <br />Operating Temperature: -10~70℃ <br />Storage Temperature: -30~85℃ <br />Operating Humidity: 85%RH <br />RF <br />Transmitting Frequency Range: 2370-2570MHz <br />Output VSWR: 2:1 <br />Modulation Mode: 50&Omega;, Typ <br />Intrinsic Oscillation Frequency Stability: &plusmn;100kHz <br />Intrinsic Oscillation Frequency Accuracy: &plusmn;200kHz <br />Local oscillation control: PLL<br />High Output Power: 17dBm <br />Video: <br />Video Input Impedance: 75&Omega;, Typ <br />Video Input Level: 1V(p-p), Typ <br />Video Polarity: Negative <br />Video Frequency Response: &plusmn;5dB, Max. 50Hz~6MHz <br />Product Size: 17*8*2.6mm</p> <p>Applications<br />1. VCD/DVD/DVB/Video wireless transmission<br />2. Baby monitoring<br />3. Real-time on-site image monitoring<br />4. Security transmission system<br />5. PSP game to TV<br />6. wireless visual reversing</p> <p>Package include:<br />Module*1</p> <p>Features:<br />1.2.4G broadband FM transmission: supports high quality audio transmission, wide coverage, stable and clear signal<br />2.High output power (17dBm): provides strong transmitting ability and ensures excellent long-distance communication effect.<br />3.Built-in frequency phase-locked loop: strong frequency stability, effectively reducing interference and guaranteeing the quality of signal transmission.<br />4. Video signal direct modulation: support video signal direct input and modulation, simplify the equipment connection steps<br />5. Support 8 frequency points (MHz): 2370, 2390, 2414, 2432, 2450, 2468, 2510, 2570</p> <p>Parameter:<br />DC Characteristics <br />Wide Voltage Operation: 3.3-5.5V <br />Low Power Consumption: 3.3V 85mA <br />Operating Environment <br />Operating Temperature: -10~70℃ <br />Storage Temperature: -30~85℃ <br />Operating Humidity: 85%RH <br />RF <br />Transmitting Frequency Range: 2370-2570MHz <br />Output VSWR: 2:1 <br />Modulation Mode: 50&Omega;, Typ <br />Intrinsic Oscillation Frequency Stability: &plusmn;100kHz <br />Intrinsic Oscillation Frequency Accuracy: &plusmn;200kHz <br />Local oscillation control: PLL<br />High Output Power: 17dBm <br />Video: <br />Video Input Impedance: 75&Omega;, Typ <br />Video Input Level: 1V(p-p), Typ <br />Video Polarity: Negative <br />Video Frequency Response: &plusmn;5dB, Max. 50Hz~6MHz <br />Product Size: 17*8*2.6mm</p> <p>Applications<br />1. VCD/DVD/DVB/Video wireless transmission<br />2. Baby monitoring<br />3. Real-time on-site image monitoring<br />4. Security transmission system<br />5. PSP game to TV<br />6. wireless visual reversing</p> <p>Package include:<br />Module*1<br /></p></div></div>
