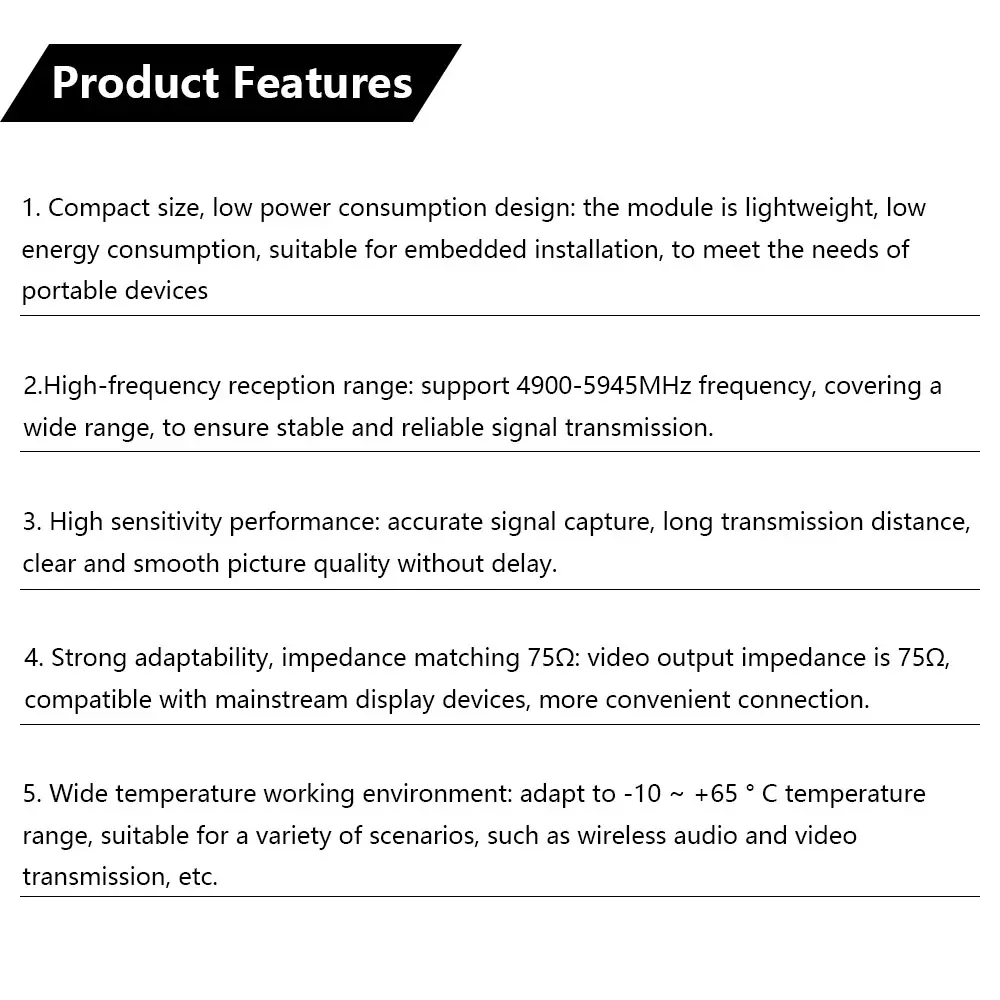

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Compact size, low power consumption design: the module is lightweight, low energy consumption, suitable for embedded installation, to meet the needs of portable equipment<br/>2.High-frequency reception range: support 4900-5945MHz frequency, covering a wide range, to ensure stable and reliable signal transmission.<br/>3. High sensitivity performance: accurate signal capture, long transmission distance, clear and smooth picture quality without delay.<br/>4. Strong adaptability, impedance matching 75Ω: video output impedance is 75Ω, compatible with mainstream display devices, more convenient connection.<br/>5. Wide temperature working environment: adapt to -10 ~ +65 ° C temperature range, suitable for a variety of scenarios, such as wireless audio and video transmission, etc.</p><p>Parameter:<br/>DC Characteristics <br/>Supply Voltage: 3.3-5.0V <br/>Current Consumption: 220mA <br/>Operating Environment <br/>Operating Temperature: -10~+65°C <br/>Storage Temperature: -30~+85°C <br/>Operating Humidity: 85%RH <br/>Radio Frequency <br/>Receiving Frequency Range: 4900-5945MHz <br/>Input VSWR: 2:1 <br/>Demodulation: FM/PLL <br/>IF Frequency IF: 480MHz <br/>Antenna Port Impedance: 50Ω, TyP. <br/>Local oscillator frequency stability: ±100kHz <br/>Local oscillator frequency accuracy: ±100kHz <br/>Local oscillator control: PLL<br/>Input local oscillation leakage: -55dBm <br/>Receiving sensitivity: -90dBm <br/>Input level range: -90dBm~+5dBm <br/>Video <br/>Video output impedance: 75Ω, TyP. <br/>Video output level: 1±0.2Vp-p <br/>Video polarity: negative <br/>Video frequency response: ±5 dB,Max.50Hz ~ 6MHz <br/>Differential gain: ±5 %, Max <br/>Differential phase: ±5 Deg, Max 3dB IF bandwidth: 16.5MHz S/N ratio: 38dB, Min Deg, Max <br/>3dB IF Bandwidth: 16.5MHz <br/>Signal to Noise Ratio: 38dB, Min <br/>Product Size: 28*23*3mm</p><p>Package include:<br/>Module*1<br/><br/></p></div></div><br/>
