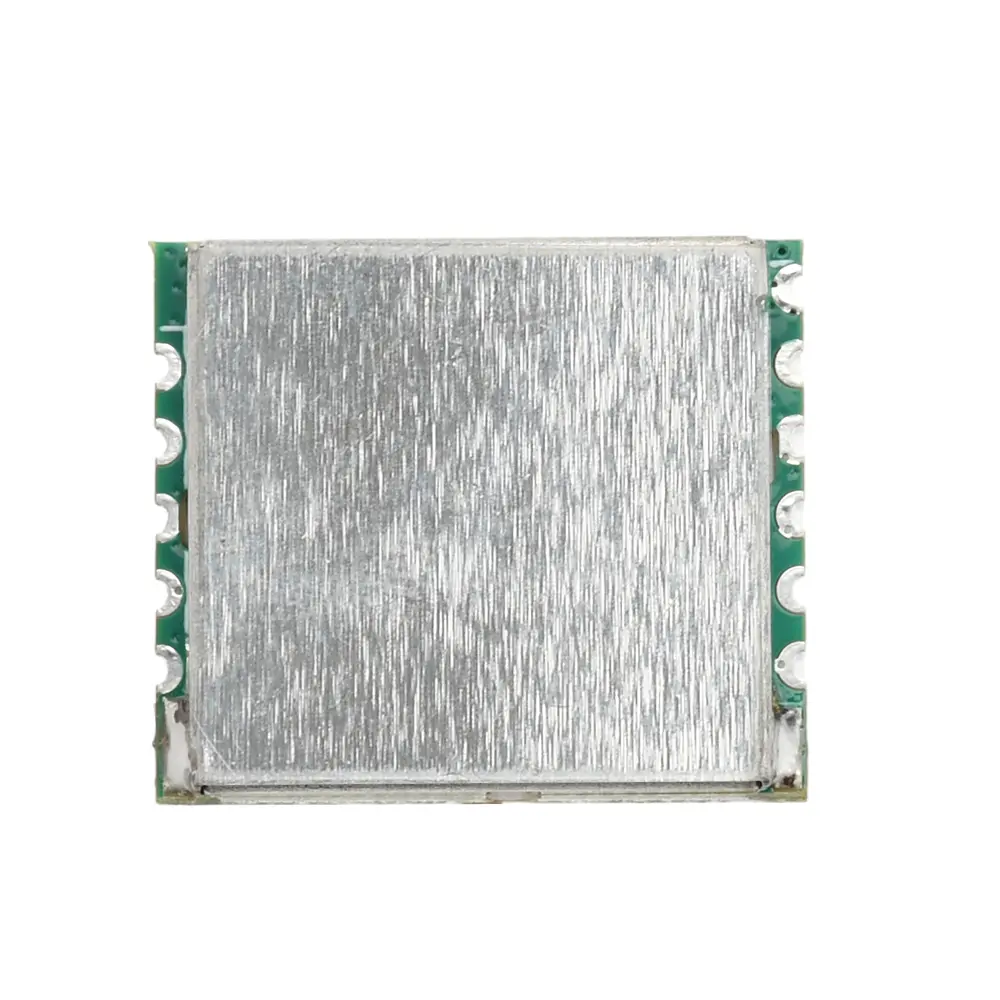

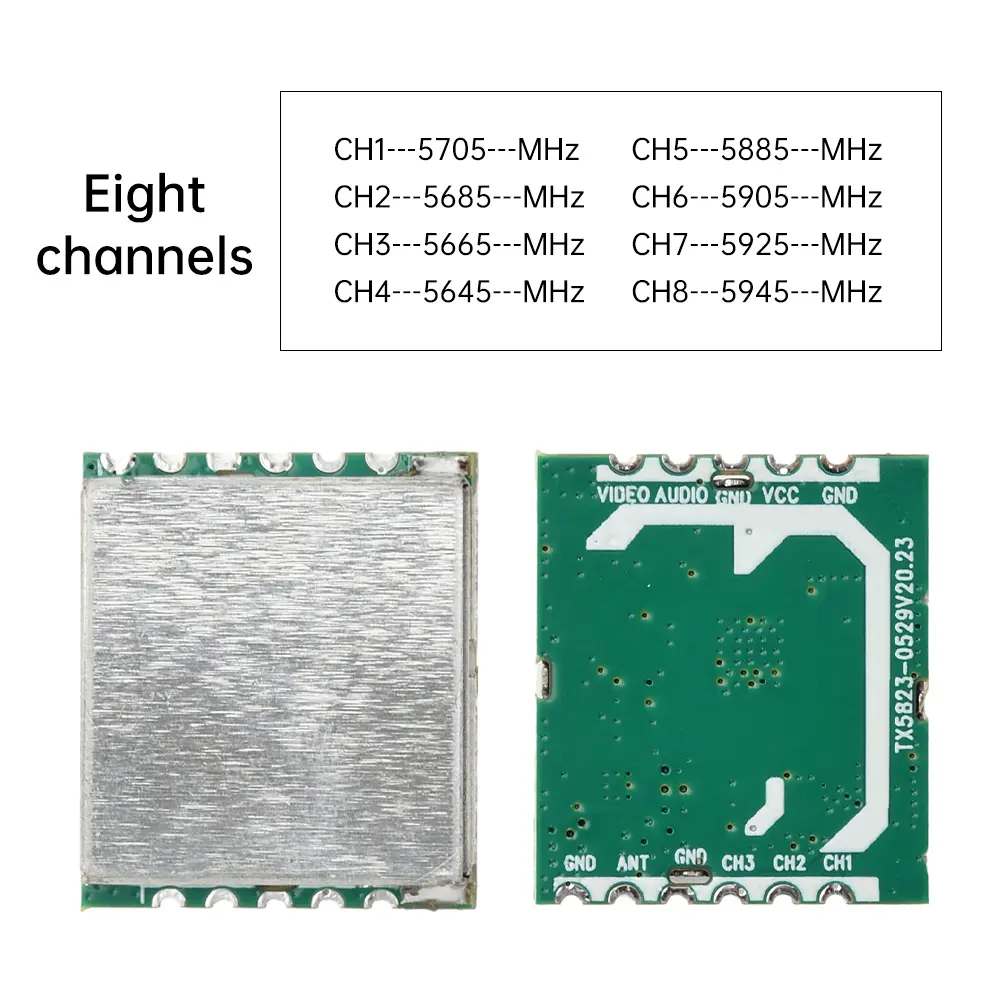

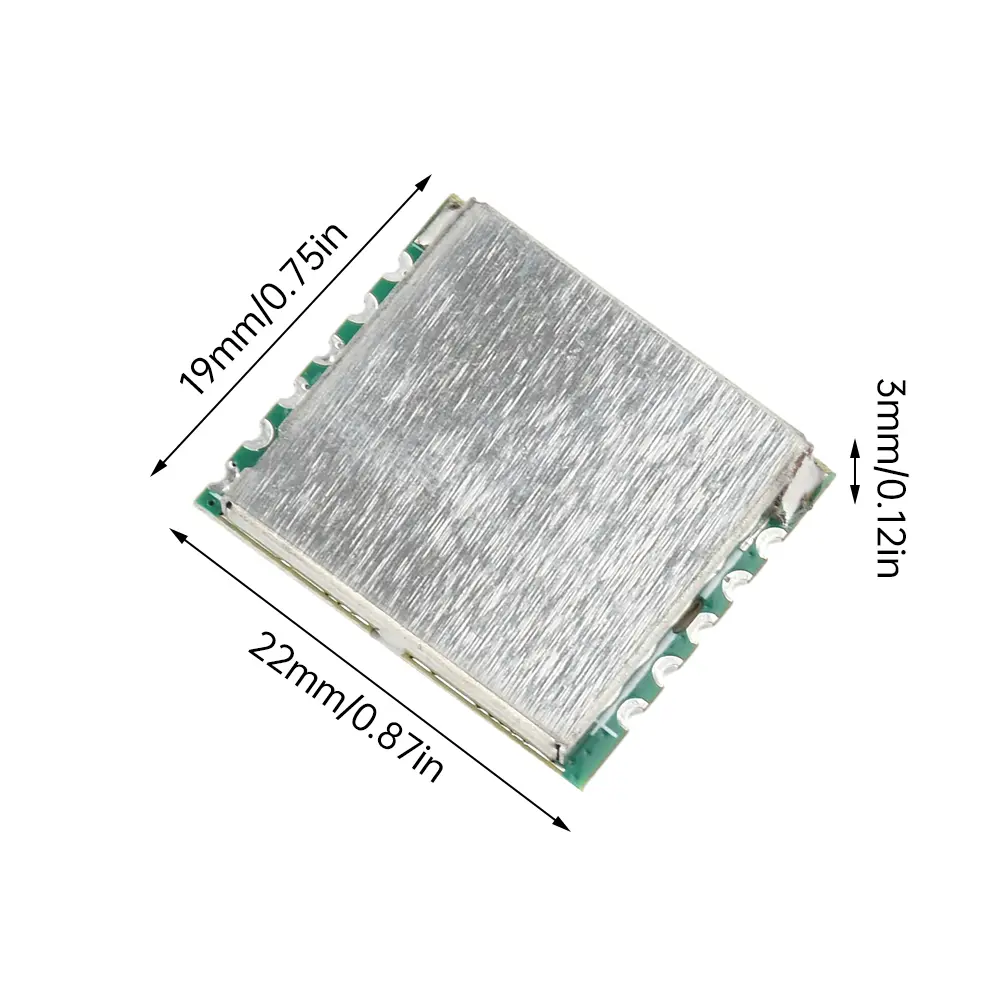

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1.5.8G ISM band, synchronized audio and video transmission, broadband FM high definition transmission<br/>2.Single chip design, integrated VCO/PLL/FM modulation, small size, low power consumption and more stable<br/>3.High output power 23dBm, strong signal with wide coverage, support 200mW long-distance transmission<br/>4.8 channels can be selected, low harmonic radiation interference, multi-device simultaneous use without pressure<br/>5.Small size chip package 22×20×3mm, simple connection can be quickly launched audio and video</p><p>Parameter:<br/>Product name: 5.8G wireless audio and video transmitter module<br/>Power supply parameters: DC 3.3V 330mA<br/>Operating band: 5645-5945MHz ISM band<br/>Package size: 22×20×3 mm (small size SMD package)<br/>Output power: 23dBm (typical, high output power)<br/>Performance Features:<br/>1. Built-in frequency phase-locked loop (PLL), high stability<br/>2. Low harmonic radiation, reduce interference<br/>3. Direct input analog audio and video signals<br/>4. 8 channels transmit</p><p>Description:<br/>TX5823 is an FM audio/video transmitter module operating in the 5645-5945MHz ISM band. The module adopts a single chip design, which integrates VCO, PLL, broadband FM video modulation, FM voice modulation, making the module small in size and low in power consumption; the module adopts the form of SMD package, which occupies a very small space in the whole machine. The application of the module only needs to simply connect the power supply, audio cable, video cable, and connect the antenna to transmit sound and image signals.</p><p>Package include:<br/>Module x1<br/><br/></p></div></div><p><br/></p>
