DC 3.7V 4.2V Charge Protection Module Ultra-small Ternary Lithium Battery Charging Board All-in-One Type C Connector

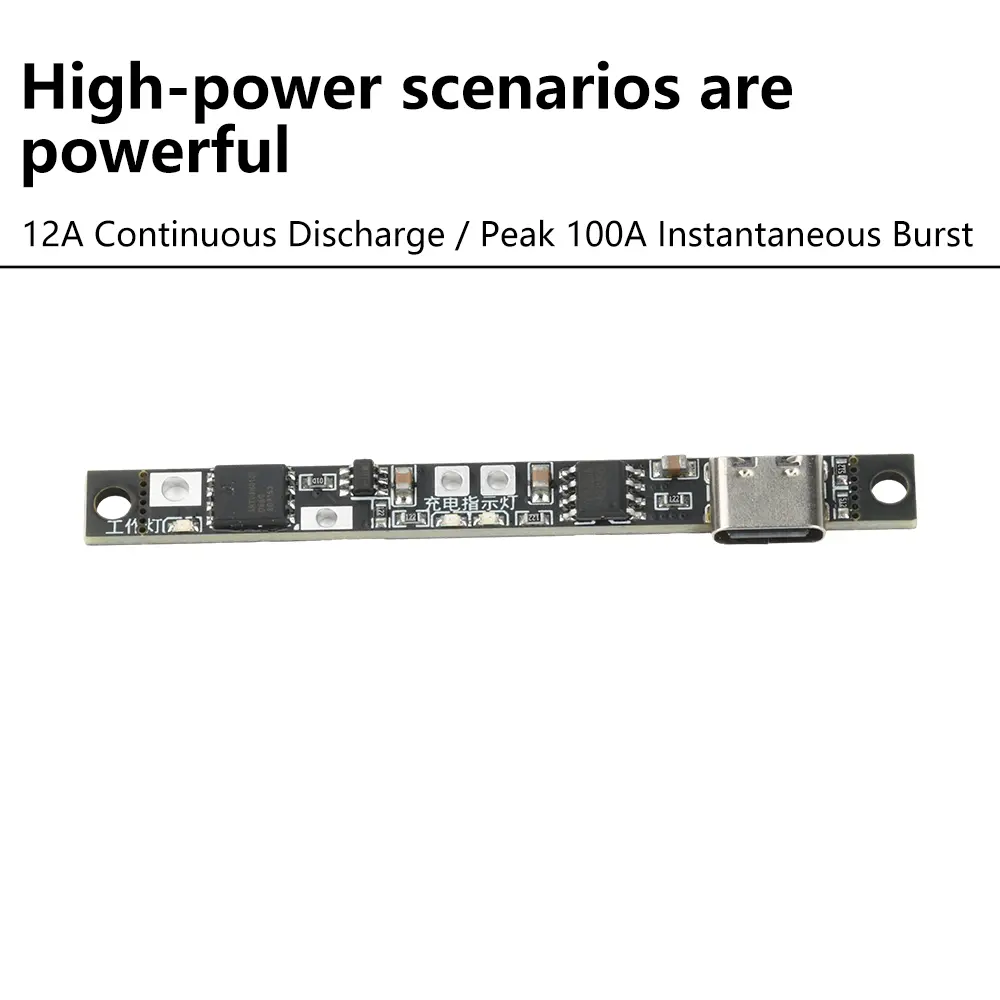

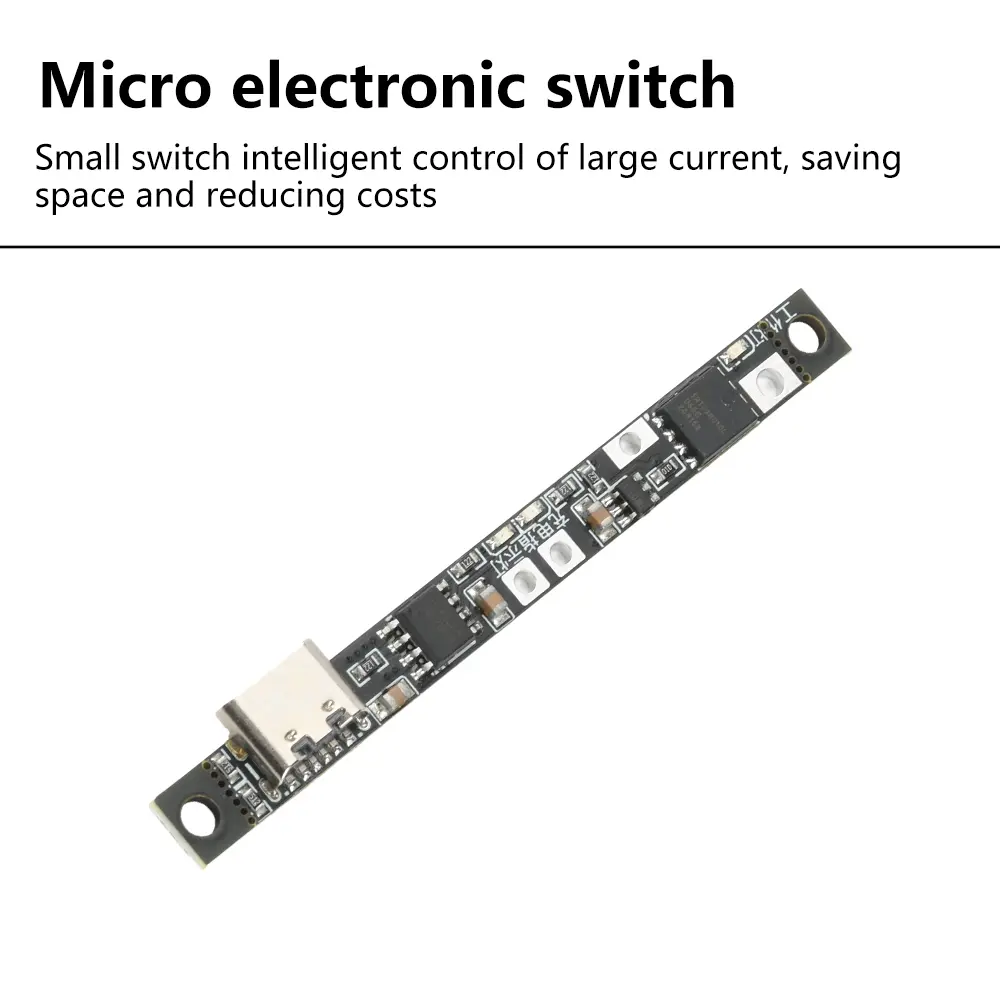

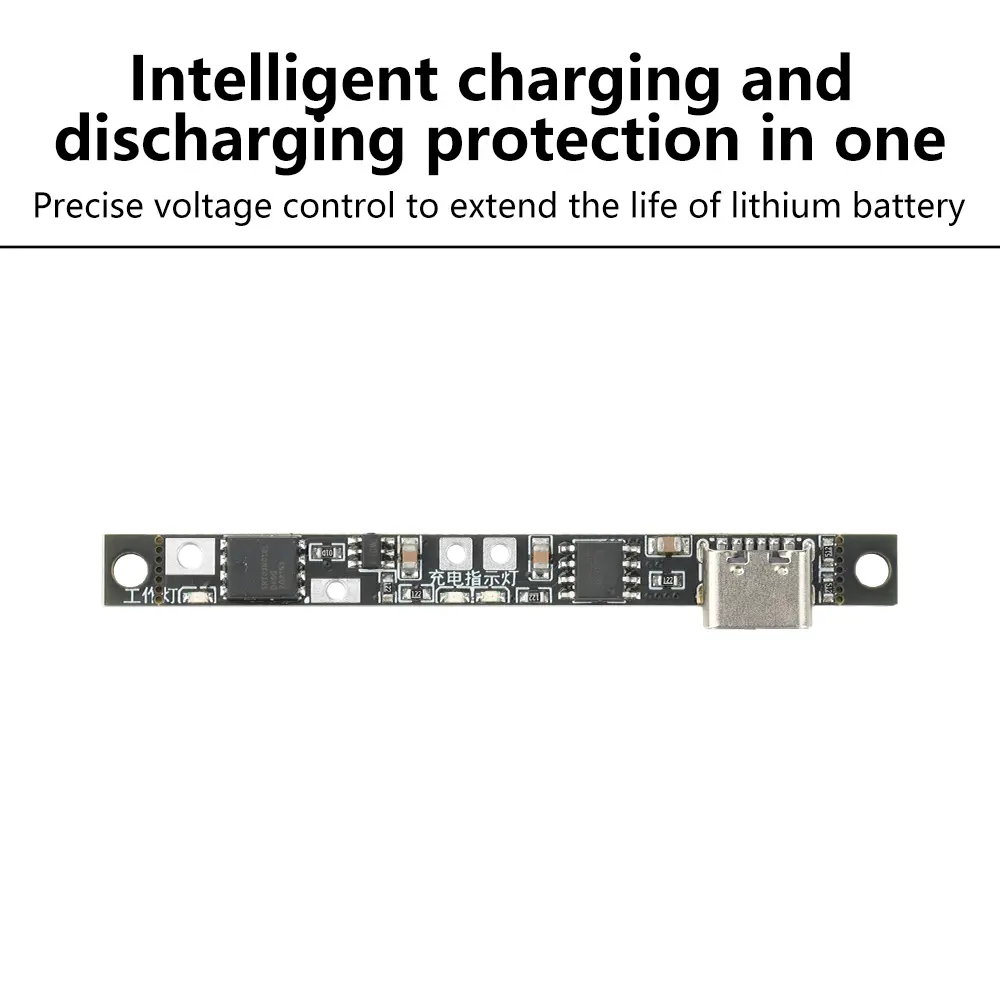

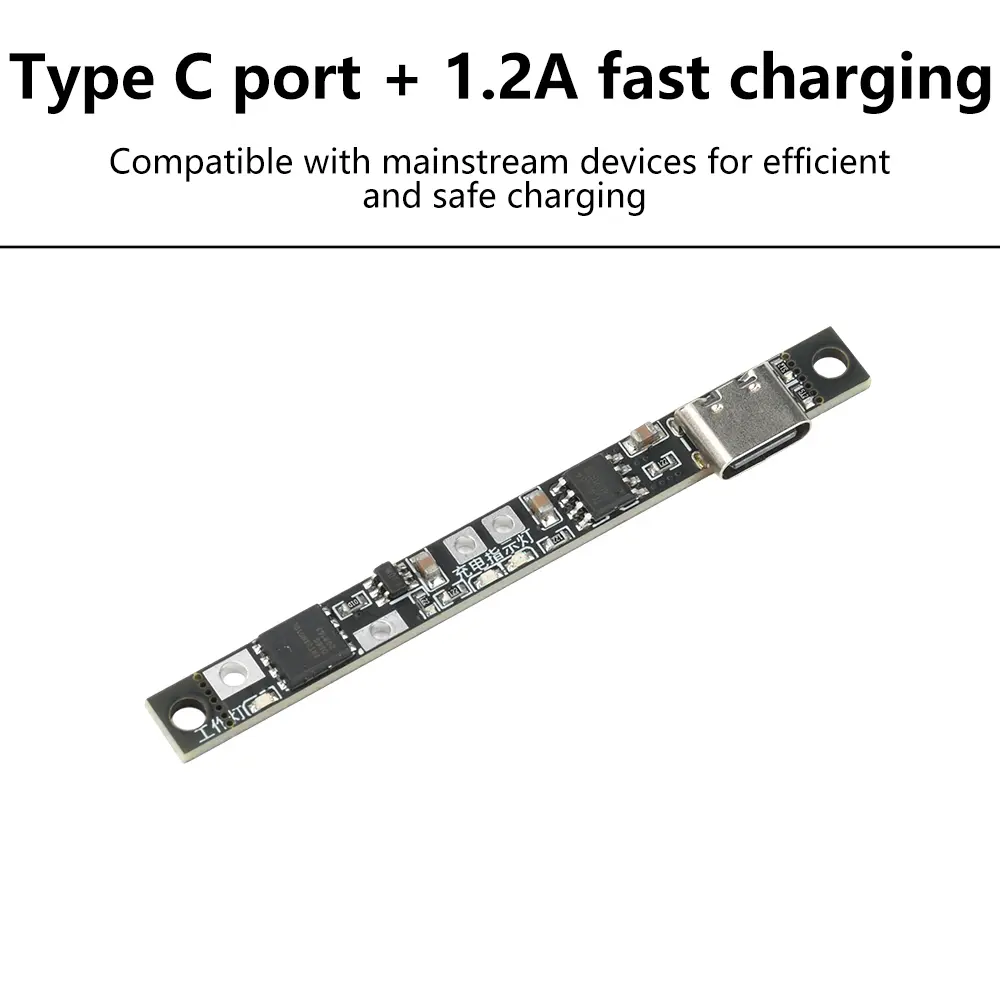

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Intelligent charging and discharging protection in one, accurate voltage control to extend the life of lithium batteries<br/>2. Type C interface + 1.2A fast charging, compatible with mainstream equipment efficient and safe charging<br/>3. 12A continuous discharge/peak 100A instant outburst, strong power in high power scenarios<br/>4. Micro electronic switch, small switch intelligent control of large current, saving space and reducing costs<br/>5. Red and blue dual-color charging indicator, charging/full status at a glance, to avoid overcharging</p><p>Parameter:<br/>Product Name: Power Management Module <br/>Battery Voltage: Typical 3.7V Li-ion Battery <br/>Full Voltage: DC 4.2V <br/>Charging Current: Maximum 1.2A at the battery side <br/>Undervoltage Shutdown Voltage: DC 2.5V <br/>Recovery Conductivity Voltage: DC 2.9V <br/>Other Functions: Electronic Switch (Small Switch Controls Large Current) <br/>Discharge Current: Continuous 12A Slightly Hot, Short Time 35A, Maximum Momentary 100A (Theoretical Value) Interface: Typical Switch: Small Switch Controlling Large Current (Theoretical value) <br/>Interface: Type C <br/>Dimension: 65x6mm</p><p>Working Indicator: Blue <br/>Charging Indicator: <br/>Charging, red light <br/>Full, blue light</p><p>Description: <br/>This power management module is suitable for single 3.7V lithium batteries (full state 4.2V), in addition to this module has an electronic switch function, for example: when our equipment needs to work with high current, due to the need to pass large currents, so the mechanical switch is generally larger and more expensive, the use of the module's electronic switch function can be used to control the high-current switch off.</p><p>Note: <br/>Such modules on the market with inductive loads are easy to damage, for example: brush motor reverse high voltage will break through mos lead to damage, such as the need to bring inductive loads, please consider carefully.</p><p>Package include:<br/>Module x1<br/><br/></p></div></div><br/>
$7.805
$7.805
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Intelligent charging and discharging protection in one, accurate voltage control to extend the life of lithium batteries<br/>2. Type C interface + 1.2A fast charging, compatible with mainstream equipment efficient and safe charging<br/>3. 12A continuous discharge/peak 100A instant outburst, strong power in high power scenarios<br/>4. Micro electronic switch, small switch intelligent control of large current, saving space and reducing costs<br/>5. Red and blue dual-color charging indicator, charging/full status at a glance, to avoid overcharging</p><p>Parameter:<br/>Product Name: Power Management Module <br/>Battery Voltage: Typical 3.7V Li-ion Battery <br/>Full Voltage: DC 4.2V <br/>Charging Current: Maximum 1.2A at the battery side <br/>Undervoltage Shutdown Voltage: DC 2.5V <br/>Recovery Conductivity Voltage: DC 2.9V <br/>Other Functions: Electronic Switch (Small Switch Controls Large Current) <br/>Discharge Current: Continuous 12A Slightly Hot, Short Time 35A, Maximum Momentary 100A (Theoretical Value) Interface: Typical Switch: Small Switch Controlling Large Current (Theoretical value) <br/>Interface: Type C <br/>Dimension: 65x6mm</p><p>Working Indicator: Blue <br/>Charging Indicator: <br/>Charging, red light <br/>Full, blue light</p><p>Description: <br/>This power management module is suitable for single 3.7V lithium batteries (full state 4.2V), in addition to this module has an electronic switch function, for example: when our equipment needs to work with high current, due to the need to pass large currents, so the mechanical switch is generally larger and more expensive, the use of the module's electronic switch function can be used to control the high-current switch off.</p><p>Note: <br/>Such modules on the market with inductive loads are easy to damage, for example: brush motor reverse high voltage will break through mos lead to damage, such as the need to bring inductive loads, please consider carefully.</p><p>Package include:<br/>Module x1<br/><br/></p></div></div><br/>
