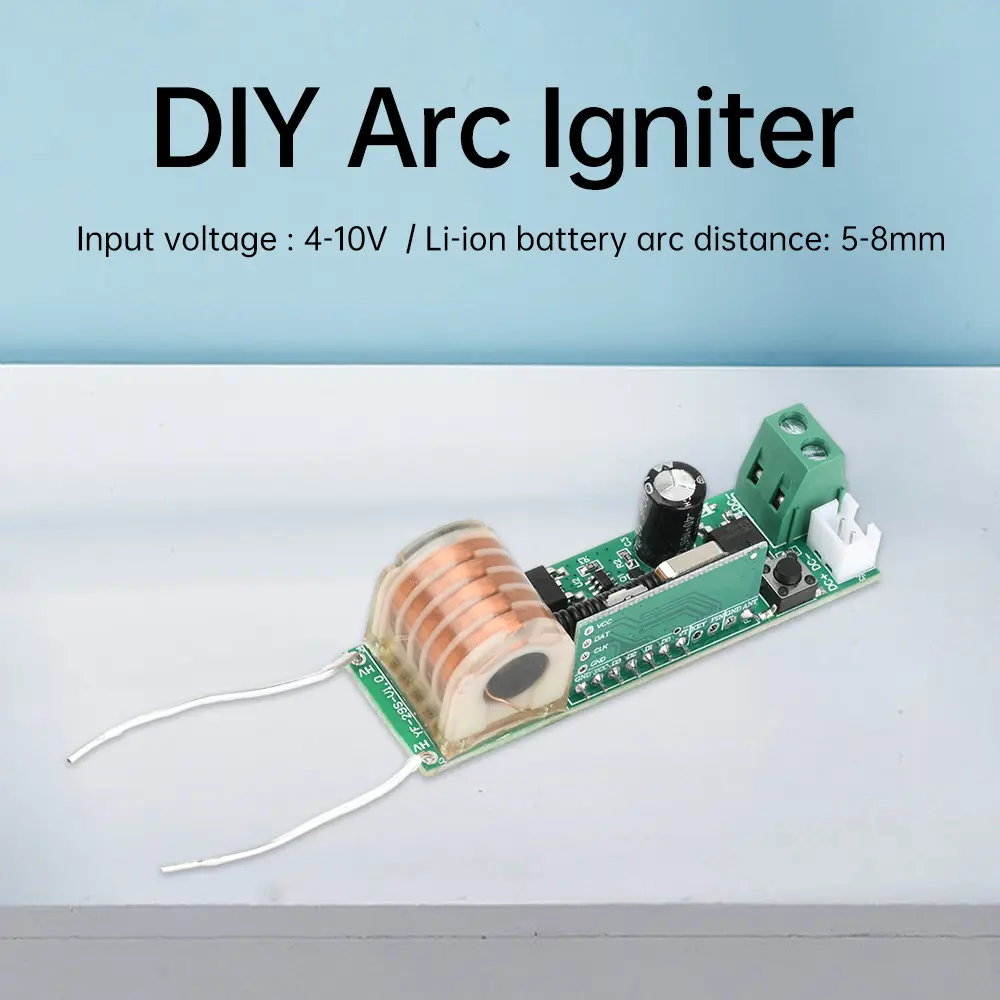

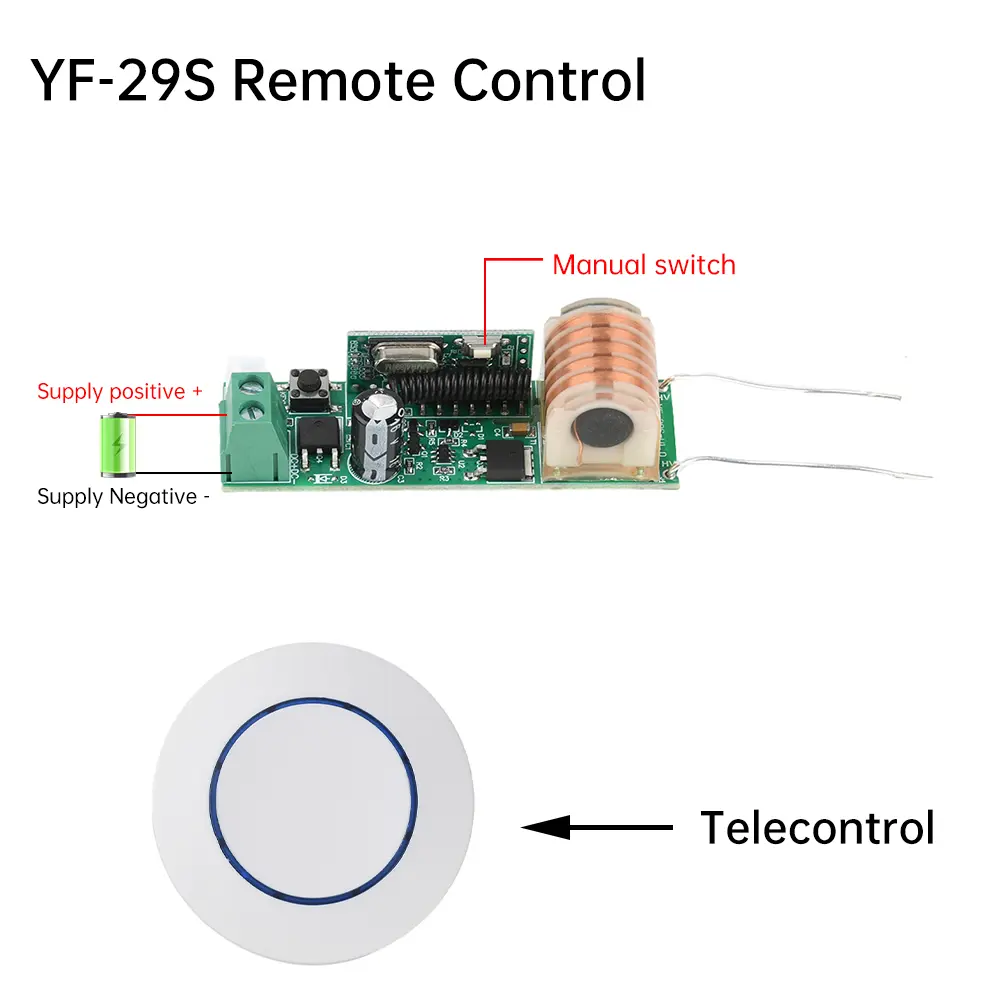

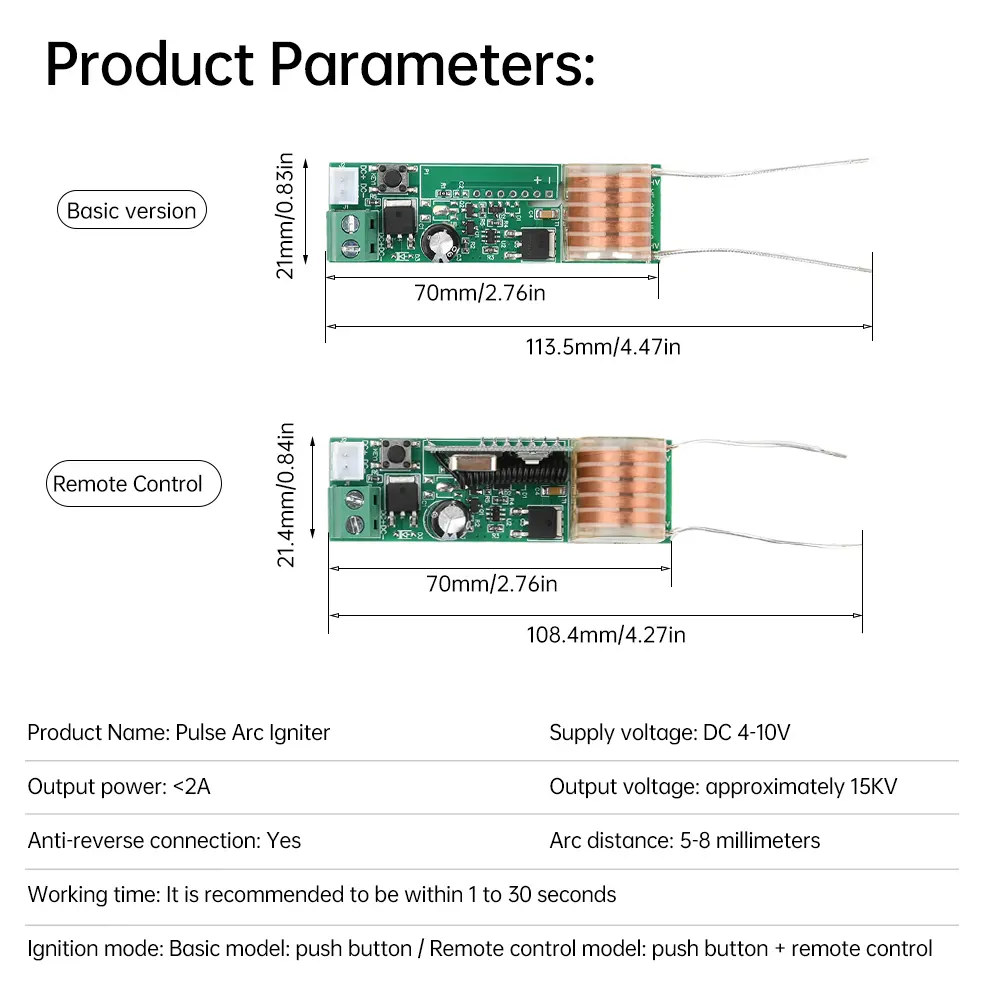

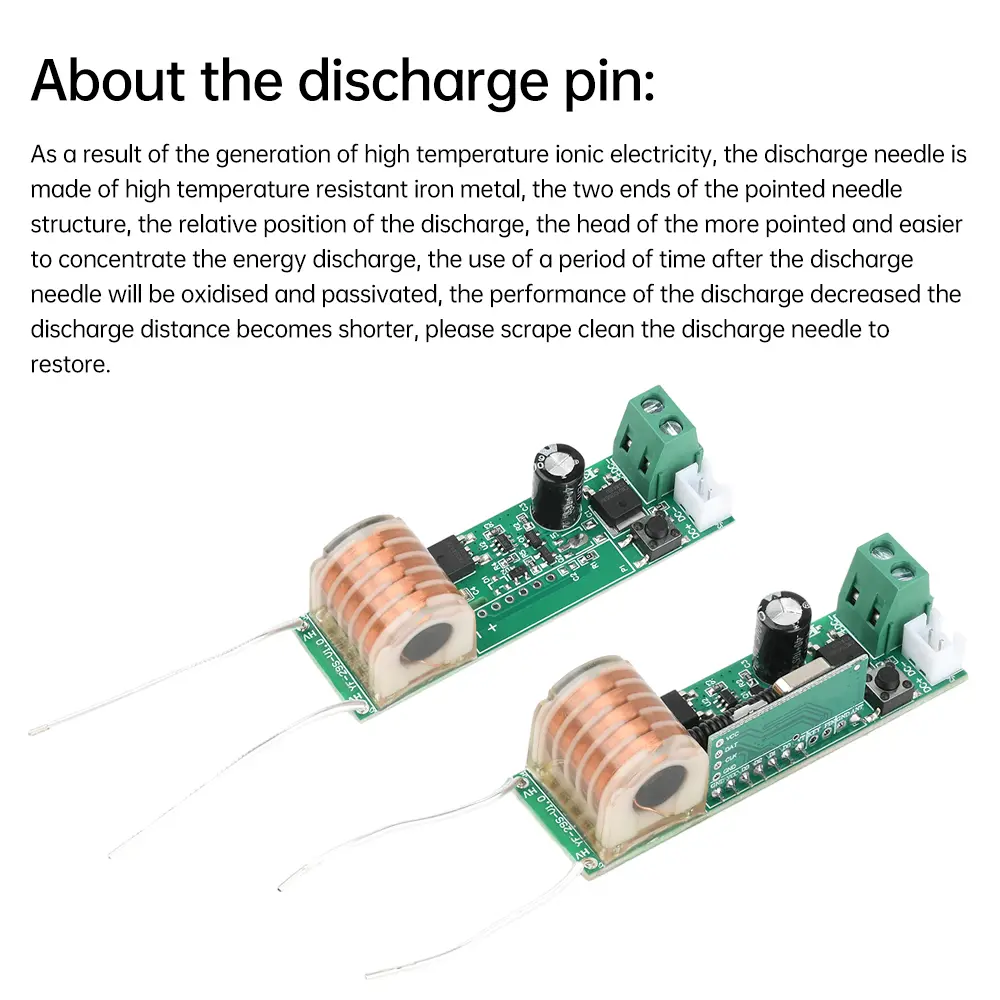

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1.DC 4-10V wide voltage input, output up to 15KV, strong ignition performance<br/>2. Purple high-temperature arc stabilization, silent operation, easy to ignite paper and cigarette smoke<br/>3. Resin encapsulated transformer design, high security, support long-term continuous work<br/>4. Equipped with anti-reverse connection protection function, keypad/remote control operation is convenient, safe and reliable<br/>5. The discharge needle adopts high temperature resistant iron metal, the tip structure concentrates the energy, and the discharge is highly efficient</p><p>Parameter:<br/>Product Name: Pulse Arc Igniter<br/>Supply voltage: DC 4-10V<br/>Output power: &lt;2A<br/>Output voltage: about 15KV<br/>Working time: recommended within 1-30 seconds<br/>Arc distance: 5-8mm<br/>Ignition method:<br/>Basic model: key<br/>Remote control model: key + remote control<br/>Anti-reverse connection: Yes</p><p>Description:<br/>This product input terminal connected to DC 4-10V, secondary high-voltage output is not connected to high-voltage rectifier diodes and capacitors, the output of the two-stage line end can produce &lt;0.8 cm long purple high-temperature arc, no crackling sound, but the temperature is very high, you can easily and instantly point the paper to point the smoke, and even a very fine wire burned sparks (such as junior high school chemistry test when a fine wire burning scene in oxygen, but not as intense as in oxygen). . The transformer has been encapsulated in resin, high security, can be long-term reliable continuous work, but it is recommended that each cigarette light energized not more than 1 minute, pay attention to heat dissipation.<br/>Uses: secondary school science experiments, electronic instruments, negative ion generator, science small production. This circuit produces a stable high-frequency arc when working, the temperature is very high, can easily ignite combustible materials, so some people call it a plasma lighter.<br/>Note: the use of the process need to pay attention to safety</p><p>Package include:<br/>Package 1: Module x1<br/>Package 2: Module x1+remote control x1<br/><br/><br/></p></div></div><p><br/></p>
