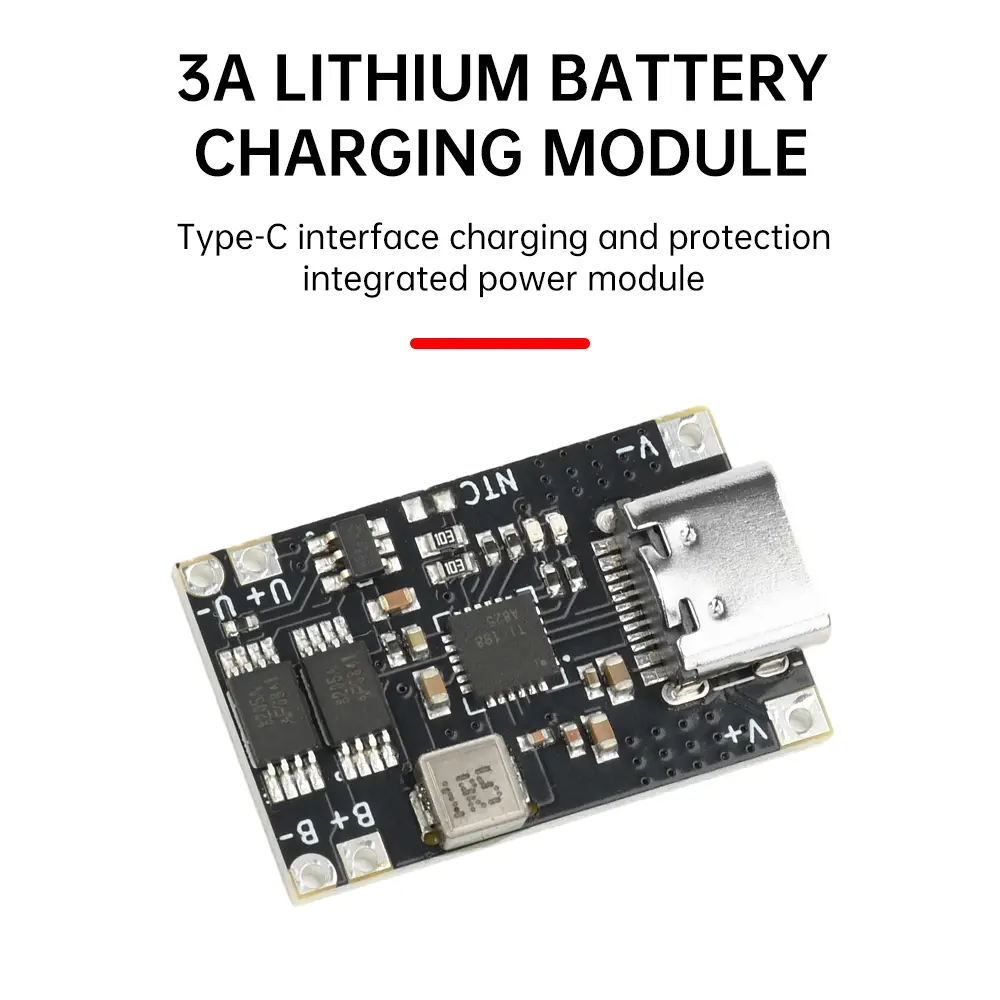

DC 4.5-12V Li-ion Battery Charging Module Charging and Protection Module Step Down Buck Power Charge Module TYPE-C
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br />1.Type-C interface design, support 4.5-12V wide voltage input more flexible<br />2.TI special BQ25606 chip, high-efficiency, stable and reliable voltage reduction program<br />3.Maximum 3A charging current, fast and safe charging for 3.7V lithium battery<br />4.Dual protection mechanism to prevent overcharging and over-discharging of the battery more secure<br />5.On-board dual-color LED indicator, charging status at a glance more intuitive</p>

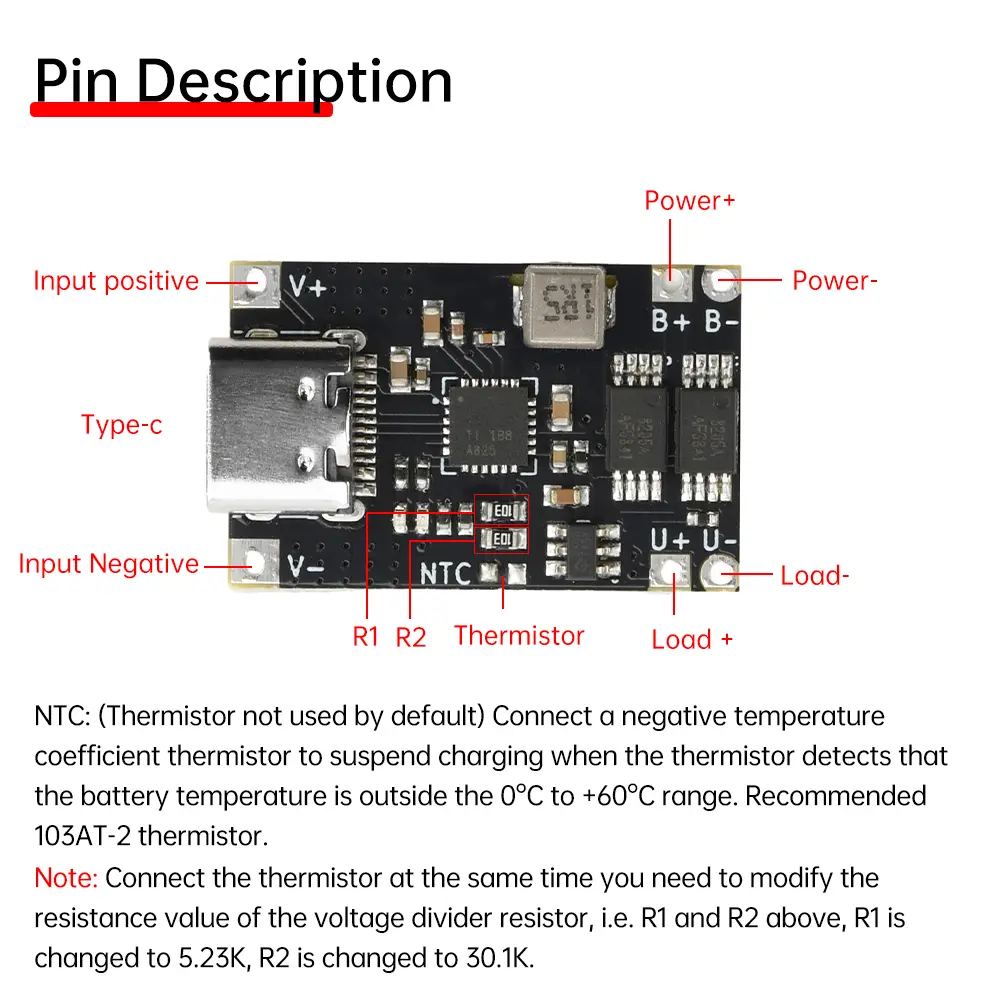

<p>Parameter:<br />Product name: 3A lithium battery charging module<br />Module type: buck power supply<br />Input voltage: DC 4.5-12V<br />Charging cutoff voltage: 4.2V 1%<br />MAX charging current: 3A<br />Battery over-discharge protection voltage: 2.8V<br />Battery overcharge protection voltage: 4.2-0.05V<br />Module interface: pad (can also be connected to the 2.54mm row of pins)</p>

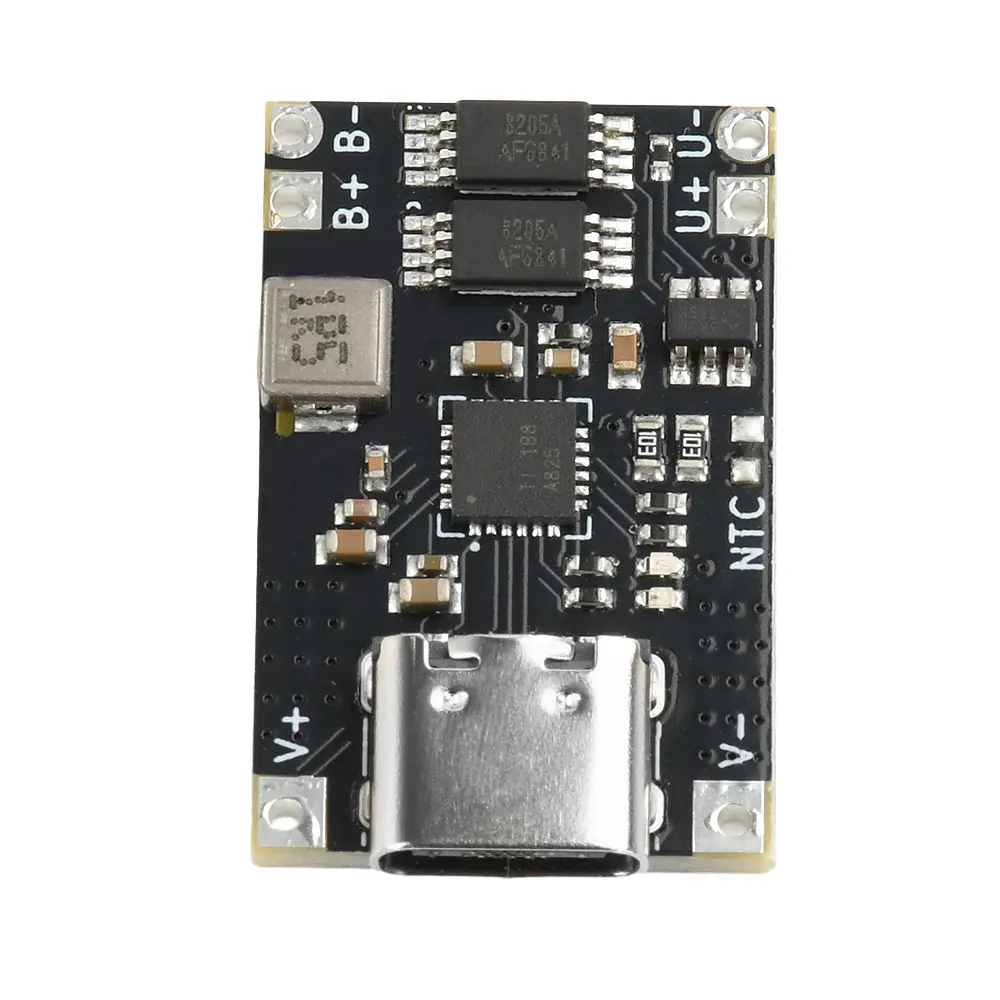

<p>Description:<br />This module adopts TI special battery charging chip BQ25606 buck scheme, high output efficiency, stable performance, with overcharge and overdischarge protection. type-C interface input, input voltage range 4.5-12V, output current MAX up to 3A, very suitable for nominal 3.7V lithium battery charging. The board contains a red LED charging indicator, blue LED status indicator, you can visualize the charging status of the module and battery.</p>
<p>Package include:<br />Module x1<br /><br /></p>
<p> </p></div></div>
$10.535
$6.86
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br />1.Type-C interface design, support 4.5-12V wide voltage input more flexible<br />2.TI special BQ25606 chip, high-efficiency, stable and reliable voltage reduction program<br />3.Maximum 3A charging current, fast and safe charging for 3.7V lithium battery<br />4.Dual protection mechanism to prevent overcharging and over-discharging of the battery more secure<br />5.On-board dual-color LED indicator, charging status at a glance more intuitive</p>
<p>Parameter:<br />Product name: 3A lithium battery charging module<br />Module type: buck power supply<br />Input voltage: DC 4.5-12V<br />Charging cutoff voltage: 4.2V 1%<br />MAX charging current: 3A<br />Battery over-discharge protection voltage: 2.8V<br />Battery overcharge protection voltage: 4.2-0.05V<br />Module interface: pad (can also be connected to the 2.54mm row of pins)</p>
<p>Description:<br />This module adopts TI special battery charging chip BQ25606 buck scheme, high output efficiency, stable performance, with overcharge and overdischarge protection. type-C interface input, input voltage range 4.5-12V, output current MAX up to 3A, very suitable for nominal 3.7V lithium battery charging. The board contains a red LED charging indicator, blue LED status indicator, you can visualize the charging status of the module and battery.</p>
<p>Package include:<br />Module x1<br /><br /></p>
<p> </p></div></div>
