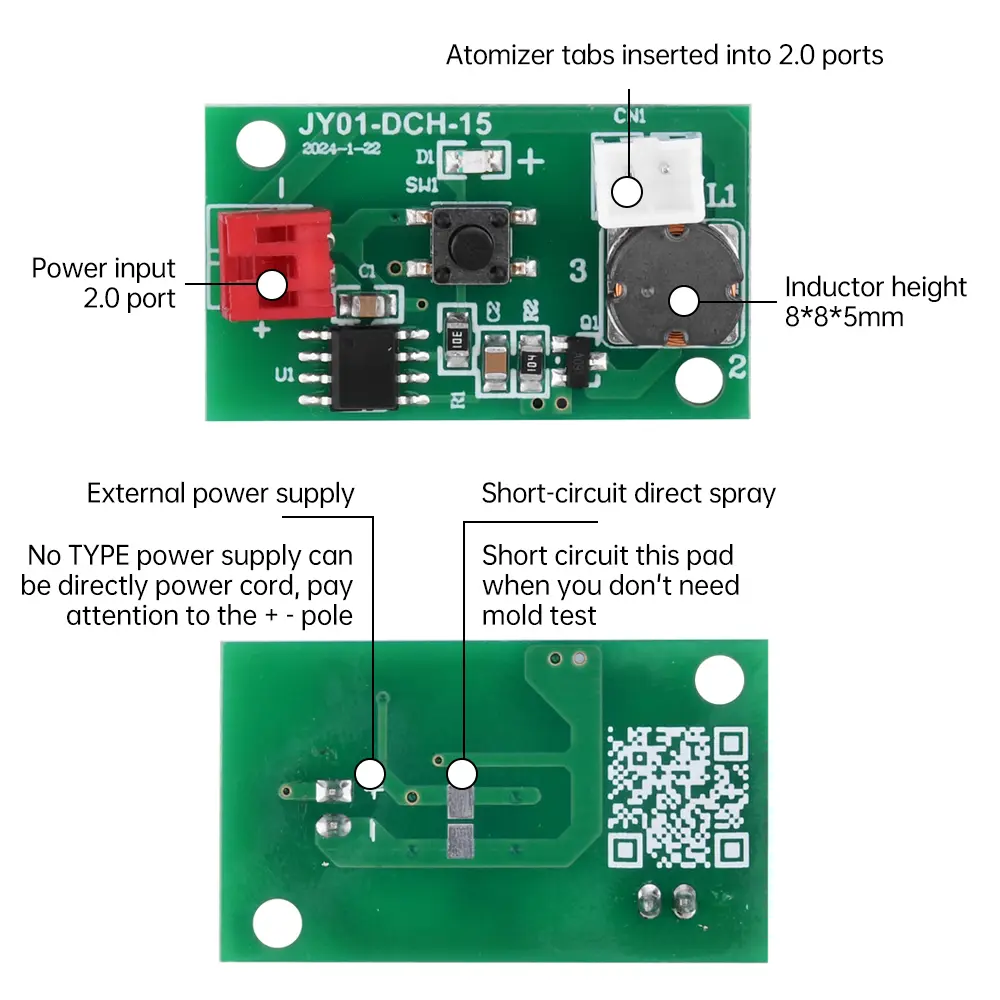

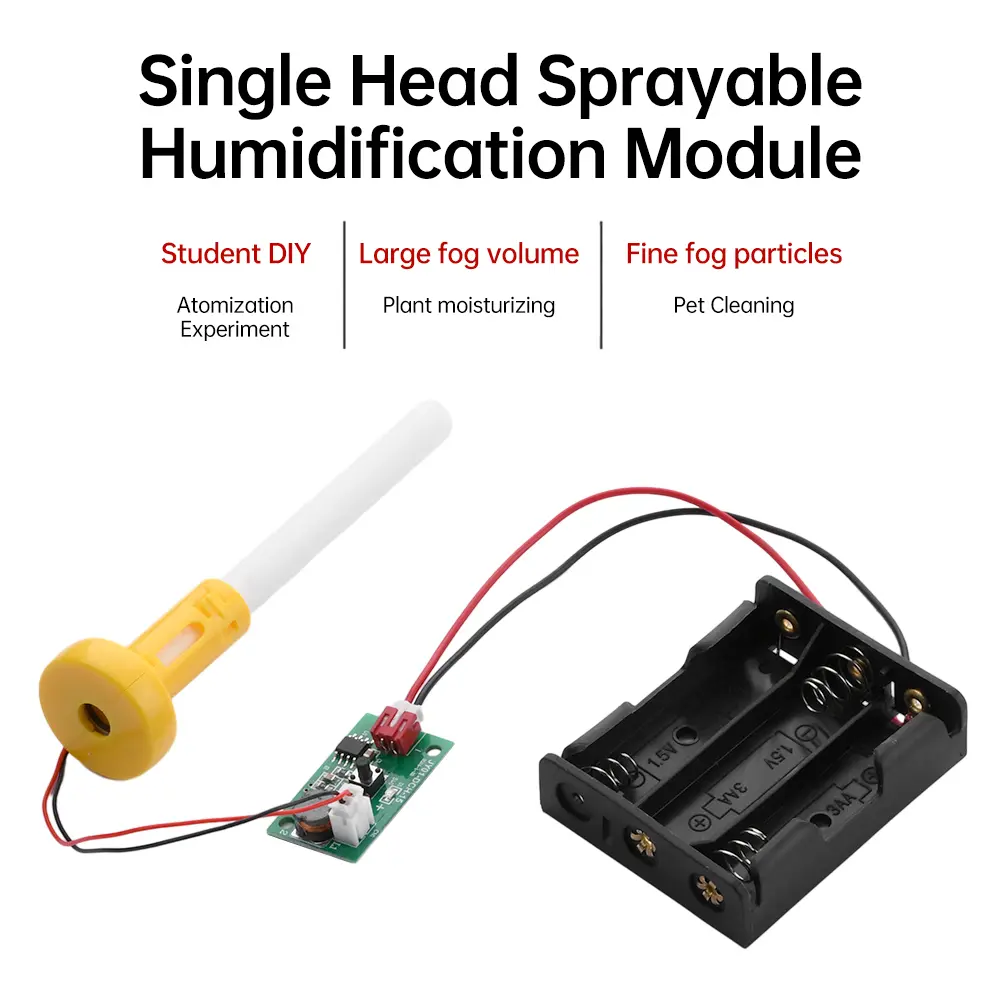

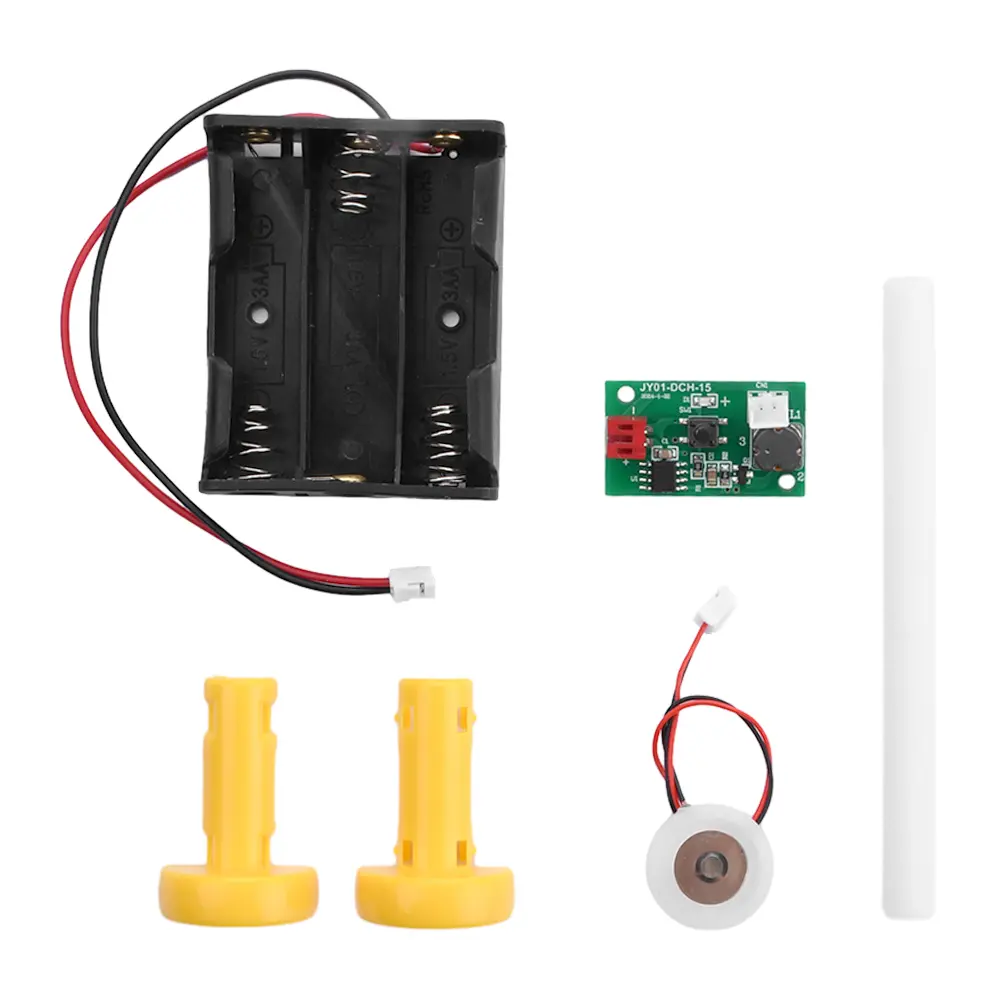

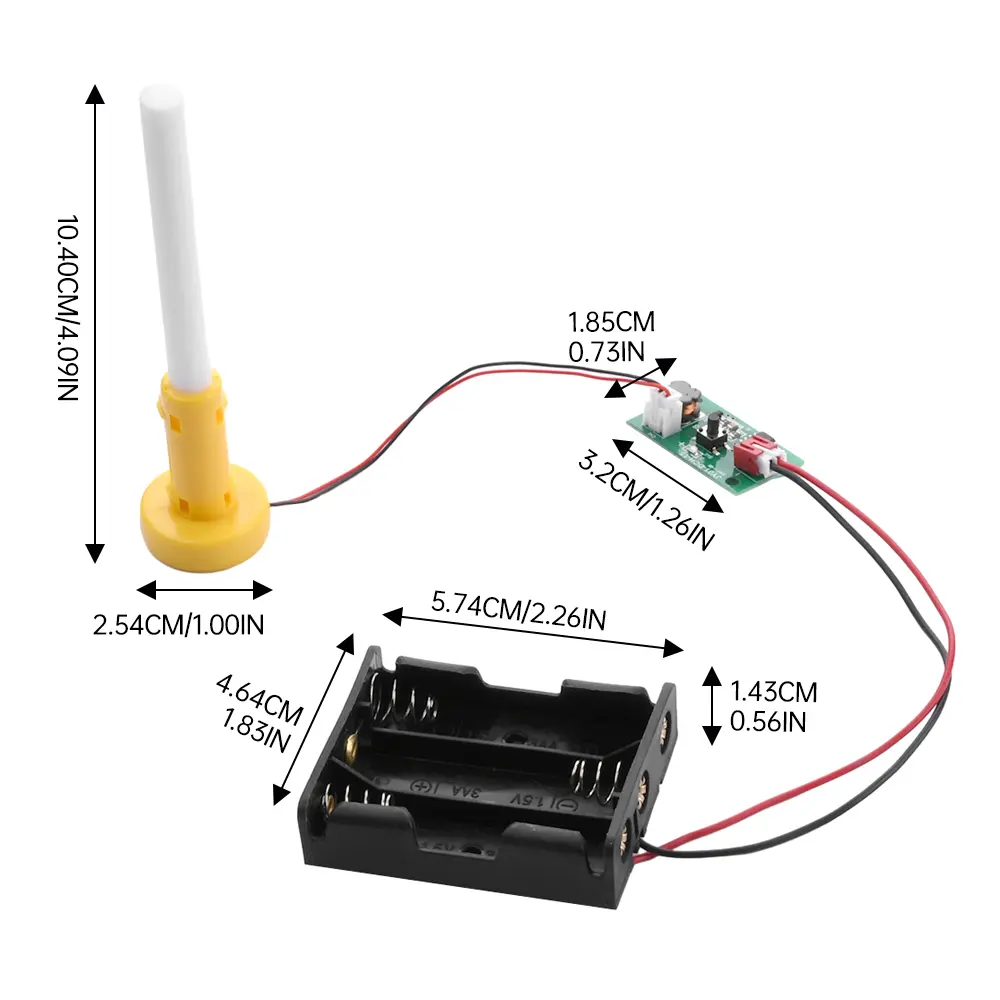

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><strong><span style="font-size: 20px;">Product features:</span></strong><br /><br />1. Using 1.2MM FR-4 material, the circuit board is designed reasonably and has a long service life.<br /><br />2. Strong versatility, large fog output, stable performance, easy to use, and easy to operate.<br /><br />3. Easy to use, equipped with an AA battery box and 3 AA batteries for input power, suitable for scientific experiments.<br /><br />4. The module set is ready to use and comes with a bracket and cotton swab for easy assembly.<br /><br />5. Micron atomization, which atomizes water into delicate water molecules through micropores, dispersing them into the air.<br /><br /><strong><span style="font-size: 20px;">Product parameters:</span></strong><br /><br />Name: Single spray humidification module<br /><br />Material: 1.2MM FR-4<br /><br />Rated voltage: 1.5V * 3 [3 No. 5 batteries (power supply)]<br /><br />Rated current: 300MA<br /><br />Power: 1.5-2W<br /><br />Atomization frequency: 108KHZ &plusmn; 2KHZ<br /><br />Module: 28 * 18.6mm<br /><br />Support: 25 * 38MM<br /><br />Cotton swab: 8 * 100mm<br /><br /><strong><span style="font-size: 20px;">Battery box parameters:</span></strong><br /><br />Model: JY001-02<br /><br />Rated voltage: 3 No. 5 batteries<br /><br />Rated current: 300MA<br /><br />Power terminal port: PH2.0<br /><br />Line length: 15CM<br /><br /><strong><span style="font-size: 20px;">Nebulizer parameters:</span></strong><br /><br />Name: Micro porous atomizing tablets<br /><br />Drive voltage: 5V<br /><br />Resonant frequency: 108-110KHZ &plusmn; 5<br /><br />Rated power: 2W<br /><br />Punch count: 1100<br /><br />Aperture: 4-5UM<br /><br />Outer diameter of silicone sleeve: 20MM<br /><br />Rubber ring thickness: 3MM<br /><br />Steel plate diameter: 16MM<br /><br />Line length: 100MM<br /><br />Wire terminal: PH2.0<br /><br /><strong><span style="font-size: 20px;">Mode Description:</span></strong><br /><br />1. Continuous spray mode: press the switch for the first time, the LED light is always on, the continuous spray mode is always spray, and after 4 hours of spray, it will automatically shut down for protection.<br /><br />2. Intermittent spray mode: press the switch for the second time, the LED light flashes, and cycle in turn. After 12 hours of spray, it will automatically shut down for protection.<br /><br />3. Turn off, press the switch for the third time to turn off.<br /><br /><strong><span style="font-size: 20px;">Product List:</span></strong><br /><br />1X module<br /><br />1X cotton swab<br /><br />1X bracket<br /><br />1X atomization plate<br /><br />1X battery box<br /></p></div></div>
