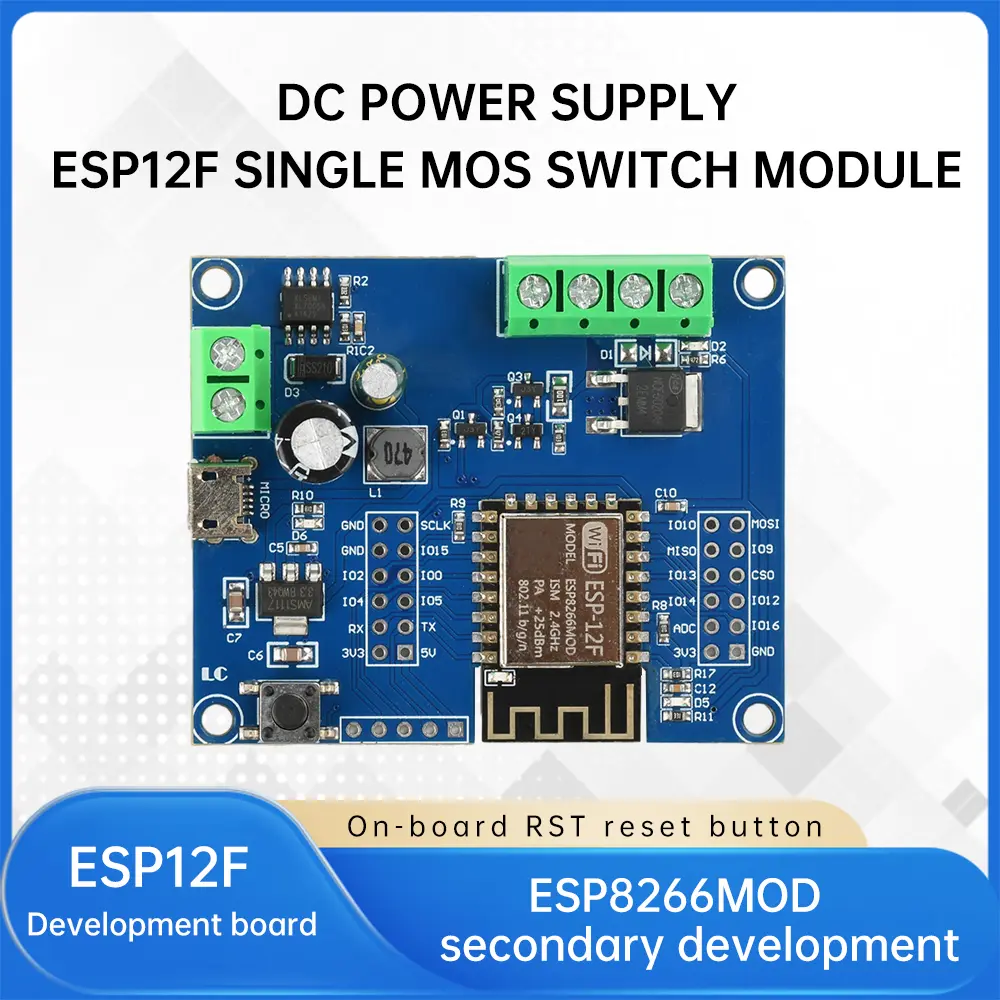

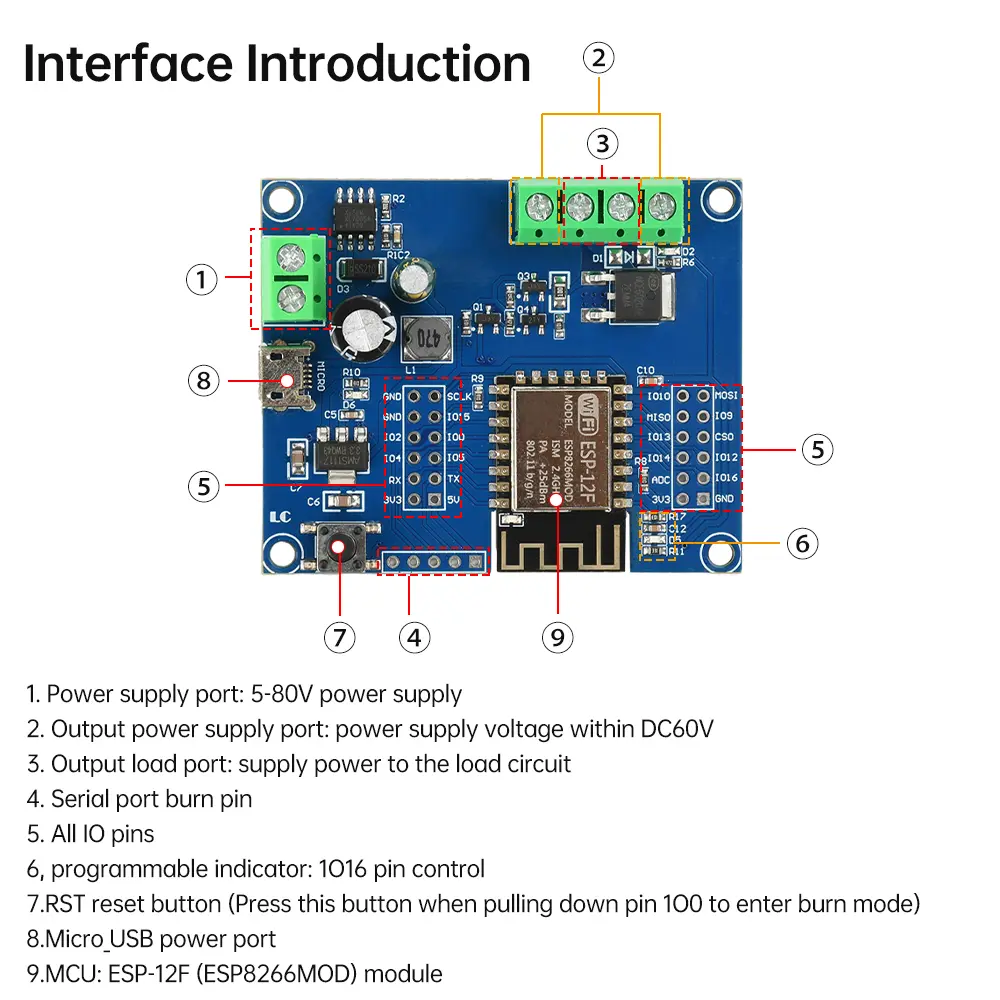

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Mature and stable ESP-12F (ESP8266MOD) module on board, large-capacity 32Mbit SPI Flash.<br/>2. ESP-12F module I / O port and UART program download port all lead out, convenient for secondary development<br/>3. On-board RST reset button; on-board Micro USB port + DC 5-80V to 5V power supply circuit (recommended power supply DC 12V)<br/>4.ESP-12F supports Arduino IDE compilation tool, providing reference programs under Arduino development environment.<br/>5. On-board leakage voltage of 60V N-channel MOS tube, suitable for controlling the “control voltage” for the load within DC60V</p><p>Overview: DC-powered ESP12F single MOS switch module equipped with ESP-12F (ESP8266MOD) module, I / O port full lead, support DC 5-80V power supply mode + Micro_USB port power supply. Suitable for ESP-12F secondary development learning, smart home wireless control and other occasions.</p><p>Parameter:<br/>Power supply voltage: DC 5-80V or Micro USB 5V<br/>Module Model: ESP-12F<br/>Programmable indicator: IO16 pin control<br/>Output power supply port: DC 60V or less supply voltage<br/>Output load port: power supply for load circuit<br/>Product size: 59*48mm (positioning hole: 3mm)</p><p>Package include:<br/>Module*1<br/>6P double rows of pins *2<br/>5P single row pin*1<br/>Short Circuit Cap*1<br/><br/></p></div></div><p><br/></p>
