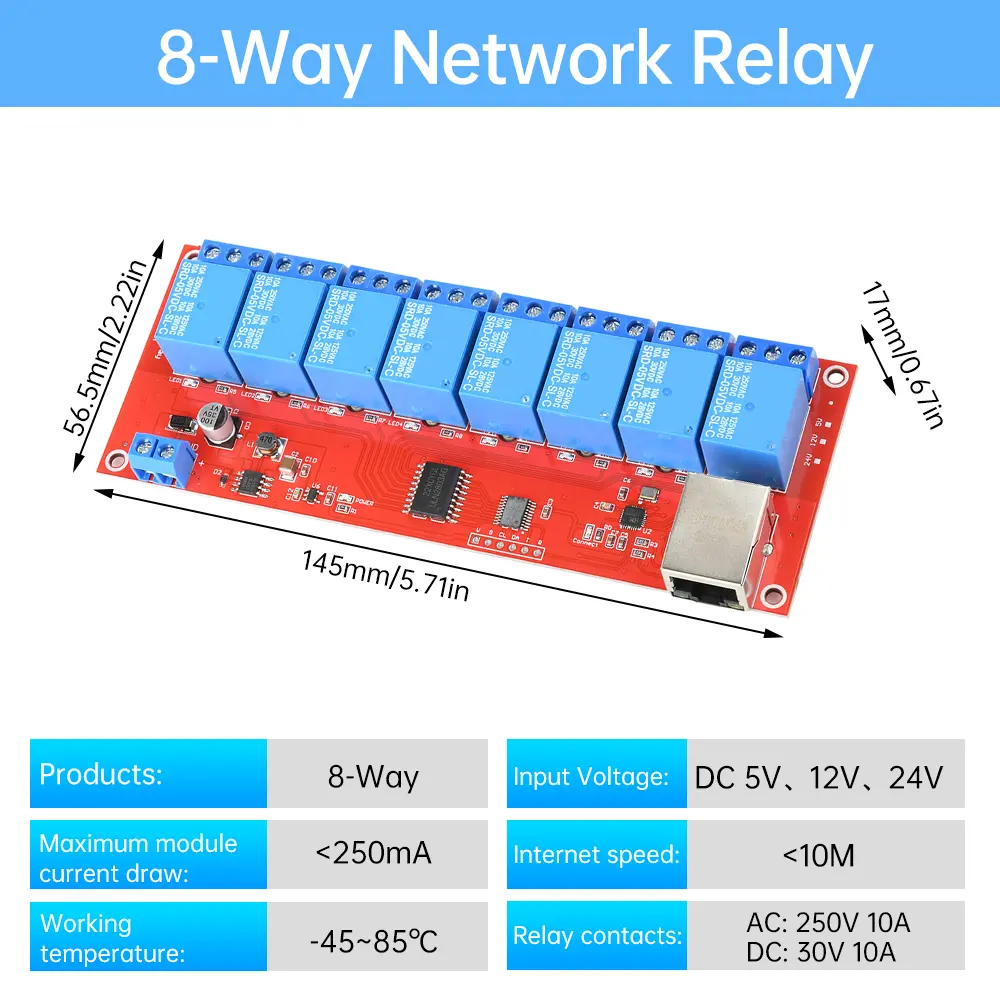

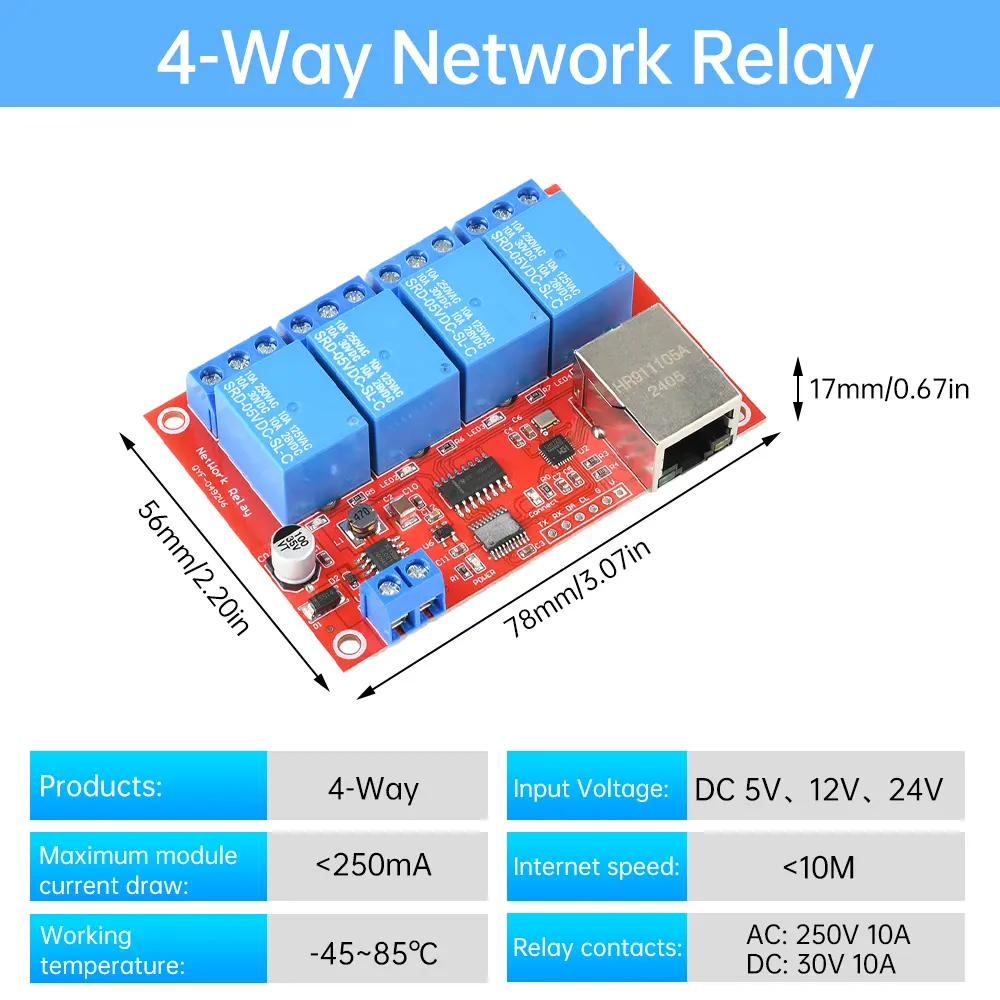

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><br/>Features:<br/>1. The module integrates 32-bit MCU and special network chip, with simple hardware and easy to use.<br/>2. Module protocol is simple, using simple instructions to complete the remote control<br/>3. Module communication protocol bit TCP/IP protocol, it is easy to configure for TCPSERVER or TCP Client.<br/>4. Users can carry out secondary development, the use of network tools or self-programmed host computer software can realize the basic control.<br/>5. Provide 5V, 12V, 24V relay operating voltage version, for different application scenarios to provide flexible choices.<br/>6. Provide a WIN version of the APP for users to test and use.<br/>7. The module supports a wide range of voltage inputs, ranging from 5-28V, the voltage needs to be provided according to the operating voltage of the relay.<br/>8. The circuit board provides 8 LED indicators, indicating the opening and closing of the corresponding channel.<br/>9. The module automatically adapts to 10M/100M network.</p><p>Parameter:<br/>Input voltage: DC 5V, 12V, 24V<br/>Maximum module current consumption: &lt;250mA<br/>Network speed: &lt;10M<br/>Relay contact:<br/>AC 250V 10A<br/>DC 30V 10A<br/>Operating temperature: -45~85℃<br/>Product Dimension:<br/>4-way: 78*55*16mm<br/>8-way: 145*55*17mm</p><p>Attention.<br/>1. The input voltage should match the operating voltage of the relay, such as selecting the relay as 5V, then the input power supply voltage should also be 5V.<br/>2. It is not recommended to share a power supply with the input even if the output is DC.</p><p>Package include:<br/>Module*1<br/><br/></p></div></div><p><br/></p>
