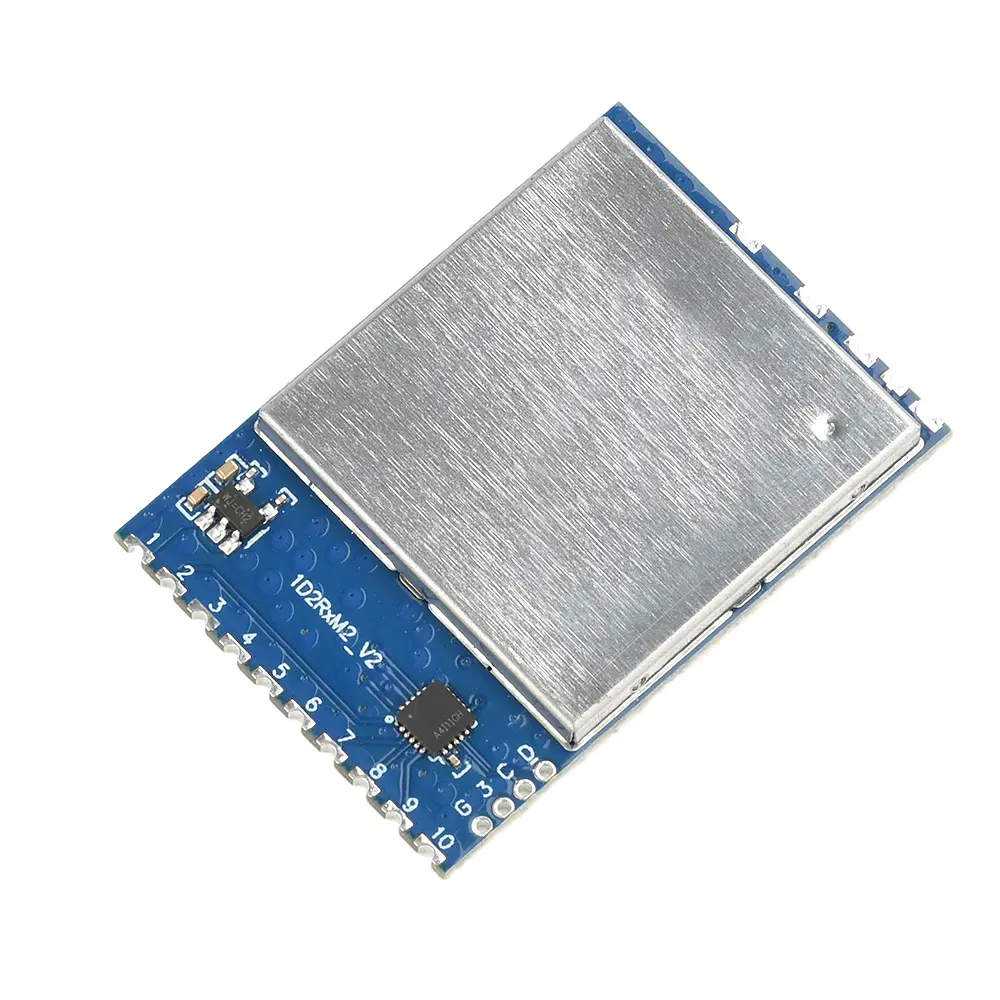

DC 5V 1.2G/1.3G RF Video Receiver Module 1.2G VRX 9-CH FPV Analog Wireless Video Receiver Module 1D2rxm2 Analog Mapping Receiver

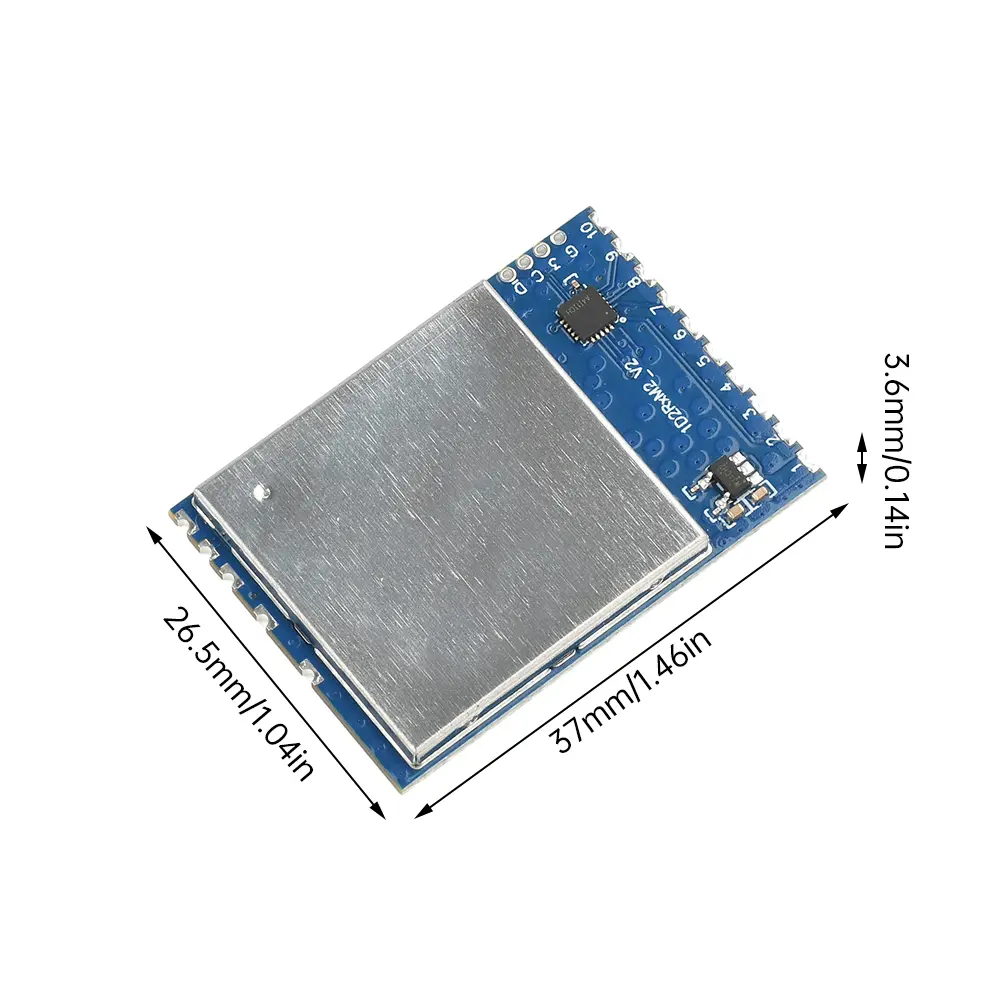

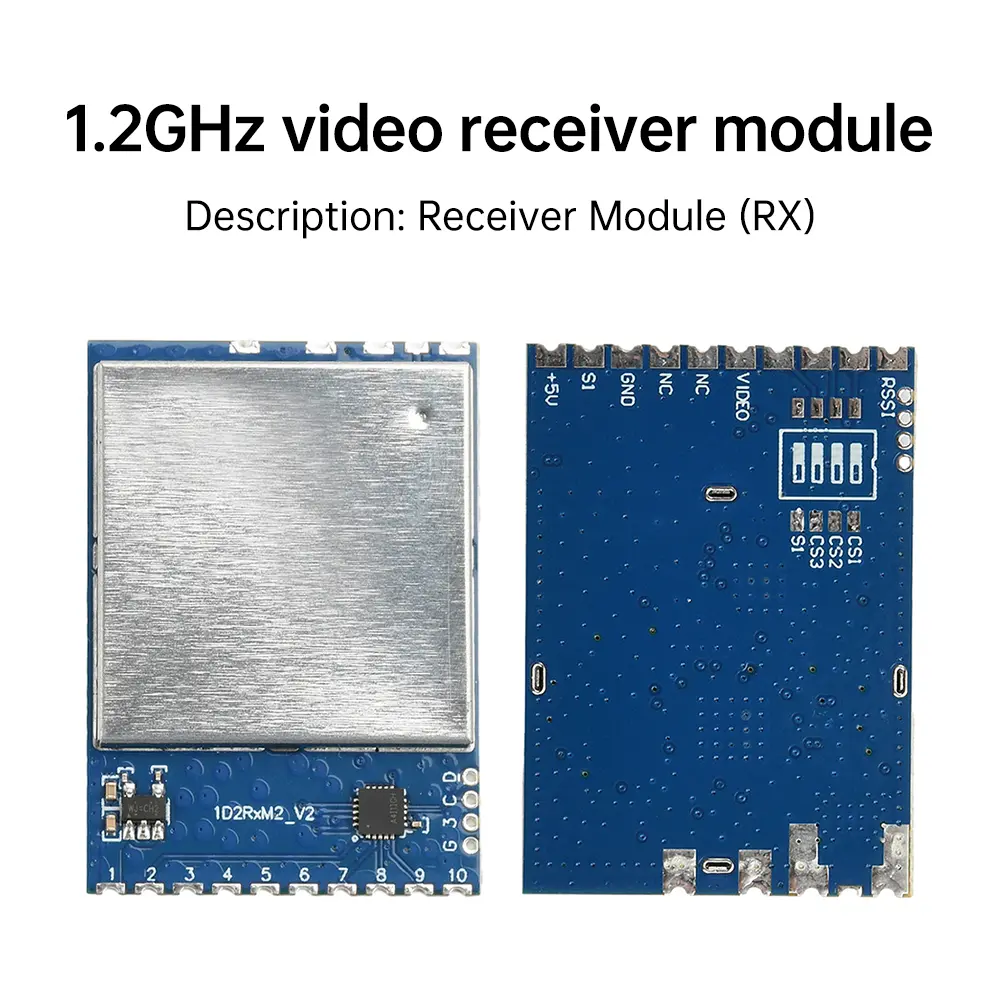

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. High sensitivity receiver module: receiving sensitivity up to -95dBm, ensuring stable transmission of weak signals<br/>2. Multi-frequency band support design: support 9 frequency points (1080~1360MHz), to meet the diversified use requirements<br/>3. Super RSSI signal function: RSSI output voltage range 1.3~0.7V, accurately reflecting the signal strength<br/>4. Wide operating temperature range: operating temperature -10~+65℃, adapt to a variety of environmental conditions<br/>5. High-quality video transmission performance: signal-to-noise ratio ≥ 38dB, video frequency response ± 5dB, clear and stable picture quality</p><p>Parameter:<br/>Product name: 1.2GHz video receiver module<br/>Supply voltage: DC 5V<br/>Current consumption: 300 Max<br/>Working temperature: -10~+65 ℃<br/>Storage Temperature：-30~+85 ℃<br/>Operating Humidity: 85%RH<br/>Receiving frequency range: 1080~1360MHz<br/>Frequency Points: Support nine frequency points, 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360, 1258<br/>Product size: 37x26x4mm</p><p>Package include:<br/>Module x1<br/><br/></p></div></div><p><br/></p>
$88.625
$52.235
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. High sensitivity receiver module: receiving sensitivity up to -95dBm, ensuring stable transmission of weak signals<br/>2. Multi-frequency band support design: support 9 frequency points (1080~1360MHz), to meet the diversified use requirements<br/>3. Super RSSI signal function: RSSI output voltage range 1.3~0.7V, accurately reflecting the signal strength<br/>4. Wide operating temperature range: operating temperature -10~+65℃, adapt to a variety of environmental conditions<br/>5. High-quality video transmission performance: signal-to-noise ratio ≥ 38dB, video frequency response ± 5dB, clear and stable picture quality</p><p>Parameter:<br/>Product name: 1.2GHz video receiver module<br/>Supply voltage: DC 5V<br/>Current consumption: 300 Max<br/>Working temperature: -10~+65 ℃<br/>Storage Temperature：-30~+85 ℃<br/>Operating Humidity: 85%RH<br/>Receiving frequency range: 1080~1360MHz<br/>Frequency Points: Support nine frequency points, 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360, 1258<br/>Product size: 37x26x4mm</p><p>Package include:<br/>Module x1<br/><br/></p></div></div><p><br/></p>
