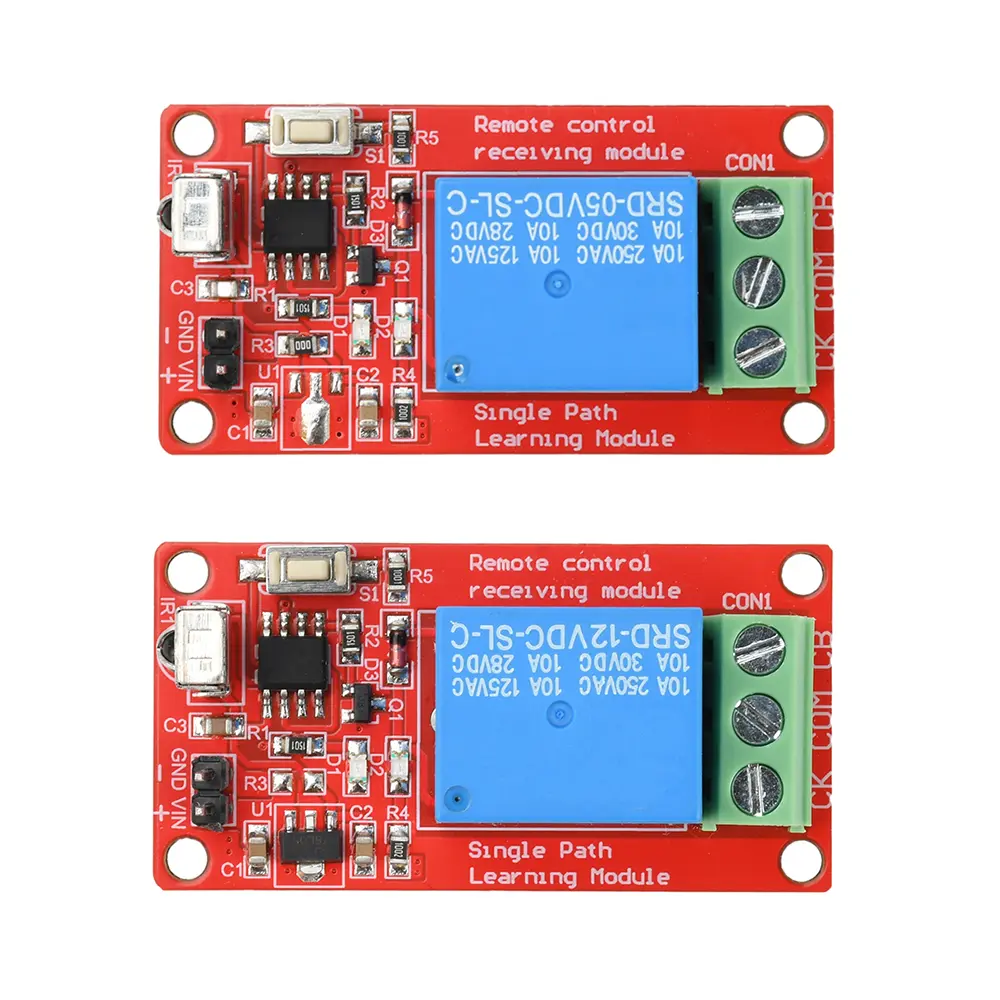

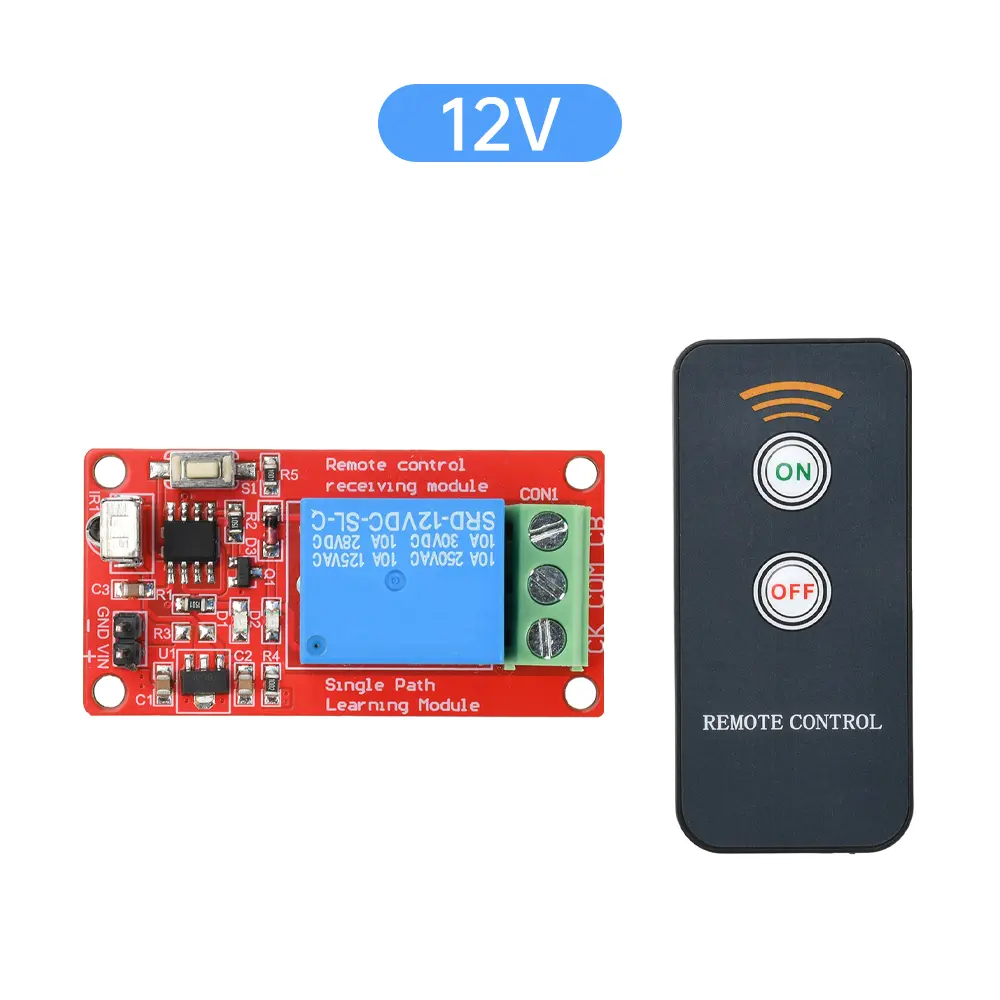

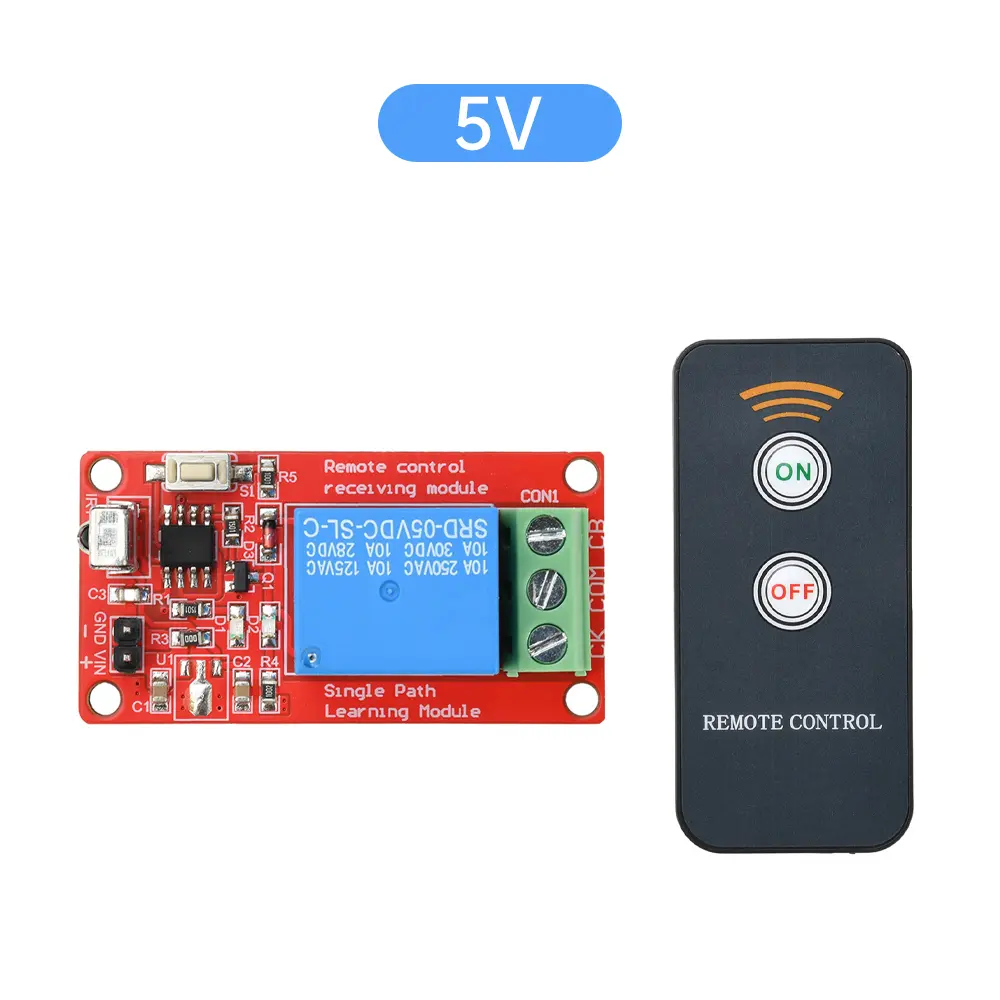

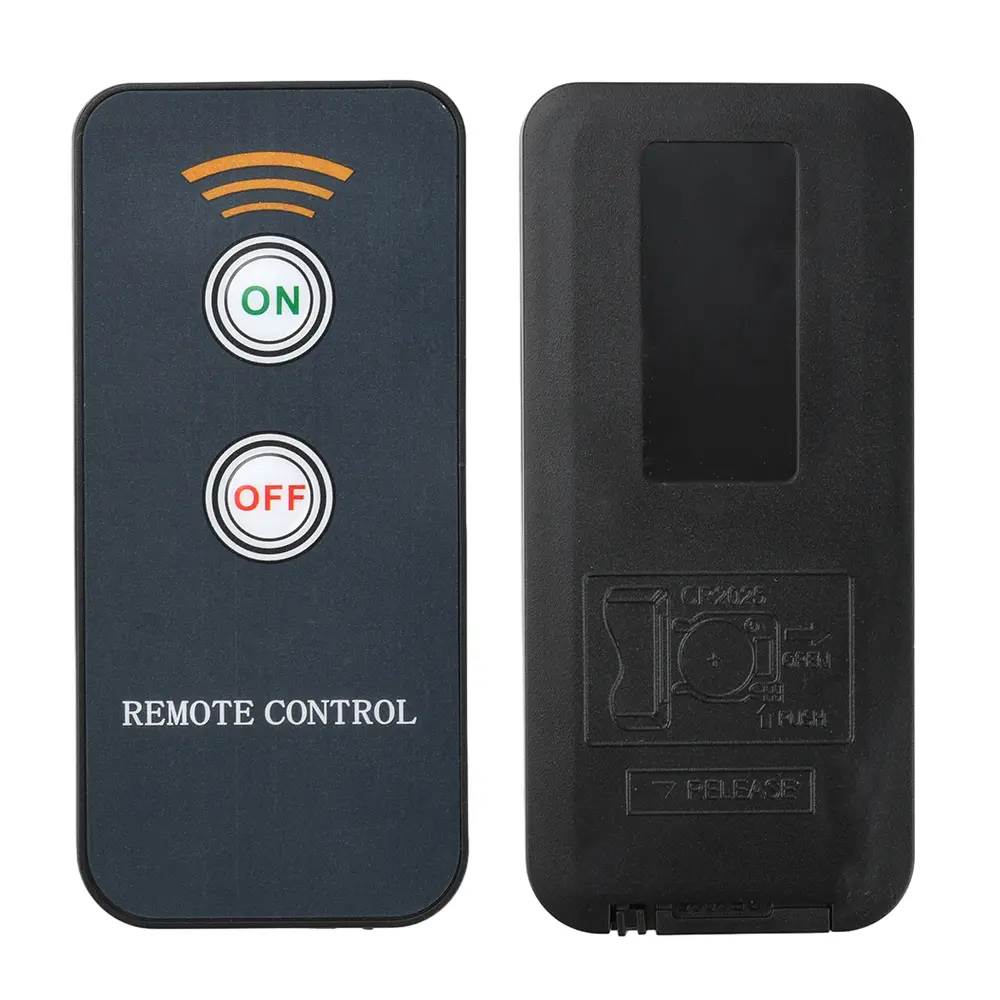

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004088425" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features:<br />1. Infrared learning function: support NEC format remote control learning, strong compatibility, convenient operation<br />2. Three working modes: pointing, self-locking, interlocking free switching, to meet different control needs<br />3. High sensitivity reception: remote control distance up to 8-15 meters, stable and reliable signal<br />4. Fast pairing learning: one key to complete the remote control signal learning, simple and efficient setup<br />5. Stable relay control: Ensure accurate and reliable switching of equipment and prolong service life</p> <p>Parameter:<br />Product name: 1 channel infrared learning module remote control<br />Working voltage:<br />1 channel 5V infrared learning module: DC 4.5-5V<br />1 channel 12V infrared learning module: DC 11-12.5V<br />Wiring: VIN (+) connects to power positive; GND (-) connects to power negative; CK, CB, COM connects to output<br />Working mode: 1 channel 5V infrared learning module, 1 channel 12V infrared learning module<br />Working mode: pointing, self-locking, interlocking 3 modes of free switching<br />Remote control distance: 8-15 meters (straight line distance)<br />Relay current: maximum current 10A<br />Adaptive remote control: can learn all standard NEC 38KHz infrared remote control on the market</p> <p>Function description:<br />1. Press and hold the learning button on the top of the module, the learning indicator light on the module flashes 1 time, release the button, then press and hold the remote control button A that needs to be learned; the module learning indicator light flashes 3 times without flashing, release the remote control button; the learning is complete button.<br />2. Press and hold the learning button on top of the module, the learning indicator light on the module flashes 2 times, release the button, then press and hold the remote control button B that needs to be learned; the learning indicator light on the module flashes 3 times without blinking, release the remote control button; the learning is complete button.<br />3. Press and hold the module above the learning button, learning indicator flash 3 under the release module set to self-locking, flash 4 under the release module set to interlocking, flash 5 under the release set to pointing flash 6 under the release of the module cleared<br />4. matching 2-key remote control can be directly controlled without learning, ON button to open the relay, OFF button to close the relay; other remote control need to learn with the module supporting the use of (remote control requirements must be NEC format)</p> <p>Working Mode:<br />Self-locking: press the key, the relay turns on, press the key again, the relay turns off<br />Tap: press and hold the key, the relay is always on, release the key, the relay is off<br />Interlocking: press key A, the relay turns on, press key B, the relay turns off.</p> <p>Note: Key A/B can be any other available key</p> <p>Package include:<br />Module x1<br />Remote control x1<br /></p></div></div>
