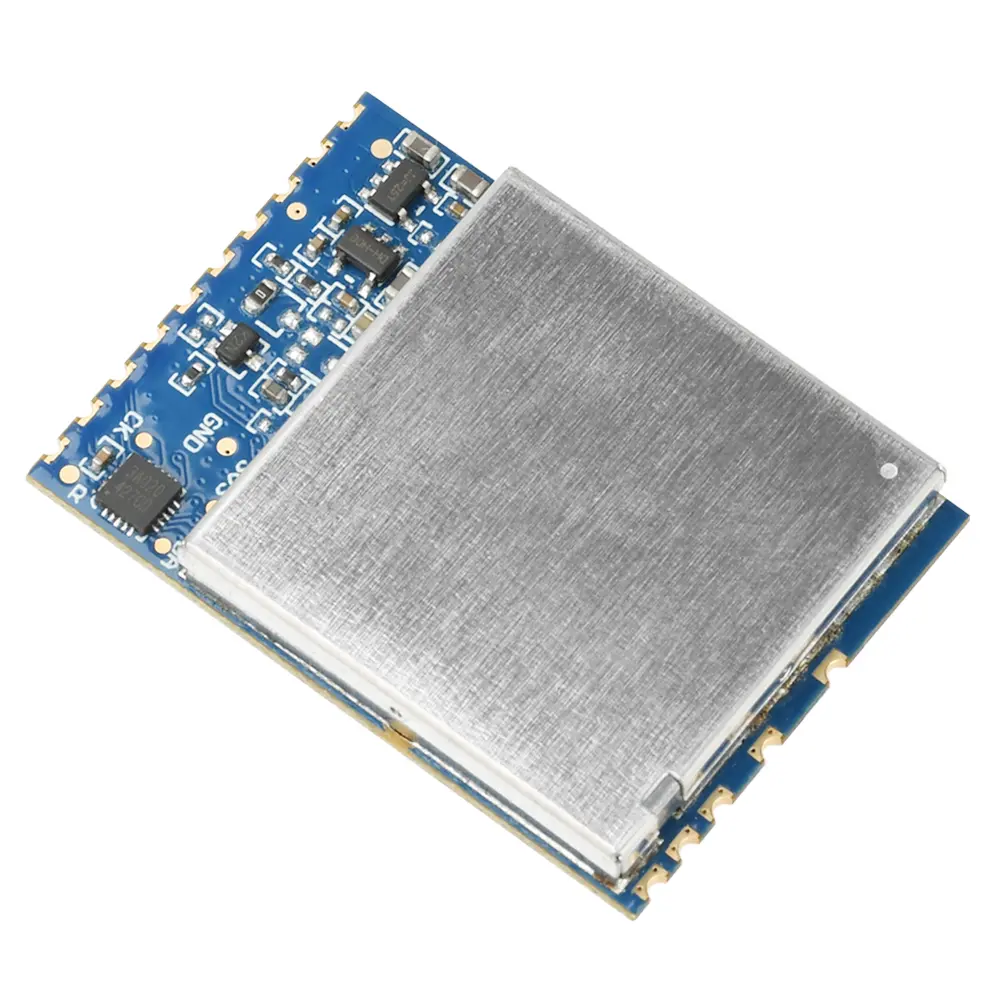

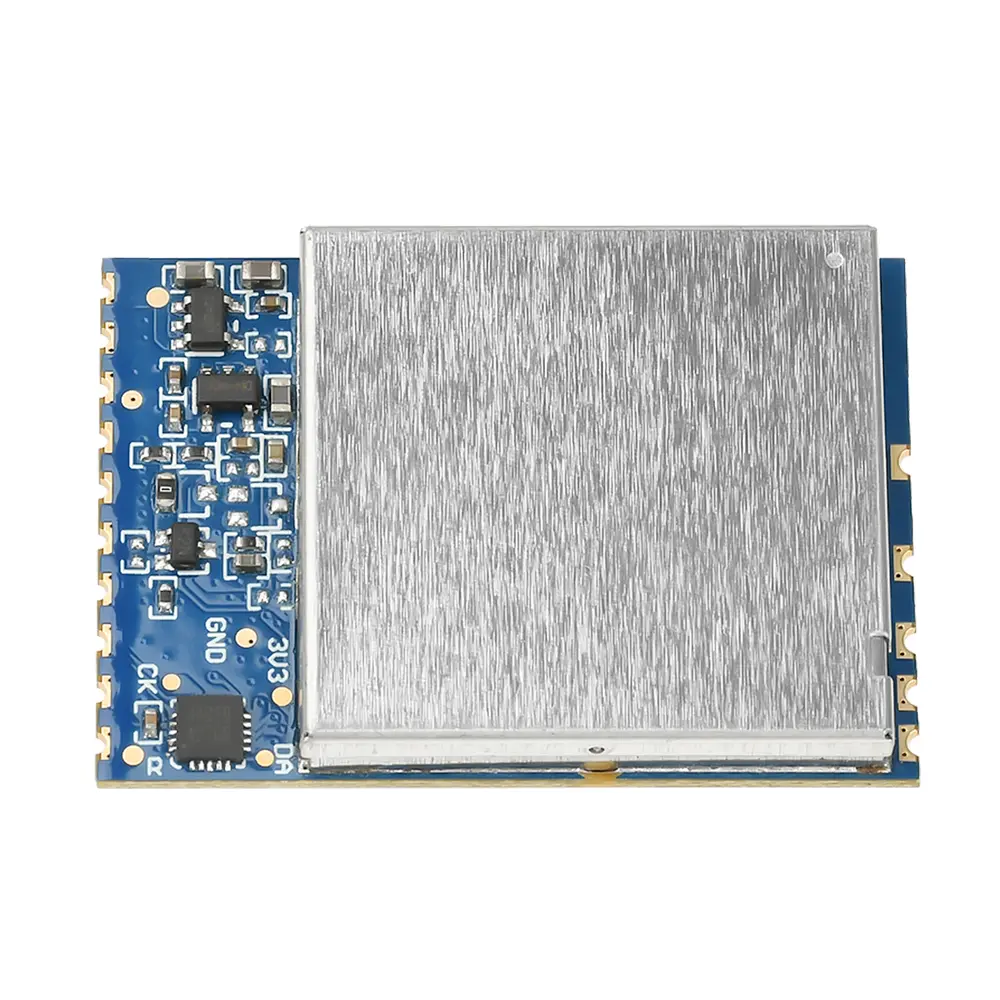

DC 5V VM1373R 1.2G 1.3G FPV Image Transmission Module Analog Wireless Audio and Video Transmitter Receiver Module
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004103227" title="" type="relation"></kse:widget></div>
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features:<br />1. The module adopts high integration design, which has the advantages of small size, low power consumption, high sensitivity, etc.<br />2. Simple to connect the antenna: only need to connect the antenna, you can easily receive audio and video signals, convenient operation.<br />3. Wide temperature adaptability: support -10°C to +65°C operating temperature range, adapt to a variety of environments<br />4. Standard 75Ω impedance: video output impedance of 75Ω, good compatibility, clear and stable transmission effect<br />5. Wide frequency coverage: support 1080-1360MHz receiving frequency, wide range of applications to meet diversified needs</p>

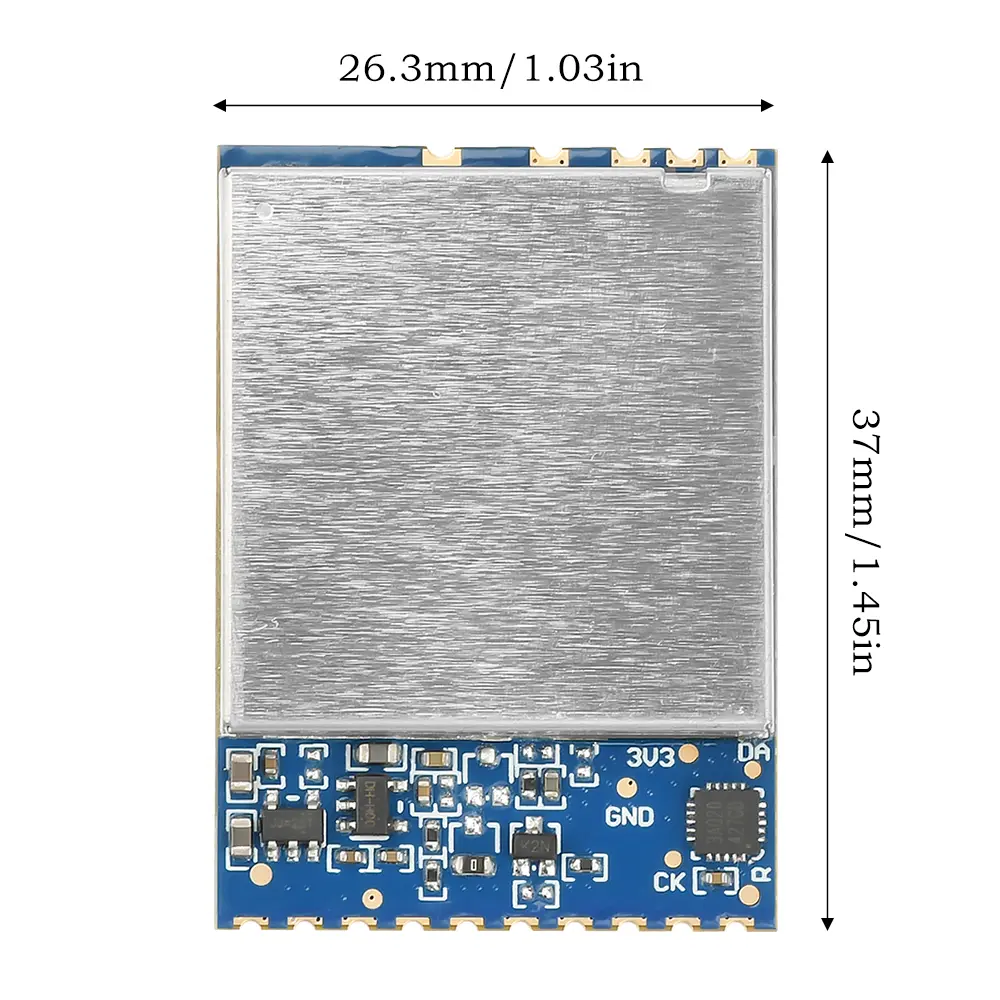

<p>Parameter:<br />DC Characteristics<br />Supply voltage: 5.0V<br />Current consumption: (380±30)mA<br />Working Environment<br />Operating temperature: -10~+65°C<br />Storage temperature: -30~+85°C<br />Operating Humidity: 85%RH<br />Radio Frequency<br />Receiving frequency range: 1080-1360MHZ<br />Input VSWR: 2:1<br />Demodulation mode: FM/PLL<br />IF frequency IF: 480MHz<br />Antenna port impedance: 50Ω, TyP.<br />Frequency stability of the oscillator: ±200kHz<br />Frequency accuracy of local oscillation: ±200kHz<br />Local oscillation control: PLL<br />Leakage at input local oscillator: -65dBm<br />Receiving sensitivity: -95dBm±2<br />Input level range: -95dBm~"5dBm<br />Video<br />Video Output Impedance: 75Ω, TyP.<br />Video Output Level: 1±0.2Vp-P. TyP.<br />Video Polarity: Negative<br />Video Frequency Response: ±5 dB,Max.50Hz ~ 6MHz<br />Differential Gain: ±5 %, Max.<br />Differential Phase: ±5 Deg, Max<br />3dB IF Bandwidth: 16.5MHz<br />Signal-to-Noise Ratio: 38dB, Min<br />Product Size: 37*26.3mm</p>
<p>Package include:<br />Module*1<br /></p></div></div>
