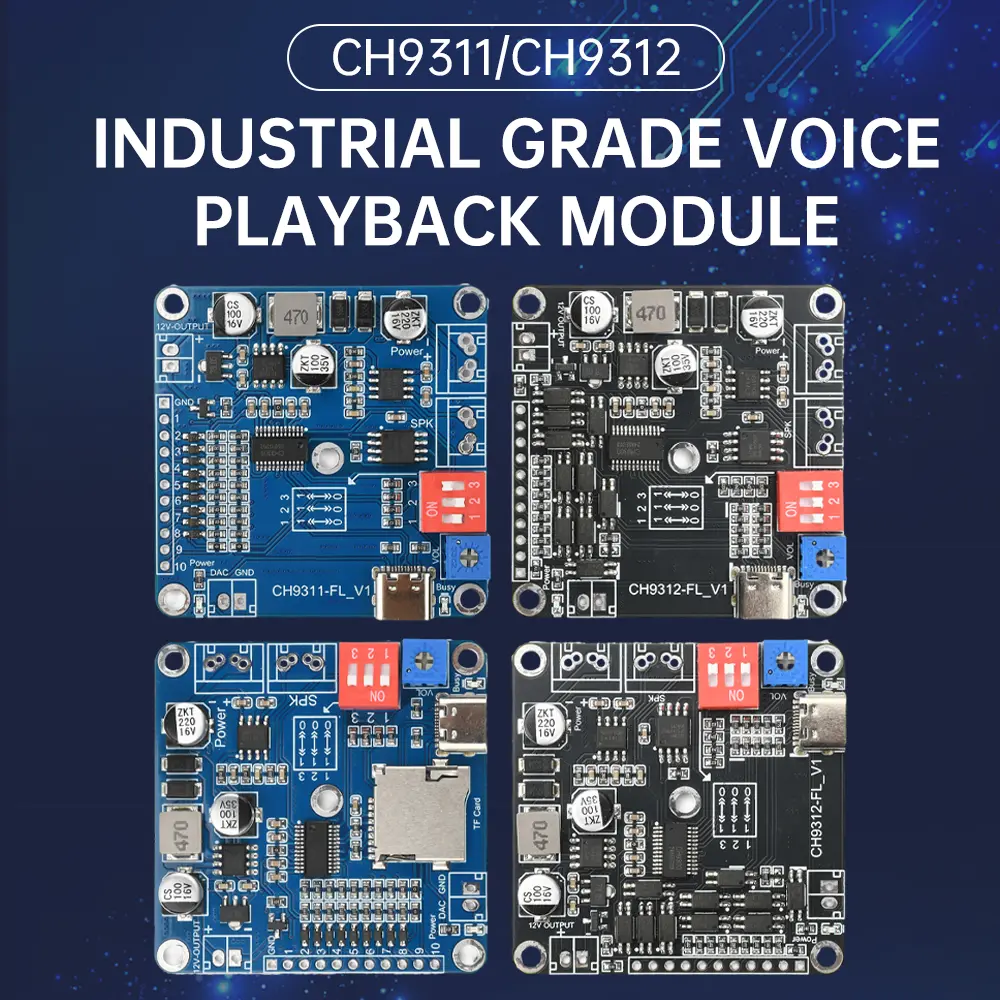

DC 6-35V 20W High-Power Voice MP3 Playback Module Trigger Amplifier Board 10-Channel One-To-One Control Audio Module

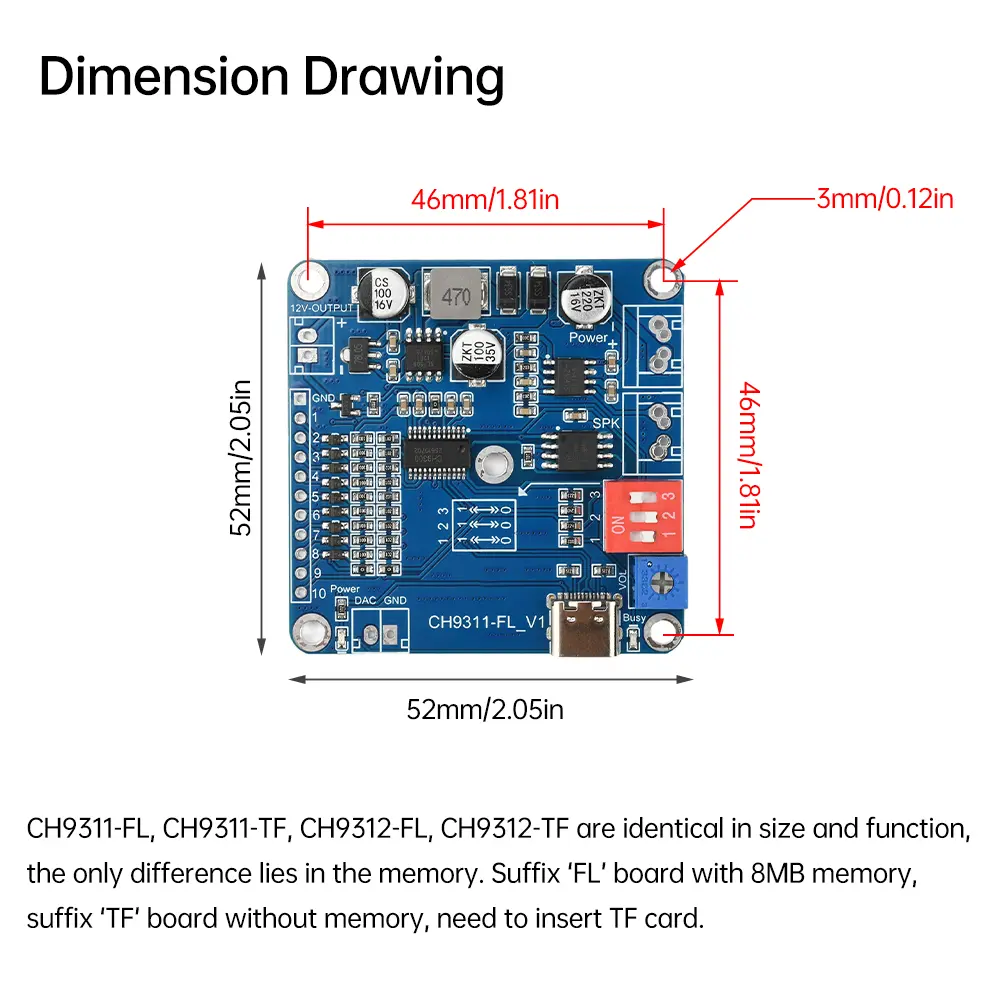

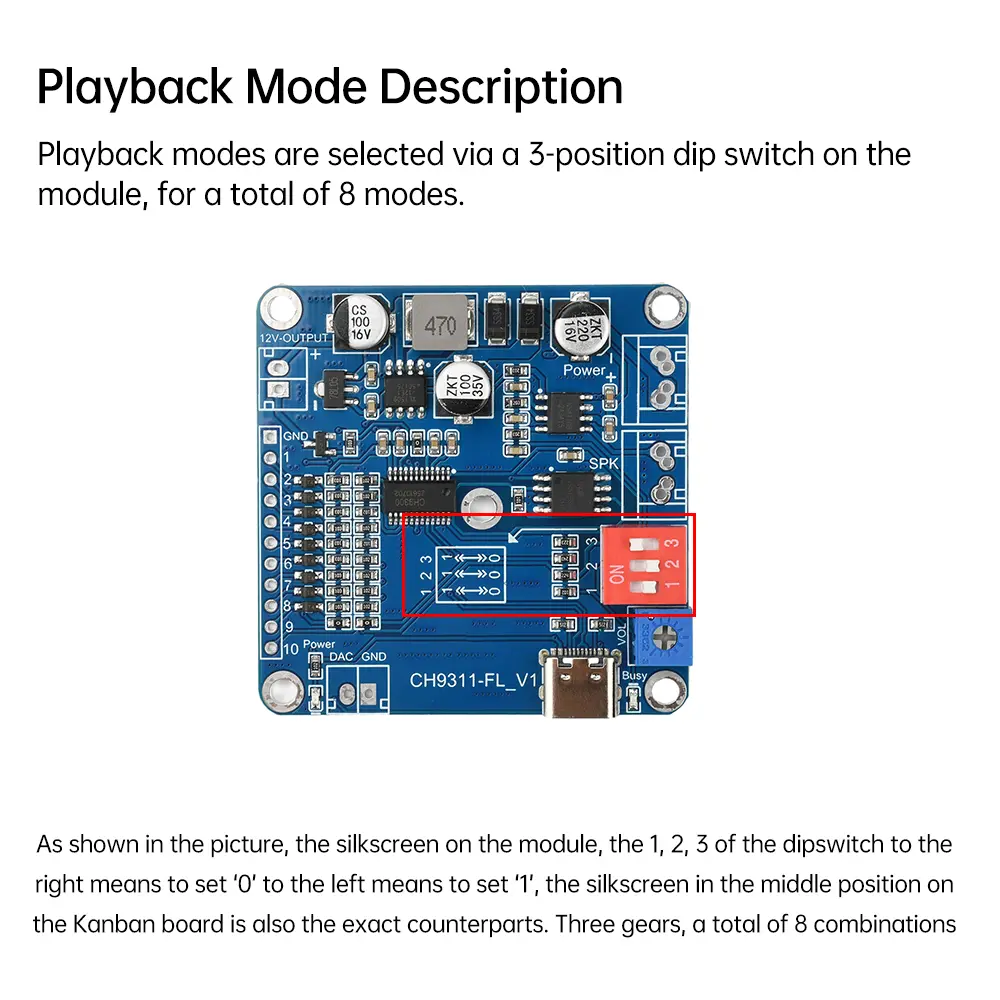

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Multiple control modes: 10-way button one-to-one, MP3 mode, combined playback<br/>2. Connect to computer via data line to copy audio files.<br/>3. Support combination playback, the combination mode supports up to 1023 segments of audio<br/>4. Support start-up tone broadcasting and background music insertion.<br/>5. Support 8 kinds of playback mode selection, can be adapted to different applications<br/>6.BUSY signal output indication</p><p>Parameter:<br/>interface: Type C<br/>Input voltage: DC 6-35V<br/>Rated current: standby current 10MA, working current <1000MA<br/>Speaker power: 20W/8R inside<br/>Operating temperature: -40~85℃<br/>Humidity: 5-95%RH<br/>Product size: 52*52*10mm</p><p>MP3 file format:<br/>1, support all bit rate 11172-3 and ISO13813-3 layer3 audio decoding<br/>2, support for sample rate (KHZ): 8/11.025/12/16/22.05/24/32/44.1/48<br/>3, support Normal, Jazz, Classic, Pop, Rock and other sound effects</p><p>Package include:<br/>Module*1<br/><br/></p></div></div><p><br/></p>
$18.53
$11.585
- Category : Home Improvement
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Multiple control modes: 10-way button one-to-one, MP3 mode, combined playback<br/>2. Connect to computer via data line to copy audio files.<br/>3. Support combination playback, the combination mode supports up to 1023 segments of audio<br/>4. Support start-up tone broadcasting and background music insertion.<br/>5. Support 8 kinds of playback mode selection, can be adapted to different applications<br/>6.BUSY signal output indication</p><p>Parameter:<br/>interface: Type C<br/>Input voltage: DC 6-35V<br/>Rated current: standby current 10MA, working current <1000MA<br/>Speaker power: 20W/8R inside<br/>Operating temperature: -40~85℃<br/>Humidity: 5-95%RH<br/>Product size: 52*52*10mm</p><p>MP3 file format:<br/>1, support all bit rate 11172-3 and ISO13813-3 layer3 audio decoding<br/>2, support for sample rate (KHZ): 8/11.025/12/16/22.05/24/32/44.1/48<br/>3, support Normal, Jazz, Classic, Pop, Rock and other sound effects</p><p>Package include:<br/>Module*1<br/><br/></p></div></div><p><br/></p>
