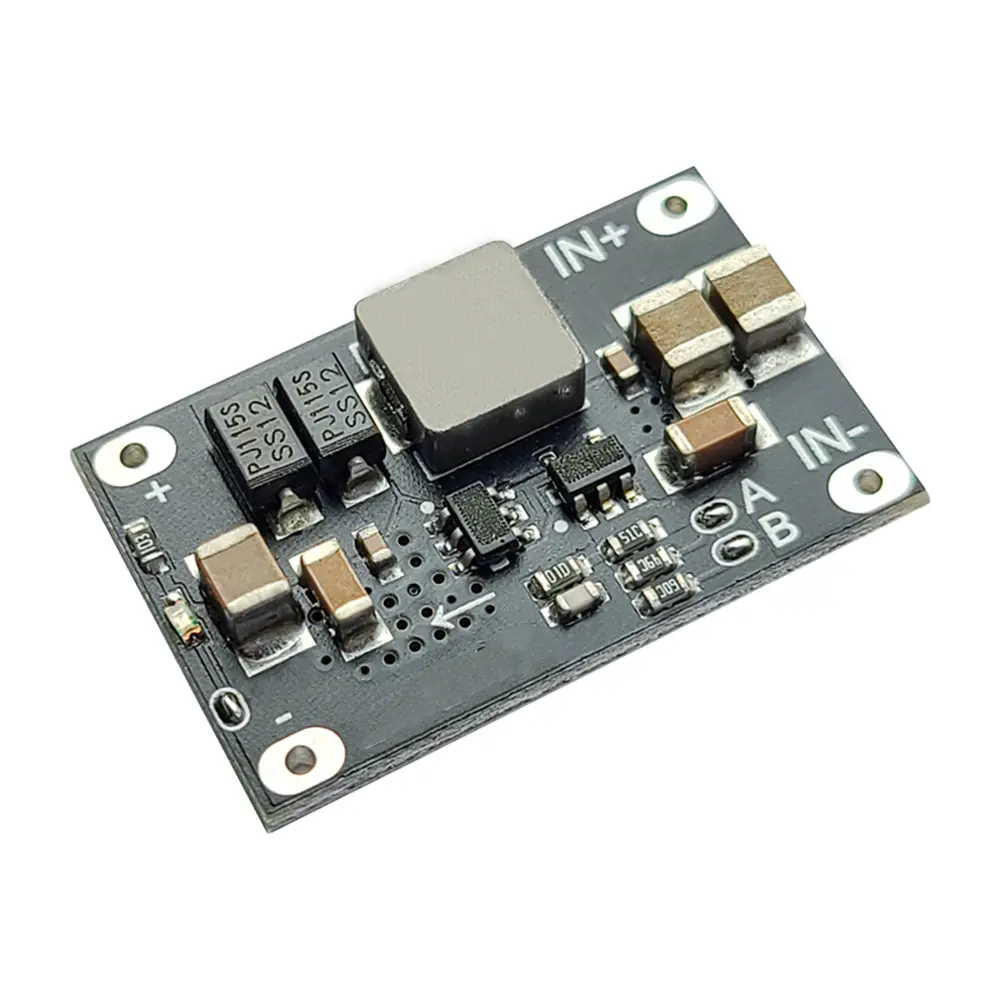

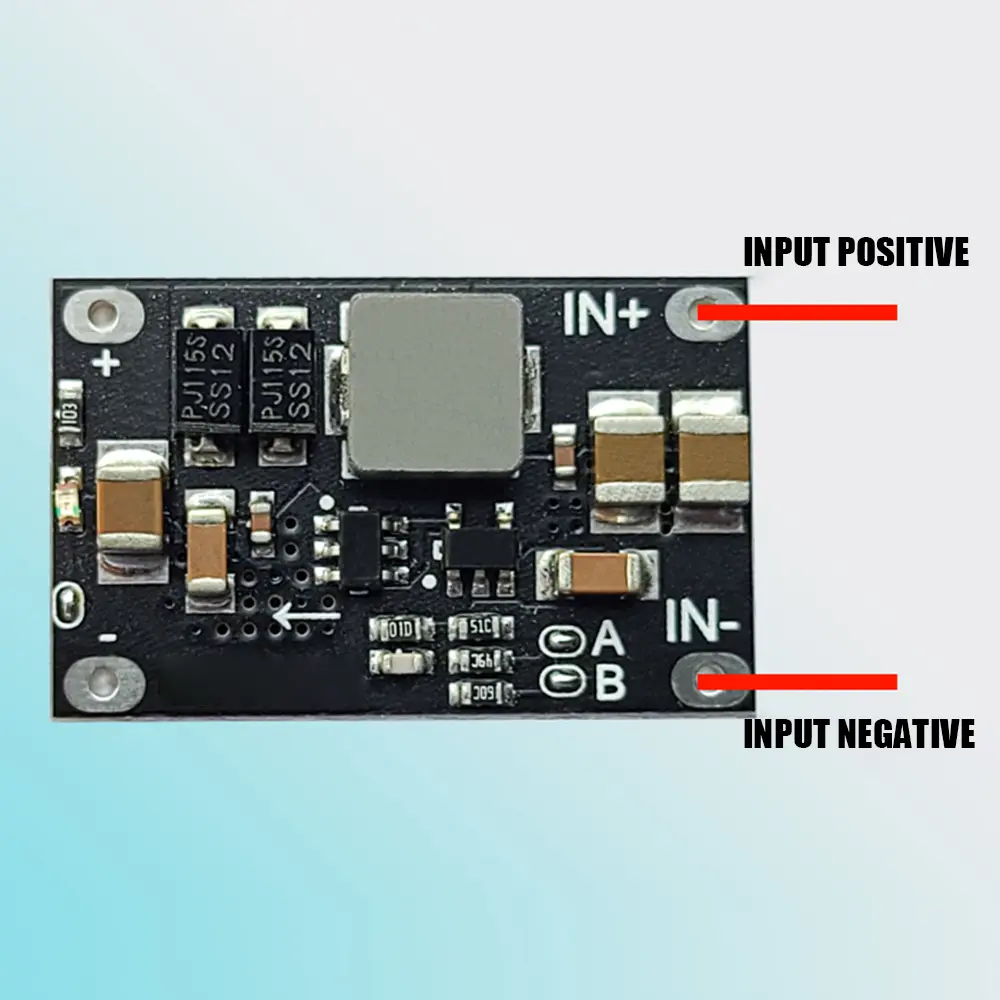

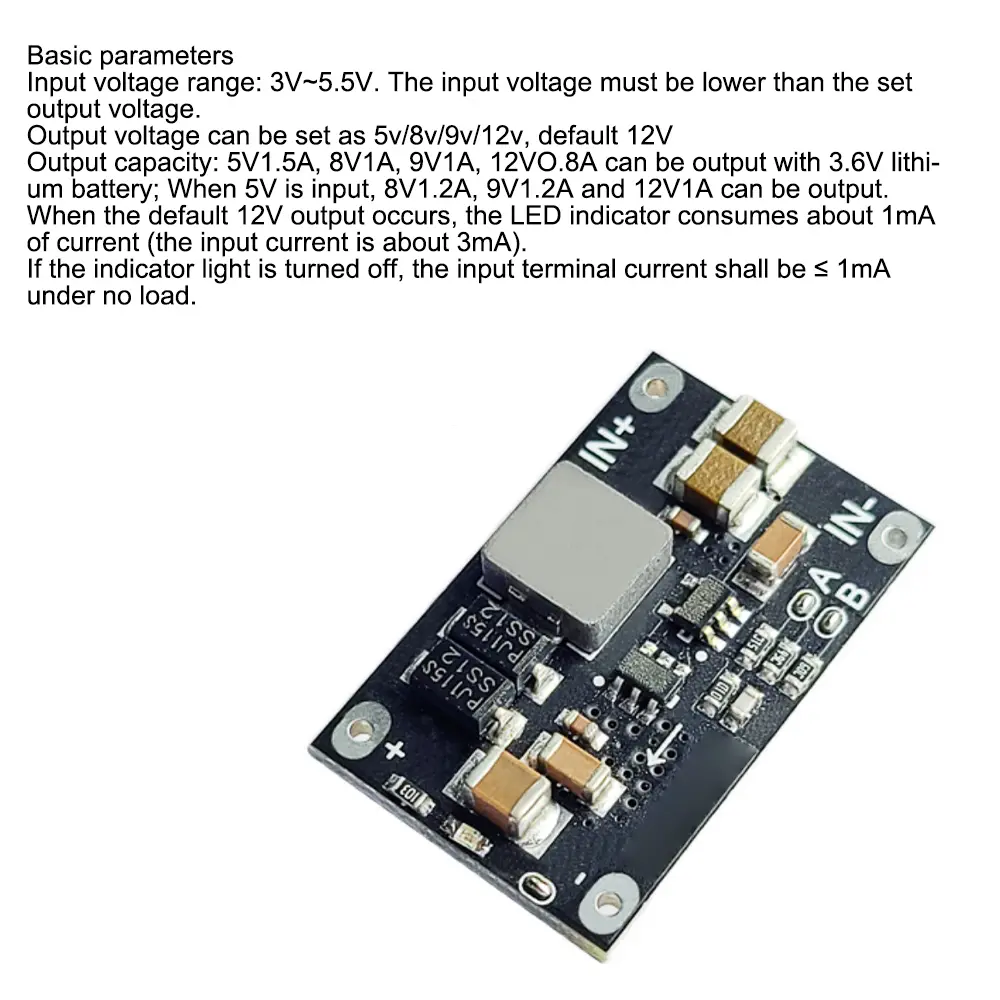

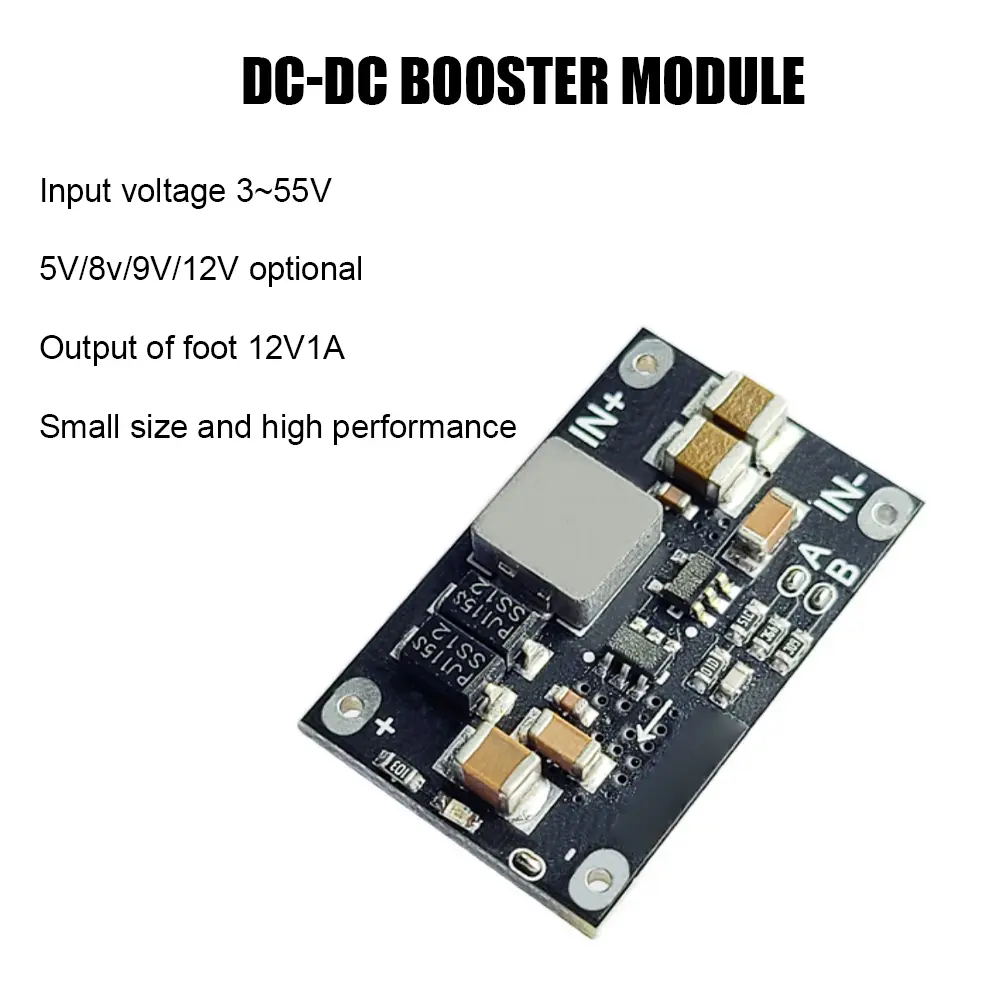

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="detailmodule_dynamic"></div></div><div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004352011" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">DC-DC 3-5.5V to 12V 1A Step-Down Boost Module 10W to set 5V 8V 9V 12V Output Lithium Battery PCB DC-DC Step-Down Boost Board</p></div><div class="detailmodule_image"><span style="font-size:20px;font-family:OpenSans">【Product features】</span></div><div class="detailmodule_text"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">1. Use high-quality materials, durable<br/>2. Exquisite appearance<br/>3. Stable performance<br/>4. Easy to use<br/>5. Wide range of use</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Parameters】</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">Input voltage range: 3V ~ 5.5V. The input voltage must be lower than the set output voltage.<br/>The output voltage can be set to 5V/8V/9V/12V, the default is 12V<br/>Output capability: 5V1.5A, 8V1A, 9V1A, 12V0.8A can be output when input with 3.6V lithium battery;<br/>When input at 5V, 8V1.2A, 9V1.2A,<br/>12V1A<br/>When the default 12V output, the LED indicator consumes about 1mA (the input current is about 3mA)<br/>If the indicator light is turned off, the input current at no load is Less than 1mA</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Voltage setting instructions】</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">The words A and B can be seen on the front of the PCB. Use an electric soldering iron to change the on-off of the pad next to the character to change the output voltage.<br/>A B VOUT<br/>Disconnect 5V<br/>Disconnect 8V<br/>Connected and disconnected 9V<br/>Connected 12V</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Package list】</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">DC-DC boost module * 1</p></div><div class="detailmodule_image"><br/><br/><br/><br/><br/><br/><br/><br/></div><div class="detailmodule_text"><br/></div></div></div></div></div><p><br/></p>
