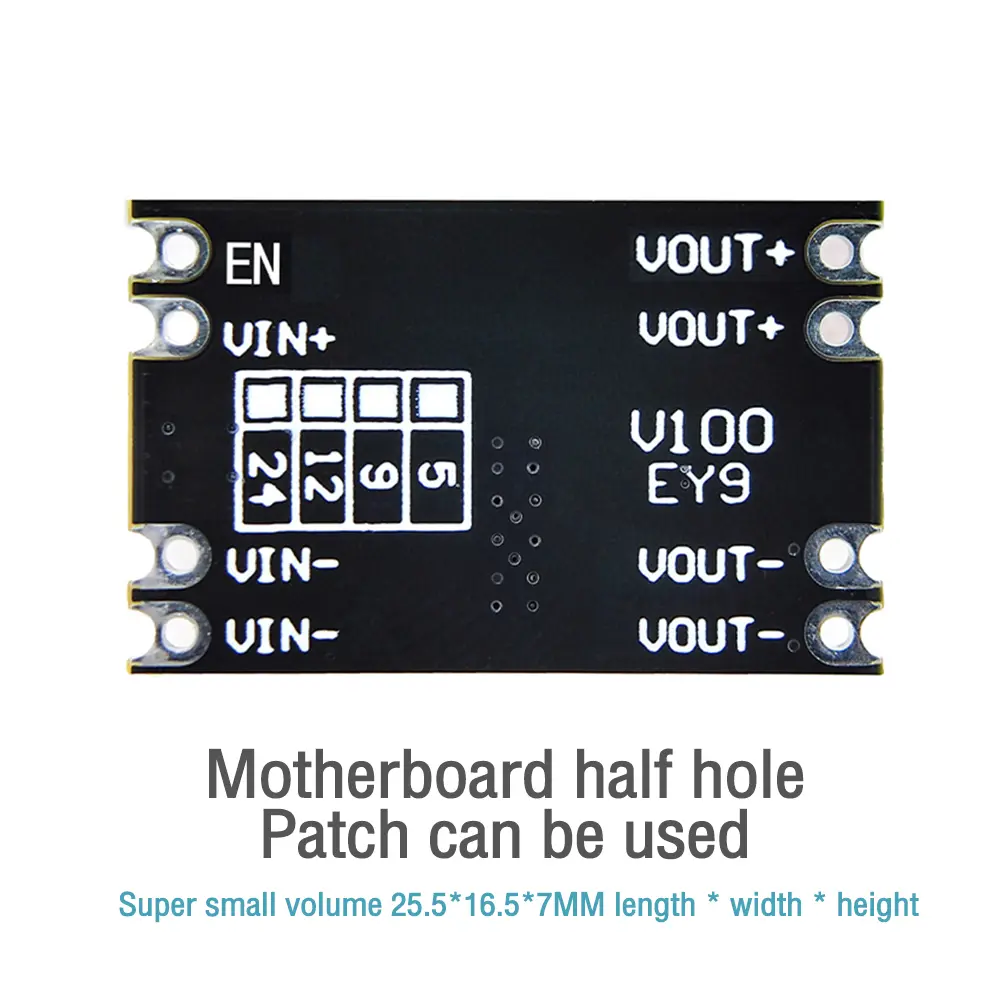

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004352011" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:28px">Features:</span></strong><br/>1.Fixed output 5V 9V 12V 24V, input 5-100V with overheat overload shutdown protection<br/>2.Motherboard half hole, can be used for mounting, ultra small volume 25.5 * 16.5 * 7MM<br/>3.DC-DC voltage reduction module is a device that converts high direct current into low voltage electrical energy. The input voltage must exceed the output voltage (with voltage difference), such as 12V to 5V, 24V to 5V.<br/>4.It adopts microelectronics technology, with high efficiency and small size,<br/>5.Easy to operate and easy to install.</div><div><br/></div><p><strong><span style="font-size:28px">Parameters:</span></strong><br/>Input voltage: 7V~100V (input must be greater than output)<br/>Output voltage: 5V/9V/12V/24V<br/>Output current: 3A (maximum peak) Long term current within 2A<br/>Conversion efficiency: 96% (highest)<br/>Output ripple:&lt;30mA<br/>Output accuracy: ± 0.1V<br/>No-load current: 1mA<br/>Working temperature: -40 ° C~+125 ° C<br/>Working humidity: 20%~90%<br/>Size: 25.5 * 16.5 * 7mm (length * width * height)<br/>PCB layers: 2 layers<br/>Shutdown function: with shutdown function<br/>Heat dissipation method: natural heat dissipation<br/>Installation method: solder wire, patch<br/>With or without isolation: without isolation<br/>Production process: reflow soldering<br/>Service life: 35000 hours without faults (output current not exceeding rated value)<br/>Special process: motherboard half hole<br/>Working frequency: 1MHz</p><p><strong><span style="font-size:28px">Package include:</span></strong><br/>1X module<br/></p></div></div><p><br/></p>
