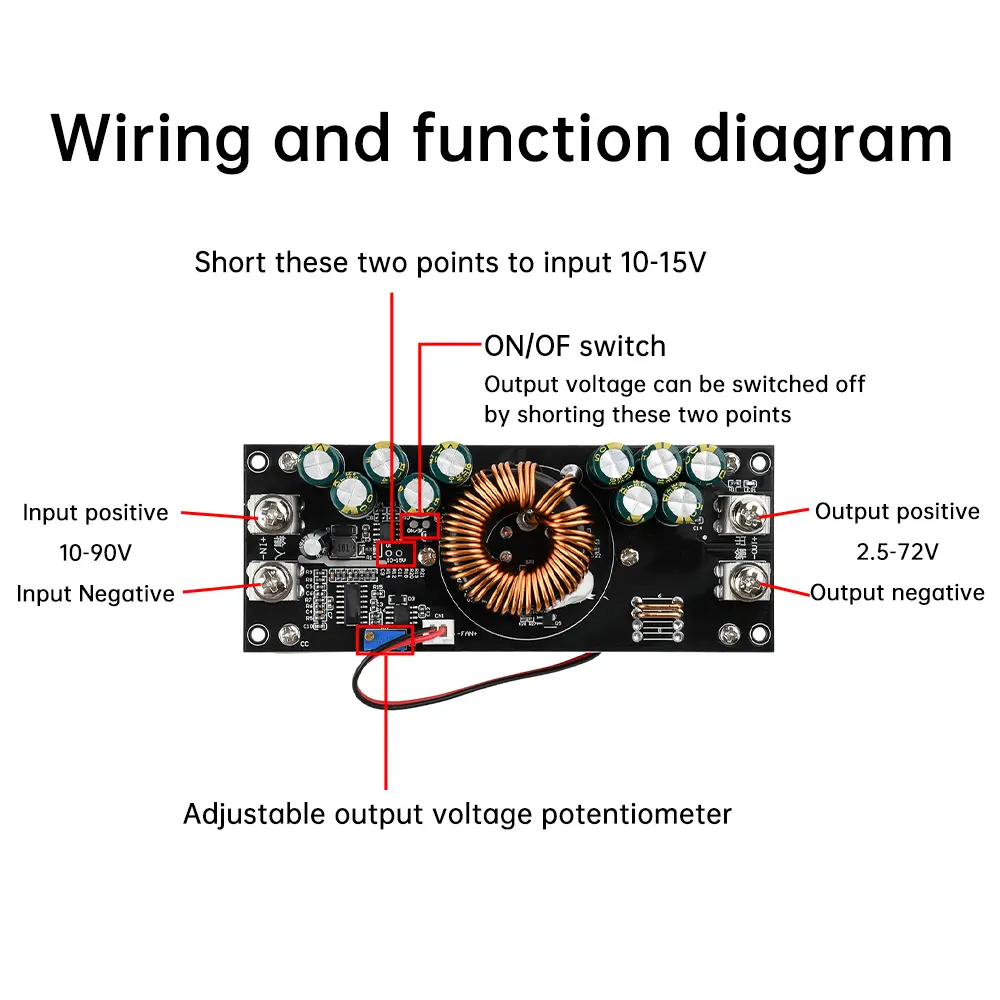

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000013403607" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Product selling points:<br />1. The input voltage is 15V-90V, and the output voltage is 2.5V-72V, which can meet the needs of various power sources and equipment<br />2. Support up to 1200W power output, suitable for high power equipment to ensure stable power supply<br />3. Support 25A constant voltage output to ensure stable output voltage, suitable for strict voltage requirements of the scene<br />4. Adjustable output voltage, flexible to meet the needs of different application scenarios, improve the convenience of use<br />5. Efficient step-down conversion, reduce energy loss, improve system efficiency, reduce heat</p> <p>Product parameters:<br />Module properties: Non-isolated BUCK module<br />Input voltage: DC15-90V (also can input 10-15V, must be short-connected "12-15V" short-connected after only 10-15V input, if the input above 15V will cause module damage, short-connected "10-15V" ON/OF failure)<br />Output voltage: 2.5-72V (must meet the step-down condition, IN input multiplied by 0.8 equals the highest output voltage)<br />Minimum output voltage: 2.5V<br />Maximum output voltage: 72V (input 90V voltage) Input voltage *0.8 is equal to output voltage<br />Maximum output power: 1200W (working environment must be well ventilated, output voltage above 50V)<br />Rated power for continuous operation: 1000W (in ventilated environment)<br />Rated current for continuous operation: 25A (in ventilated environment)<br />Maximum output current: 30A<br />Heat dissipation: air cooling<br />Input anti-reverse connection: None (input reverse connection is strictly prohibited)<br />Input undervoltage protection: None<br />Input overvoltage protection: None (no overvoltage)<br />Output ON/OF switch interface: Yes (users need to connect)<br />Operating temperature: -10+65℃<br />Operating frequency: 80KHz<br />Conversion efficiency: up to 97% (efficiency is related to input and output voltage, current and differential pressure)<br />Short circuit protection: None (can limit the current 30A)<br />Cooling mode: air cooling (temperature controlled fan, open at about 45℃)<br />Output anti-irrigation: None (output inductive load, such as the motor must add anti-irrigation diode)</p> <p>Package list: 1200W step-down module *1<br /></p></div></div>
