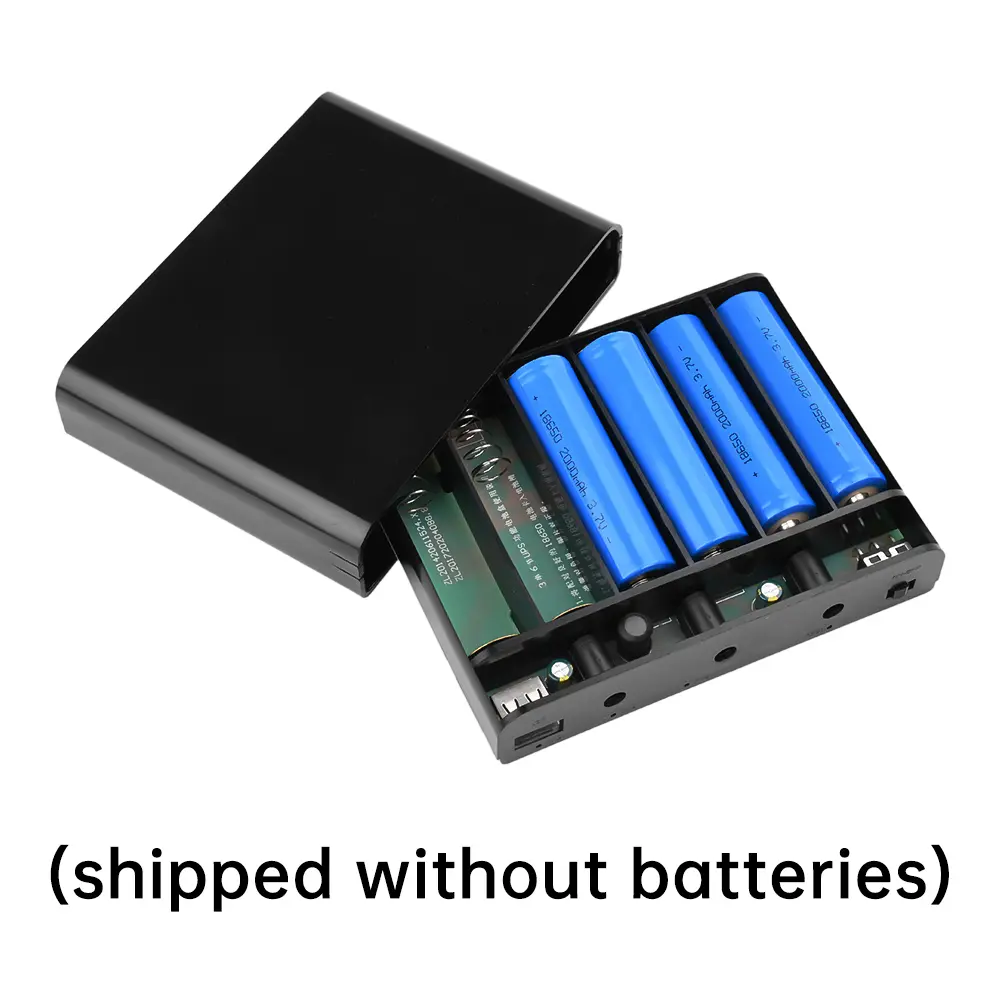

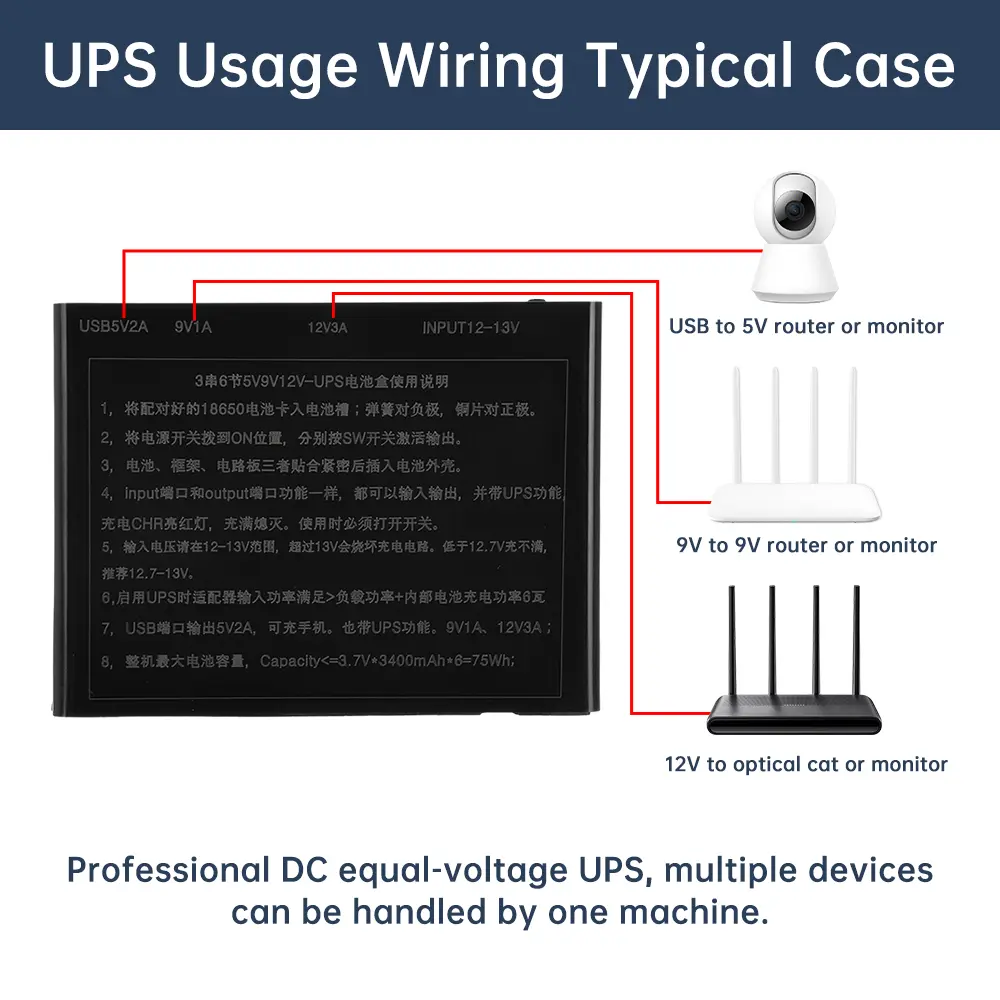

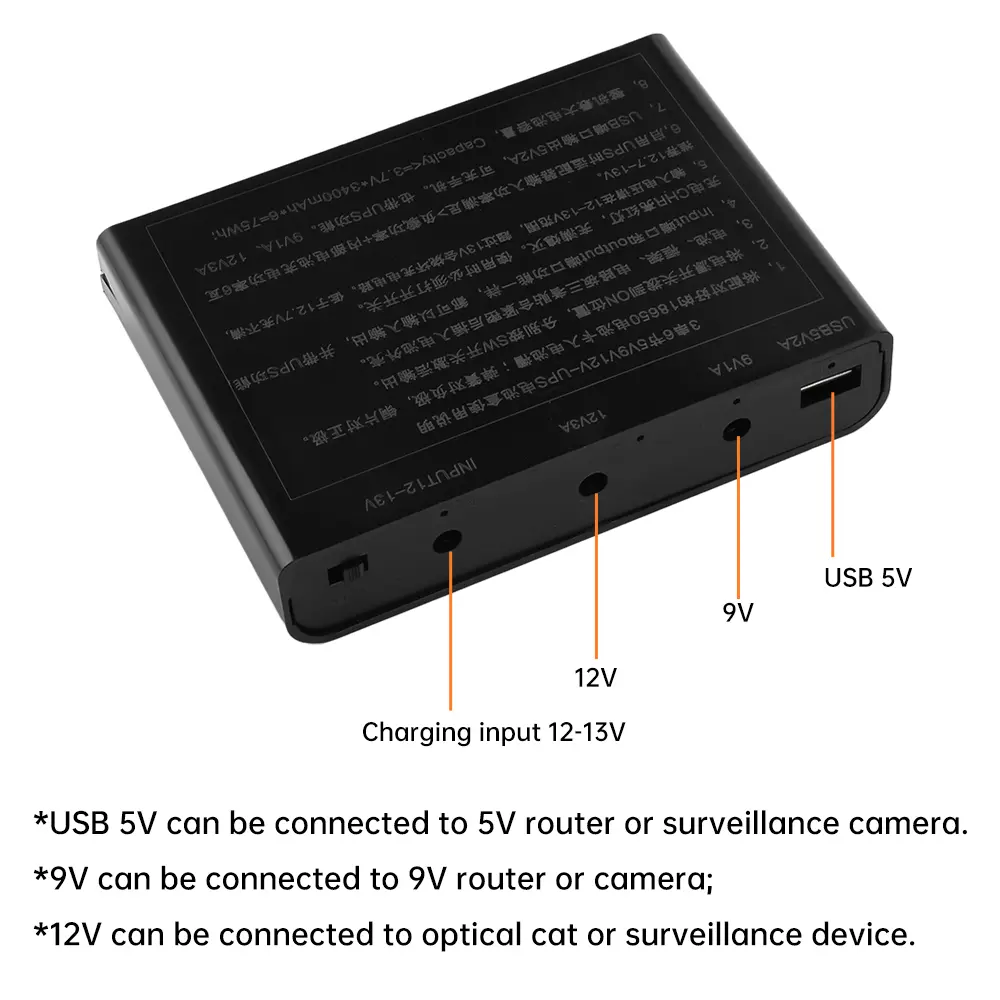

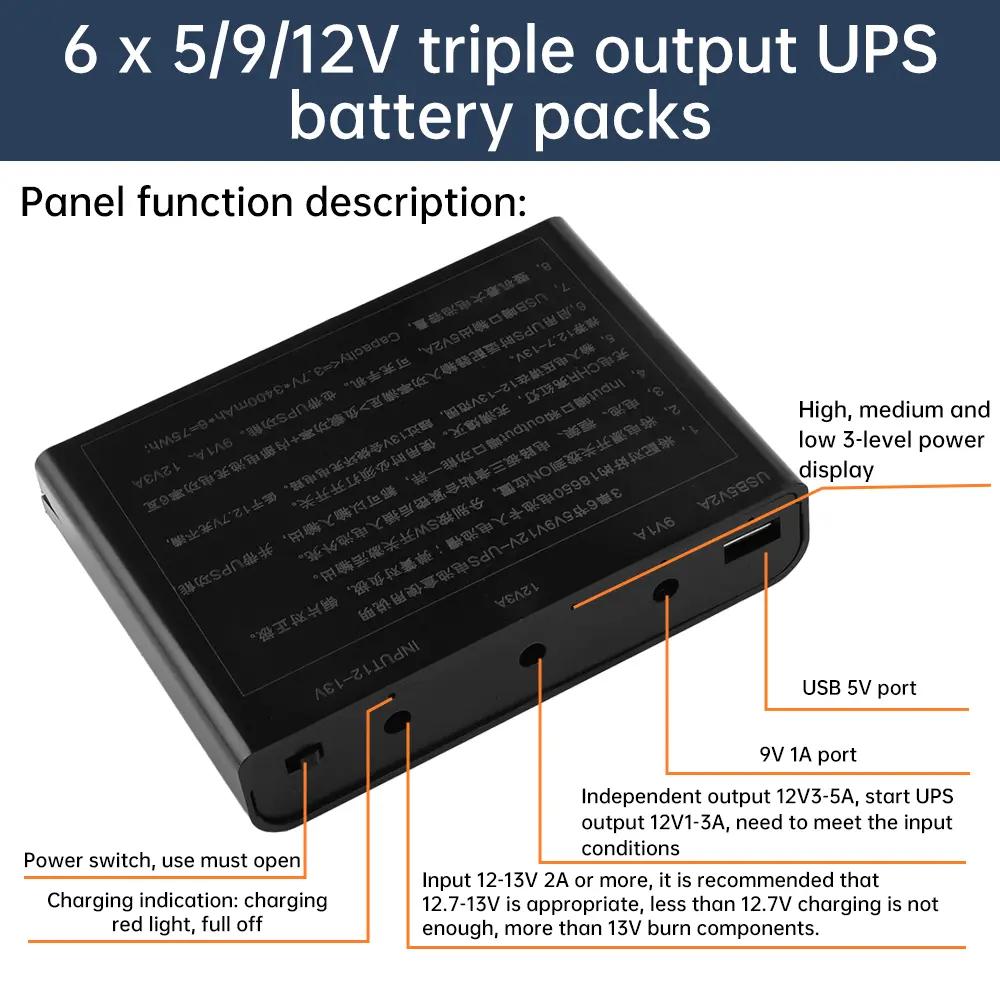

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000013406005" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Product selling points:<br />1. The product is free from welding, and the user can freely remove and replace the battery<br />2. With DC constant voltage UPS function, automatic charge and discharge management without manual participation<br />3. Many output functions, covering 5V, 9V, 12V voltage commonly used in light cat, router, surveillance camera and other three voltages<br />4. After strict quality control, ensure long-term stable operation and prolong service life<br />5. The product performance is stable, the peak output power can reach 60W</p> <p>Product parameters:<br />Battery capacity: 6*3.7V*3400mah=74 watt-hour (battery user supplied)<br />Rated output power: 12V5A=60W; The actual output power comes from the battery output power itself<br />Output voltage: independent output 12V3-5A; 9V1A; USB5V2-3A; The input power condition needs to be met to enable the UPS function<br />Product voltage is not stable, battery series direct output, voltage with the amount of electricity<br />It is suitable for high-power electrical appliances, motors, LED lights, audio, solenoid valves, printers, etc<br />Applicable battery: 3.7V cylindrical flat-head 18650 battery (recommended power battery)<br />Charger type: can be charged with 12-13V adapter, when the UPS is used, the input power is more stable<br />Charging power: Input adapter power meets &gt;= total load power + charging power to battery 6W<br />Overcharge protection: 4.25V*3<br />Low voltage protection: 2.75V*3<br />Overcurrent detection voltage: 0.1V+-0.025V<br />Temperature range: -20~60℃<br />DC interface standard: DC5.5*2.1mm (inner positive and outer negative)</p> <p>Notes:<br />1. Spring to the negative, copper to the positive, do not install anti, anti will burn!!<br />2. Adopt high-quality batteries and require strict pairing. Parameters of each single battery of the battery pack should be as consistent as possible<br />3. This product can only use flat head 18650 battery, the length of the pointed battery is more than 2MM, can not be used<br /><br />List of parcels:<br />Solderless battery box *1<br />0.3 rice noodles *1<br /></p></div></div>
