DC18-50V ZK-6002 Pure Post Digital Audio Amplifier Board 2.0 Channel 600W+600W High Power Stereo Sound Amplifiers Module TPA3255

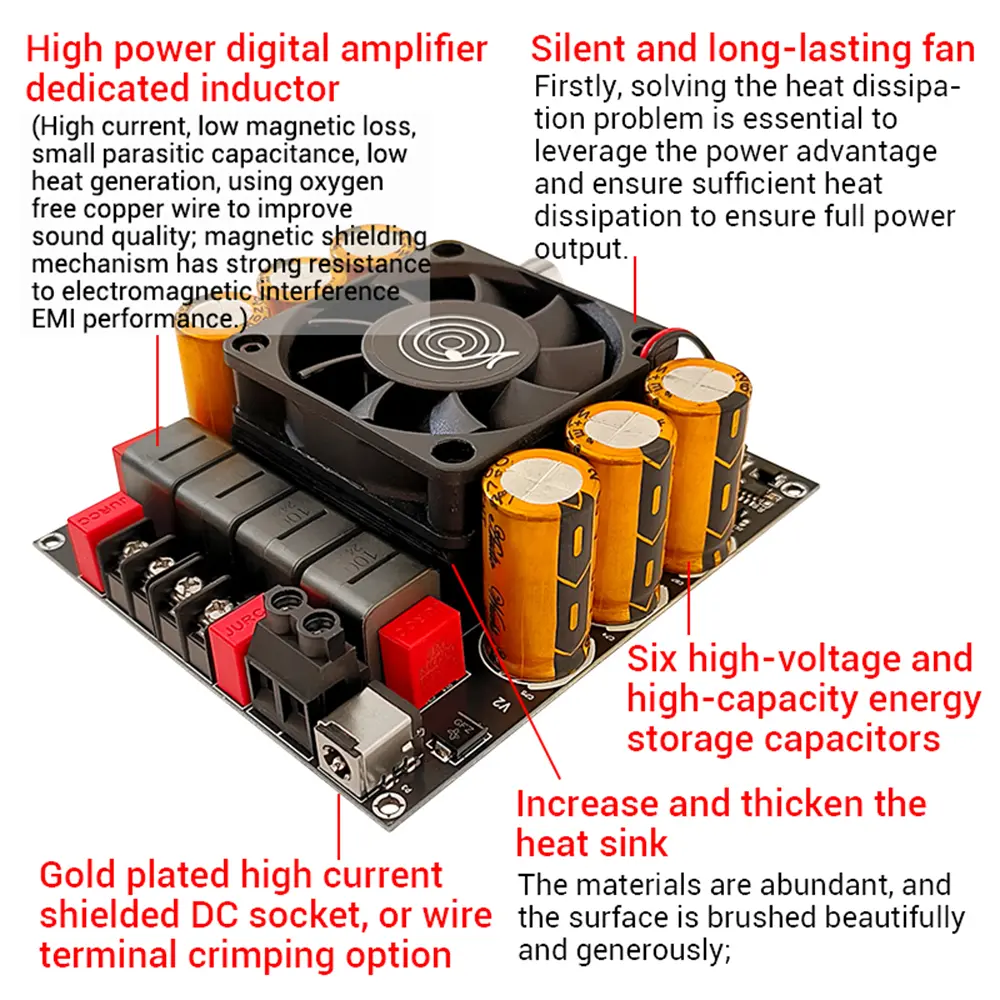

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004074434" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features: <br/>1. Maximum 1200W high-power output, supporting 2-8 ohm speakers, suitable for various audio needs. <br/>2. High end HIFI sound quality, signal-to-noise ratio of 90dB, distortion less than 0.05%, and pure sound. <br/>3. Air cooled cooling design, silent and long-lasting fan, ensuring continuous full power operation. <br/>4. High power digital amplifier dedicated inductor, low magnetic loss, high current, excellent sound quality. <br/>5. Thick brushed heat sink, made of abundant materials, with exquisite appearance and excellent heat dissipation performance.</div><br/><p>Parameter: <br/>Product Name: 600W+600W Pure Rear Stage Amplifier Board (does not support bridging) <br/>Product model: ZK-6002 <br/>SNR: 90dB <br/>Distortion THD+N:< 0.05% <br/>Maximum gain: 38dB <br/>Compatible power supply: Operating voltage range of 18-50VDC. It is recommended to use a DC power supply with a voltage of 36-48V and a current of 10A or above. <br/>Maximum power: <br/>About 300W+ 300W@48V ， 4Ω; <br/>About 600W+ 600W@48V 2 Ω, the higher the voltage, the smaller the speaker resistance, and the greater the output power. <br/>Input method: Stereoscopic input, XH2.54-3P interface, XH2.54-3P dual head shielded cable as a gift <br/>Number of channels: 2 <br/>Amplifier chip: Two original TPA3255 chips <br/>Protection mechanism: Input undervoltage, overheating, overcurrent, short circuit protection. No input anti reverse protection, positive and negative poles cannot be reversed! <br/>Product size: 136x100x38mm</p><p>Package Include: <br/>1X power amplifier board <br/>1X3P double ended shielded wire</p><p>matters needing attention: <br/>1. The shipment does not include power and audio cables. <br/>2. The input does not support AC power, be sure to use DC power! <br/>3. The input power cannot be reversed or exceed 51V, otherwise it will burn out! <br/>4. When the fan is turned on, it performs a self check and stops normally after 1 second. It only starts when the temperature exceeds 50 ℃. <br/>5. Does not support bridging, left and right channels cannot be connected together!<br/></p></div></div><br/>
$120.47
$52.94
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
Colors
Sizes
-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004074434" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features: <br/>1. Maximum 1200W high-power output, supporting 2-8 ohm speakers, suitable for various audio needs. <br/>2. High end HIFI sound quality, signal-to-noise ratio of 90dB, distortion less than 0.05%, and pure sound. <br/>3. Air cooled cooling design, silent and long-lasting fan, ensuring continuous full power operation. <br/>4. High power digital amplifier dedicated inductor, low magnetic loss, high current, excellent sound quality. <br/>5. Thick brushed heat sink, made of abundant materials, with exquisite appearance and excellent heat dissipation performance.</div><br/><p>Parameter: <br/>Product Name: 600W+600W Pure Rear Stage Amplifier Board (does not support bridging) <br/>Product model: ZK-6002 <br/>SNR: 90dB <br/>Distortion THD+N:< 0.05% <br/>Maximum gain: 38dB <br/>Compatible power supply: Operating voltage range of 18-50VDC. It is recommended to use a DC power supply with a voltage of 36-48V and a current of 10A or above. <br/>Maximum power: <br/>About 300W+ 300W@48V ， 4Ω; <br/>About 600W+ 600W@48V 2 Ω, the higher the voltage, the smaller the speaker resistance, and the greater the output power. <br/>Input method: Stereoscopic input, XH2.54-3P interface, XH2.54-3P dual head shielded cable as a gift <br/>Number of channels: 2 <br/>Amplifier chip: Two original TPA3255 chips <br/>Protection mechanism: Input undervoltage, overheating, overcurrent, short circuit protection. No input anti reverse protection, positive and negative poles cannot be reversed! <br/>Product size: 136x100x38mm</p><p>Package Include: <br/>1X power amplifier board <br/>1X3P double ended shielded wire</p><p>matters needing attention: <br/>1. The shipment does not include power and audio cables. <br/>2. The input does not support AC power, be sure to use DC power! <br/>3. The input power cannot be reversed or exceed 51V, otherwise it will burn out! <br/>4. When the fan is turned on, it performs a self check and stops normally after 1 second. It only starts when the temperature exceeds 50 ℃. <br/>5. Does not support bridging, left and right channels cannot be connected together!<br/></p></div></div><br/>
