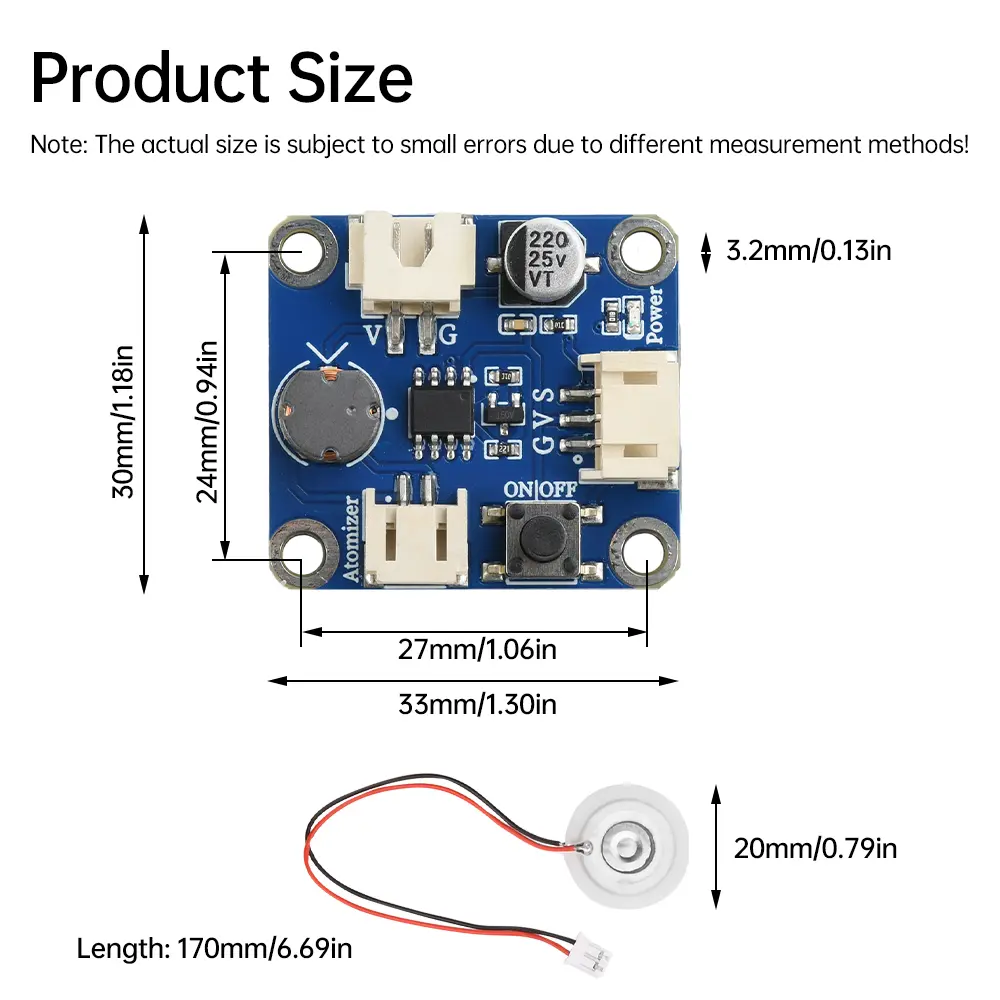

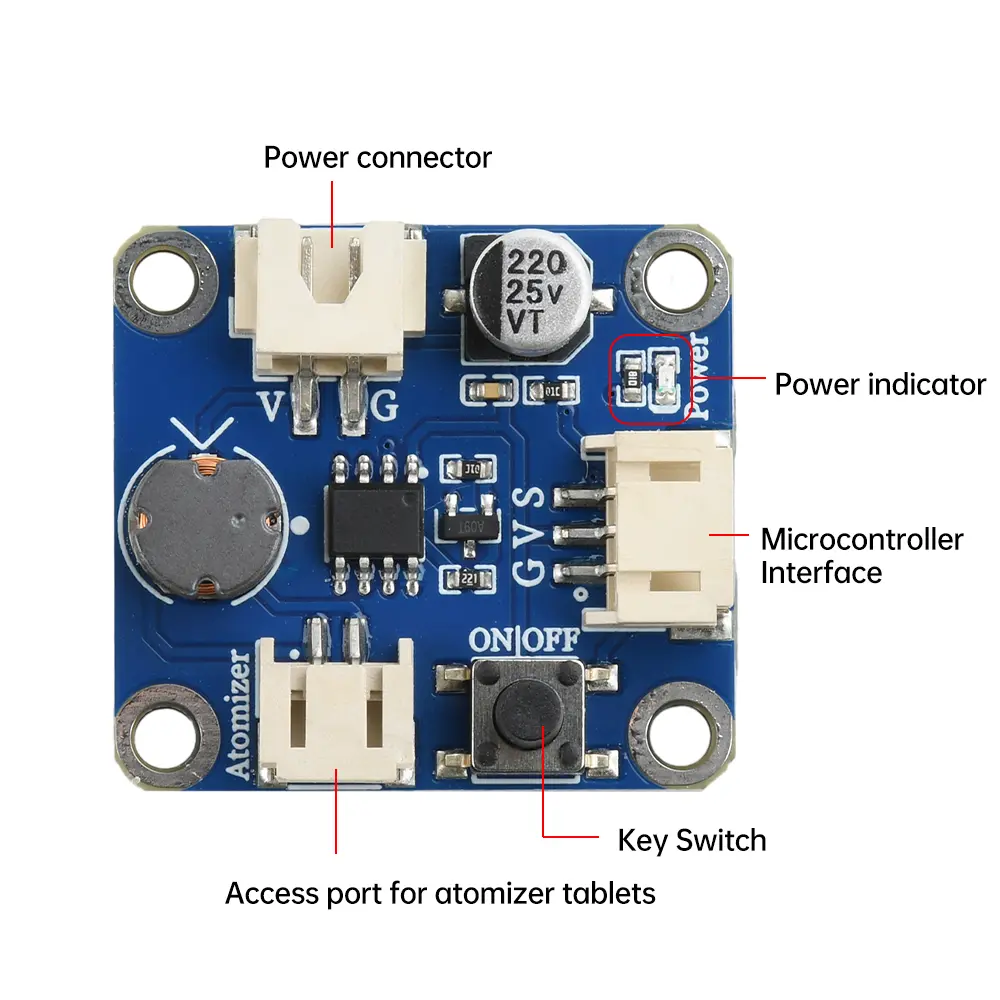

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004092434" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features: <br />1. Ultrasonic technology: using piezoelectric ceramic plates to generate high-frequency vibrations, converting water into fine water mist of 1-5 microns. <br />2. Efficient humidification: Fine water mist is easy to evaporate and diffuse, providing a more efficient air humidification effect. <br />3. Low operating voltage: The operating voltage range is 3-4.5V, suitable for various power environments, with low power consumption. <br />4. Intelligent control: Equipped with a microcontroller interface, it can flexibly control the working status of the humidifier through programming. <br />5. Compact design: Small in size (3.3cm x 3.0cm x 0.9cm), easy to integrate into various devices.</p> <p>Product Introduction: <br />The humidifier atomization module is a core component in humidifiers, used to convert water into fine water mist and release it into the air. <br />Working principle: The humidifier atomization module usually uses ultrasonic technology to generate water mist. It contains a piezoelectric ceramic sheet, which begins to vibrate when a high-frequency voltage is applied through it. Vibration causes small water droplets to form on the surface of water, which are then dispersed to form fine water mist. <br />Water mist quality: The humidifier atomization module can effectively convert water into tiny water particles, typically in the range of 1 to 5 microns. This fine water mist is easier to evaporate and diffuse in the air, providing a more effective humidification effect. <br />Linkage with microcontroller: The humidifier module is equipped with a microcontroller control interface, which can be programmed to control its operation through the microcontroller.</p> <p>Parameter: <br />Name: Humidifier Atomization Module <br />Working voltage: 3-4.5V <br />Interface types: power interface WT2.54 female terminal, atomizer interface PH2.0 female terminal, microcontroller interface PH2.0 female terminal <br />Installation hole parameters: aperture 3.2mm, hole spacing 3.0cm/2.4cm <br />Module size: Length 3.3cm, Width 3.0cm, Height 0.9cm <br />Interface description: G | V power input interface <br />Implementation function: Used to convert water into fine water mist and release it into the air</p> <p>Package Include: <br />Set 1: <br />1X module</p> <p>Set 2: <br />1X module <br />1X atomizing sheet<br /></p></div></div>
