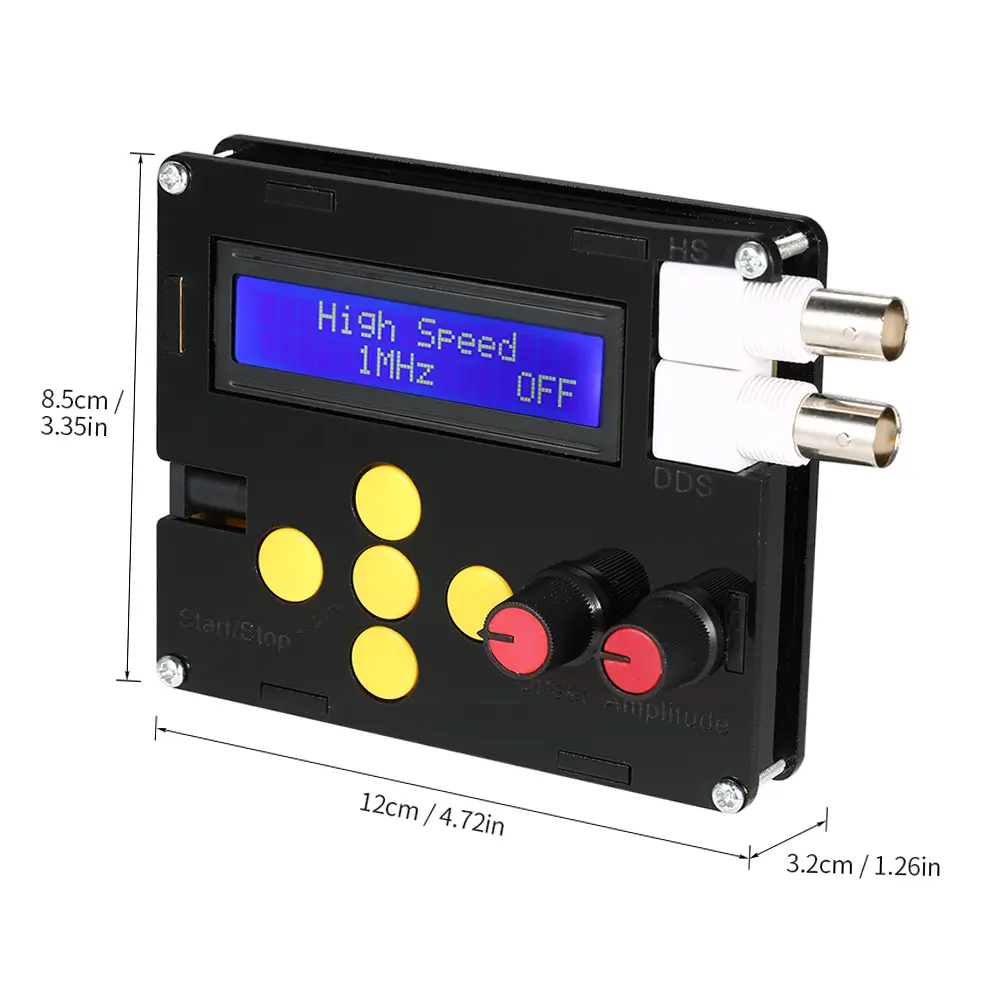

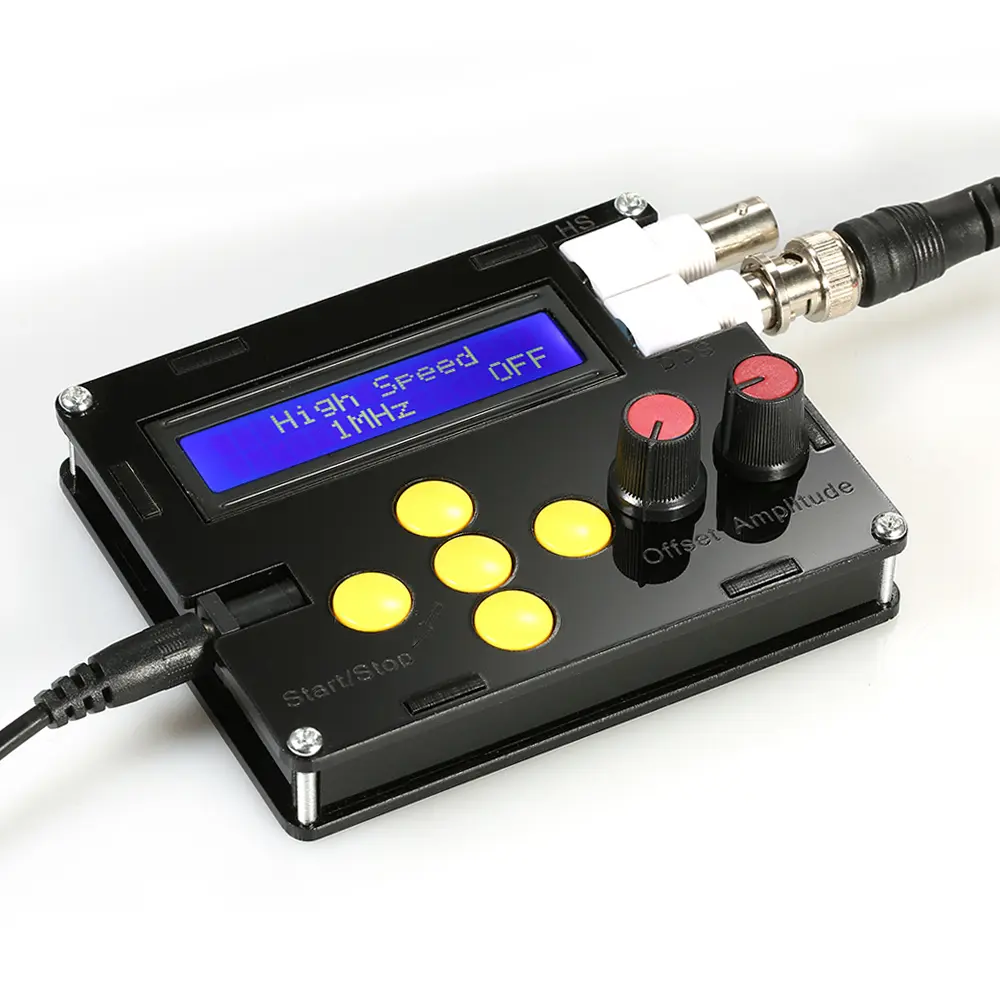

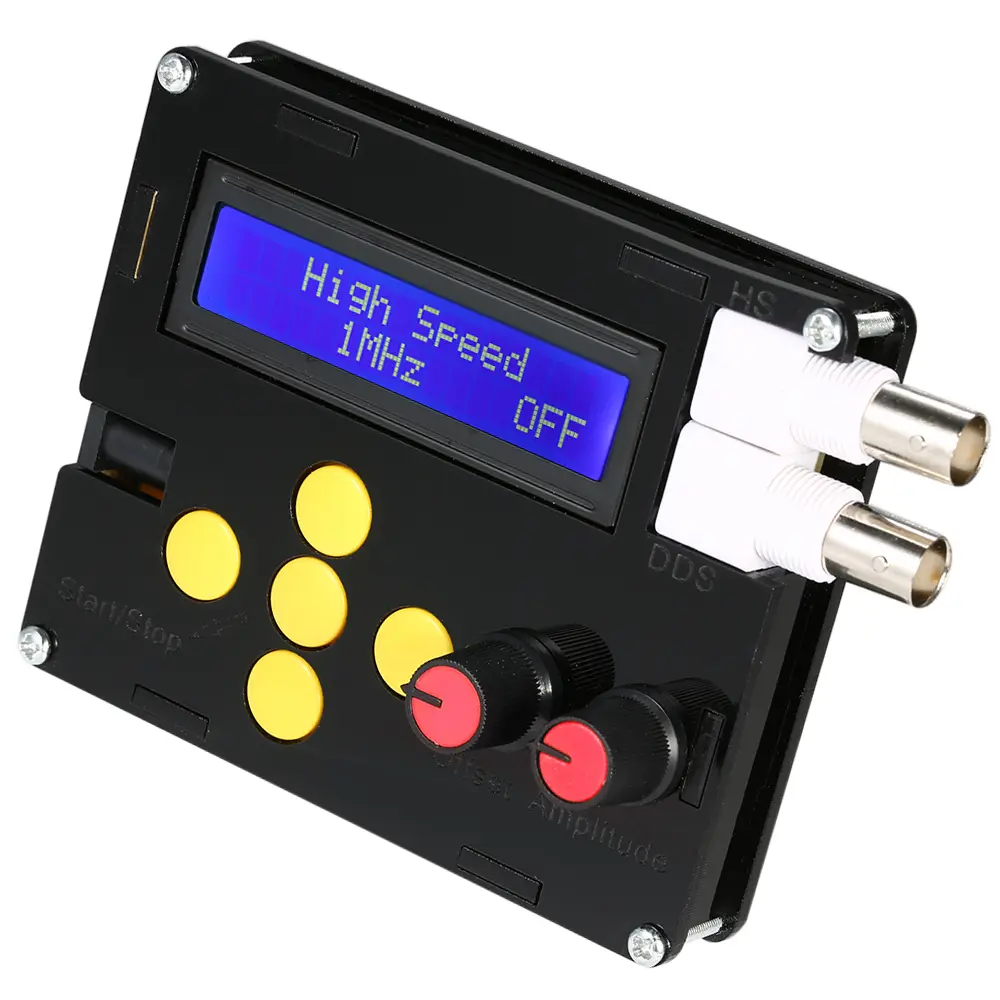

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><span style="font-size:14px">This Low Frequency Signal Generator is a professional product to generate sine/triangle/square/forward and reverse sawtooth wave.&nbsp;</span><br /></p><p><strong><span style="font-size:14px">Features:</span></strong></p><p><span style="font-size:14px">Output Waveform: can output sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram wave, noise wave. High-speed square wave.</span></p><p><span style="font-size:14px">Current: 160mA when the voltage is 5V.</span></p><p><span style="font-size:14px">DDS Frequency Range: sine wave 1Hz-500kHz (the output amplitude will decrease with the further increase of frequency), other waveforms 1Hz-100kHz (but the upper limit of adjustable frequency is not limited, if the distortion and shaking requirements are not high, use the frequency can be further increased).</span></p><p><span style="font-size:14px">High-speed frequency (HS) output up to 16MHz, Can choose 1MHZ, 2MHZ, 4MHZ, 8MHZ, 16MHZ.</span></p><p><span style="font-size:14px">DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.</span></p><p><span style="font-size:14px">All setting parameters can be saved, the power will restore the last used configuration automatically.</span></p><p><span style="font-size:14px">Can section into the value: 1, 10, 100, 1000, 10000Hz.</span></p><p><span style="font-size:14px">Comes with an USB cable for power supply.</span></p><p><span style="font-size:14px">LCD display to indicate the data accurately.</span></p><p><strong><span style="font-size:14px">Specifications:</span></strong></p><p><span style="font-size:14px">Material: FR4 + Acrylic</span></p><p><span style="font-size:14px">Operating Voltage: DC4~10V</span></p><p><span style="font-size:14px">DDS Frequency Range: 1Hz-500kHz</span></p><p><span style="font-size:14px">Resolution: 1Hz</span></p><p><span style="font-size:14px">Sine Wave Distortion: &lt;1% below 1kHz, &lt;0.5% above 1kHz</span></p><p><span style="font-size:14px">Output Amplitude: maximum &plusmn;10V (P-P)</span></p><p><span style="font-size:14px">Output Impedance: 50ohms</span></p><p><span style="font-size:14px">DC Offset: maximum &plusmn;10V</span></p><p><span style="font-size:14px">Item Size: Approx. 12 * 8.5 * 3.2cm / 4.72 * 3.35 * 1.26in</span></p><p><span style="font-size:14px">Item Weight: 147g / 5.19oz</span></p><p><span style="font-size:14px">Package Size: Approx. 16 * 11 * 5cm / 6.30 * 4.33 * 1.97in</span></p><p><span style="font-size:14px">Package Weight: 272g / 9.59oz</span></p><p><strong><span style="font-size:14px">Note:</span></strong></p><p><span style="font-size:14px">The instrument will be damaged if the voltage is higher than 10V.&nbsp;</span></p><p><strong><span style="font-size:14px">Package List:</span></strong></p><p><span style="font-size:14px">1 * Signal Generator&nbsp;</span></p><p><span style="font-size:14px">1 * Crocodile Clip Test Line</span></p><p><span style="font-size:14px">1 * USB Cable</span></p><p><span style="font-size:14px">1 * User Manual(English)</span></p><p></p><br /></div></div>
