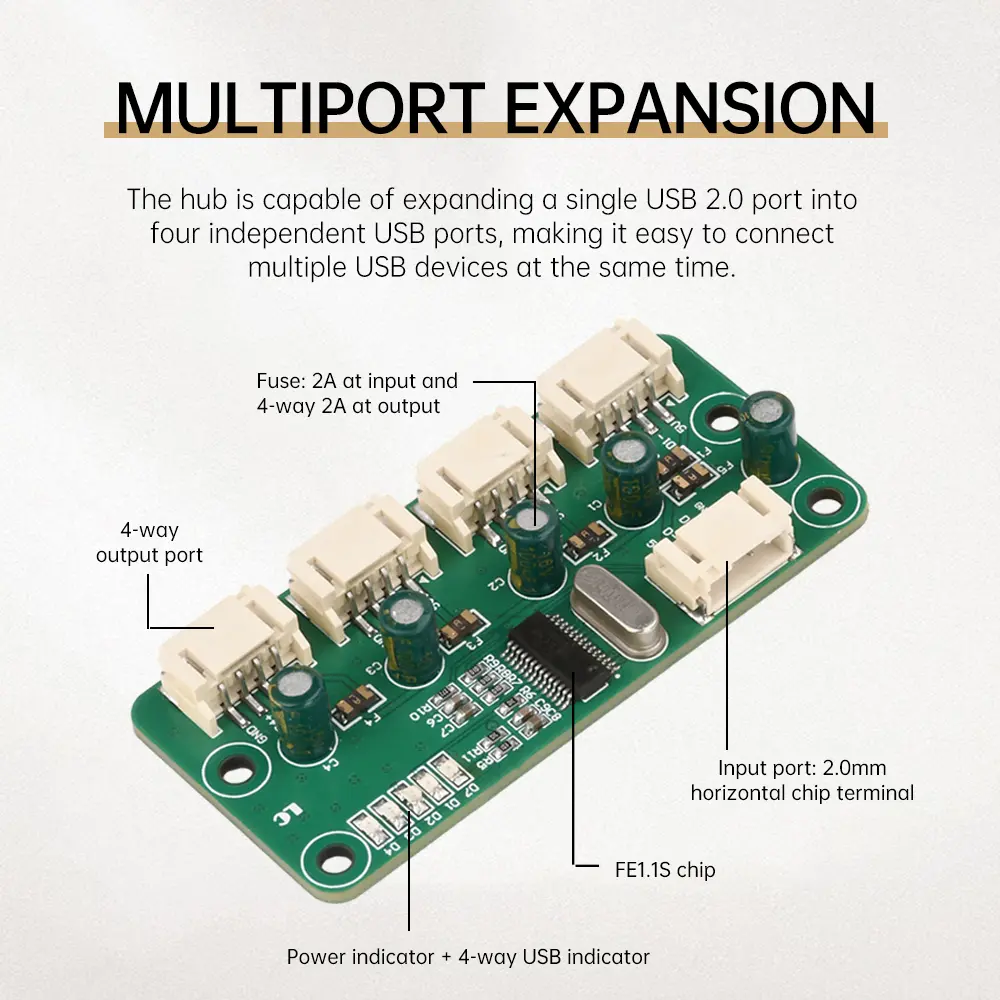

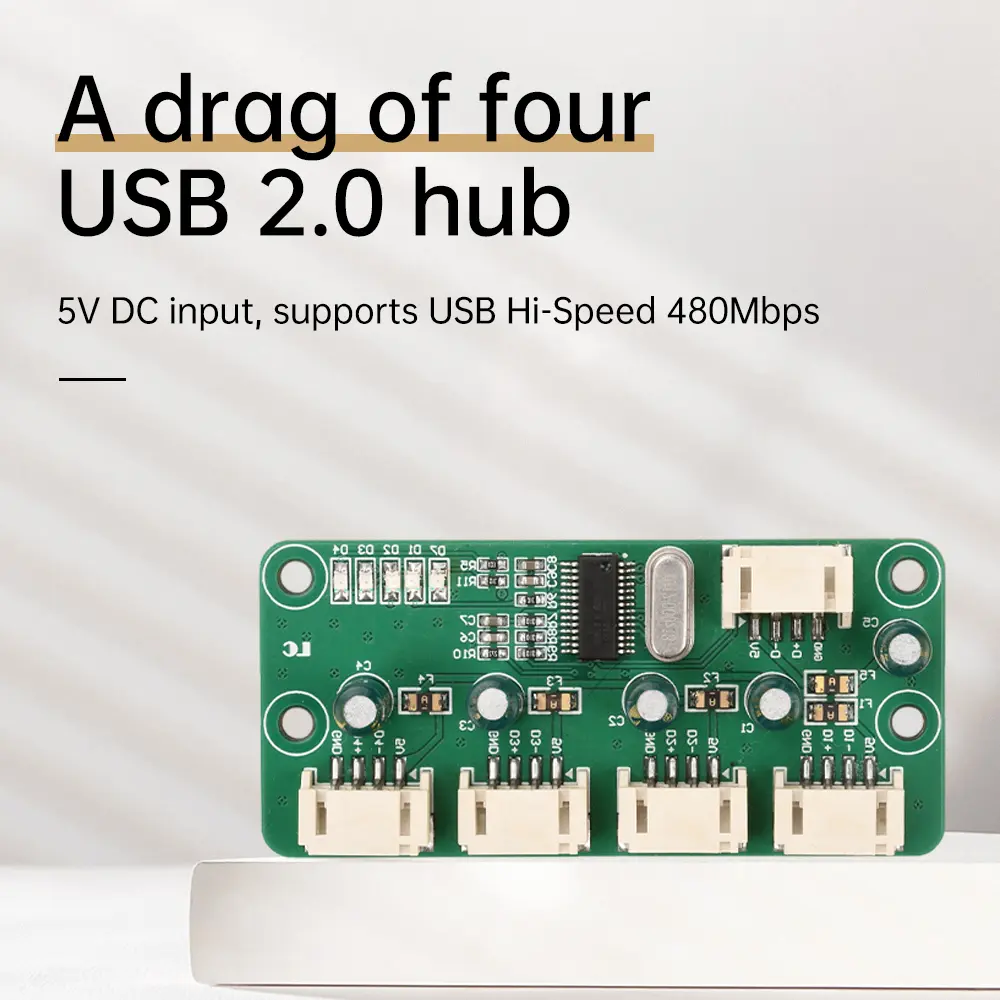

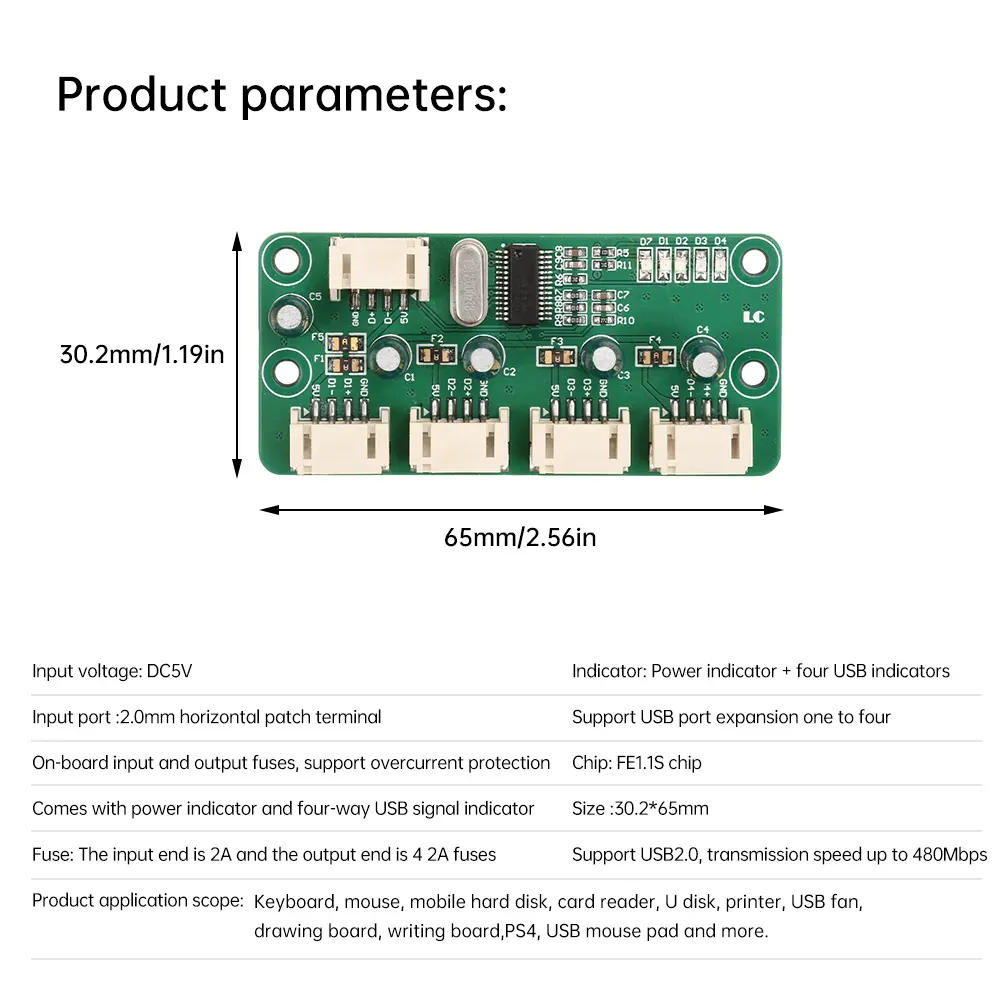

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. Multi port expansion: This hub can expand a single USB 2.0 interface into four independent USB ports, making it convenient to connect multiple USB devices simultaneously. <br/>2. PH2.0 interface design: Adopting PH2.0 interface usually means a more compact and stable connection, suitable for space limited application scenarios or situations that require frequent plugging and unplugging, while providing good electrical performance and durability. <br/>3. Transfer rate: Supports the high-speed data transfer rate of USB 2.0 (up to 480Mbps), which is sufficient for most daily file transfers and peripheral usage. <br/>4. Portable design: Small in size and easy to carry, it is very convenient for desktop use or travel. <br/>5. LED indicator light: Usually equipped with LED status indicator lights, it can help users intuitively understand the working status of each port and facilitate troubleshooting.</p><p>Product Introduction: <br/>The USB 2.0 HUB_1 to 4 hub module is developed based on the FE1.1s chip, which can expand one USB interface into four USB interfaces. It has a 5V DC input, supports USB high-speed of 480Mbps, comes with LED indicator lights, an onboard 2A fuse for the input end, and an onboard 2A fuse for the output end. It has the characteristics of overcurrent protection, high performance, low power consumption, and low cost.</p><p>Parameter: <br/>Input voltage: DC5V <br/>Input port: 2.0mm horizontal surface mount terminal <br/>Chip: FE1.1S chip <br/>Indicator lights: power indicator light+4-channel USB indicator light <br/>Support USB interface expansion from one to four <br/>Supports USB 2.0 with a transfer speed of up to 480Mbps <br/>Comes with power indicator light and four-way USB signal indicator light <br/>Onboard input/output fuse, supporting overcurrent protection <br/>Fuse: The input terminal is 2A and the output terminal is 4-channel 2A fuses <br/>Size: 30.2 * 65mm <br/>Product application scope: keyboard, mouse, portable hard drive, card reader, USB flash drive, printer, USB fan, drawing board, writing board, PS4, USB mouse pad, etc. <br/>instructions: <br/>1. Install USB drivers on the computer; <br/>2. Connect the input end to the computer&#x27;s USB port, and connect any USB device to the output end. At this time, the LED power indicator and USB signal indicator will light up; <br/>3. At this point, opening the USB device viewer or the built-in device manager on the computer will display information about the USB device and its corresponding COM port;</p><p>Package include: <br/>1-to-4 hub module X1<br/><br/></p></div></div><p><br/></p>
