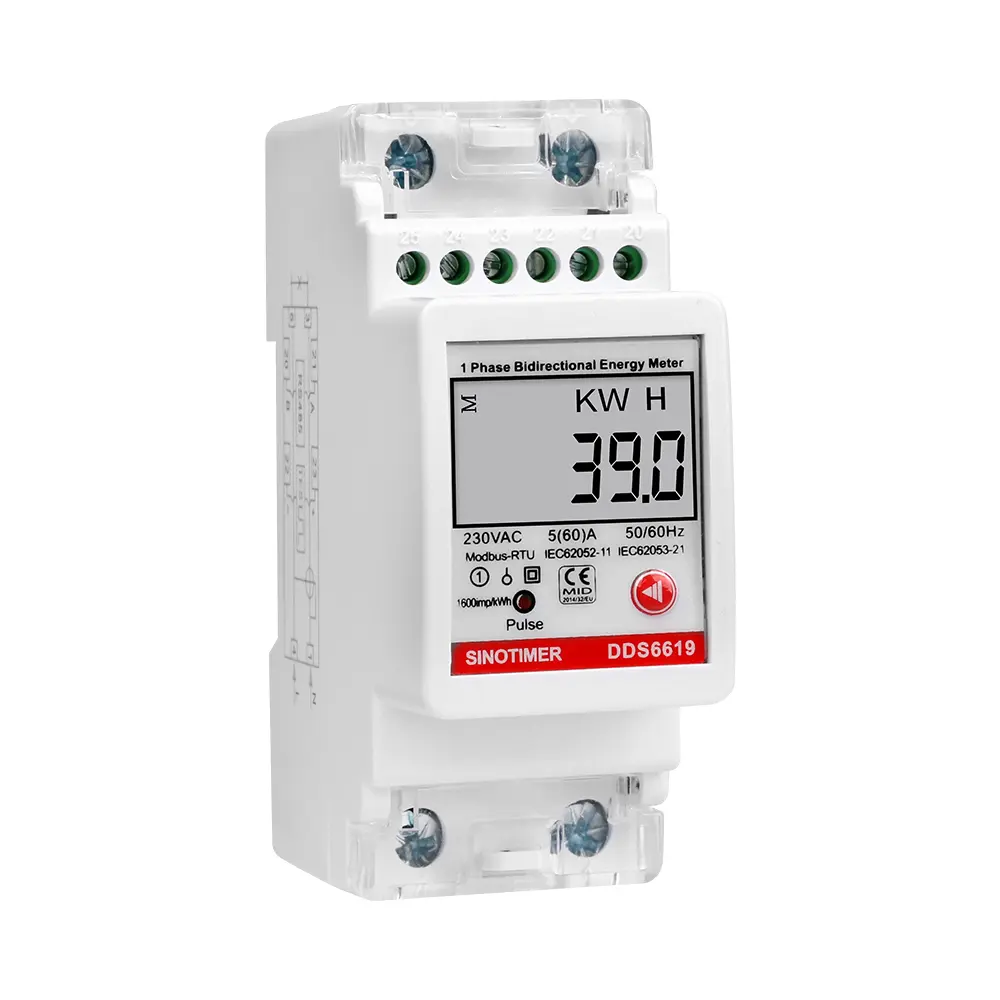

DDS6619-039 Rail Type Multi-function Single-phase Electric Energy Meter With RS485 Modbus Voltage Current Frequency Meter
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000000742036" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1. Multi-function display with RS485 Modbus communication, LED indication pulse output.<br/>2. Good reliability, 35mm DIN rail mounting, flexible and convenient installation.<br/>3. With two-way measurement, display current, voltage, power factor and other functions.<br/>4. High measurement accuracy, high quality ABS shell, strong anti-interference, long service life.<br/>5. Wide range of applications: factories, laboratories, power monitoring, electronic DIY and other fields.</div><br/><p>Parameter:<br/>Voltage: 220/230V<br/>Current: 5 (60A)<br/>Rated frequency: 50-60Hz<br/>Energy range: 9999999.9KWh<br/>Constant pulse: 1600imp/kWh<br/>Power consumption: ≤2W, 10VA<br/>Operating temperature: -20~55℃<br/>Storage temperature: -25~70°C<br/>Installation: 35mm standard DIN rail<br/>Product size: 93*36*76mm</p><p>Package include:<br/>Energy meter*1<br/></p></div></div><br/>
$41.525
$24.14
- Category : Tools
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000000742036" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1. Multi-function display with RS485 Modbus communication, LED indication pulse output.<br/>2. Good reliability, 35mm DIN rail mounting, flexible and convenient installation.<br/>3. With two-way measurement, display current, voltage, power factor and other functions.<br/>4. High measurement accuracy, high quality ABS shell, strong anti-interference, long service life.<br/>5. Wide range of applications: factories, laboratories, power monitoring, electronic DIY and other fields.</div><br/><p>Parameter:<br/>Voltage: 220/230V<br/>Current: 5 (60A)<br/>Rated frequency: 50-60Hz<br/>Energy range: 9999999.9KWh<br/>Constant pulse: 1600imp/kWh<br/>Power consumption: ≤2W, 10VA<br/>Operating temperature: -20~55℃<br/>Storage temperature: -25~70°C<br/>Installation: 35mm standard DIN rail<br/>Product size: 93*36*76mm</p><p>Package include:<br/>Energy meter*1<br/></p></div></div><br/>
