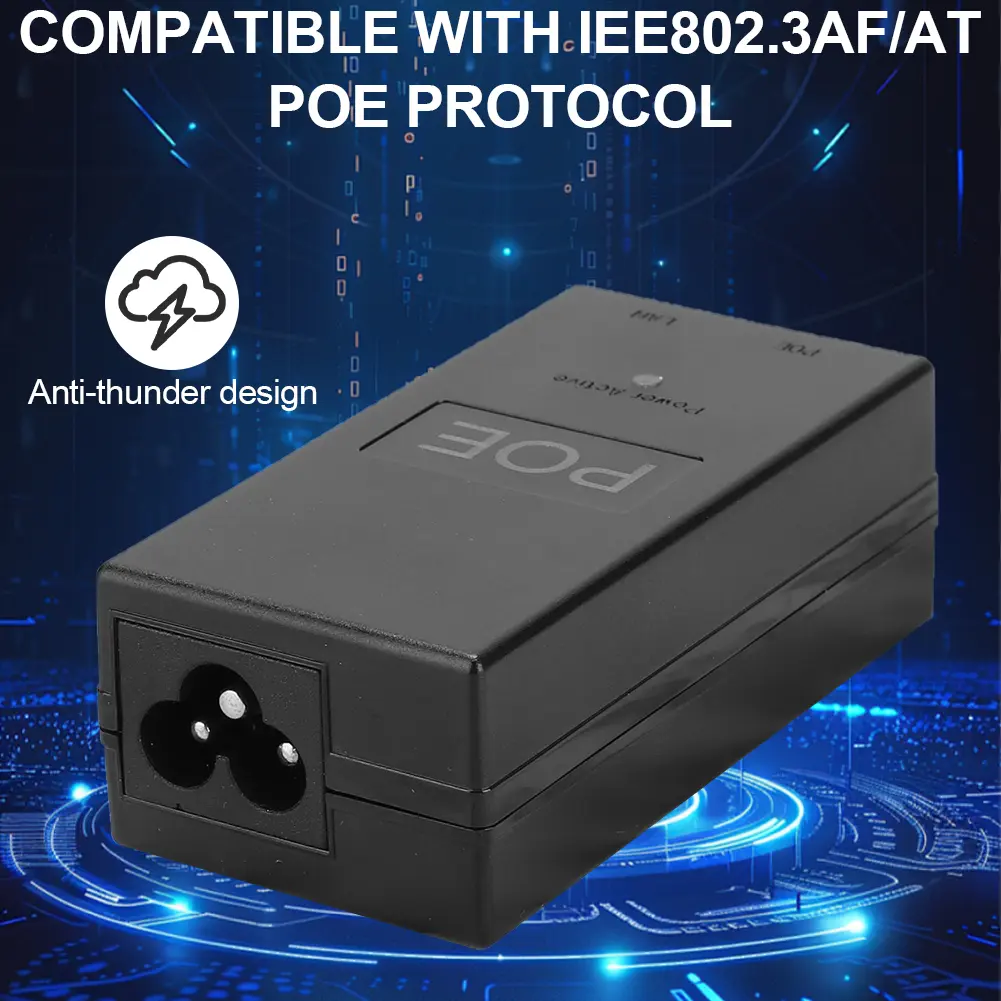

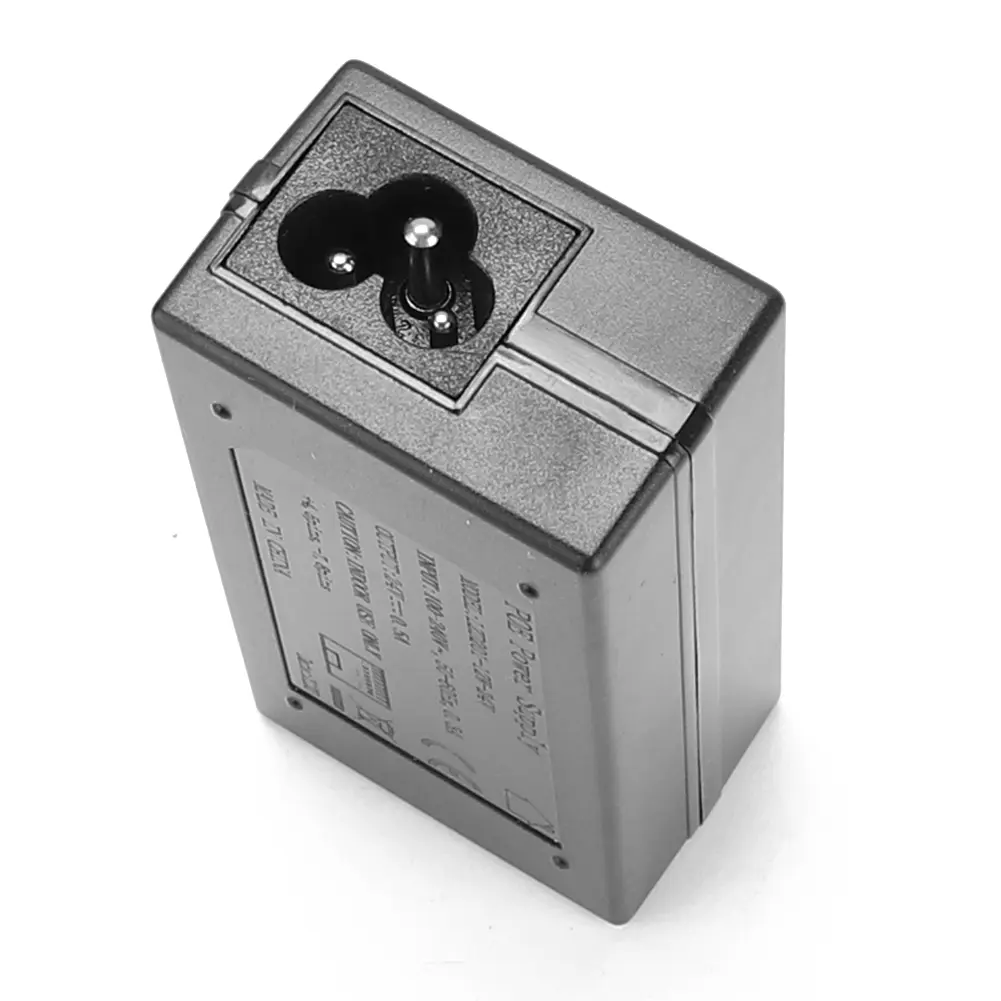

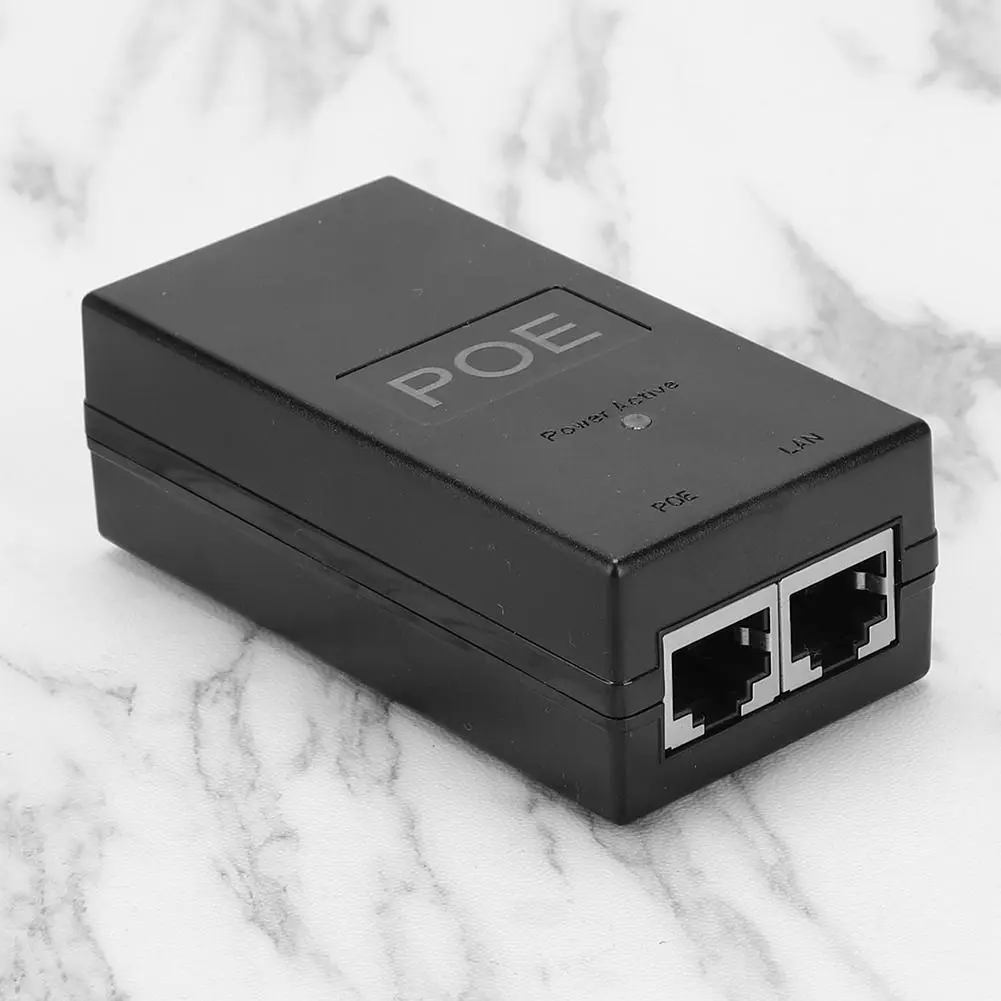

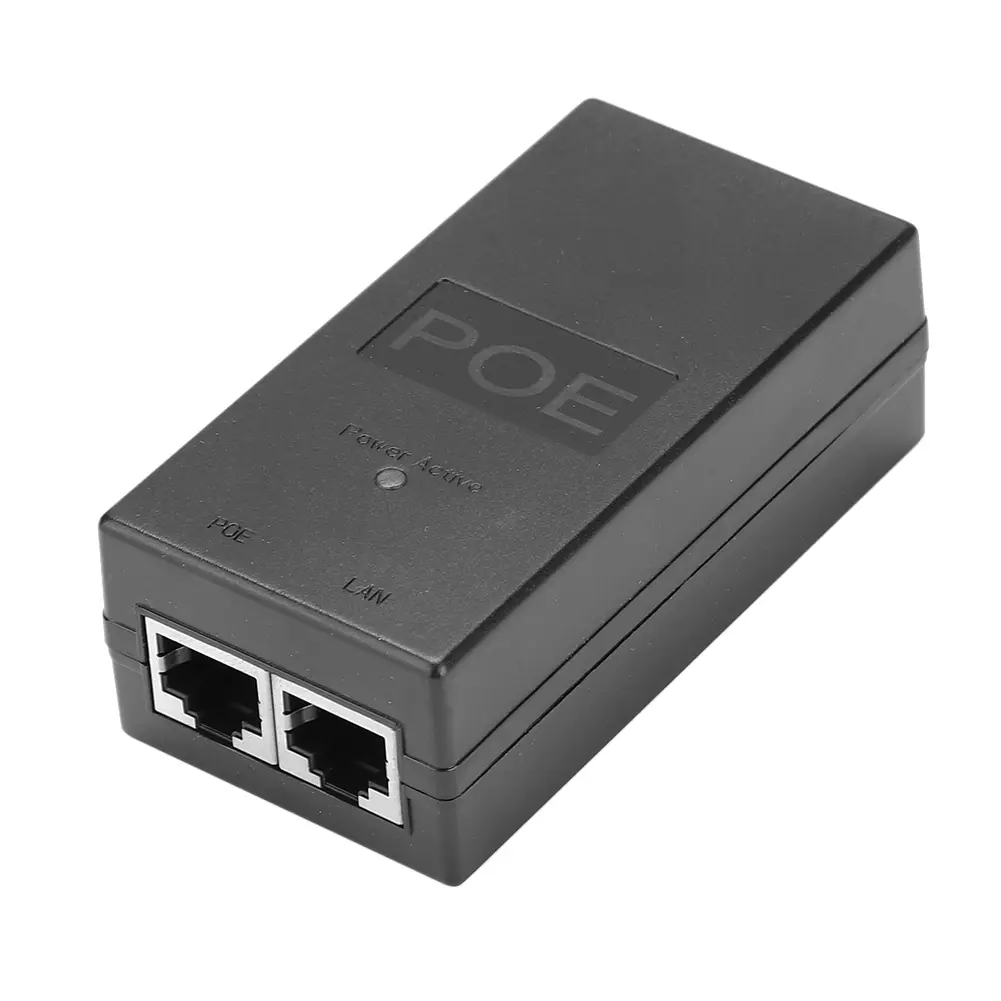

Desktop POE Injector POE adapter 10/100Mbps for IP POE Camera Wireless AP Power Supply EU/US/UK/AU Plug Optional
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>
<span><br />
</span>
<table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0">
<tbody>
<tr>
<td>
<div>
<div>
<p class="MsoNormal">
</p>
</div>
</div>
<div style="padding:15px;border:solid 1px #aeaeae;">
<strong>Features:</strong><br />
Compatible with IEE802.3af/at.POE protocol.<br />
Standard PD port power supply priority function.<br />
Forwarding Rate: 10/100BASE-TX:148800pps/port<br />
Short circuit, over-current, and over-voltage protection<br />
System reliability: MTBF>100k hours<br />
EN55022 and CLASS B standard CE, RE.<br />
Anti-thunder design, bearing positive and passive 5KB, 8/20uS electric shockwave up to 5 times for every minute.<br />
Failure alert function and FUSE.<br />
<br />
Specification:<br />
Input Current: 100V-240V AC, 47-63Hz<br />
Max Input Power: 12W<br />
Input Stabilivolt Accuracy: -24V DC±2%<br />
Load Adjustment Rate: -24V DC±2%<br />
DC Output Broadband Noise Voltage: 3.4kHz-150kHz≤50m<br />
<br />
<strong>Operate Environment:</strong><br />
Temperature: -5 to 55℃<br />
Relative Humidity: 5%-9%RH<br />
Ventilate, clean, no conductive dust or corrosive gas.<br />
No danger of explosion<br />
<br />
<strong>POE Power Protect:</strong><br />
Output overvoltage Protect: -52V~-50V DC<br />
Overcurrent Protect (single circuit): 500Ma-1000Ma<br />
Overvoltage Protect: Input Voltage > 290V-310V AC<br />
Overvoltage Recovery Point: Input Voltage > 240V AC<br />
Undervoltage Protect: Input Voltage < 140V-155V AC<br />
Undervoltage Recovery Point: Input Voltage < 100V AC<br />
Temperature Protect: >100℃<br />
<br />
<strong>Indicator Light:</strong><br />
Light On: Working<br />
Light Off:<br />
Short circuit or overload protection.<br />
Consumer power is too high.<br />
Consumer breakdown.<br />
Cable short circuit.<br /> <br />
</div>
<br />
<div>
</div>
<div style="padding:15px;border:solid 1px #aeaeae;">
1 X POE Power Supply <br />
</div>
<br />
<div style="text-align:center;">
</div>
<br />
<br />
<div>
</div>
<div style="padding:15px;border:solid 1px #aeaeae;">
<p class="MsoNormal">
</p>
</div>
<p>
</p>
<p>
</p>
<p>
</p>
<p>
<br />
</p>
</td>
</tr>
</tbody>
</table>
</p></div></div>
$23.21
$13.88
- Category : Home Improvement
- Brand : golden_home_store Golden Home Store
Colors
Sizes
-
+
