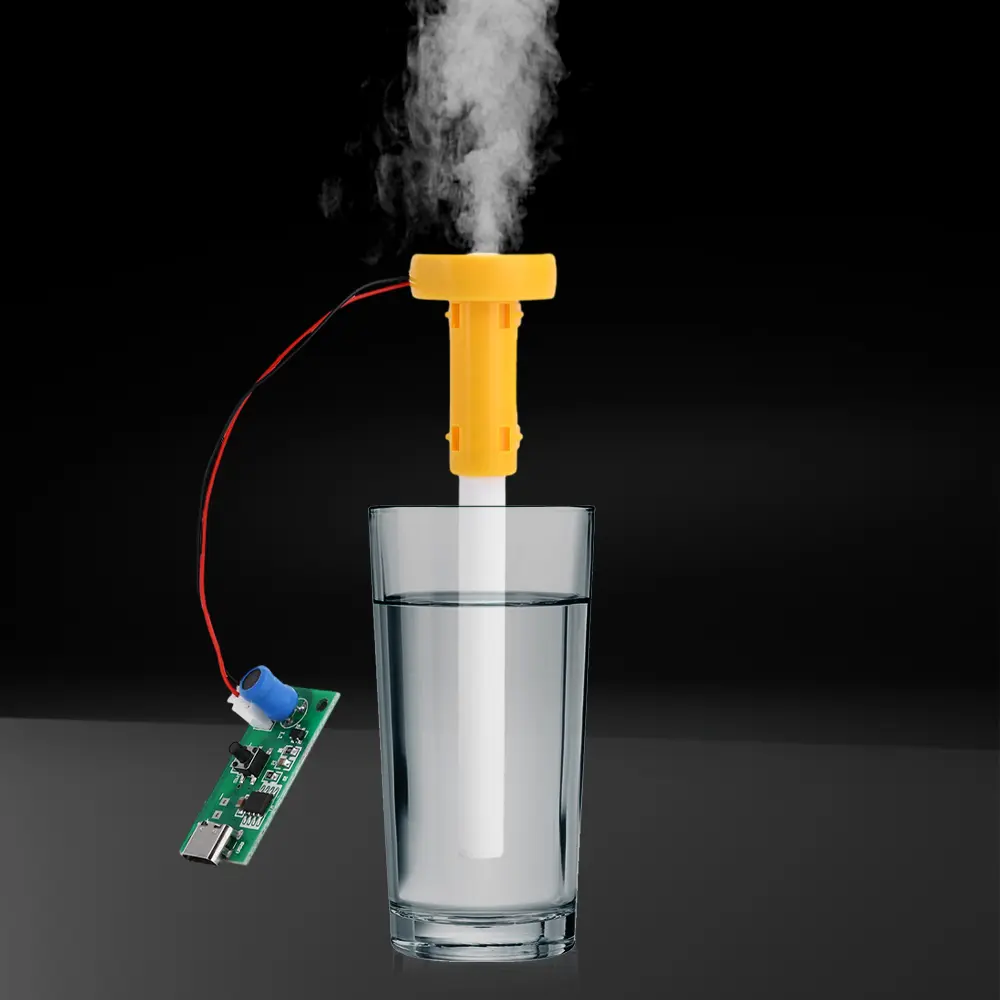

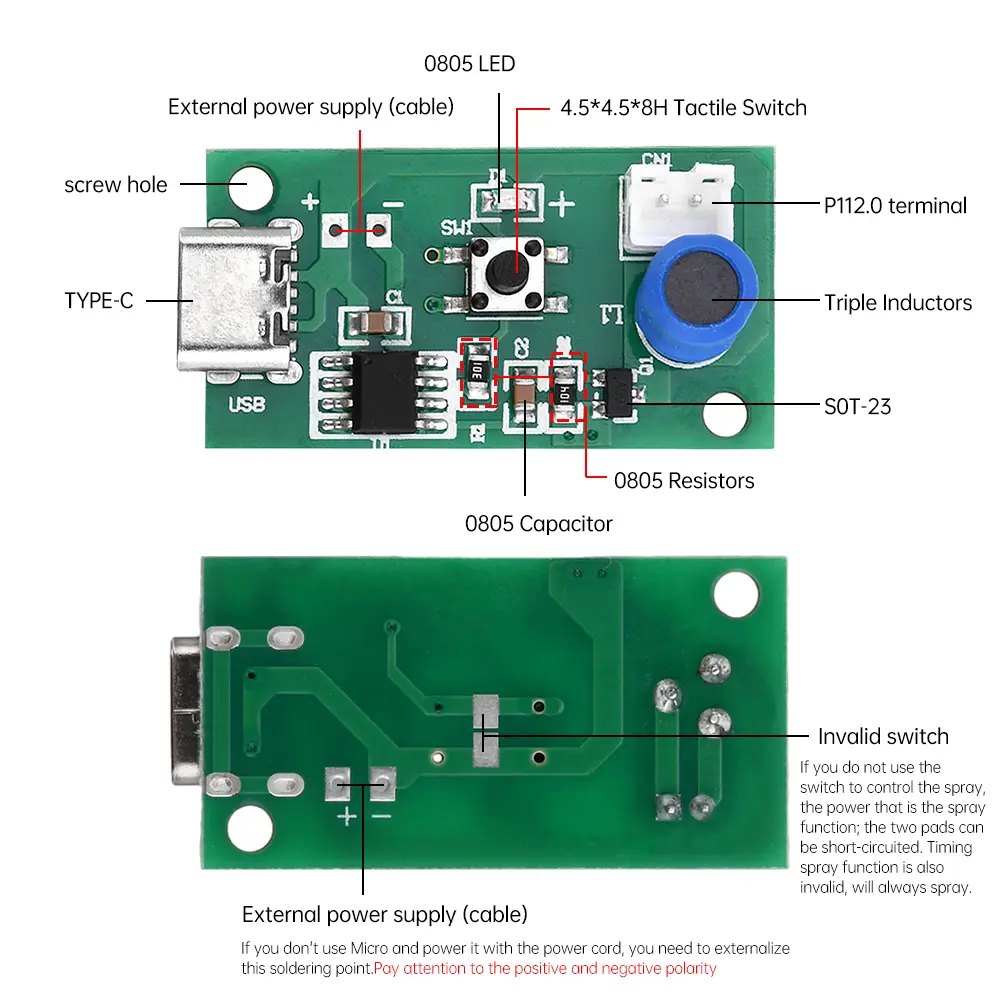

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. Using FR-4 epoxy board material, original electronic components, reasonable circuit board design, and long service life. <br/>2. Upgrade the TYPE-C interface, with strong versatility, high fog output, stable performance, simple use, and easy to get started with. <br/>3. It supports continuous spray mode and intermittent spray mode, and can be switched at will to meet different functional requirements. <br/>4. The chip has an automatic timed shutdown function, which will automatically shut down for protection after working continuously for 4 hours. If you need to restart, press the power button again. <br/>5. Micron atomization, which atomizes water into delicate 4-6 micron water molecules through micropores, dispersing them into the air.</p><p>Parameter:<br/>Driver circuit board: <br/>Material: 1.2mm FR-4 <br/>Rated voltage: DC 5V <br/>Rated current: 300mA <br/>Power: 1.5-2W <br/>Resonant frequency: 108-110KHz <br/>Atmosphere lighting: monochromatic lights <br/>Aperture: 2.3mm <br/>Size: 35 x 19 x 12mm (with slight errors) <br/>Microporous atomization tablets: <br/>Material: Piezoelectric ceramic ring+304 stainless steel plate <br/>Terminal head: PH2.0 <br/>Steel plate diameter: 16mm <br/>Outer diameter of silicone ring: 20mm, thickness 3.5mm <br/>Wire length: 10mm <br/>Voltage: DC 5V, <br/>Current 300mA, <br/>Power 2W, <br/>Resonant frequency: 108-110KHz <br/>Number of holes: 1100 holes <br/>Aperture: 5um <br/>Bracket size: 25mm x 38mm (with slight errors) <br/>Cotton swab size: 8mm x 100mm (there may be slight errors) <br/>Product Description: <br/>The micro porous atomization sheet is coated with a special glaze layer protective layer on the surface of the ceramic sheet, which is acid and alkali resistant and prevents the silver layer from being corroded and oxidized by liquid. <br/>Microporous atomization sheet is composed of a piezoelectric ceramic ring and a metal steel sheet. By driving the circuit board to output PWM pulse width modulation, the piezoelectric ceramic generates hundreds of thousands of high-frequency resonances per second, driving the vibration of the metal sheet. Spray water from thousands of micropores in metal steel sheets to form 4-6 micrometer water molecules, which disperse the structure of liquid water molecules and produce water mist. <br/>Spray mode: <br/>1. Continuous spray mode: press the switch for the first time, the LED light is always on, continuous spray mode, continuous spray, spray 4 hours later, automatic shutdown protection. <br/>2. Intermittent spray mode: press the switch for the second time, the LED light flashes, intermittent spray mode, spray for 10 seconds, stop spraying for 5 seconds, cycle in sequence, spray for 12 hours, automatic shutdown protection. <br/>3. Shutdown: Press the switch for the third time to shut down.</p><p>Package include: <br/>Circuit board X1 <br/>Nebulizer X1 <br/>Support X1 <br/>Absorbent cotton core X1</p><p>Notes: <br/>1. It is not allowed to modify the circuit board without authorization <br/>2. Do not overload the input power supply <br/>3. The circuit board should not be exposed to water or moisture <br/>4. Must be used in conjunction with the same frequency atomizer <br/>5. There may be differences in color due to batch issues with components. Please do not take photos if you mind<br/></p></div></div><br/>
