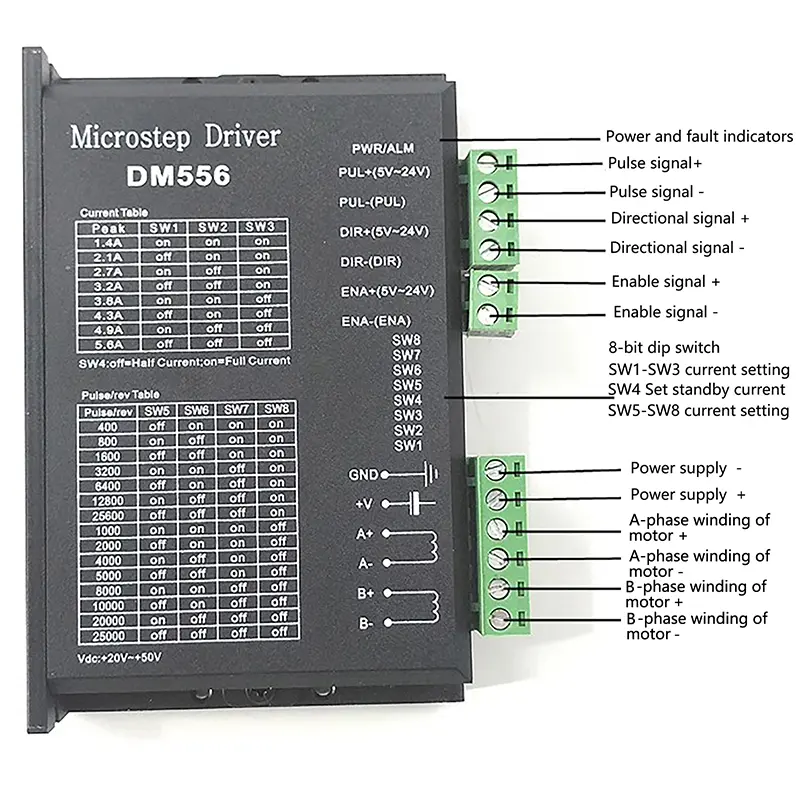

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><span style="font-size: 16px; font-family: Verdana;">Description:</span></p><p><span style="font-size: 16px; font-family: Verdana;">This driver is a DM556 digital DSP stepper motor driver, subdivision increased to 128 subdivision, suitable for high subdivision purposes. Suitable for stepper motors: 42, 57, 86 Type 2-Phase 4-Phase (4 lines, 6 lines, 8 lines)</span></p><p><span style="font-size: 16px; font-family: Verdana;">Specifications:</span></p><p><span style="font-size: 16px; font-family: Verdana;">1. 20V-50V DC power supply;</span></p><p><span style="font-size: 16px; font-family: Verdana;">2. H-bridge constant phase bipolar flow drive;</span></p><p><span style="font-size: 16px; font-family: Verdana;">3. Eight types of output currents can be selected with current up to 5.6A.</span></p><p><span style="font-size: 16px; font-family: Verdana;">4. Fifteen subdivision modes that can be subdivided to 128 are optional.</span></p><p><span style="font-size: 16px; font-family: Verdana;">5. High-speed photoelectric isolation of the input signal;</span></p><p><span style="font-size: 16px; font-family: Verdana;">6. Standard single-push interface;</span></p><p><span style="font-size: 16px; font-family: Verdana;">7. Off-line maintenance function;</span></p><p><span style="font-size: 16px; font-family: Verdana;">8. Semi-closed chassis can adapt to harsher environment.</span></p><p><span style="font-size: 16px; font-family: Verdana;">9. Provides energy-saving semi-automatic current lock function;</span></p><p><span style="font-size: 16px; font-family: Verdana;">10. Built-in temperature protection and overcurrent protection.</span></p><p><span style="font-size: 16px; font-family: Verdana;">Package Included:1Pc</span></p><p><span style="font-size: 16px; font-family: Verdana;">Note:</span></p><p><span style="font-size: 16px; font-family: Verdana;">1. Please note that the photo does not show actual size please refer to Description for size details.</span></p><p><span style="font-size: 16px; font-family: Verdana;">2. Please allow differences due to manual measurement thanks.</span></p><p><span style="font-size: 16px; font-family: Verdana;">3. Due to the difference between different monitors the image may not reflect the actual color of the item.</span></p></div></div> <div class="detailmodule_image"></div>
