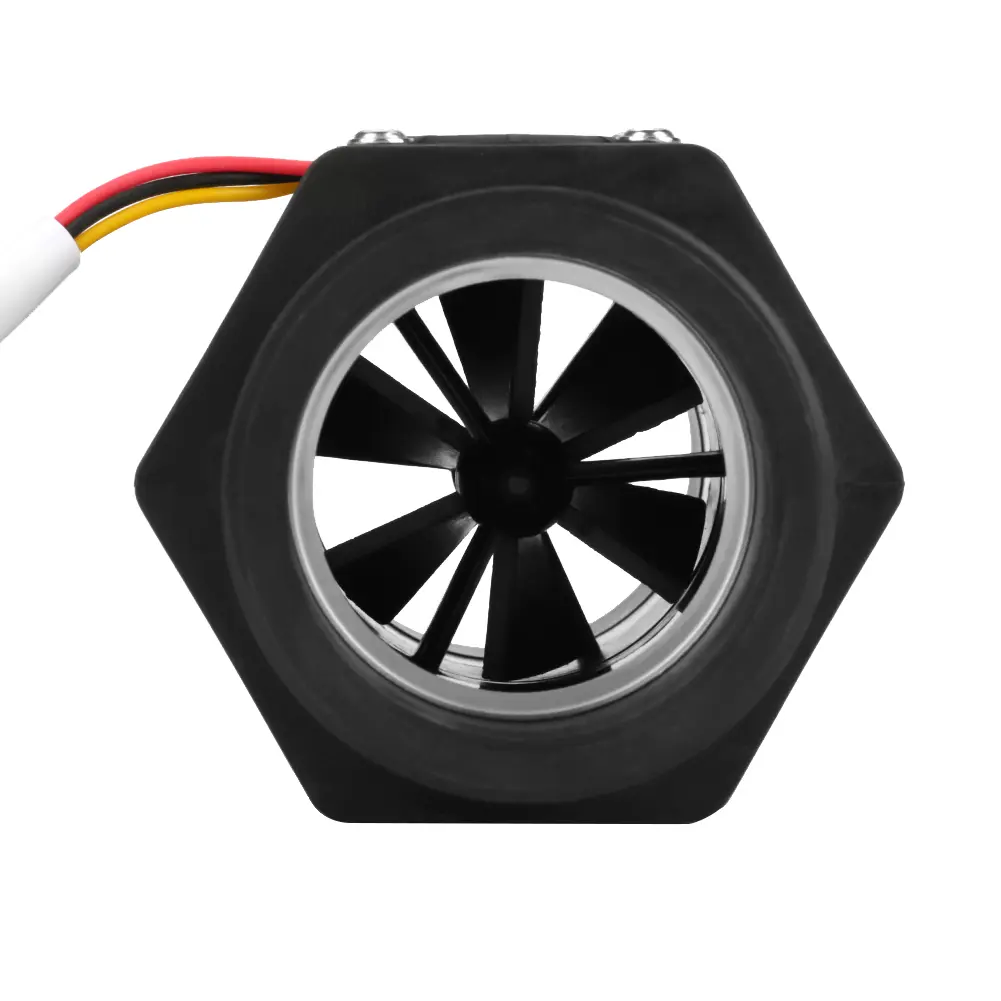

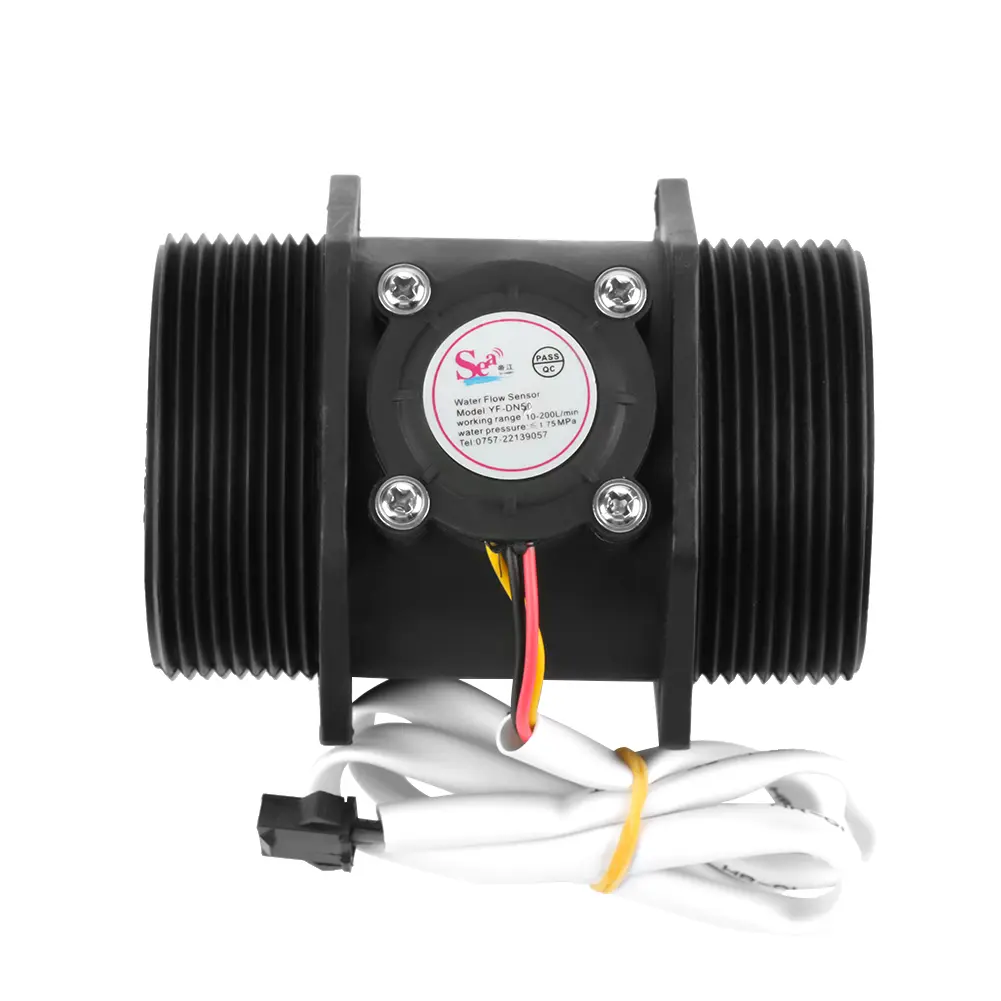

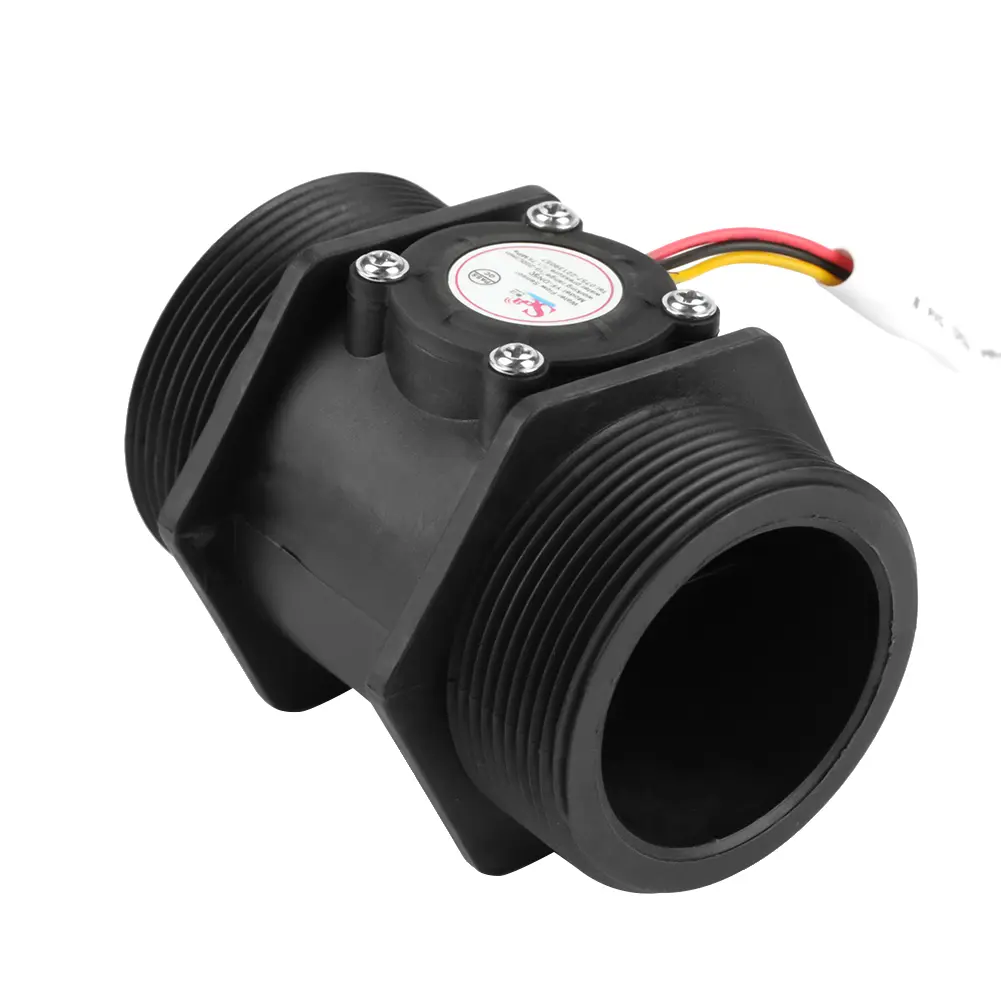

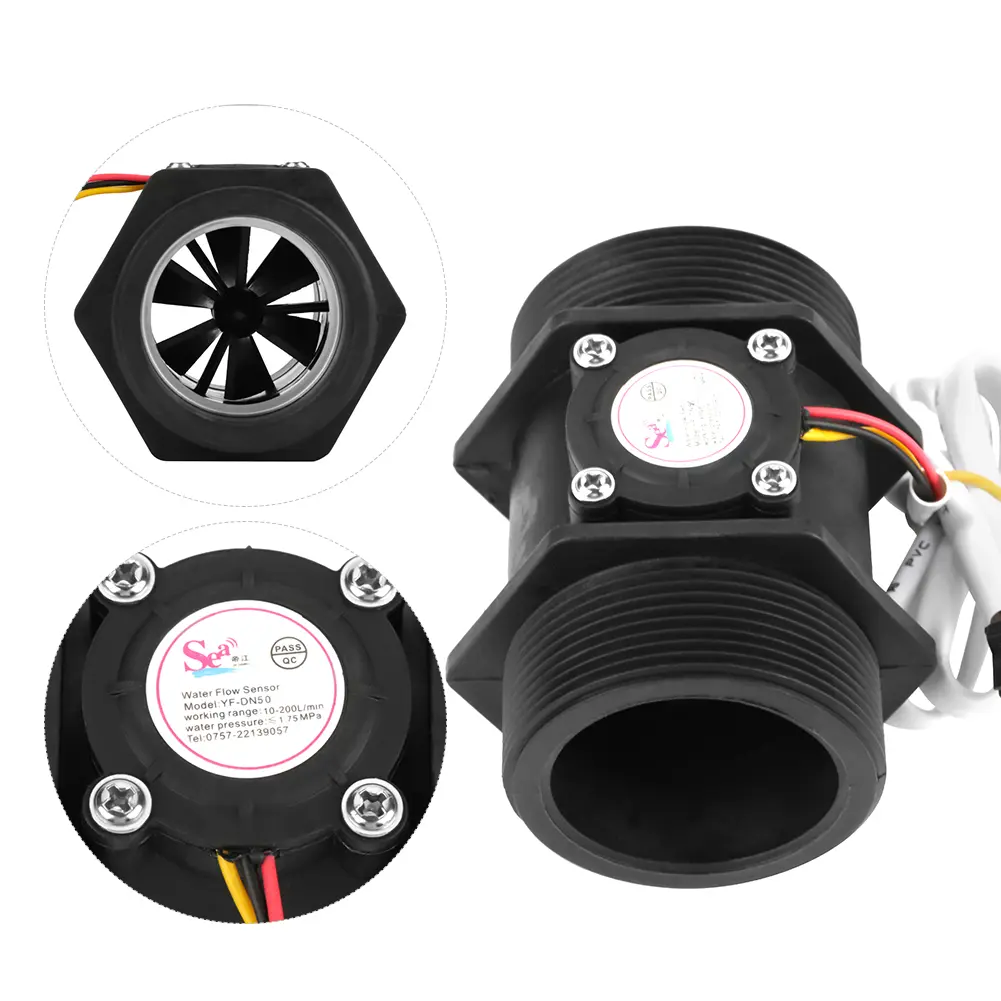

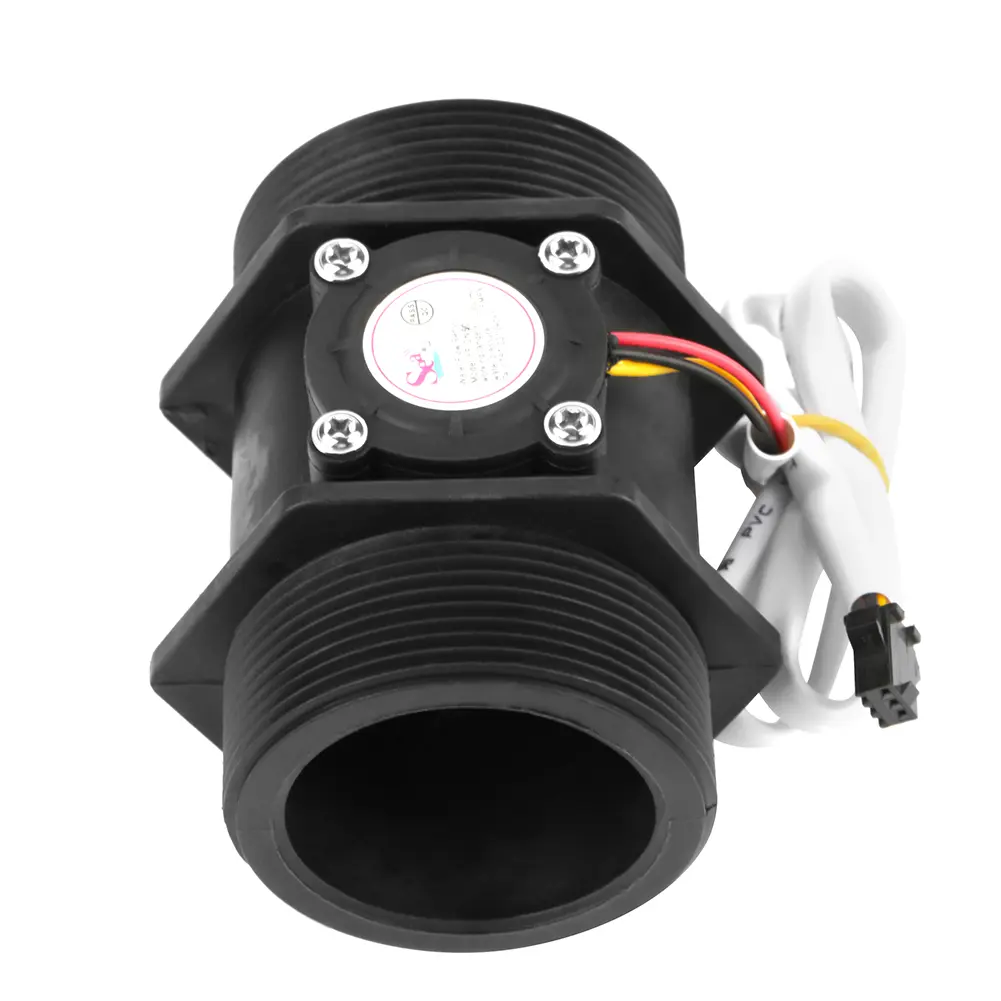

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>DN50 G2" Turbine Flowmeter Water Flow Hall Sensor Switch Meter for Water Heater</b><br/></p><div style="font:Arial;font-size:16px;"><p><br/></p>Features: <br/>The turbine flow meter is made of premium material, with long serving life<br/>This turbine flow meter is suitable for water heater, water treatment system <br/>Flow meter is shock proof, heat proof, cold proof, durability <br/>This hall turbine flow sensor meter is used for liquid flow rate control <br/>Small size, and easy to install<br/><br/></div><div style="font:Arial;font-size:16px;">Specifications: <br/>Thread size: DN50 G2" <br/>Flow range:10-200L/min <br/>Working voltage range: DC 4.5 ~ 12 V<br/>Load capacity: ≤10mA (DC 5V)<br/>Working temperature: ≤80℃<br/>Humidity range: 35% ~90%RH (no frosting state)<br/>Water-pressure resistance: ≤1.75Mpa <br/>Storage Temperature: -25~80℃<br/>Storage humidity: 25%-95%RH <br/>Output pulse high level: >DC 4.5v (input voltage DC 5v)<br/>Output pulse low level: (input voltage DC 5v)<br/>Accuracy (flow -- pulse output): 10 ~ 300 L/min ±5%<br/>Output pulse duty ratio: 50±10%<br/>Output rise time: 0.04μS<br/>Output drop time: 0.18μS <br/>Insulation resistance: >100mΩ<br/>Fluid-pulse characteristic: <br/>Level test pulse frequency (Hz)=(0.5*Q) ±5%(horizontal test) (Q is flow L/min)<br/>Size: 9.2cm/3.62in <br/>Weight: 206g<br/><br/></div><div style="font:Arial;font-size:16px;">Package includes: <br/>1 x Turbine Flow meter<br/><p><br/></p></div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
