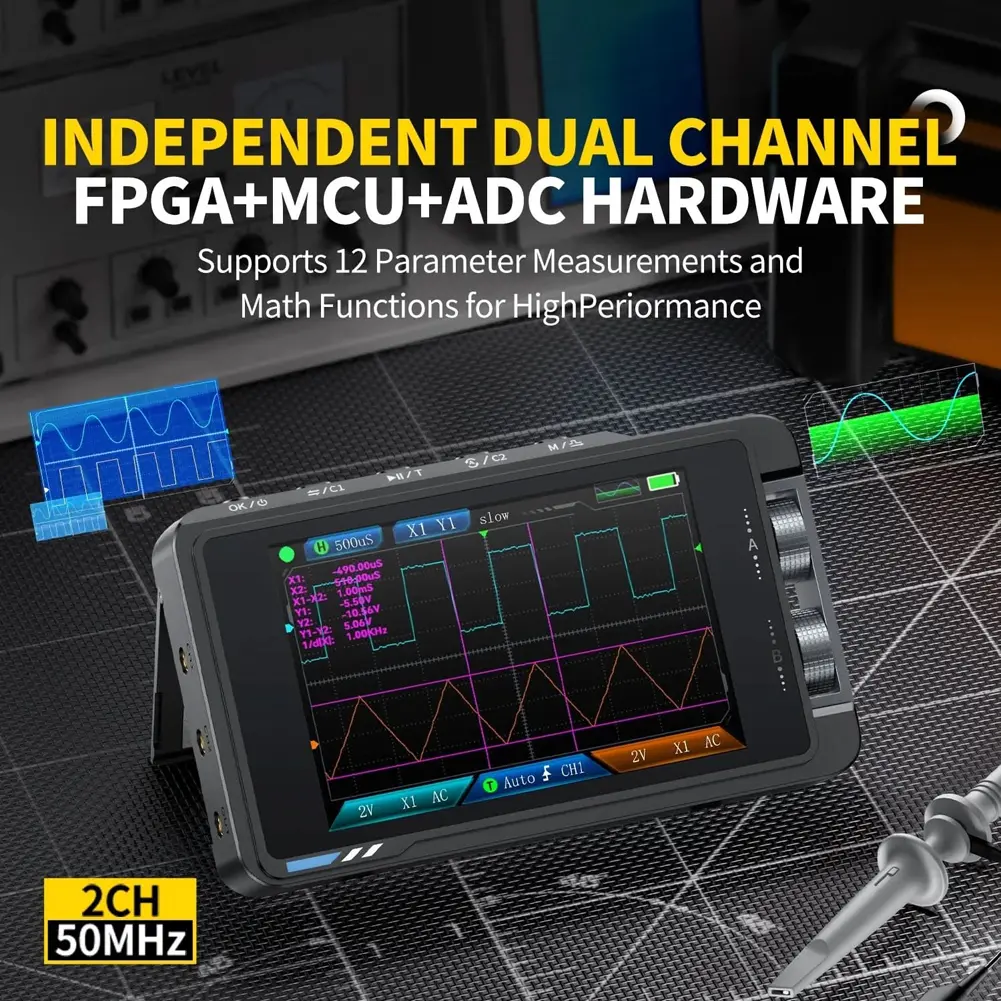

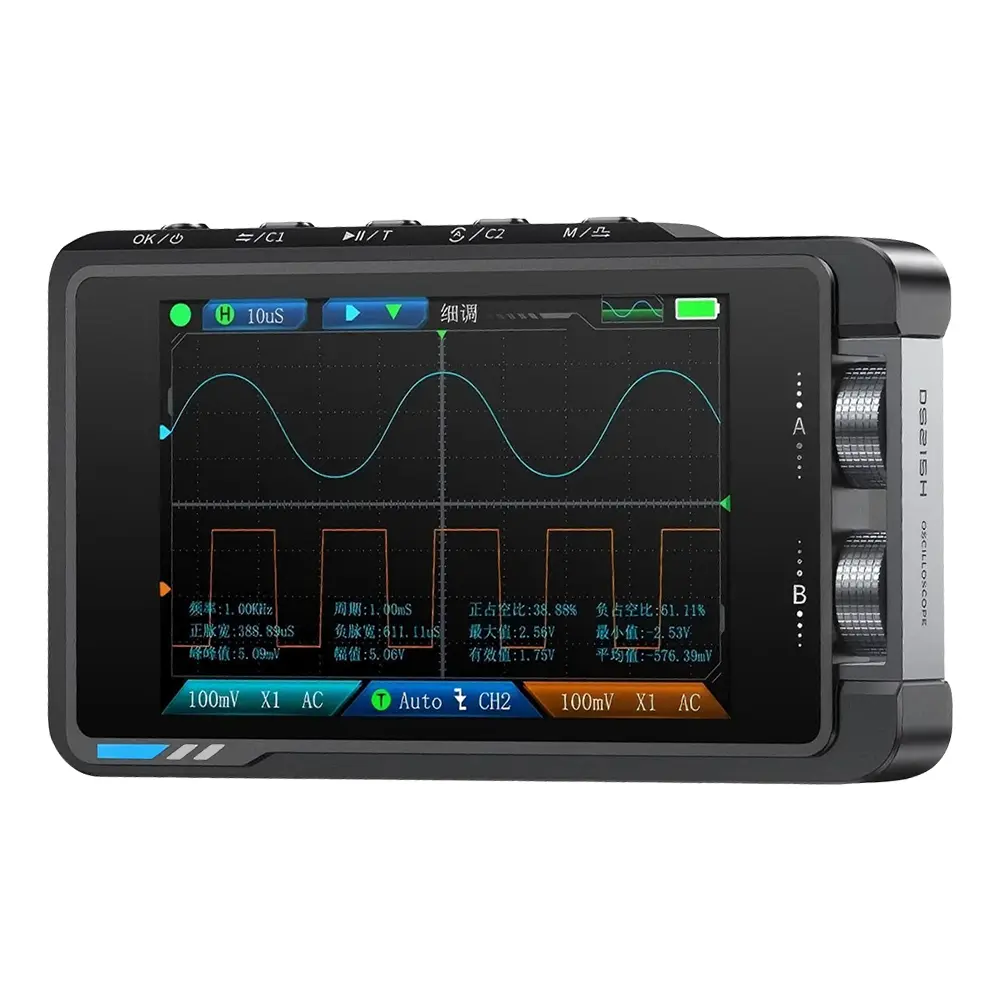

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p> <span><br /> </span> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <div> <div> <p class="MsoNormal"> </p> </div> </div> <div style="padding:15px;border:solid 1px #aeaeae;"> <p> <span style="color:black;font-family:inherit;font-size:12px;">DS215H 2 in 1 Digital Oscilloscope IPS Display Dual Channel Mini Oscilloscope Repair Tool 250MS/s Sampling Rate Signal Generator</span> </p> <p> <span style="color:black;font-family:inherit;font-size:12px;"><strong>Features:</strong></span> </p> <p> <span style="color:black;font-family:inherit;font-size:12px;"><strong>1. High-Precision Measurement:</strong> Equipped with a 250MS/s sampling rate and 50MHz analog bandwidth, this digital oscilloscope ensures accurate readings for a wide range of testing scenarios. Capture detailed signals and analyze waveforms with confidence in both professional and educational settings.<br /> <strong>2. Wide Voltage Protection: </strong>Supporting peak voltage measurements up to ±400V, this mini oscilloscope repair tool is engineered for safe and reliable operation in high-voltage environments. Confidently perform diagnostics and troubleshooting on automotive, industrial, or laboratory equipment without compromising safety.<br /> <strong>3. Waveform Storage and Review:</strong> With built-in screenshot and data storage capabilities, this handheld small oscilloscope allows you to save, review, and analyze waveforms at your convenience. <span>Simplify&nbsp;</span>your workflow by accessing and comparing data directly on the 3.5-inch high-resolution display.<br /> <strong>4. Versatile Signal Generator:</strong> Featuring 13 selectable output waveforms and a frequency range from 0 to 50KHz, this signal generator offers fully adjustable parameters including frequency, amplitude, and duty cycle. Easily tailor signal outputs to suit maintenance, development, or educational applications.<br /> <strong>5. Portable and Long-Lasting Design:</strong> Designed with a clear 3.5-inch display (480x320 resolution) and a lightweight, compact body, this electronic repair tool is perfect for on-the-go use. The 1500mAh rechargeable battery delivers up to 4 hours of continuous operation, making it ideal for fieldwork and travel.<br /> <br /> </span> </p><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> Shell material: ABS<br /> Size: about 110.00x66.00x19.50mm/4.33x2.6x0.77inch<br /> Parameter 1<br /> 1. Channel: dual channel<br /> 2. Bandwidth: 50 MHz<br /> 3. Real-time sampling rate: 250 MSa/s<br /> 4. Storage space: 14M<br /> 5. Time base range: 20ns/div - 20s/div<br /> 6. Vertical sensitivity: 10mV/div - 10V/div<br /> 7. Waveform display mode: scrolling<br /> 8. Vertical resolution: 8 bits<br /> 9. Input impedance: 1MΩ<br /> 10. Measurement data: period, frequency, peak-to-peak value, maximum value, minimum value, average value, effective value, current, duty cycle, pulse width<br /> 11. Probe attenuation factor: 1x / 10x<br /> 12. Input coupling: AC / DC<br /> 13. Trigger type: rising edge / falling edge<br /> 14. Peak voltage: ±400V<br /> 15. Trigger level range: 8 Grid (positive and negative)<br /> 16. Trigger mode: automatic / normal / single<br /> <br /> Parameter 2<br /> 1. Output waveform: support multiple waveform output<br /> 2. Waveform frequency: 0-50 KHz<br /> 3. Square wave duty cycle: 0-100%<br /> 4. Waveform amplitude: 0.1V - 3.0V<br /> Basic parameters<br /> 1. Display: 3.5-inch IPS high-definition color screen<br /> 2. Backlight: adjustable brightness<br /> 3. Power supply: TYPE-C (5V/1A)<br /> 4. Battery: 1500mAh<br /> 5. Language: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean<br /> <br /> <p> <strong>Note:</strong><br /> Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!<br /> Please allow a 1-2 cm difference in measurements due to manual measuring. </p> <br /><br><p> <span style="color:black;font-family:inherit;font-size:12px;">DS215H 2 in 1 Digital Oscilloscope IPS Display Dual Channel Mini Oscilloscope Repair Tool 250MS/s Sampling Rate Signal Generator</span> </p> <p> <span style="color:black;font-family:inherit;font-size:12px;"><strong>Features:</strong></span> </p> <p> <span style="color:black;font-family:inherit;font-size:12px;"><strong>1. High-Precision Measurement:</strong> Equipped with a 250MS/s sampling rate and 50MHz analog bandwidth, this digital oscilloscope ensures accurate readings for a wide range of testing scenarios. Capture detailed signals and analyze waveforms with confidence in both professional and educational settings.<br /> <strong>2. Wide Voltage Protection: </strong>Supporting peak voltage measurements up to ±400V, this mini oscilloscope repair tool is engineered for safe and reliable operation in high-voltage environments. Confidently perform diagnostics and troubleshooting on automotive, industrial, or laboratory equipment without compromising safety.<br /> <strong>3. Waveform Storage and Review:</strong> With built-in screenshot and data storage capabilities, this handheld small oscilloscope allows you to save, review, and analyze waveforms at your convenience. <span>Simplify&nbsp;</span>your workflow by accessing and comparing data directly on the 3.5-inch high-resolution display.<br /> <strong>4. Versatile Signal Generator:</strong> Featuring 13 selectable output waveforms and a frequency range from 0 to 50KHz, this signal generator offers fully adjustable parameters including frequency, amplitude, and duty cycle. Easily tailor signal outputs to suit maintenance, development, or educational applications.<br /> <strong>5. Portable and Long-Lasting Design:</strong> Designed with a clear 3.5-inch display (480x320 resolution) and a lightweight, compact body, this electronic repair tool is perfect for on-the-go use. The 1500mAh rechargeable battery delivers up to 4 hours of continuous operation, making it ideal for fieldwork and travel.<br /> <br /> </span> </p><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> Shell material: ABS<br /> Size: about 110.00x66.00x19.50mm/4.33x2.6x0.77inch<br /> Parameter 1<br /> 1. Channel: dual channel<br /> 2. Bandwidth: 50 MHz<br /> 3. Real-time sampling rate: 250 MSa/s<br /> 4. Storage space: 14M<br /> 5. Time base range: 20ns/div - 20s/div<br /> 6. Vertical sensitivity: 10mV/div - 10V/div<br /> 7. Waveform display mode: scrolling<br /> 8. Vertical resolution: 8 bits<br /> 9. Input impedance: 1MΩ<br /> 10. Measurement data: period, frequency, peak-to-peak value, maximum value, minimum value, average value, effective value, current, duty cycle, pulse width<br /> 11. Probe attenuation factor: 1x / 10x<br /> 12. Input coupling: AC / DC<br /> 13. Trigger type: rising edge / falling edge<br /> 14. Peak voltage: ±400V<br /> 15. Trigger level range: 8 Grid (positive and negative)<br /> 16. Trigger mode: automatic / normal / single<br /> <br /> Parameter 2<br /> 1. Output waveform: support multiple waveform output<br /> 2. Waveform frequency: 0-50 KHz<br /> 3. Square wave duty cycle: 0-100%<br /> 4. Waveform amplitude: 0.1V - 3.0V<br /> Basic parameters<br /> 1. Display: 3.5-inch IPS high-definition color screen<br /> 2. Backlight: adjustable brightness<br /> 3. Power supply: TYPE-C (5V/1A)<br /> 4. Battery: 1500mAh<br /> 5. Language: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean<br /> <br /> <p> <strong>Note:</strong><br /> Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!<br /> Please allow a 1-2 cm difference in measurements due to manual measuring. </p> <br /><br><p> <span style="color:black;font-family:inherit;font-size:12px;">DS215H 2 in 1 Digital Oscilloscope IPS Display Dual Channel Mini Oscilloscope Repair Tool 250MS/s Sampling Rate Signal Generator</span> </p> <p> <span style="color:black;font-family:inherit;font-size:12px;"><strong>Features:</strong></span> </p> <p> <span style="color:black;font-family:inherit;font-size:12px;"><strong>1. High-Precision Measurement:</strong> Equipped with a 250MS/s sampling rate and 50MHz analog bandwidth, this digital oscilloscope ensures accurate readings for a wide range of testing scenarios. Capture detailed signals and analyze waveforms with confidence in both professional and educational settings.<br /> <strong>2. Wide Voltage Protection: </strong>Supporting peak voltage measurements up to ±400V, this mini oscilloscope repair tool is engineered for safe and reliable operation in high-voltage environments. Confidently perform diagnostics and troubleshooting on automotive, industrial, or laboratory equipment without compromising safety.<br /> <strong>3. Waveform Storage and Review:</strong> With built-in screenshot and data storage capabilities, this handheld small oscilloscope allows you to save, review, and analyze waveforms at your convenience. <span>Simplify&nbsp;</span>your workflow by accessing and comparing data directly on the 3.5-inch high-resolution display.<br /> <strong>4. Versatile Signal Generator:</strong> Featuring 13 selectable output waveforms and a frequency range from 0 to 50KHz, this signal generator offers fully adjustable parameters including frequency, amplitude, and duty cycle. Easily tailor signal outputs to suit maintenance, development, or educational applications.<br /> <strong>5. Portable and Long-Lasting Design:</strong> Designed with a clear 3.5-inch display (480x320 resolution) and a lightweight, compact body, this electronic repair tool is perfect for on-the-go use. The 1500mAh rechargeable battery delivers up to 4 hours of continuous operation, making it ideal for fieldwork and travel.<br /> <br /> </span> </p><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> Shell material: ABS<br /> Size: about 110.00x66.00x19.50mm/4.33x2.6x0.77inch<br /> Parameter 1<br /> 1. Channel: dual channel<br /> 2. Bandwidth: 50 MHz<br /> 3. Real-time sampling rate: 250 MSa/s<br /> 4. Storage space: 14M<br /> 5. Time base range: 20ns/div - 20s/div<br /> 6. Vertical sensitivity: 10mV/div - 10V/div<br /> 7. Waveform display mode: scrolling<br /> 8. Vertical resolution: 8 bits<br /> 9. Input impedance: 1MΩ<br /> 10. Measurement data: period, frequency, peak-to-peak value, maximum value, minimum value, average value, effective value, current, duty cycle, pulse width<br /> 11. Probe attenuation factor: 1x / 10x<br /> 12. Input coupling: AC / DC<br /> 13. Trigger type: rising edge / falling edge<br /> 14. Peak voltage: ±400V<br /> 15. Trigger level range: 8 Grid (positive and negative)<br /> 16. Trigger mode: automatic / normal / single<br /> <br /> Parameter 2<br /> 1. Output waveform: support multiple waveform output<br /> 2. Waveform frequency: 0-50 KHz<br /> 3. Square wave duty cycle: 0-100%<br /> 4. Waveform amplitude: 0.1V - 3.0V<br /> Basic parameters<br /> 1. Display: 3.5-inch IPS high-definition color screen<br /> 2. Backlight: adjustable brightness<br /> 3. Power supply: TYPE-C (5V/1A)<br /> 4. Battery: 1500mAh<br /> 5. Language: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean<br /> <br /> <p> <strong>Note:</strong><br /> Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!<br /> Please allow a 1-2 cm difference in measurements due to manual measuring. </p> <br /> <br /> </div> <br /> <div> </div> <div style="padding:15px;border:solid 1px #aeaeae;"> 1x&nbsp;Digital Oscilloscope<br>1x&nbsp;Digital Oscilloscope<br>1x&nbsp;Digital Oscilloscope <br /> </div> <br /> <div style="text-align:center;"> </div> <br /> <br /> <div> </div> <div style="padding:15px;border:solid 1px #aeaeae;"> <p class="MsoNormal"> </p> </div> <p> </p> <p> </p> <p> </p> <p> <br /> </p> </td> </tr> </tbody> </table> </p></div></div>
