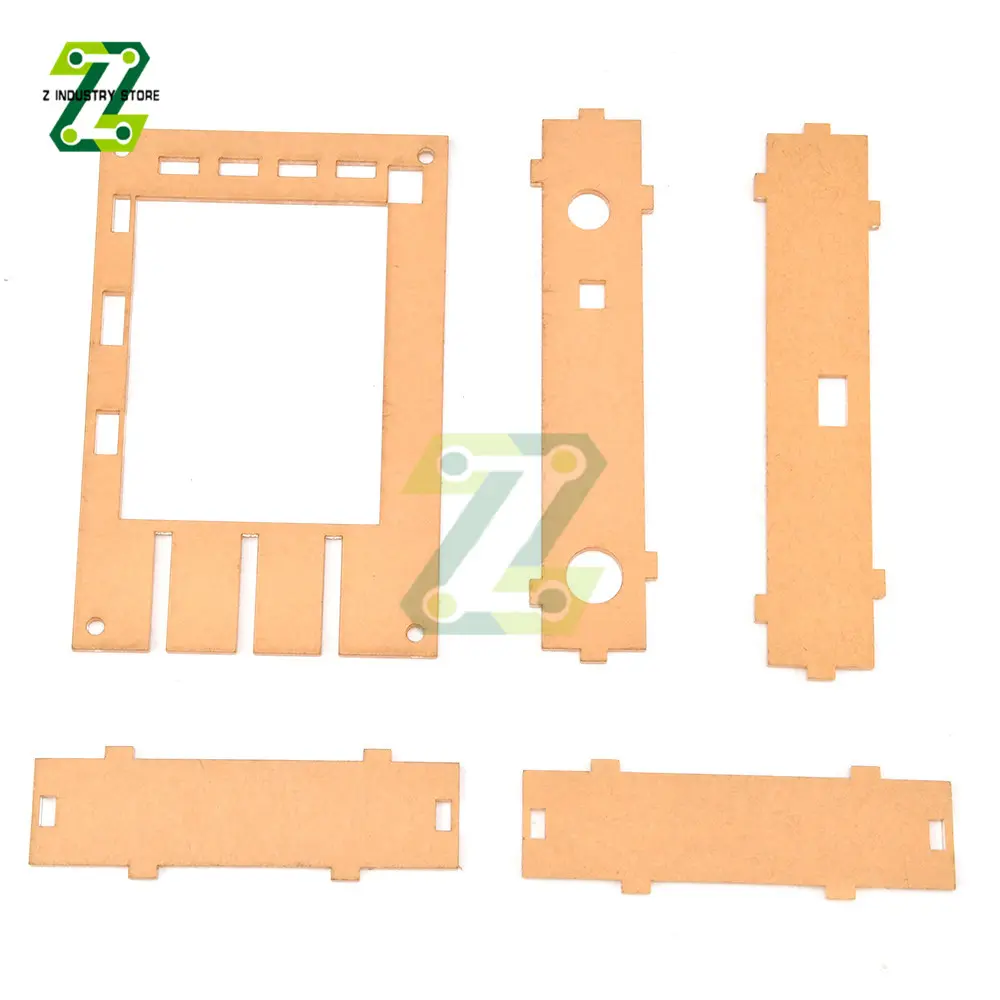

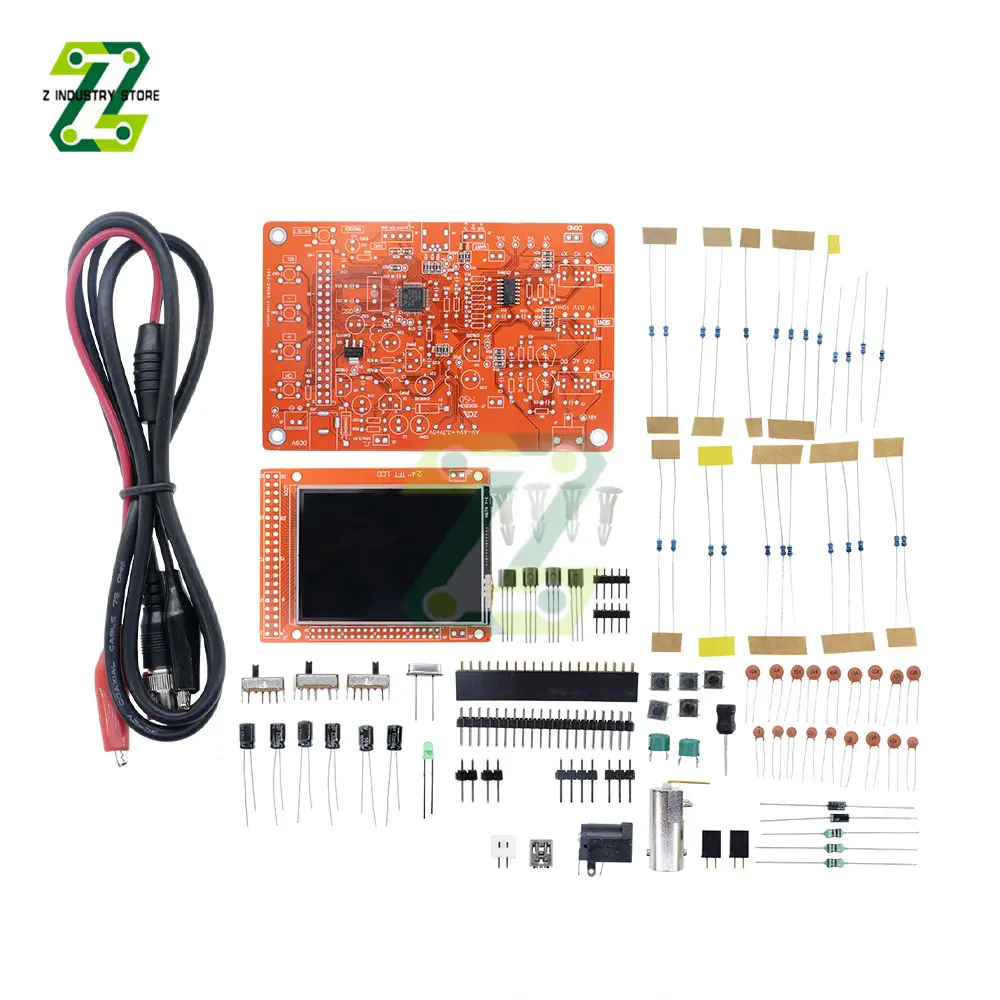

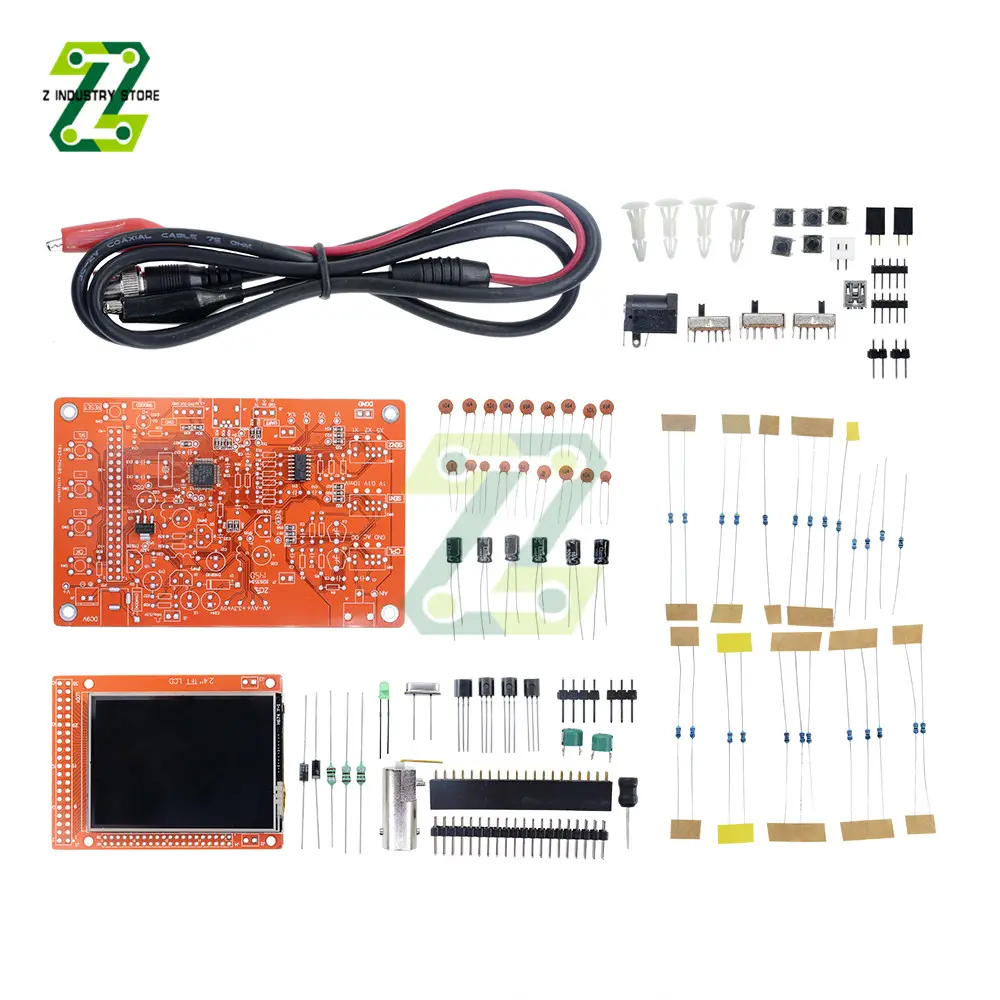

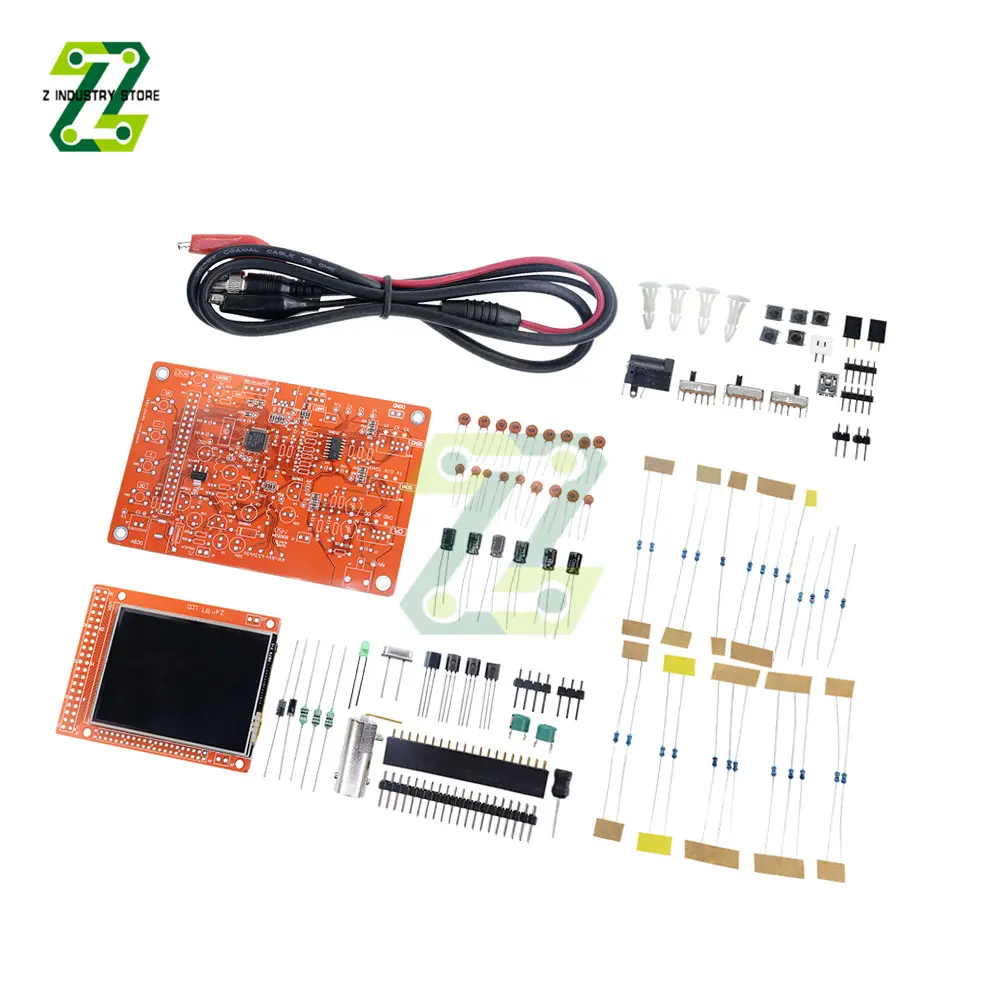

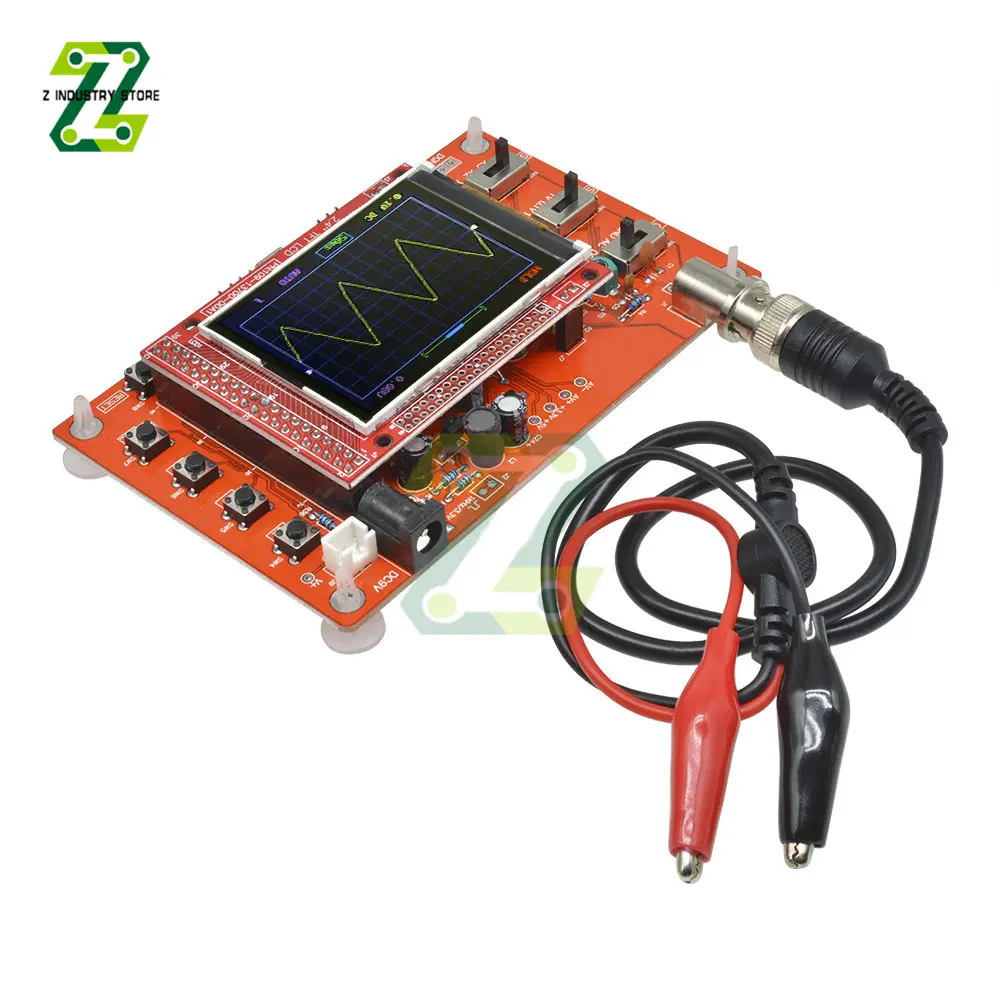

<p><kse:widget data-widget-type="customText" id="1005000000542054" type="relation"></kse:widget></p><p><span style="font-size:20px"><strong>DSO138 Fully Assembled Digital Oscilloscope 2.4 inch TFT LCD Display Probe Test Clip Acrylic Case Oscilloscope DIY KIT</strong></span></p><p><br/></p><p><span style="font-size:18px"><strong>Features of DSO138 Oscilloscope Build Kit:</strong></span></p><p><span style="font-size:18px">For electronic products, complete and detailed description information, such as diagrams, instructions, etc. training, makes the success rate very high.</span></p><p><span style="font-size:18px">Component species diversity allows students to identify elements, inline element welding, and welding SMD components for training.</span></p><p><span style="font-size:18px">Students can simultaneously obtain audio, video synchronization, low-frequency switching power supply, infrared receiver emission signal waveforms and other occasions, effectively observe and measure, a practical tool for increasing interest in learning and improving learning effects.</span></p><p><span style="font-size:18px">Using ARM Cortex-M3 processor (STM32F103C8) kit, including a 2.4-inch color TFT display, can be used as a test ARM development board.</span></p><p><span style="font-size:18px">Based on the available sources, the friend&#x27;s ability can be secondary developed based on the kit, for example, it can be changed to millivolts, data loggers, etc.</span></p><p><span style="font-size:18px">Simple circuit, reliable and low price</span></p><p><br/></p><p><span style="font-size:18px"><strong>Performance</strong></span></p><p><span style="font-size:18px">Maximum real-time sampling rate: 1Msps</span></p><p><span style="font-size:18px">Precision: 12 bits</span></p><p><span style="font-size:18px">Sample buffer depth: 1024 bytes</span></p><p><span style="font-size:18px">Analog Bandwidth: 0 - 200KHz</span></p><p><span style="font-size:18px">Vertical Sensitivity: 10 mV/div - 5V/div (1-2-5 progressive)</span></p><p><span style="font-size:18px">Adjustable vertical displacement, and with instructions</span></p><p><span style="font-size:18px">Input impedance: 1MΩ</span></p><p><span style="font-size:18px">Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)</span></p><p><span style="font-size:18px">Coupling methods include DC/AC/GND</span></p><p><span style="font-size:18px">Horizontal time base range: 10µs/div - 50/div (1-2-5 progressive way)</span></p><p><span style="font-size:18px">With Auto, Normal, Single mode, capture instantaneous waveform easily</span></p><p><span style="font-size:18px">Available rising or falling edge trigger</span></p><p><span style="font-size:18px">Adjustable trigger level position, and instructions with</span></p><p><span style="font-size:18px">Triggered waveform can be observed before (negative delay)</span></p><p><span style="font-size:18px">Waveform display can be locked at any time (HOLD function)</span></p><p><span style="font-size:18px">Talking about 1Hz/3.3V square wave test signal source</span></p><p><br/></p><p><span style="font-size:18px"><strong>Package Included:</strong></span></p><p><span style="font-size:18px">1*DSO138 digital oscilloscope/1*oscilloscope parts/1*oscilloscope shell</span></p><p></p>
