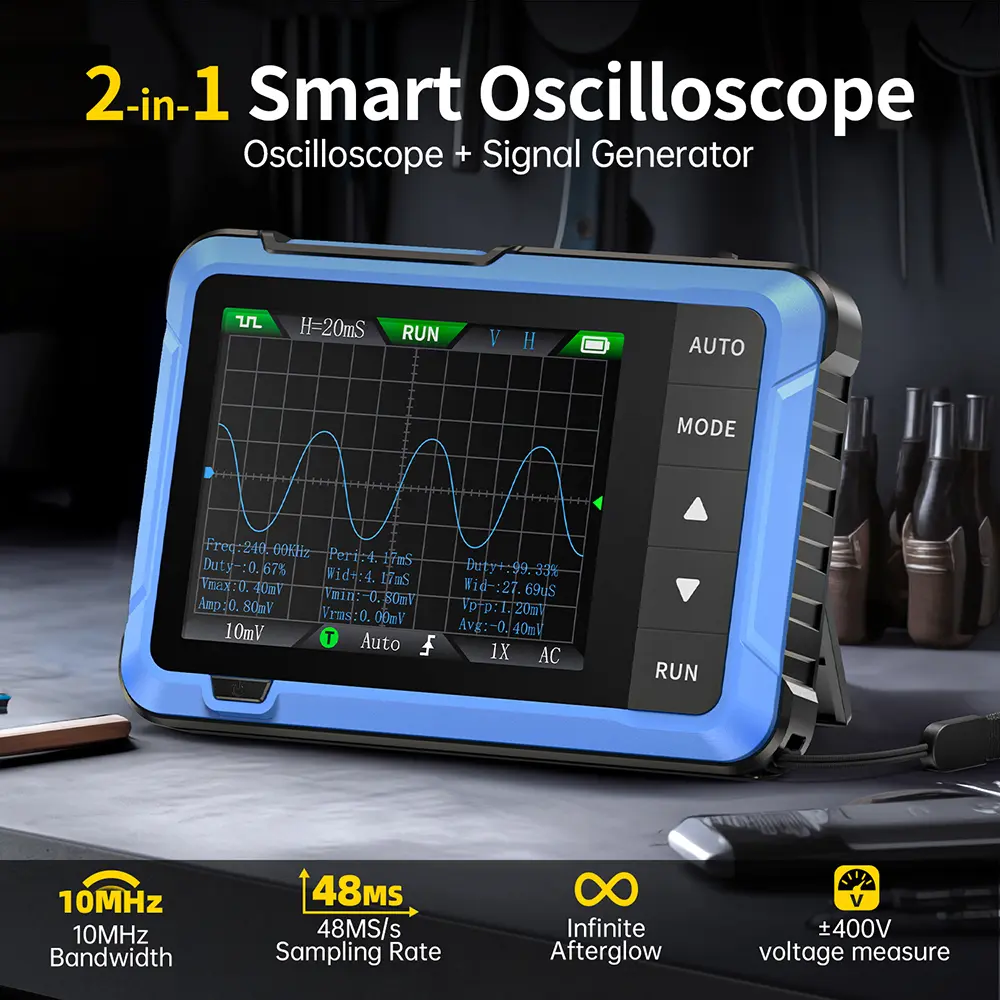

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. 2-in-1 function: the product built-in oscilloscope and signal generator function, the product is compact and cost-effective.<br/>2. HD LCD screen: 2.8-inch high-definition display, resolution 320 × 240.<br/>3. Long-lasting battery life: built-in 1000mAH rechargeable lithium battery, equipped with an automatic shutdown function, both to achieve long life, but also to extend battery life.<br/>4. One-key automatic mode: waveforms can be displayed immediately without complex adjustments.<br/>5. Wide range of applications: ideal for advanced maintenance, development and DIY learning.</p><p>Product basic parameters:<br/>Display: 2.8 inches / PPI: 320 * 240<br/>USB charging: Type-C interface 5V/1A<br/>Li-ion battery capacity: 1000mAh</p><p>Oscilloscope parameters:<br/>Real-time sampling rate: 48MS/s<br/>Bandwidth: 10MHz<br/>Vertical sensitivity: 10mV/Div-10V/Div<br/>Time base range: 50ns-20S<br/>Voltage range: X1:±40V (Vpp:80V), X10:±400V (Vpp :800V)<br/>Trigger mode: automatic/regular/single<br/>Trigger edge: Rising edge/Falling edge<br/>Coupling method: AC/DC<br/>Calibration Square Wave: Frequency:1K;Duty Cycle:50%;Amplitude:3.3V</p><p>Signal generator parameters:<br/>Frequency: 0-50KHz<br/>Duty cycle: 0-100% (rectangular and sawtooth wave)<br/>Amplitude: 0.1-3.0V<br/>Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC signal multi-audio, Sink pulse, Lorentz wave</p><p>Package Includes:<br/>Oscilloscope*1<br/>Instruction manual*1<br/>Lanyard*1<br/>Alligator clip probe*1<br/>Type-C charging cable*1<br/><br/></p></div></div><p><br/></p>
