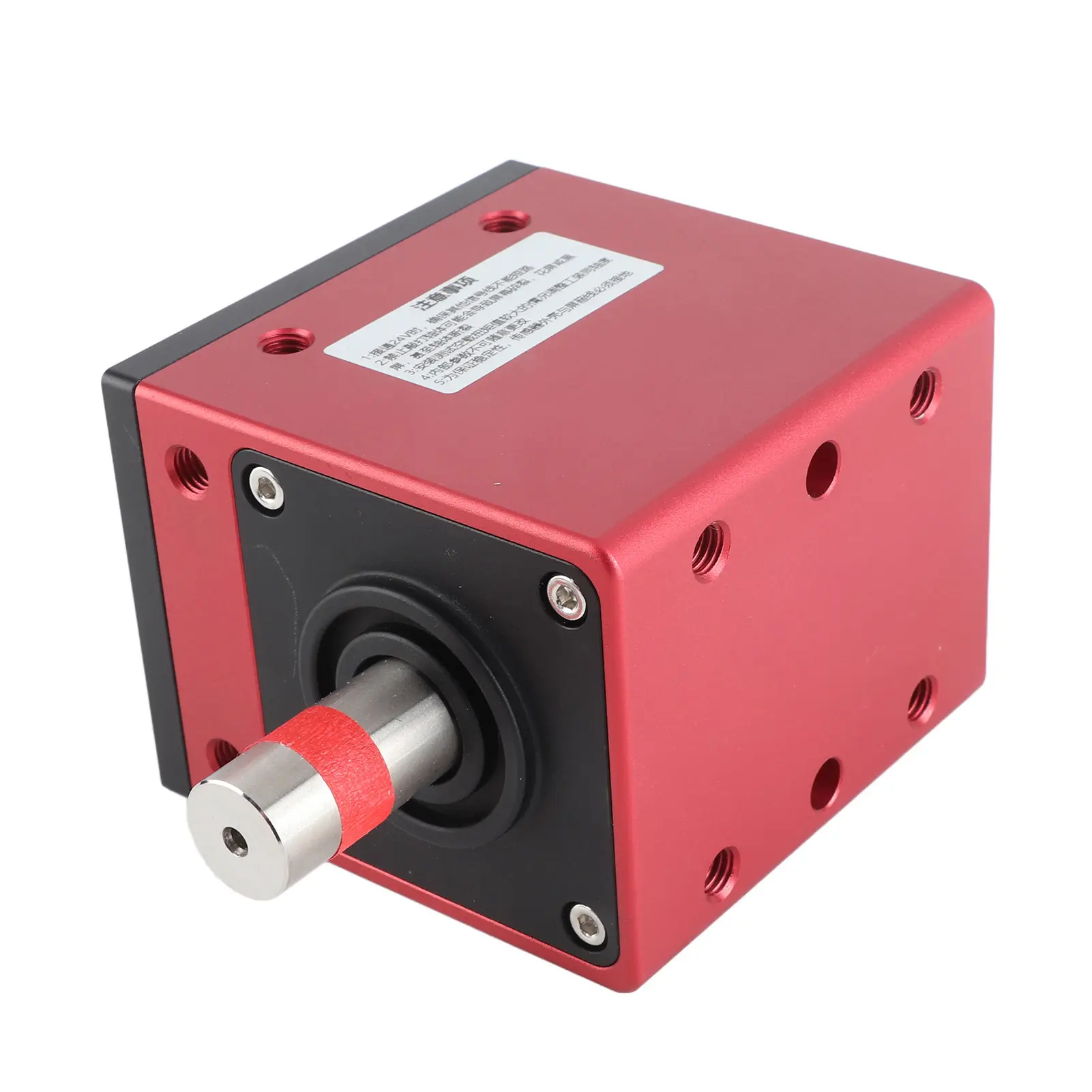

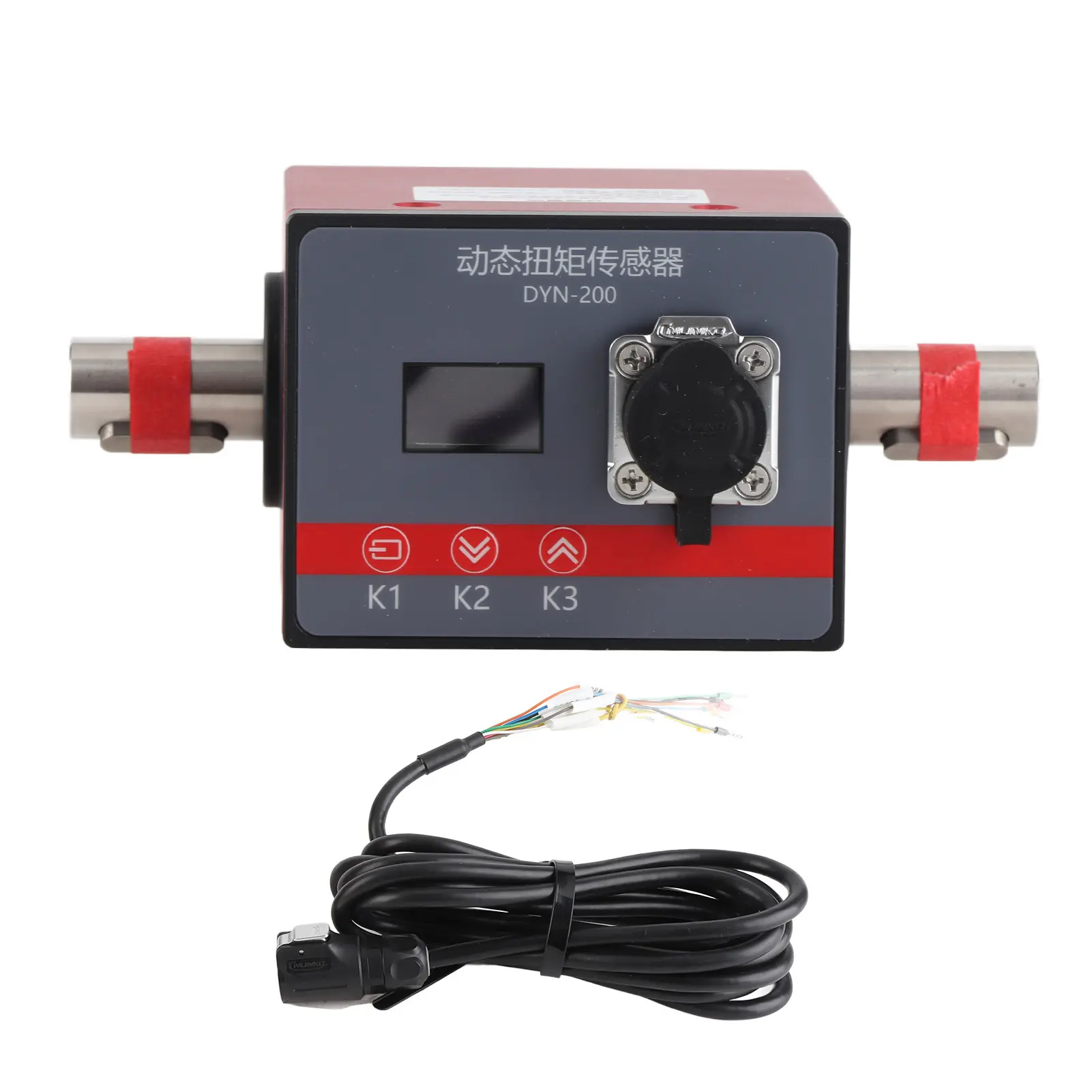

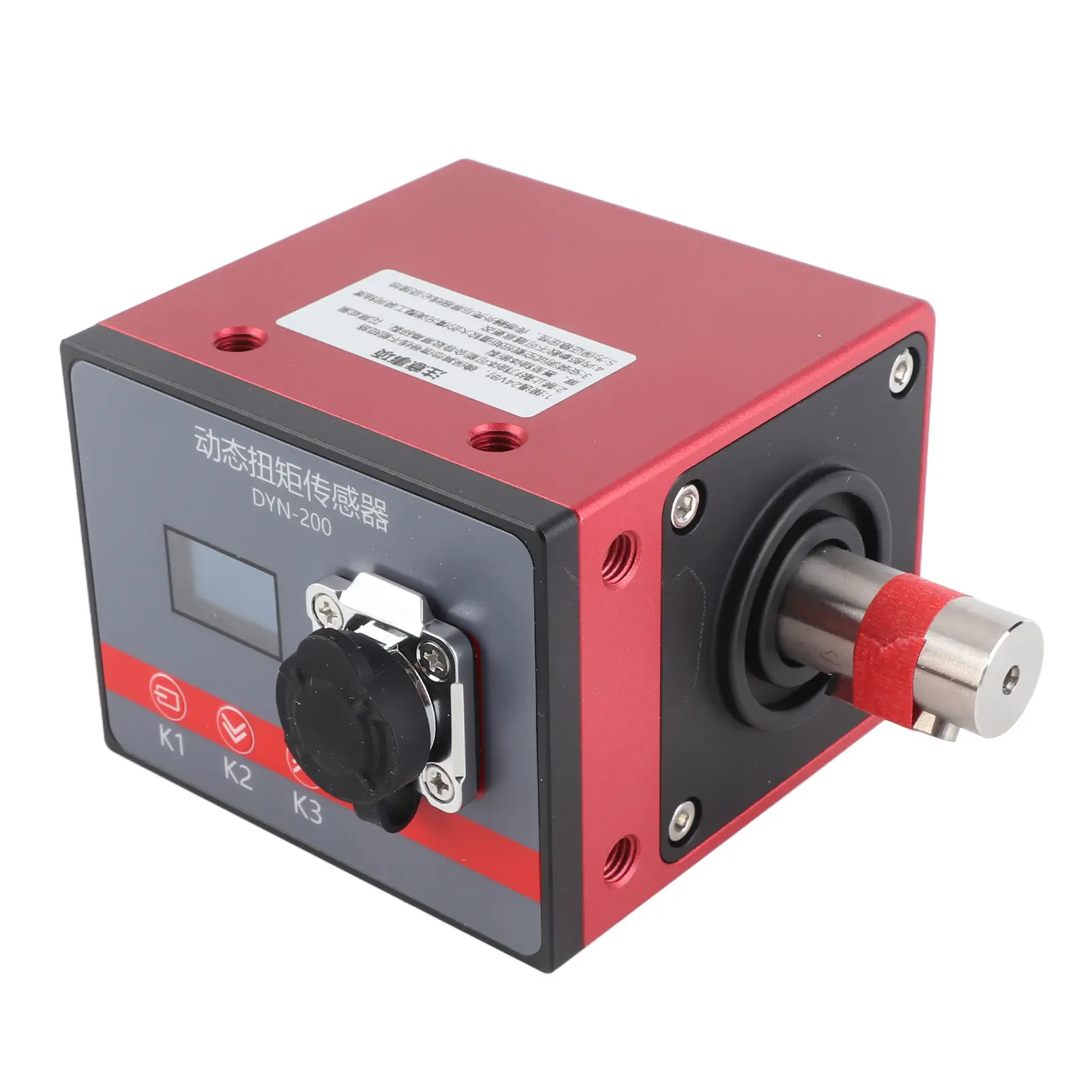

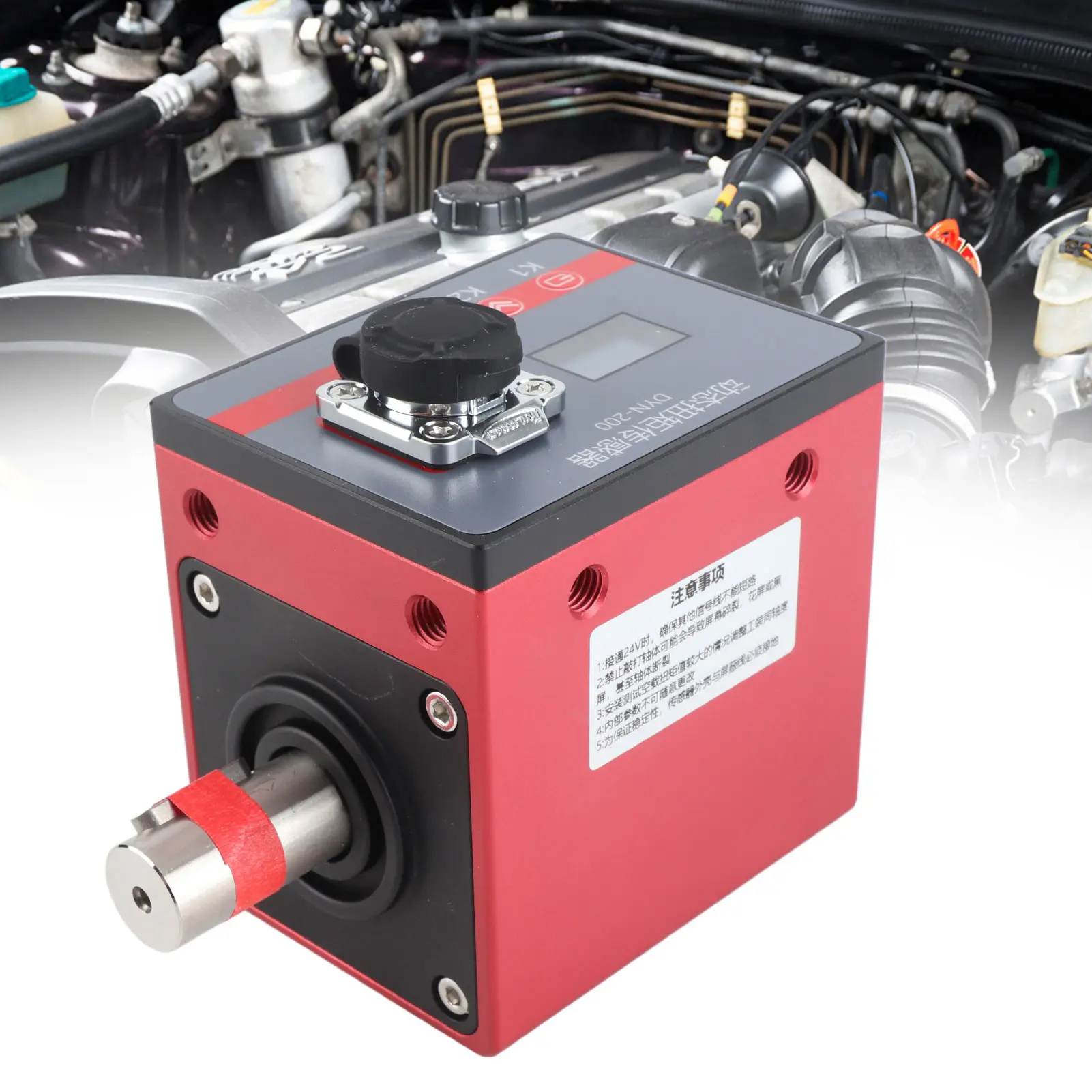

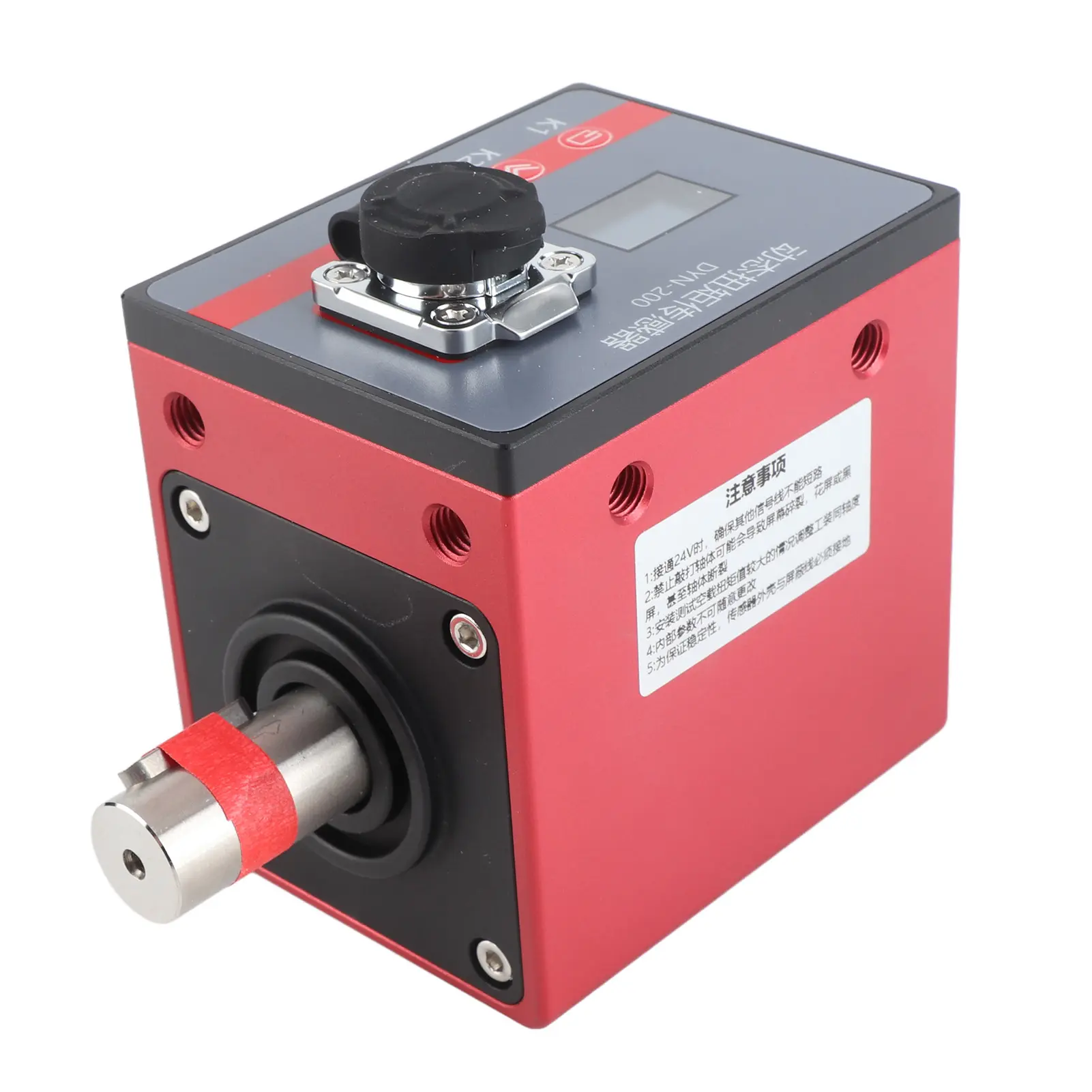

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"> <div style="width: px; line-height:150%; font-family:Arial, Helvetica, sans-serif; font-size:12px;"> <p style="margin-bottom:6px; margin-top:6px;"></p> <p> DYN‑200 100N.M Dynamic Torsion Sensor Motor Speed Power Tester Measurement Detector </p><div style="font:Arial;font-size:16px;"><p><b>Feature:</b></p>1. Suitable for real‑time display of the current measured torsion value and speed value.<br/>2. Can directly calculate the current power value.<br/>3. Support RS485 communication, support active upload protocol, communication rate up to 500 times per second.<br/>4. Support simultaneous output of transmission current and transmission voltage.<br/>5. The sensor comes with OLED display with a resolution of 128x64.<br/>6. Can perform simple calibration, clearing, filtering and other operations.<br/>7. Allow the sensor to be overloaded by 150%.<br/>8. The accuracy achieves an accuracy of 1/1000 or more, and excellent zero‑point stability.<br/>9. Non‑contact, no maintenance, no wearing parts, no life limit.<p><br/></p><p><b>Specification:</b></p>Item Type: Dynamic Torsion Sensor<br/>Rated Capacity: ± 20000N.m<br/>Power Input: DC24V<br/>Current Consumption: Below 200mA<br/>Torsion Output: ± 5VDC; 0-10V; 4-20mA<br/>Speed Output: 60 pulses / revolution<br/>Response Performance: 1kHz<br/>Load Resistance: 2kΩ or more<br/>Signal Delay: 2.6ms (50% response)<br/>Allow Overload: 150% FS<br/>Operating Temperature Range: -10 ~ + 50 ℃<br/>Non-linearity: 0.1% FS<br/>Repeatability: 0.03% FS<br/>Lag: 0.03%<br/>Temperature Effect Of Zero Point: 0.01% FS / C<br/>Temperature Effect Of Output: 0.01% FS / C<br/>Rated Speed: 8000rpm<br/>The Fastest Rotation Speed: 15000rpm<br/>Maximum Twisted Angle: 2.60 × 10rad (0.149 °)<br/>Moment Of Inertia: 0.38kgcm<br/>Vibration Natural Frequency (rotor Part): 19.4kHz<br/>Torsion Constant: 3.85 × 10Nm / rad<br/><p><br/></p><p><b>Package List:</b></p><div> 1 x Sensor </div><div> 1 x Line </div></div><br/> <p style="margin-bottom:6px; margin-top:6px;"> </p><p style="margin-bottom:6px; margin-top:6px;"><br/></p> <p><br/><br/><br/><br/><br/><br/><br/><br/><!--#list--><!--#if--></p><div style=" margin-bottom:6px; margin-top:6px;"> </div> <p class="STYLE1"><u>Shipping:</u></p> <p>1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.<br/> 2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .<br/> 3.If you didn't receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.<br/> 4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.</p> <p class="STYLE1"><u>Warranty:</u></p> <p>1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .<br/> 2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.<br/> 3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation. </p> <p style="margin-top:6px;"></p> </div></div></div></div>
