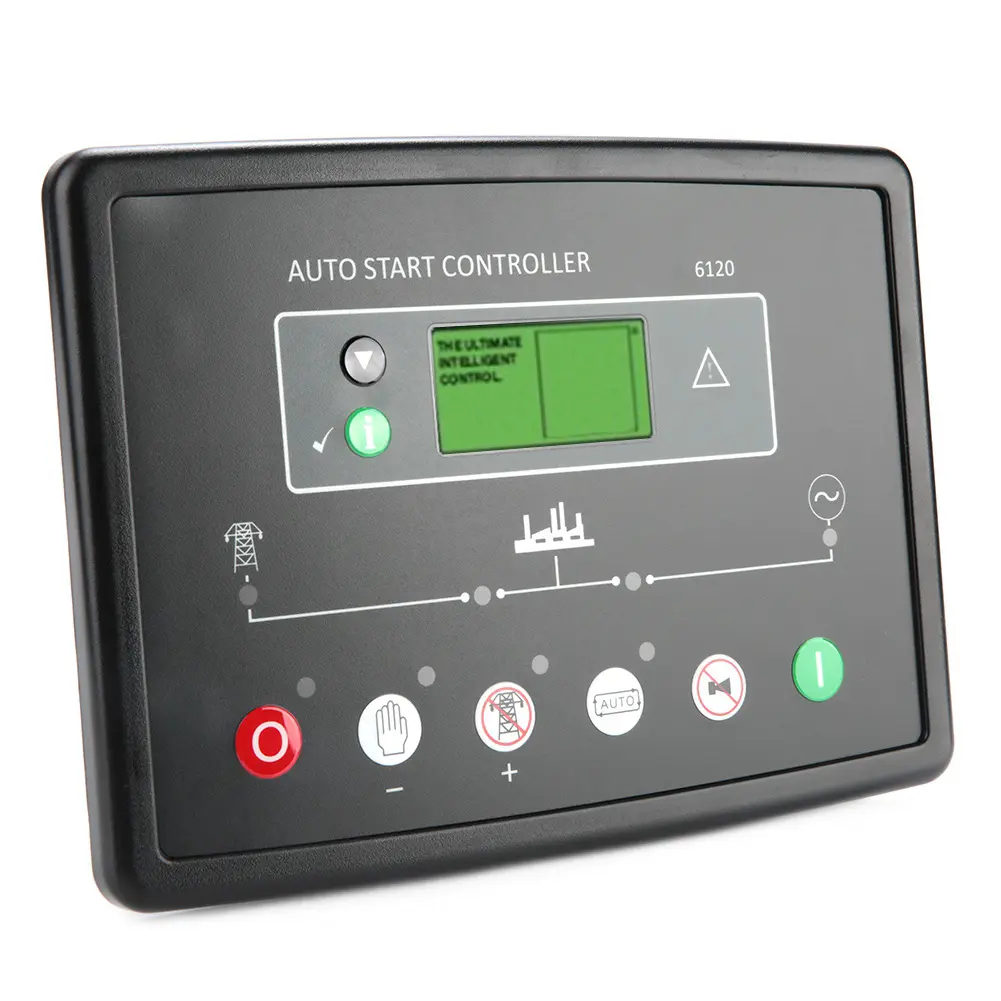

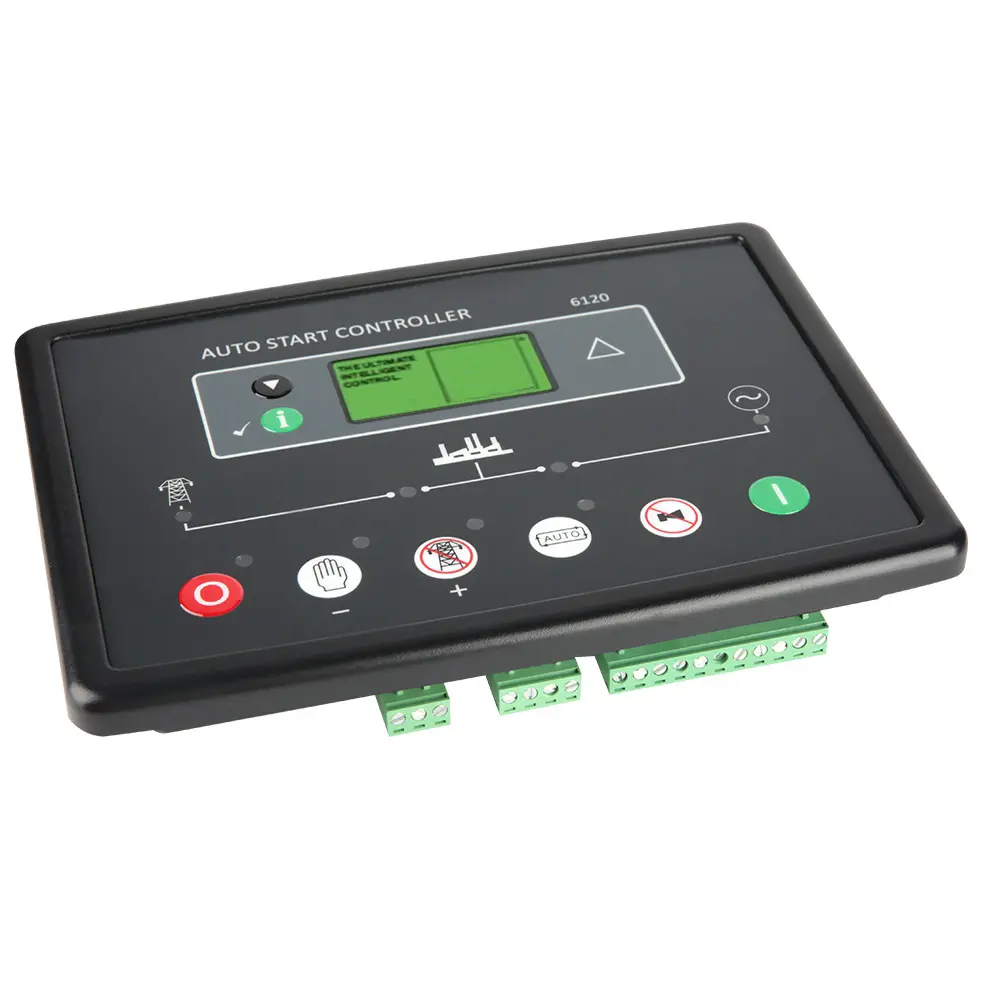

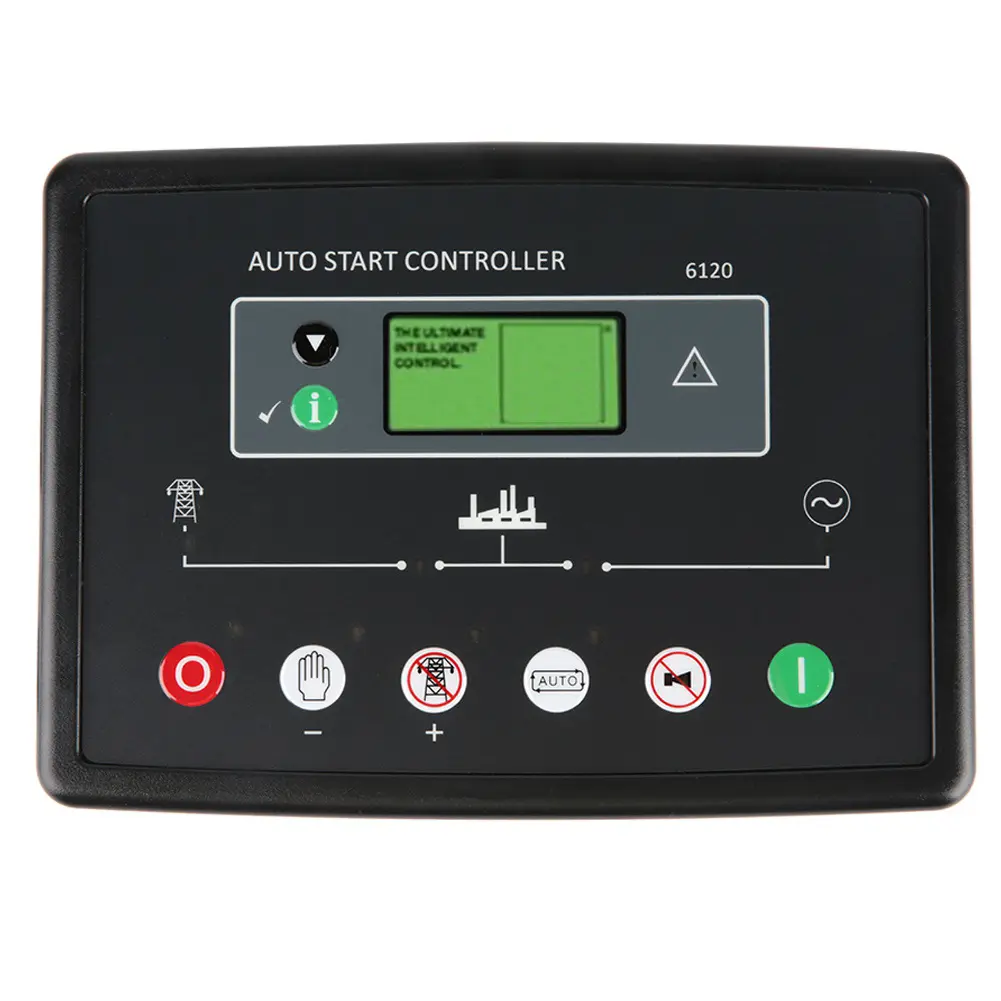

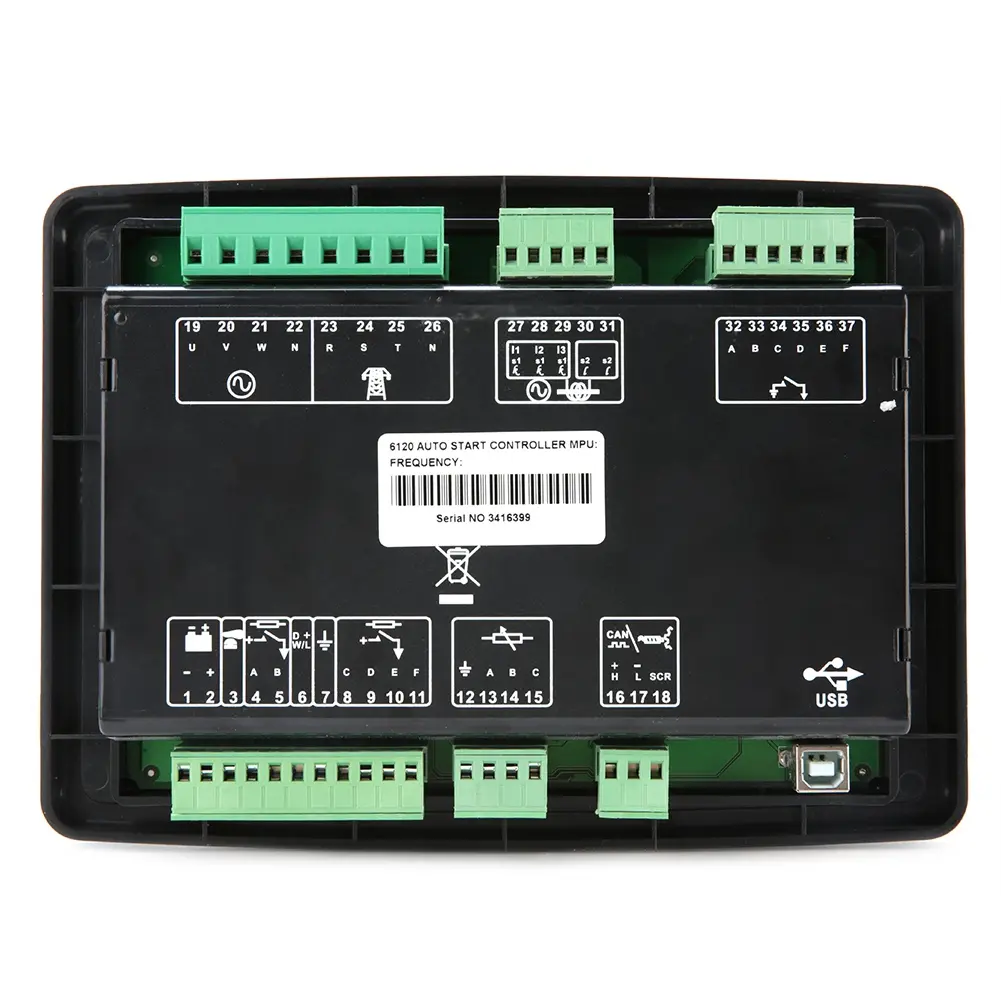

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>DSE6120 Deep Sea Electronic Generator Controller Module Control Panel LCD Display</b><br/></p><div style="font:Arial;font-size:16px;"><p><br/></p><b>Features:</b><br/>Support for 0-10 V & 4-20mA oil pressure senders. <br/>Provides flexibility for use with multiple sensors and engine types. <br/>Heated display option. <br/>Ensures the display continues to operate in extreme cold weather conditions. <br/>3-phase generator sensing. <br/>Provides true generator sensing. <br/>3-phase mains (utility) monitoring. <br/>Provides true generator and mains (utility) sensing. <br/>Generator/load current monitoring & protection. <br/>Provides convenience of monitoring and protection of the generator or monitoring of the load current. <br/>Configurable analogue/digital inputs (9). <br/>Provides multiple installation options. <br/>Configurable DC, volt-free and staged loading outputs (6). <br/>Provides full generator load control. <br/>CAN, MPU & alternator speed sensing (selectable depending on engine type). <br/>Ensures the module can be used with a wide number of engine types. <br/>Tier 4 CAN engine support. <br/>Ensures the control module can be used with the latest in modern electronic engine technology. <br/>Configurable event log (100). <br/>Provides access to historical alarms and operational status. <br/>DSE Configuration Suite PC Software. <br/>Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring. <br/>Fuel and start outputs (configurable on CAN). <br/>Provides multiple installation options. <br/>DSE6120 AMF module is used for single generator set.LCD display screen can display Chinese. <br/>The module can be used in electric and non-electric regulating units to provide more advanced engine monitoring and protection functions. <br/>The module has a backlit LCD display that clearly shows the running state of the engine at any time. <br/>The module can monitor the speed, frequency, voltage, current, oil pressure, water temperature and oil level. <br/>The module can display engine alarm and has automatic stop protection. <br/>The module includes 6 digital input, 3 analog input and 6 digital output. <br/>MPU version configuration 2-way output, CAN version configuration 6-way output. <br/>Users can use the front panel button to set the module's data, or other settings software to set it.<br/><br/></div><div style="font:Arial;font-size:16px;"><b>Specification:</b><br/>Material: Plastic<br/>Weight: 526g/18.6oz  <br/>Model: DSE6120<br/>DC Supply: continuous voltage rating 8 V to 35 V Continuous<br/>Cranking Dropouts: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.<br/>Maximum Operating Current: 100 mA at 12 V, 105 mA at 24 V<br/>Maximum Standby Current: 60 mA at 12 V, 55 mA at 24 V<br/>Maximum Sleep Current:40 mA at 12 V, 35 mA at 24 V<br/>Generator & Mains(Utility):<br/>Voltage Range: 15 V to 415 V AC (Ph to N); 26 V to 719 V AC (Ph to Ph)<br/>Frequency Range: 3.5 Hz to 75 Hz<br/>Inputs: Digital Inputs A to F, negative switching analogue input A<br/>Configurable as:<br/>Negative switching digital input<br/>0 V to 10 V<br/>4 mA to 20 mA<br/>0 Ω to 240 Ω<br/>Analogue Inputs B to D<br/>Configurable as: Negative switching digital input 0 Ω to 480 Ω<br/>Outputs:<br/>Output A (Fuel)<br/>10 A short term, 5 A continuous,<br/>at supply voltage<br/>Output B (Start)<br/>10 A short term, 5 A continuous,<br/>at supply voltage<br/>Auxiliary Outputs C, D,  E & F<br/>2 A DC at supply voltage <br/><br/></div><div style="font:Arial;font-size:16px;"><b>Package List:</b><br/>1 x Generator Controller<br/>2 x Set Screws<br/><p><br/></p></div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
