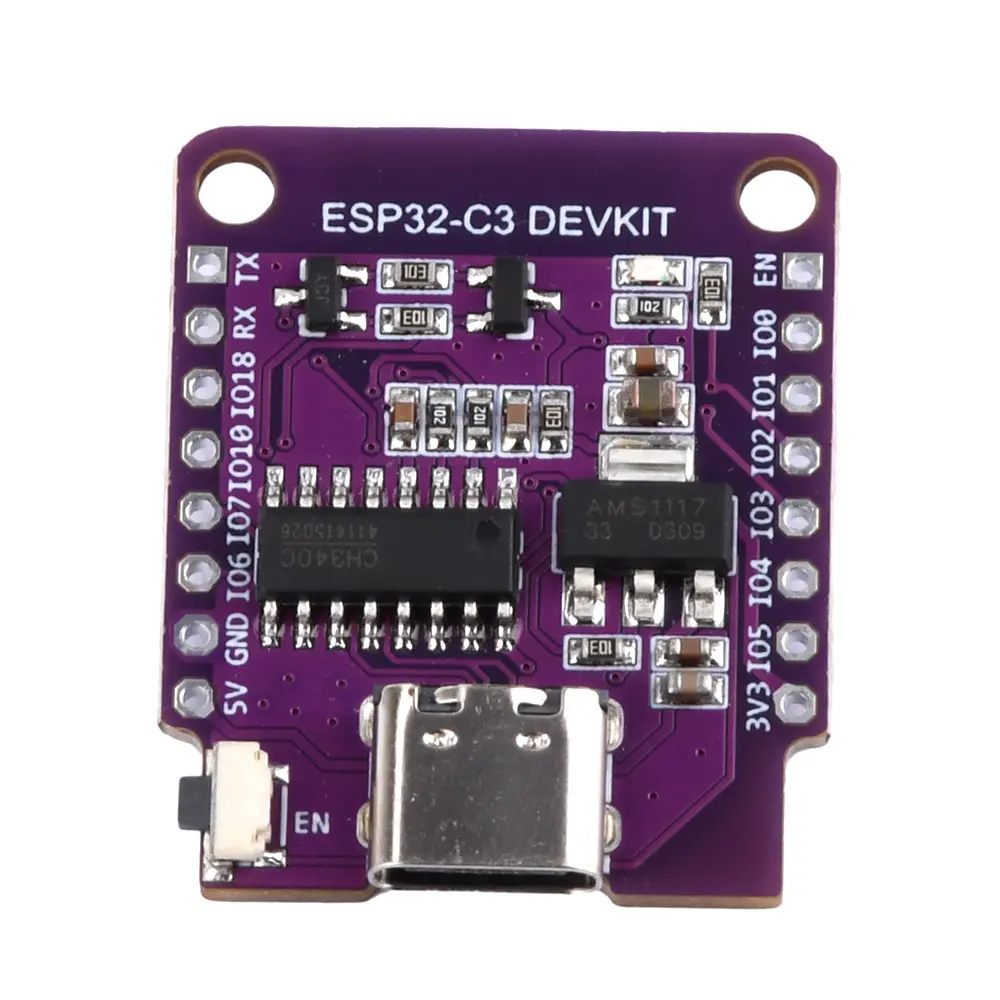

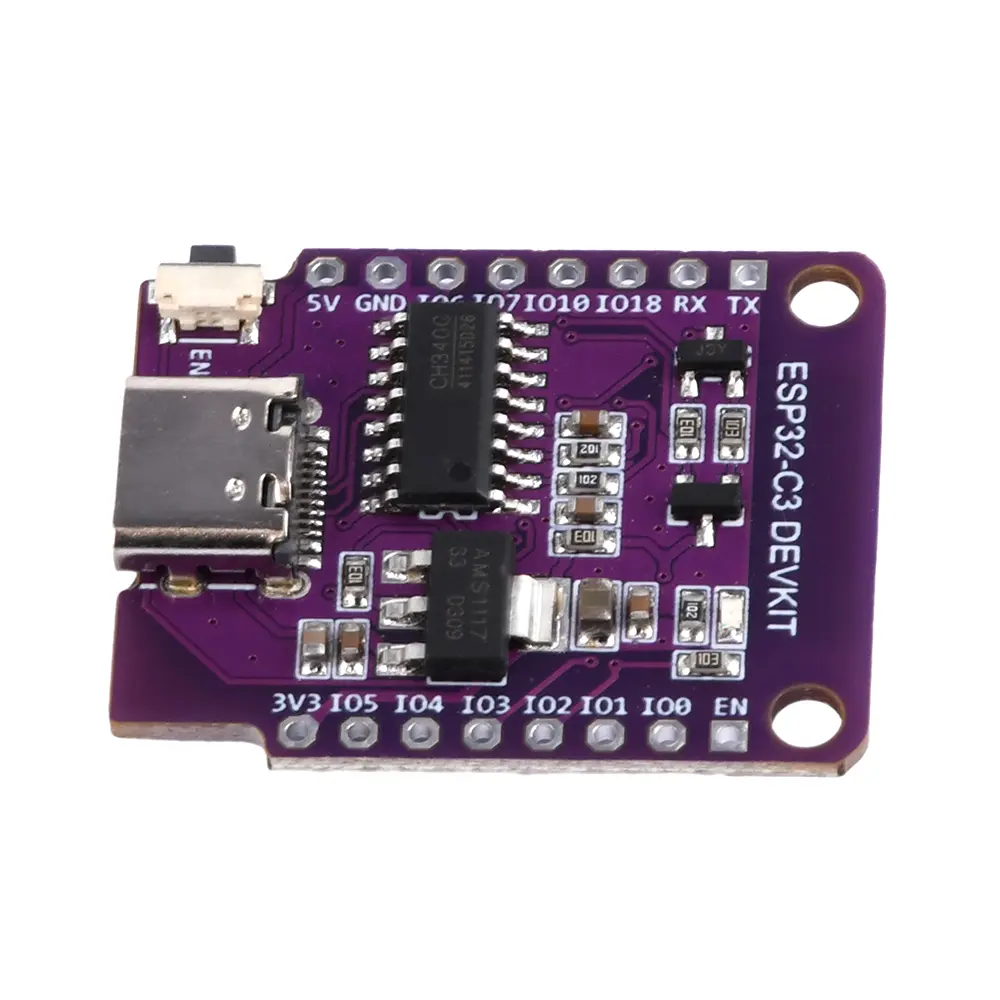

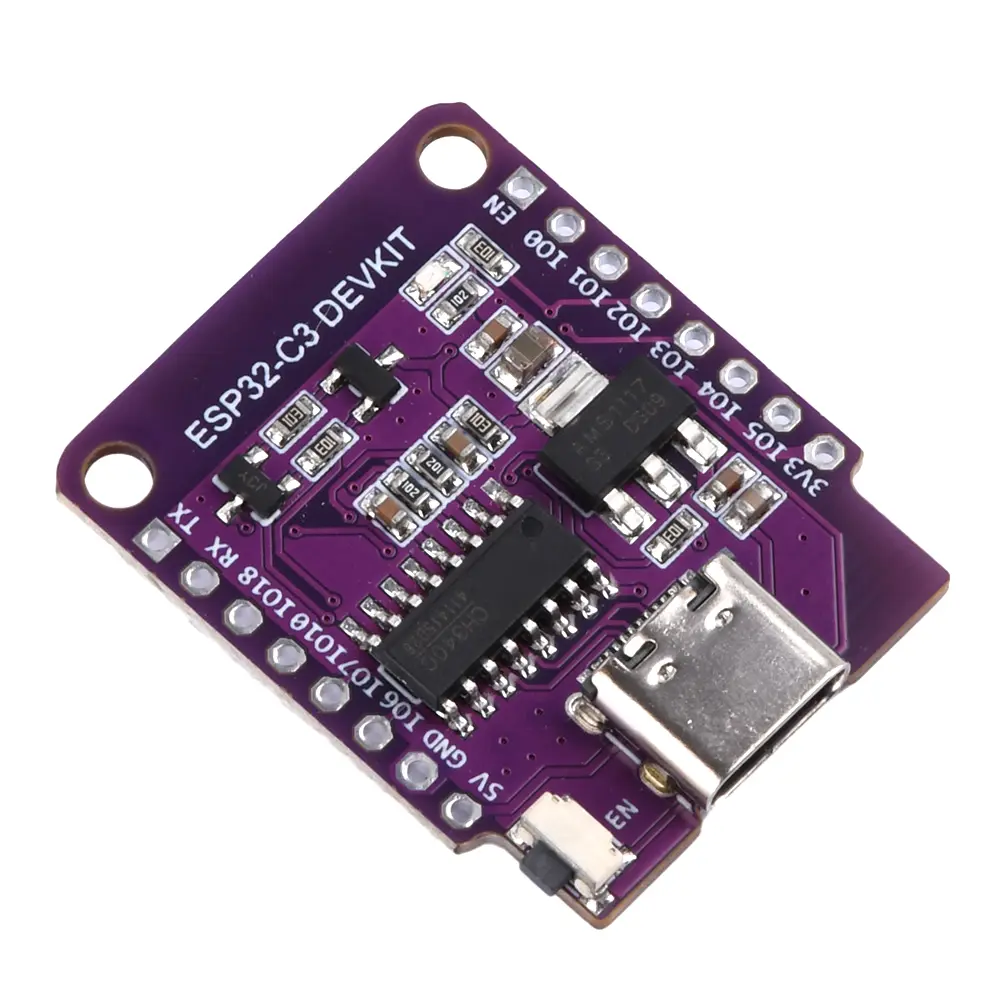

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004114844" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Product features:</div><div> </div><div>ESP32-C3 adopts a secure, low-power, and low-cost RISC-V MCU, supporting 2.4 GHz Wi Fi and BT 5 (LE) to meet the functional requirements of various common IoT products.</div><div> </div><div>2. Stable performance, this product uses ESP32-C3FN4 chip and built-in ESP32-C3-MINI module module with 4 MB flash stack.</div><div> </div><div>3. Equipped with RISC-V 32-bit single core processor, it provides industry-leading RF performance, comprehensive security mechanisms, and abundant memory resources for IoT products.</div><div> </div><div>4. The dual support of ESP32-C3 for Wi Fi and BT 5 (LE) reduces the difficulty of device distribution network and is suitable for a wide range of IoT application scenarios.</div><div> </div><div>ESP32-C3-MINI-1 is a universal Wi Fi low-power Bluetooth module with a small size and rich peripheral interfaces, which can be used in smart homes, industrial automation, medical electronics and other fields.</div><div> </div><div> </div><div> </div><div>Performance parameters:</div><div> </div><div>Interface: TYPE-C</div><div> </div><div>Module model: ESP32-C3-MINI-1</div><div> </div><div>Built in chip model: ESP32-C3FN4</div><div> </div><div>Built in SRAM: 400 KB</div><div> </div><div>Built in ROM: 384 KB</div><div> </div><div>External Flash Expansion: 4MB</div><div> </div><div>Size: 31.5mm * 25.8mm</div><div> </div><div>Wi-Fi：</div><div> </div><div>*Supports IEEE 802.11 blg/n protocol</div><div> </div><div>*Supports 20MHz and 40MHz bandwidth in the 2.4 GHz band</div><div> </div><div>*Supports 1T1R mode with a data rate of up to 150 Mbps</div><div> </div><div>*Wireless Multimedia (WMM)</div><div> </div><div>*Frame Aggregation (TX/RX A-MPDU, TX/RX A-MSDU)</div><div> </div><div>*Immediate BlockACK</div><div> </div><div>*Fragmentation and reassembly</div><div> </div><div>*Transmission Opportunity (TXOP)</div><div> </div><div>*Beacon automatic monitoring (hardware TSF)</div><div> </div><div>*4 x Virtual Wi Fi Interface</div><div> </div><div>*Simultaneously supporting Infrastructure BsS station mode, SoftAP mode, Station+softAP mode, and hybrid mode. Please note that when ESP32-C3 series chips scan in Station mode, the SoftAP channel will change simultaneously</div><div> </div><div>*Antenna diversity</div><div> </div><div>*802.11 mc FTM · Supports external power amplifier</div><div> </div><div>Bluetooth:</div><div> </div><div>*Low power Bluetooth (BT LE): BT 5, BT mesh</div><div> </div><div>*High power mode (18 dBm)</div><div> </div><div>*Supports speeds of 125 Kbps, 500 Kbps, 1 Mbps, and 2 Mbps with Advertising Extensions</div><div> </div><div>*Multiple Advertising Sets</div><div> </div><div>*Channel Selection Algorithm # 2</div><div> </div><div>*Wi Fi and Bluetooth coexist, sharing the same antenna</div><div> </div><div>CPU and Storage:</div><div> </div><div>*32-bit RISC-V single core processor with a clock speed of up to 160 MHz</div><div> </div><div>*CoreMarkR score:</div><div> </div><div>*Single core 160MHz: 407.22coreMark; 2.55； CoreMark/MHz. 384 KB ROM</div><div> </div><div>*400 KB SRAM (of which 16 KB is dedicated to cache)</div><div> </div><div>*8KB RTC SRAM</div><div> </div><div>*Embedded flash - SPI, Dual SPI, Quad SPI, QPI interface with multiple external flash devices</div><div> </div><div>*Accelerate flash access through cache</div><div> </div><div>*Support Flash in Circuit Programming (ICP)</div><div> </div><div>Advanced peripheral interfaces and sensors:</div><div> </div><div>*22xGPIO port</div><div> </div><div>*Digital interface:</div><div> </div><div>- 3× SPI</div><div> </div><div>-2 × UART</div><div> </div><div>- 1× l2C- 1 ×l2S</div><div> </div><div>*Infrared transceiver, 2 transmission channels and 2 reception channels</div><div> </div><div>*LED PWM controller with up to 6 channels</div><div> </div><div>*Full speed USB serial port/JTAG controller</div><div> </div><div>*Universal DMA Controller (GDMA), 3 receive channels and 3 send channels -1 x TWAIR controller, compatible with IS011898-1 (CAN specification 2.0)</div><div> </div><div>*Simulation interface:</div><div> </div><div>-2 × 12 bit SAR analog-to-digital converter with up to 6 channels</div><div> </div><div>-1 x temperature sensor</div><div> </div><div>*Timer:</div><div> </div><div>-2 × 54 bit universal timer</div><div> </div><div>-3 x watchdog timer</div><div> </div><div>-1 × 52 bit system timer</div><div> </div><div>Low power management:</div><div> </div><div>*Power management unit, four power consumption mode security mechanisms</div><div> </div><div>*Safe startup</div><div> </div><div>*Flash encryption</div><div> </div><div>*4096 bit OTP, available up to 1792 bits</div><div> </div><div>Encryption hardware accelerator:</div><div> </div><div>-AES-128/256 (FIPS PUB 197)</div><div> </div><div>*Access permission management</div><div> </div><div>*SHA Accelerator (FIPS PUB 180-4)</div><div> </div><div>*RSA Accelerator</div><div> </div><div>*Random Number Generator (RNG)</div><div> </div><div>*KBC · Digital Signature</div><div> </div><div> </div><div> </div><div>Product Introduction:</div><div> </div><div> </div><div> </div><div>The ESP32-C3-MINI-1 module adopts a PCB onboard antenna and is equipped with 4MB SPI flash. The ESP32-C3-MINI-1 uses the ESP32-C3-FN4 chip, which is equipped with a 32-bit RISC-V single core processor and operates at a frequency of up to 160MHz.</div><div> </div><div>ESP32-C3 is equipped with RISC-V32 bit single core processor, with a clock frequency of up to 160 MHz. It has 22 programmable GPIO pins, built-in 400 KB SRAM, and supports multiple external flashes through SPI, Dual SPI, Quad SPI, and QPI interfaces to meet the functional requirements of various IoT products. In addition, the high temperature resistance of ESP32-C3 also makes it an ideal choice for lighting and industrial control fields.</div><div> </div><div>ESP32-C3 integrates 2.4 GHz Wi Fi and supports long-range Bluetooth 5 (LE), which helps build IoT devices with wider coverage and stronger RF performance. It also supports Bluetooth Mesh protocol and Wi Fi Mesh, maintaining excellent RF performance even at higher operating temperatures.</div><div> </div><div>ESP32-C3 supports secure boot based on RSA-3072 algorithm and flash encryption based on AES-128-XTS algorithm to ensure secure device connection; Innovative digital signature modules and KBC modules ensure device identity security; Hardware accelerators that support encryption algorithms ensure secure data transmission between devices on local networks and the cloud.</div><div> </div><div>ESP32-C3 adopts the mature IoT development framework ESP-IDF. ESP-IDF has successfully empowered billions of IoT devices and undergone rigorous testing and release cycles. Developers, based on their mature software architecture and familiarity with APIs and tools, will find it easier to build ESP32-C3 applications or migrate programs.</div><div> </div><div>ESP32-C3 also supports working in slave mode and can provide Wi Fi and Bluetooth LE connectivity for external host MCUs through ESP-AT and ESP Supported SDK.</div><div> </div><div> </div><div> </div><div>Product List:</div><div> </div><div>1X development board</div><div> </div><div>6X needle arrangement<br/></div></div></div><br/>
